Simpson Hangers | SKU:
THASR422
Simpson Strong-Tie THASR422 Adjustable Truss Hanger (4x22) Skewed Right
$132.18
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THASR422 Description

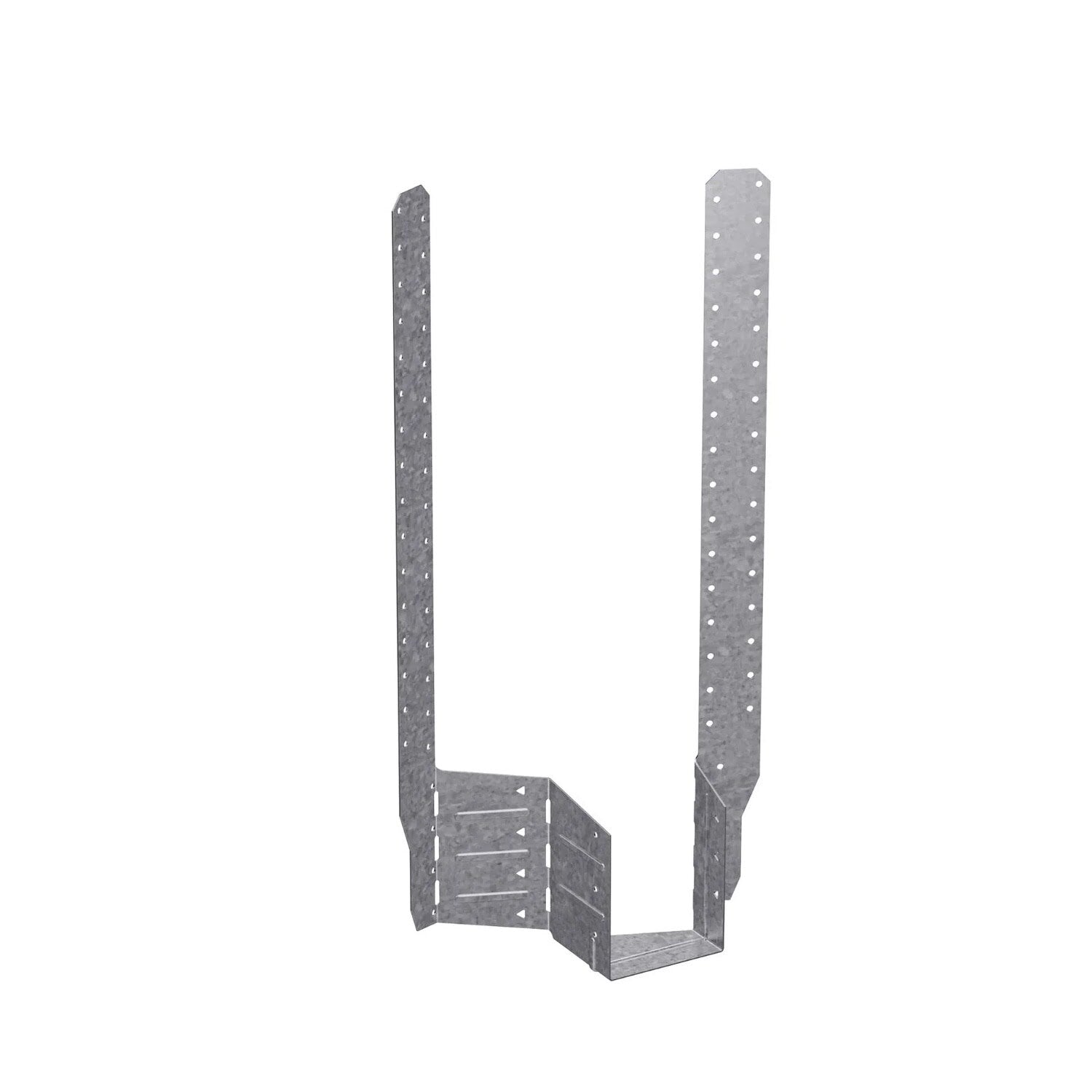

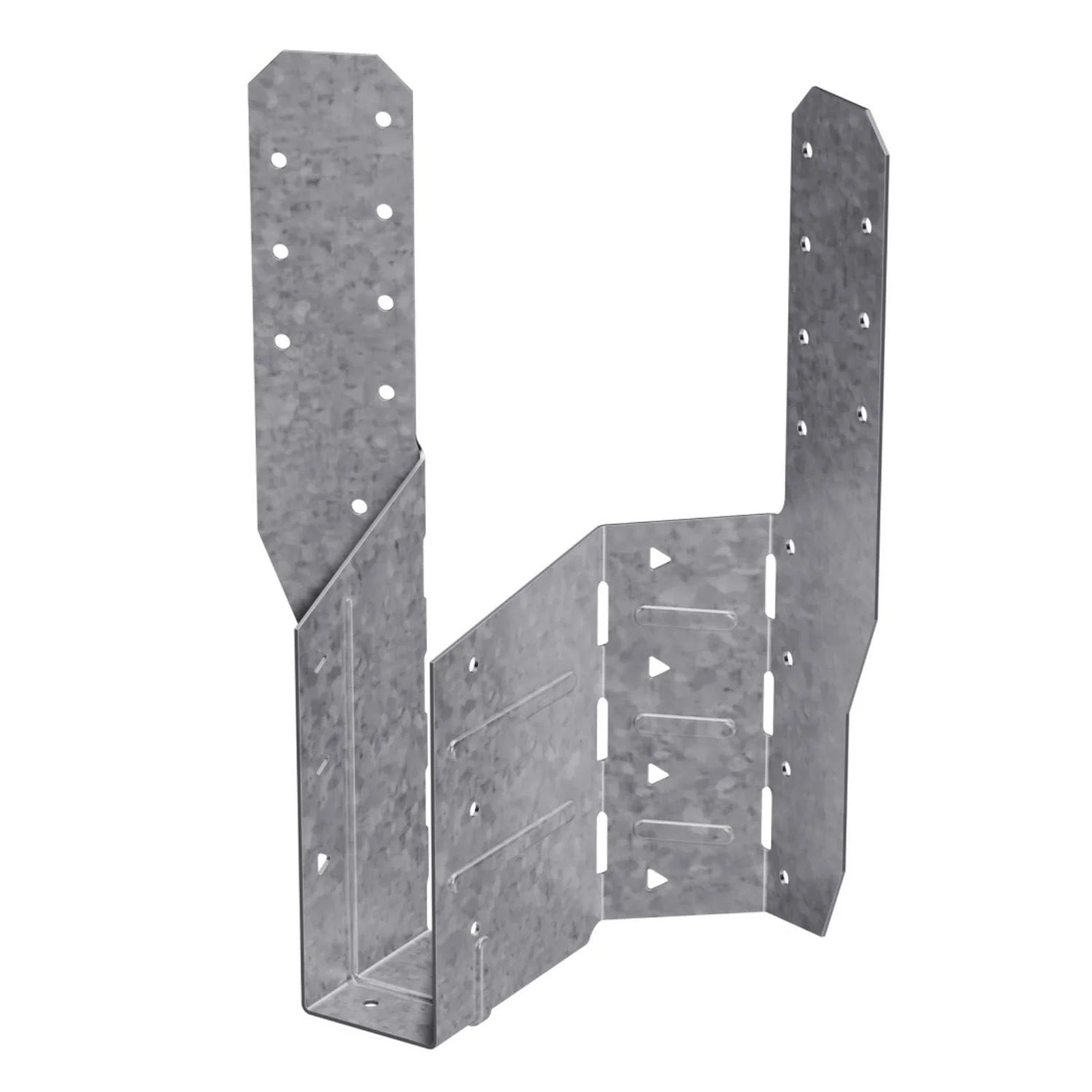

The THASR422 Adjustable Truss Hanger from Simpson Strong-Tie offers height adjustability and field skewability, making it a versatile choice for various construction needs.
Simpson Strong-Tie THASR422 Includes
- (1) THASR422 Adjustable Truss Hanger
Simpson Strong-Tie THASR422 Features
- Height adjustability for versatile applications
- Field skewable from 22 1/2° to 75°
- G90 Galvanized coating for corrosion resistance
- Compatible with hot-dip galvanized fasteners meeting ASTM A153
Simpson Strong-Tie THASR422 Applications

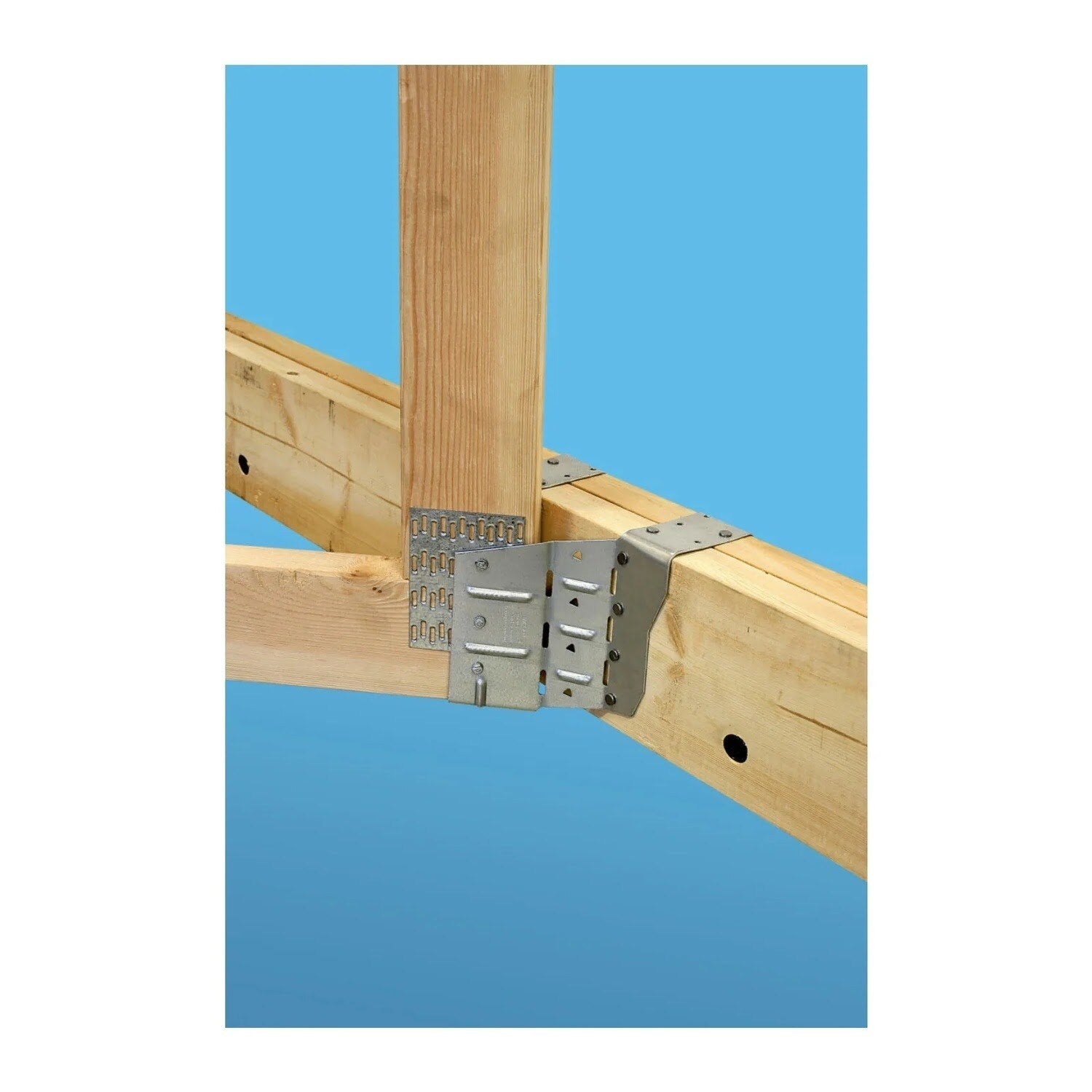

- Truss connections requiring adjustable skew angles
- Construction projects needing height-adjustable hangers
- Use in environments requiring corrosion-resistant materials
Simpson Strong-Tie THASR422 Installation Overview
- Use all specified fasteners.
- Factory skewed to 22 1/2°; can be field skewed up to 75°.
- Fill all triangle holes for 22 1/2° skew installations.
- Fill fastener holes in the bottom of the hanger seat.

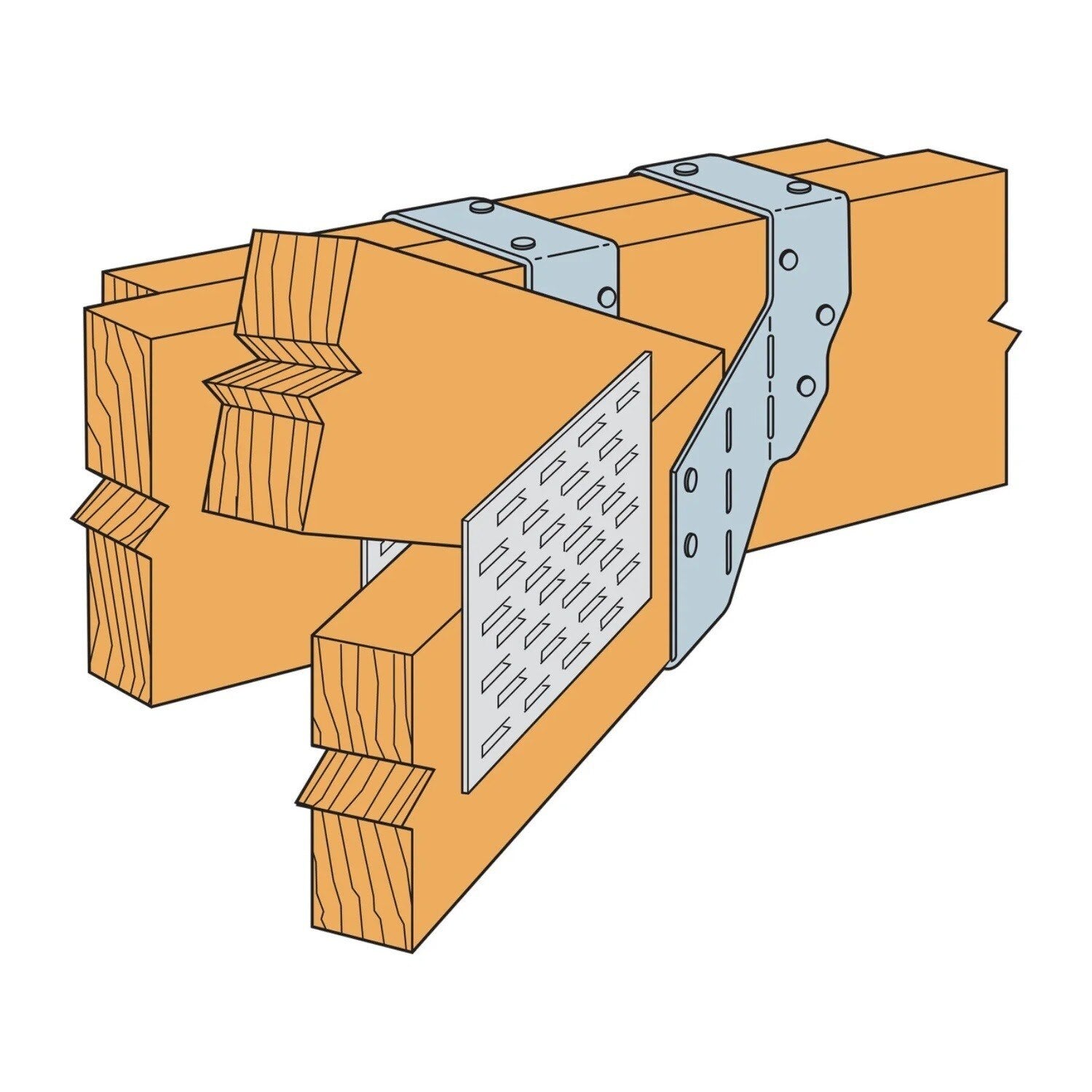

- Field-form straps over the header for top flange installations.
- For face-mount installations, use the lowest holes for carrying member fasteners.
Simpson Strong-Tie THASR422 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 22" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
