Simpson Anchors | SKU:
THD37212CS

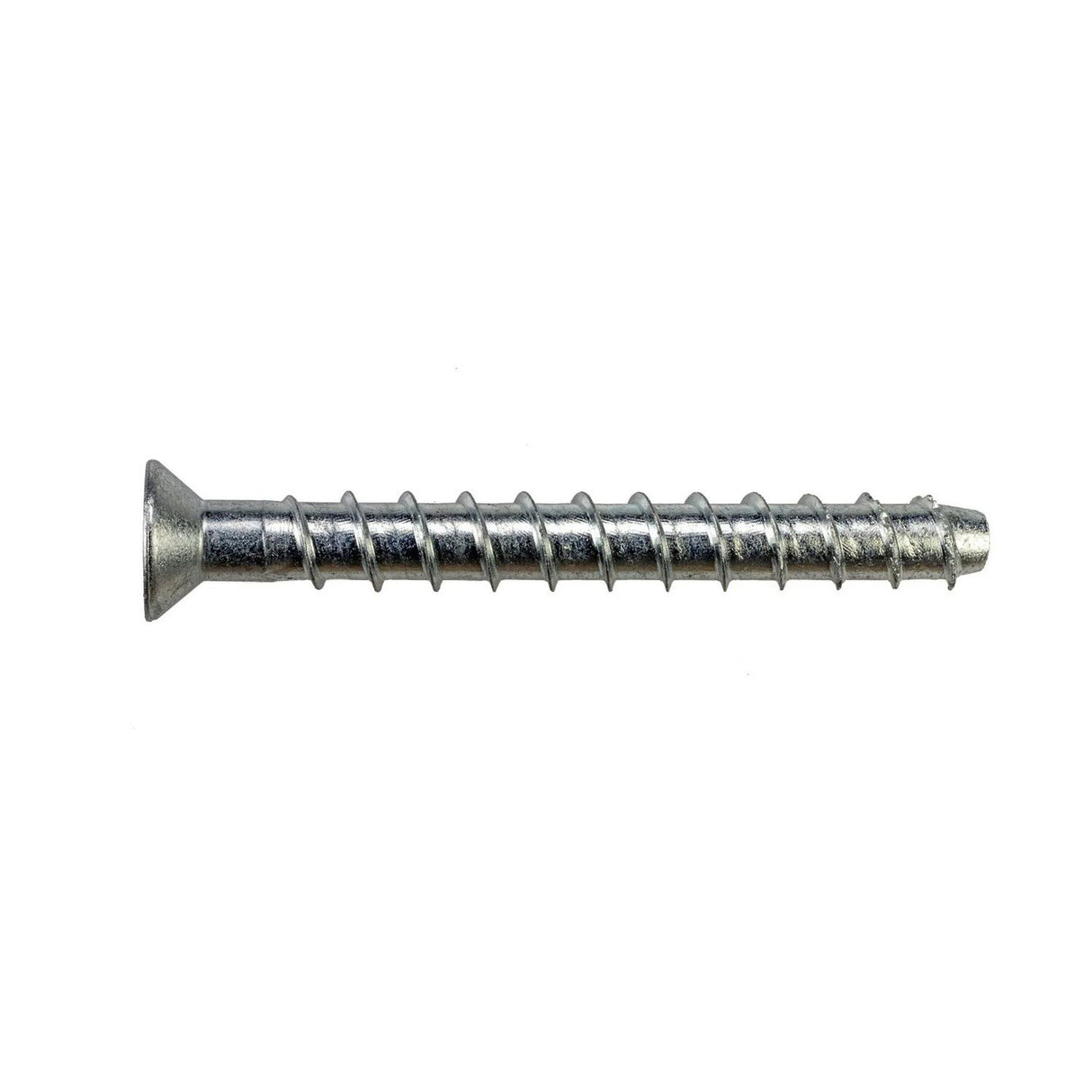

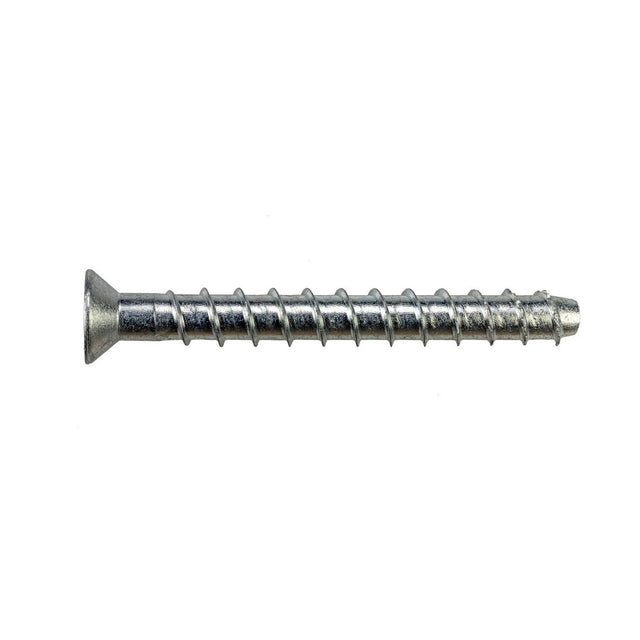

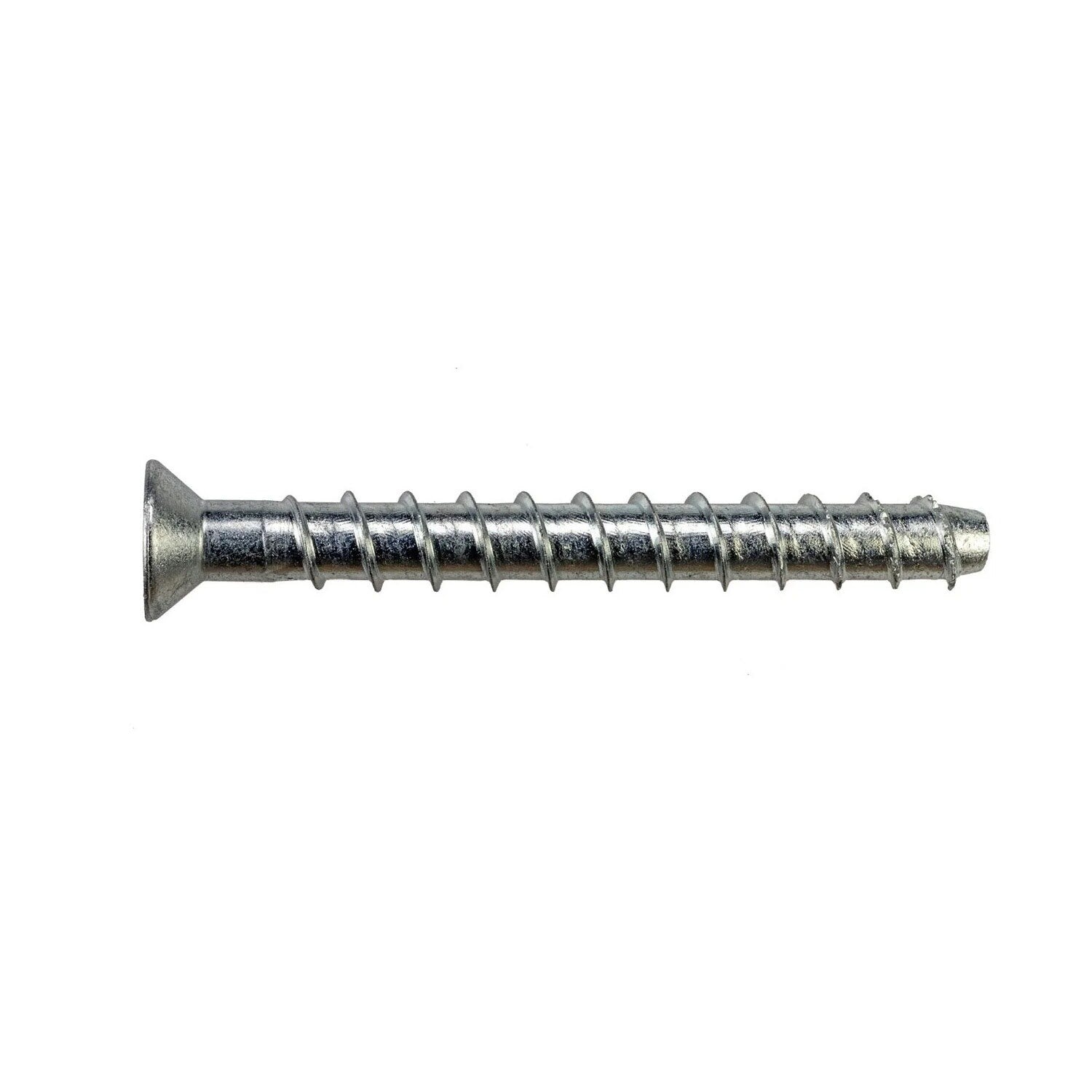

Simpson Strong-Tie THD37212CS Titen HD (3/8" x 2-1/2") Zinc-Plated Countersunk Head HD Screw Anchor (50 Pack)
$68.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD37212CS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation. The countersunk head allows for a flush installation, providing a cleaner look.
Simpson Strong-Tie THD37212CS Includes
- (50) Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor 3/8 in. x 2-1/2 in.
- (1) Driver bit
Simpson Strong-Tie THD37212CS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required
- Removable, ideal for temporary anchoring
- 6-lobe drive reduces driver-bit cam-outs
- Countersunk head allows for flush installation
Simpson Strong-Tie THD37212CS Applications
- Temporary anchoring for fixtures
- Seismic and wind load applications
- Interior, non-corrosive environments

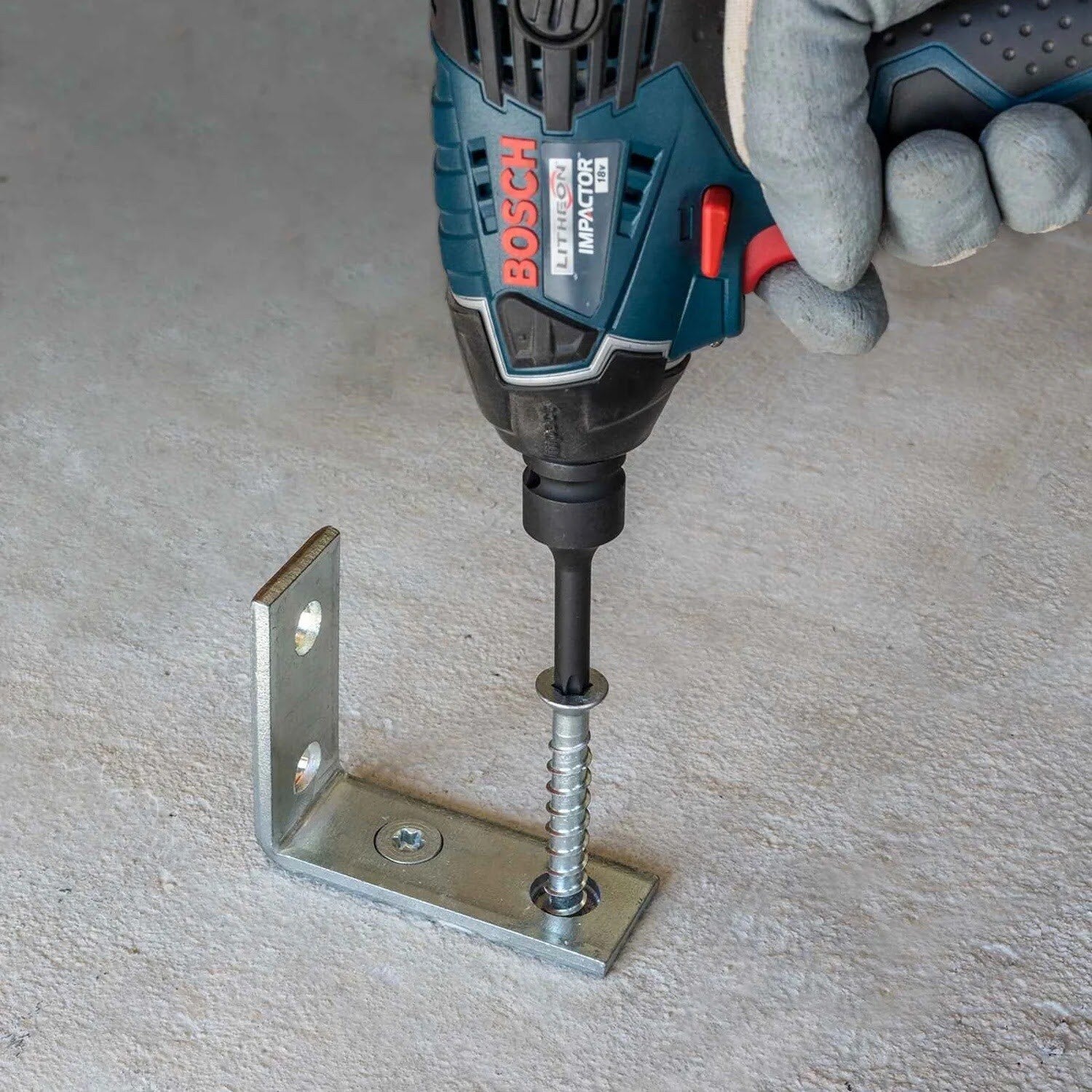

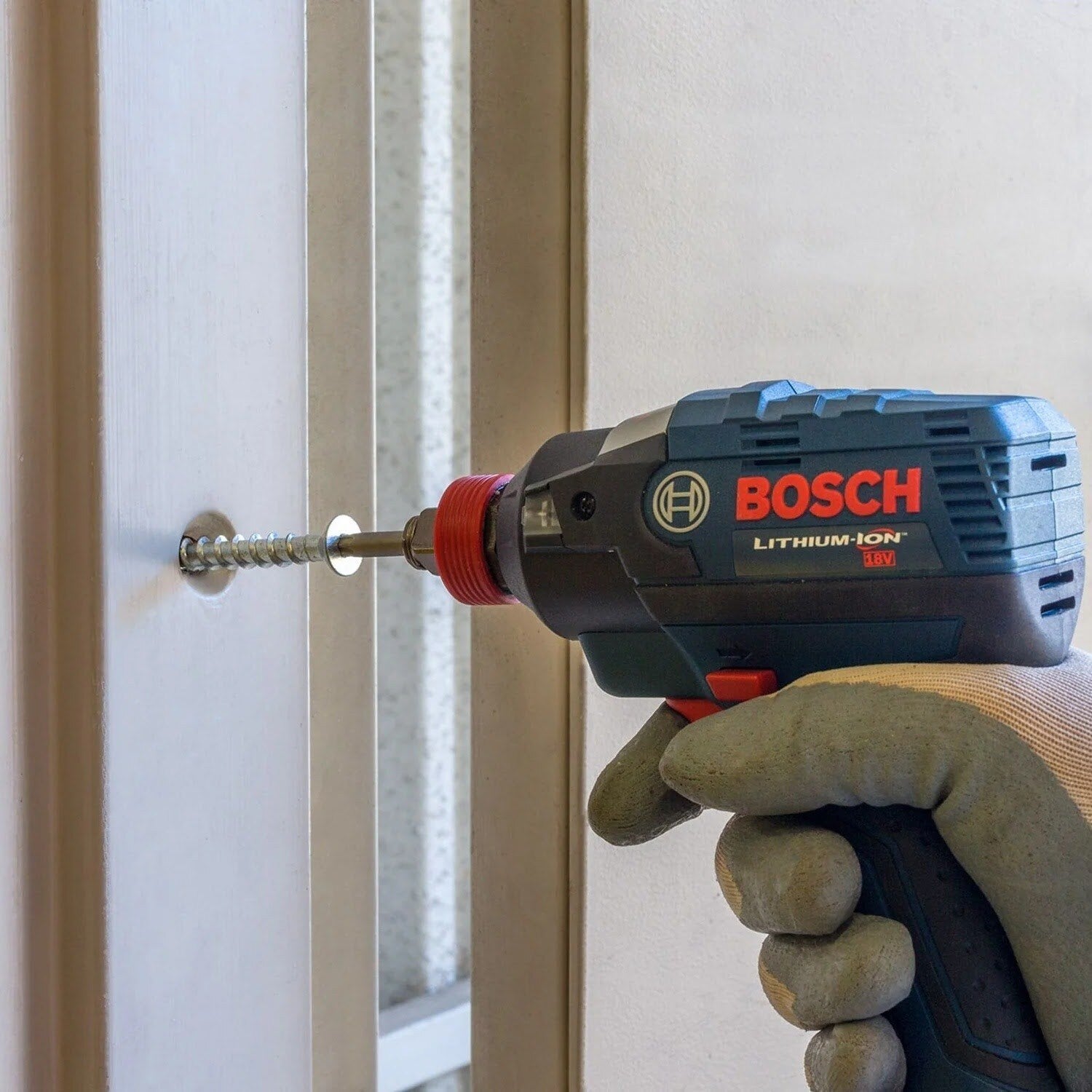

Simpson Strong-Tie THD37212CS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THD37212CS Specifications
| Material | Carbon Steel |
| Finish | Zinc-Plated |
| Diameter | 3/8 in. |
| Length | 2-1/2 in. |
| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2 in. to 9/16 in. |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
