Simpson Anchors | SKU:
THD37212CS6SS
Simpson Strong-Tie THD37212CS6SS Titen HD (3/8" x 2-1/2") Countersunk Head HD SS Screw Anchor - Type 316 (25 Pack)
$144.05
Unit price
/
Unavailable
Description
Description

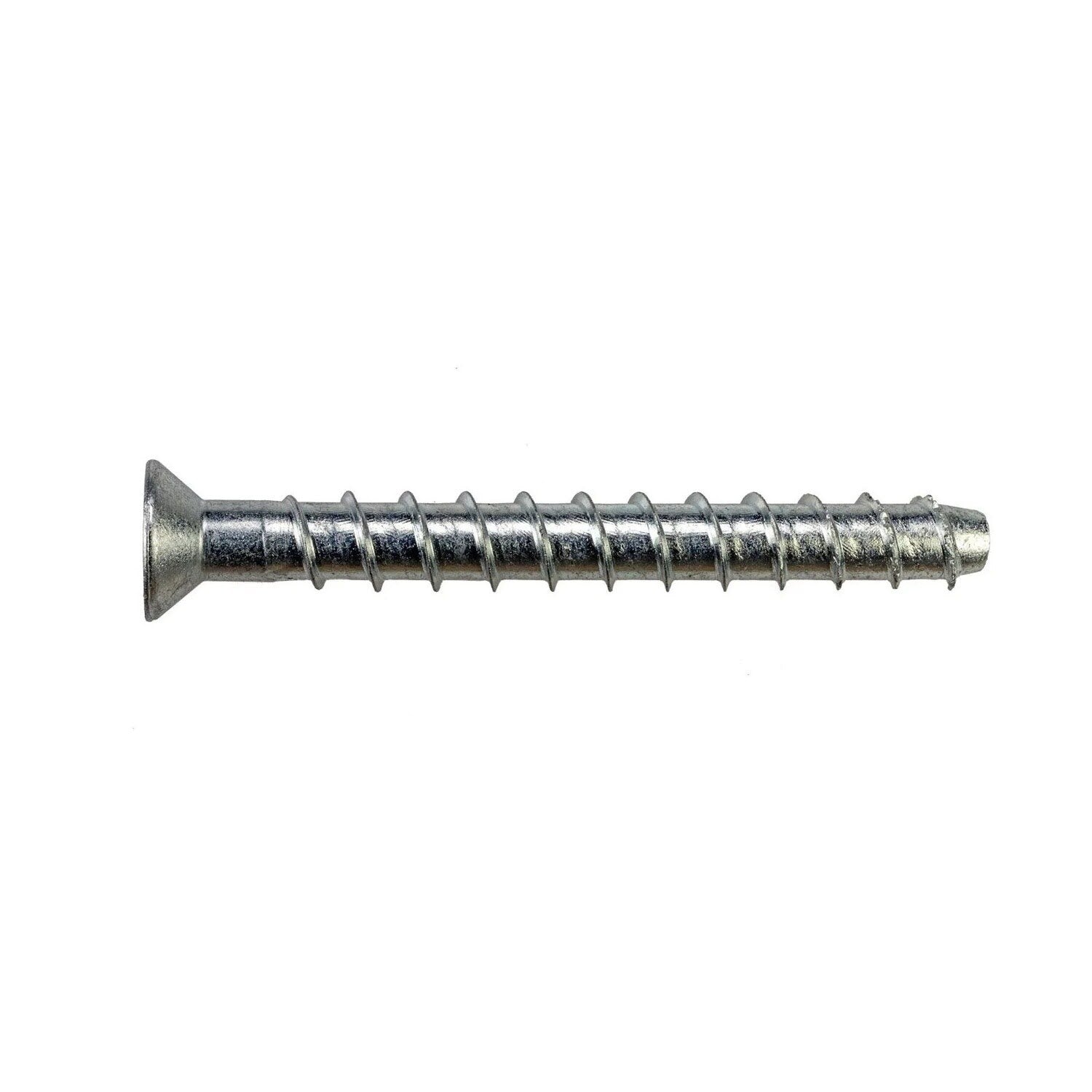

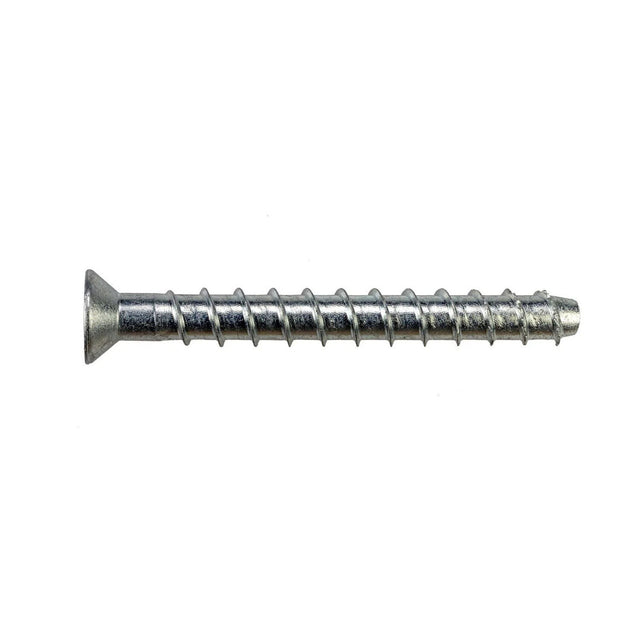

Simpson Strong-Tie THD37212CS6SS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation. The countersunk head allows for a flush installation, providing a cleaner look.
Simpson Strong-Tie THD37212CS6SS Includes
- (25) Titen HD 3/8 in. x 2-1/2 in. Type 316 SS Countersunk Head Heavy-Duty Screw Anchor
- (1) Driver bit
Simpson Strong-Tie THD37212CS6SS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required
- Removable, ideal for temporary anchoring
- 6-lobe drive reduces driver-bit cam-outs
- Countersunk head allows for flush installation
- Available in 1/4" and 3/8" diameters
Simpson Strong-Tie THD37212CS6SS Applications
- Mechanical anchoring for concrete and masonry
- Temporary anchoring for fixtures
- Applications in corrosive environments

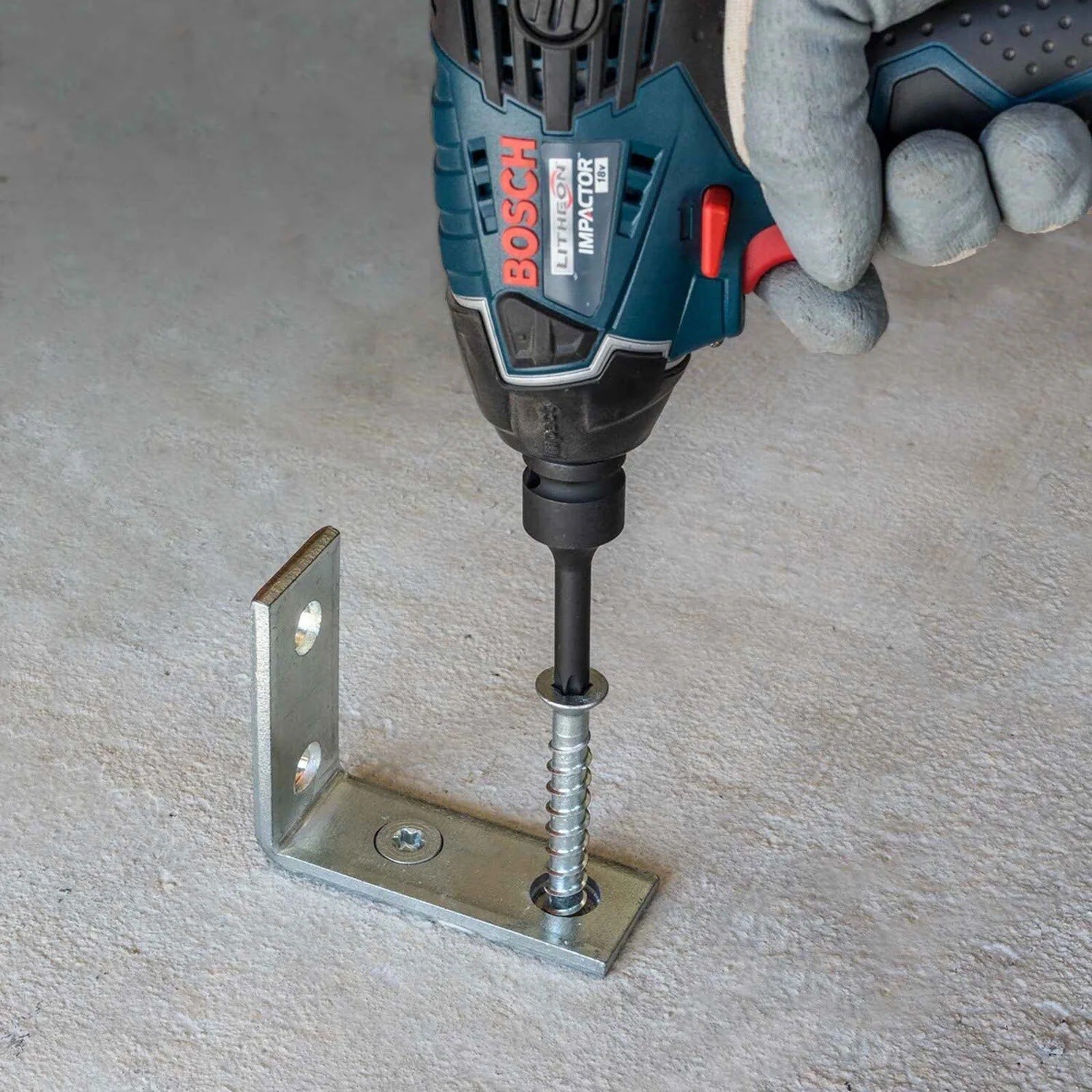

Simpson Strong-Tie THD37212CS6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THD37212CS6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 3/8 in. |
| Length | 2-1/2 in. |
| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2 in. to 9/16 in. |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
