Simpson Anchors | SKU:
THD37300CS

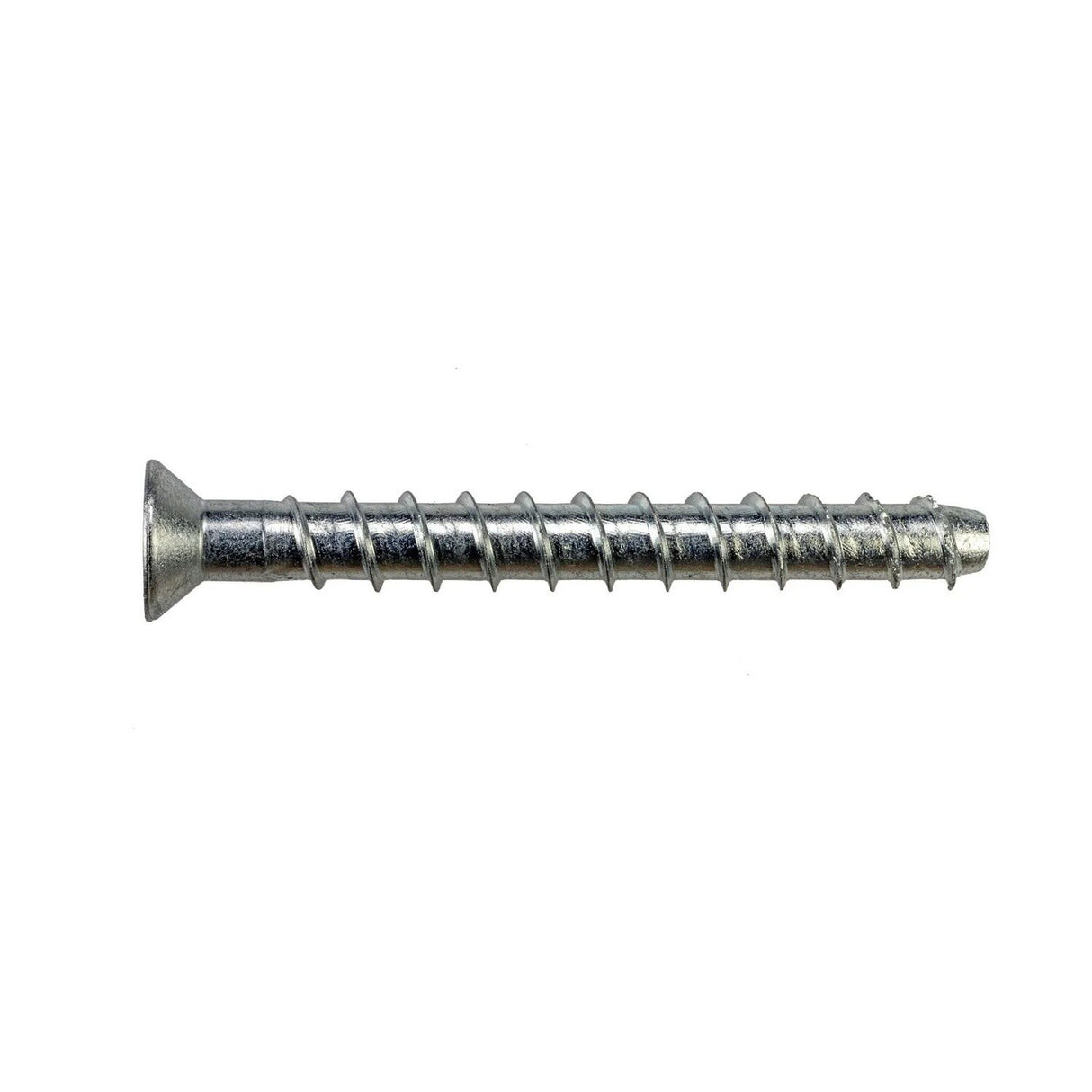

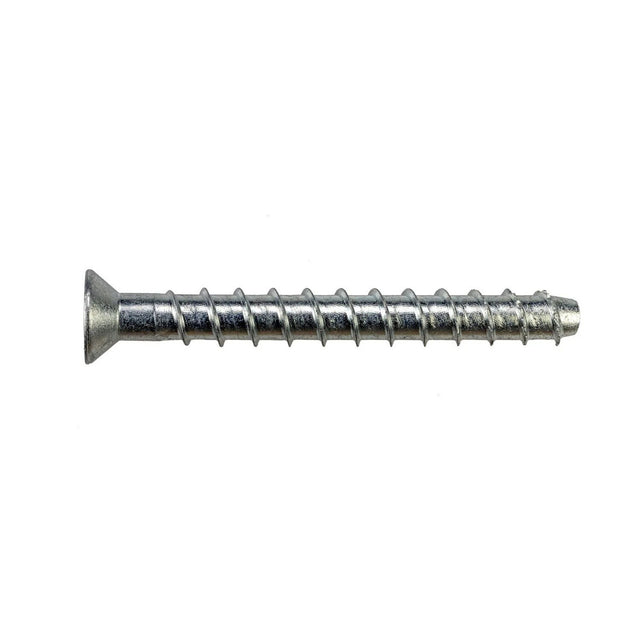

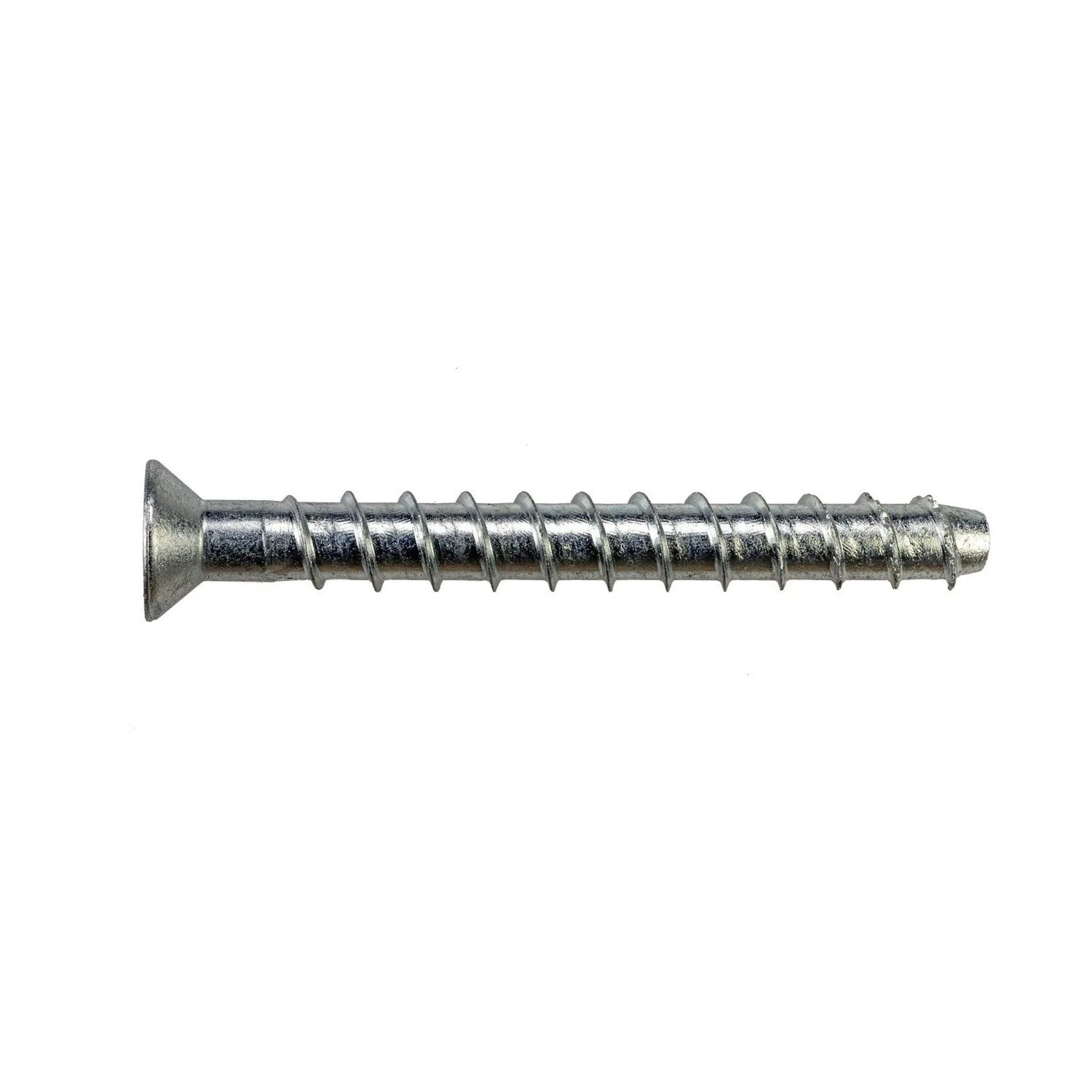

Simpson Strong-Tie THD37300CS Titen HD (3/8" x 3") Zinc-Plated Countersunk Head HD Screw Anchor (50 Pack)
$82.72
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD37300CS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation and reliable performance.
Simpson Strong-Tie THD37300CS Includes
- (50) Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor
- (1) Driver bit
Simpson Strong-Tie THD37300CS Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
- Countersunk head allows screw anchor applications incompatible with a hex head
- Available in 1/4" and 3/8" diameters
Simpson Strong-Tie THD37300CS Applications
- Mechanical anchoring in concrete and masonry
- Temporary anchoring for fixtures
- Interior installations in dry, non-corrosive environments

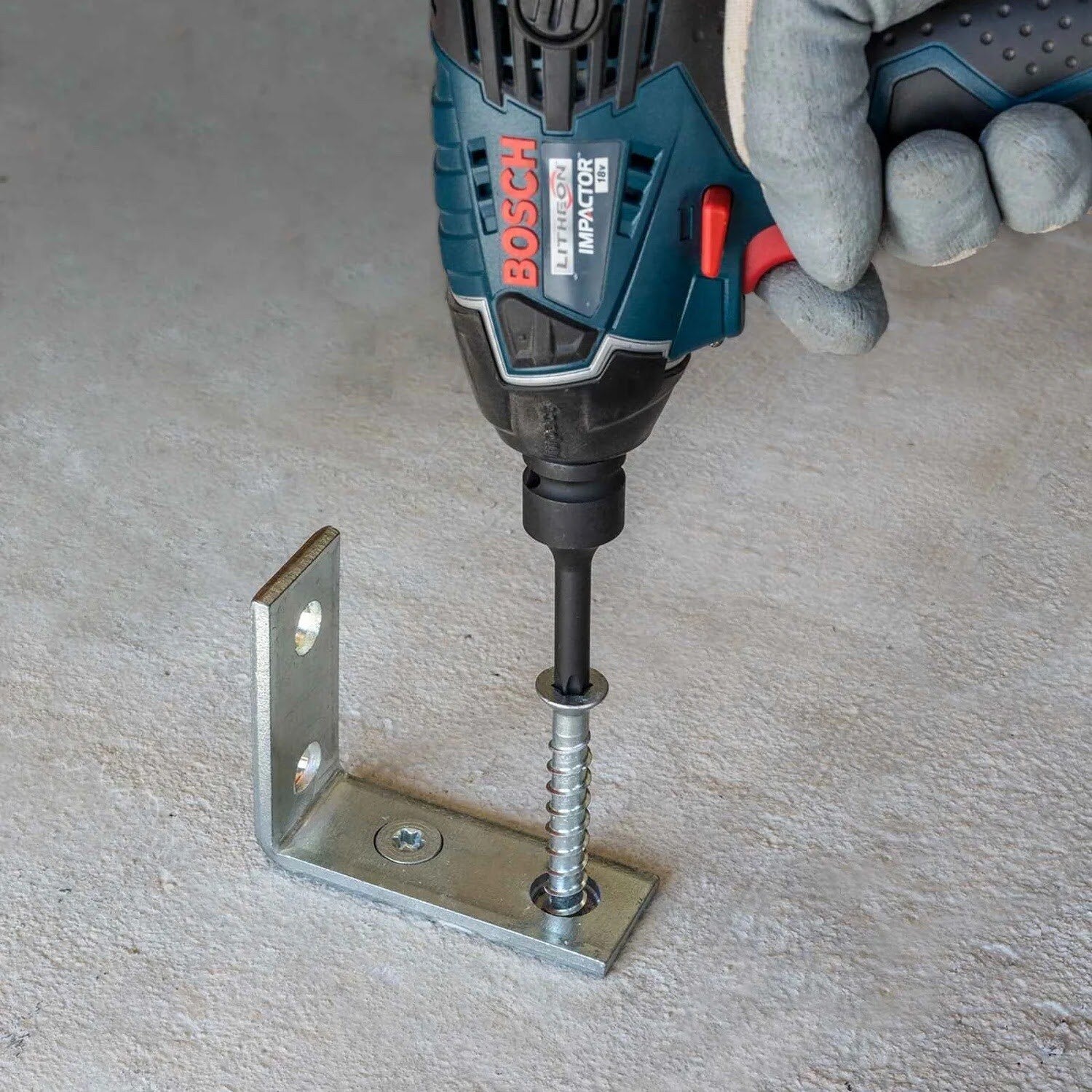

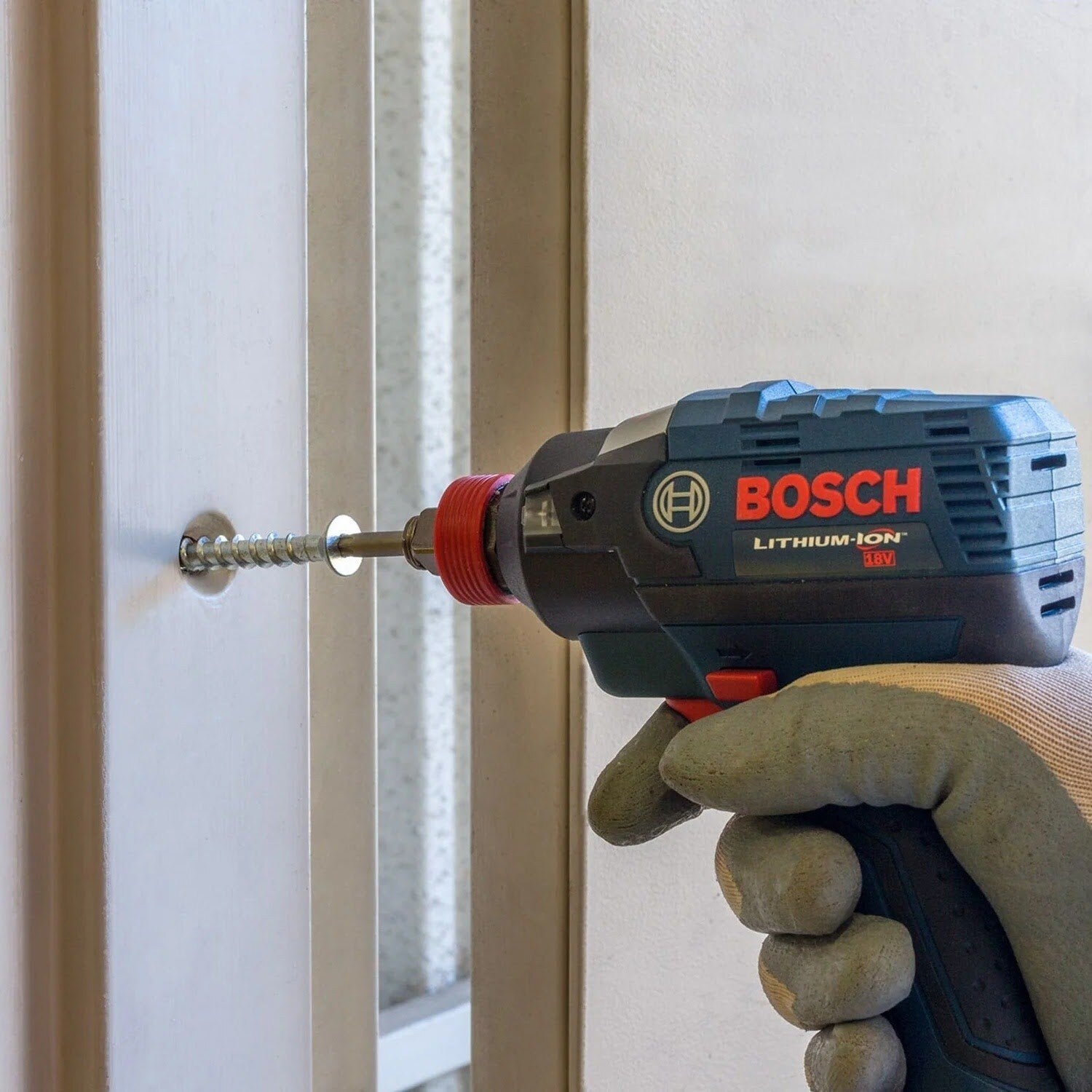

Simpson Strong-Tie THD37300CS Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the bottom of the countersunk head contacts the fixture.
Simpson Strong-Tie THD37300CS Specifications
| Diameter | 3/8" |
| Length | 3" |
| Material | Carbon Steel |
| Finish | Zinc |
| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2" to 9/16" |
| Head Type | Flat Head |
| Quantity | 50 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
