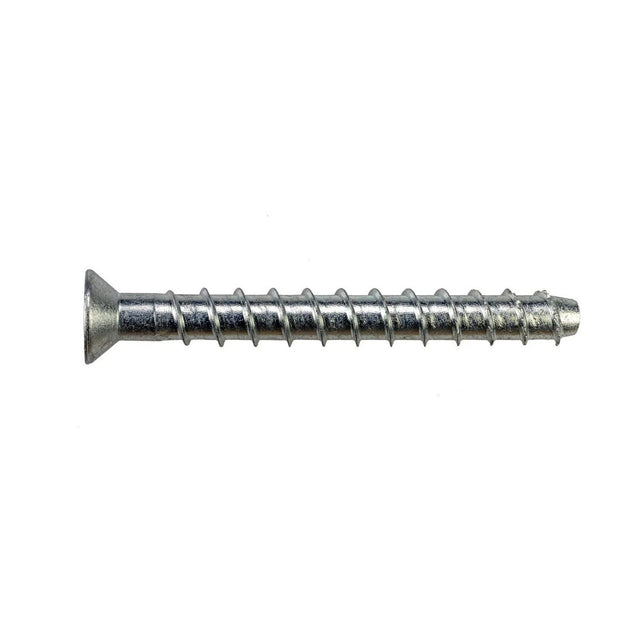

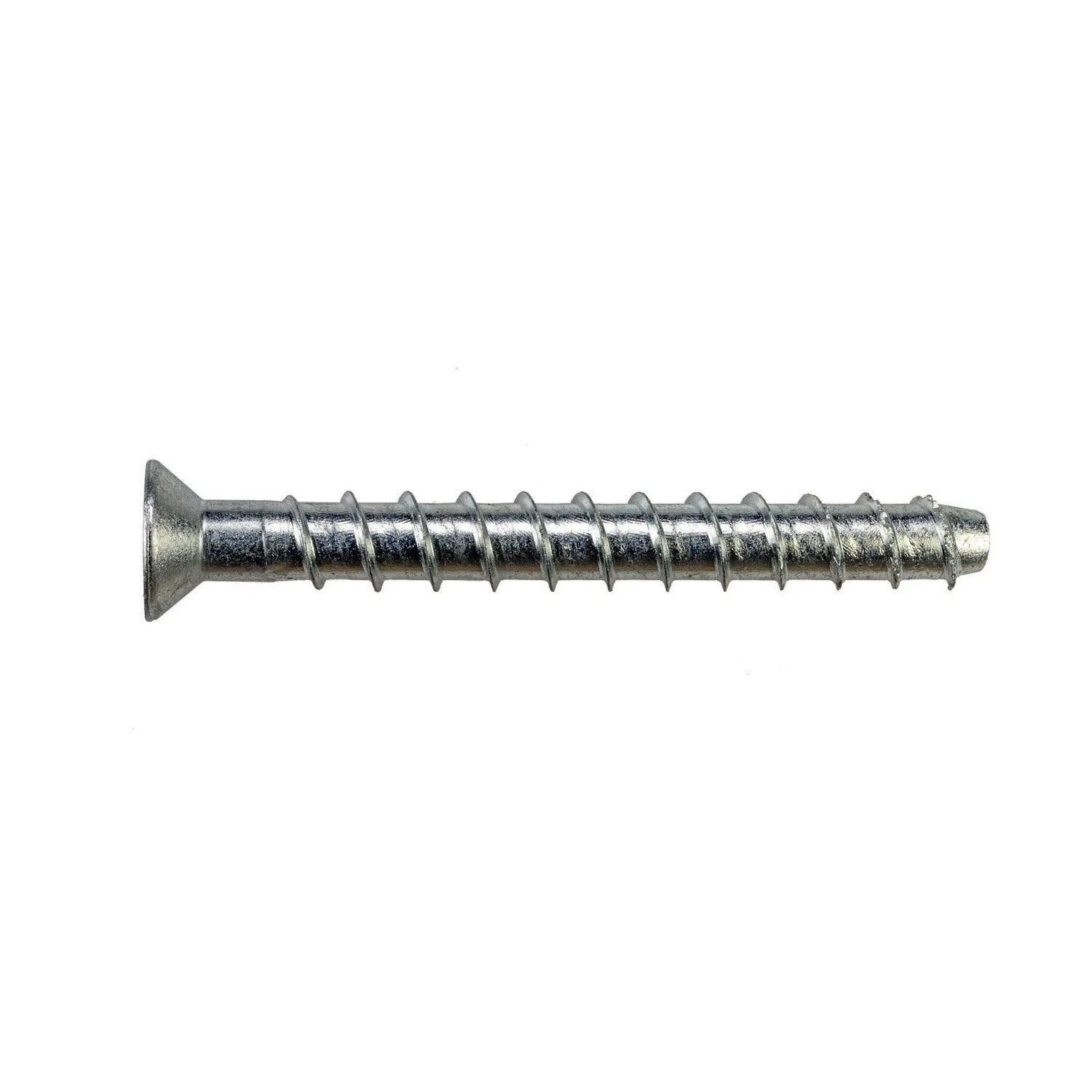

Simpson Strong-Tie THD37300CS6SS Titen HD (3/8" x 3") Countersunk Head HD SS Screw Anchor - Type 316 (25 Pack)
$167.63
Unit price
/
Unavailable
Description
Description
Simpson THD37300CS6SS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation and high corrosion resistance.
Simpson THD37300CS6SS Includes
- (25) 3/8 in. x 3 in. Type 316 SS Countersunk Head Heavy-Duty Screw Anchor
- (1) Driver Bit
Simpson THD37300CS6SS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Countersunk head allows flush installation
- Removable for temporary anchoring or frequent fixture movement
- 316 stainless steel for high corrosion resistance
- 6-lobe drive reduces driver-bit cam-outs
Simpson THD37300CS6SS Applications
- Temporary anchoring in construction projects
- Fixtures requiring frequent movement
- Corrosive environments requiring stainless steel anchors
- Wind-governed and seismic loading applications

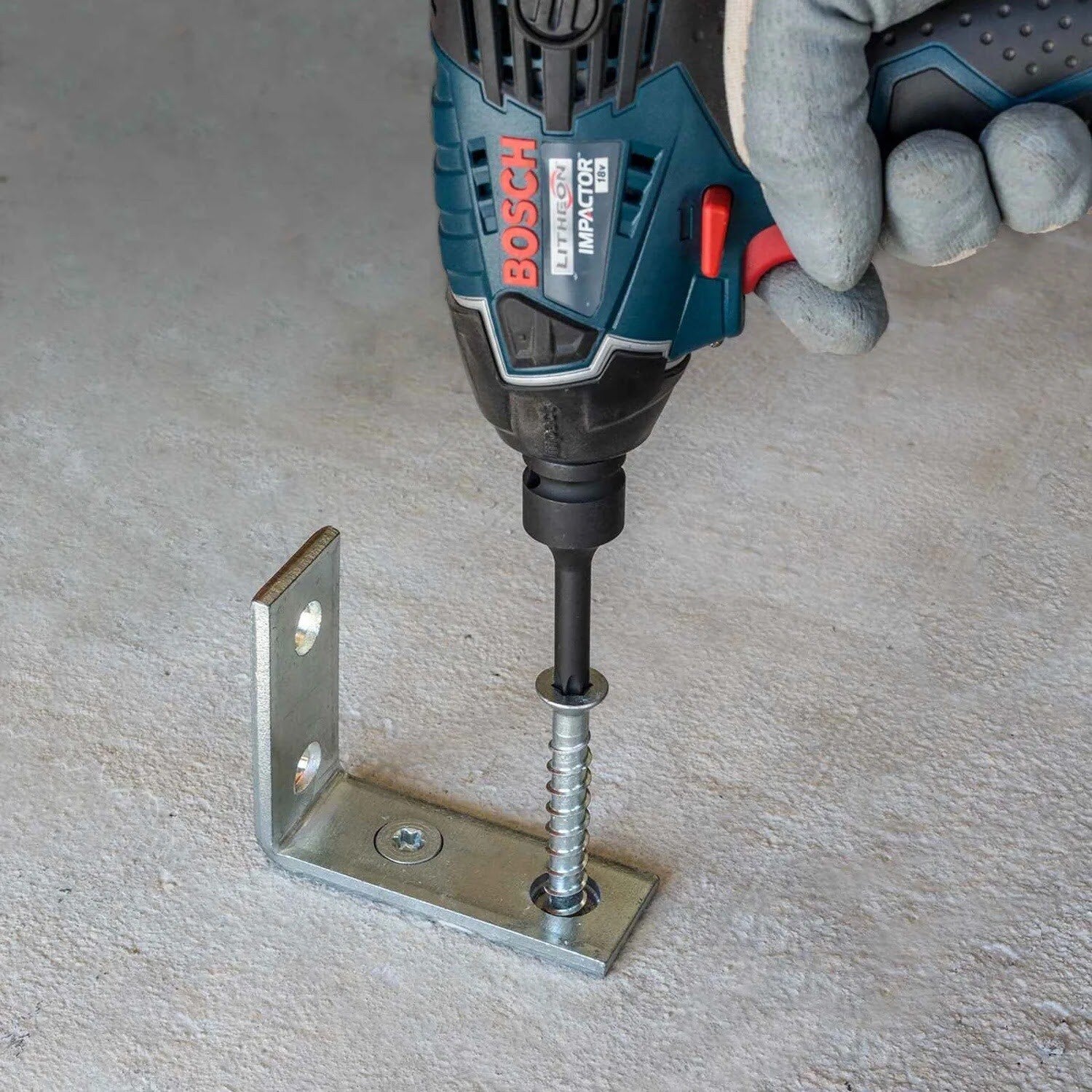

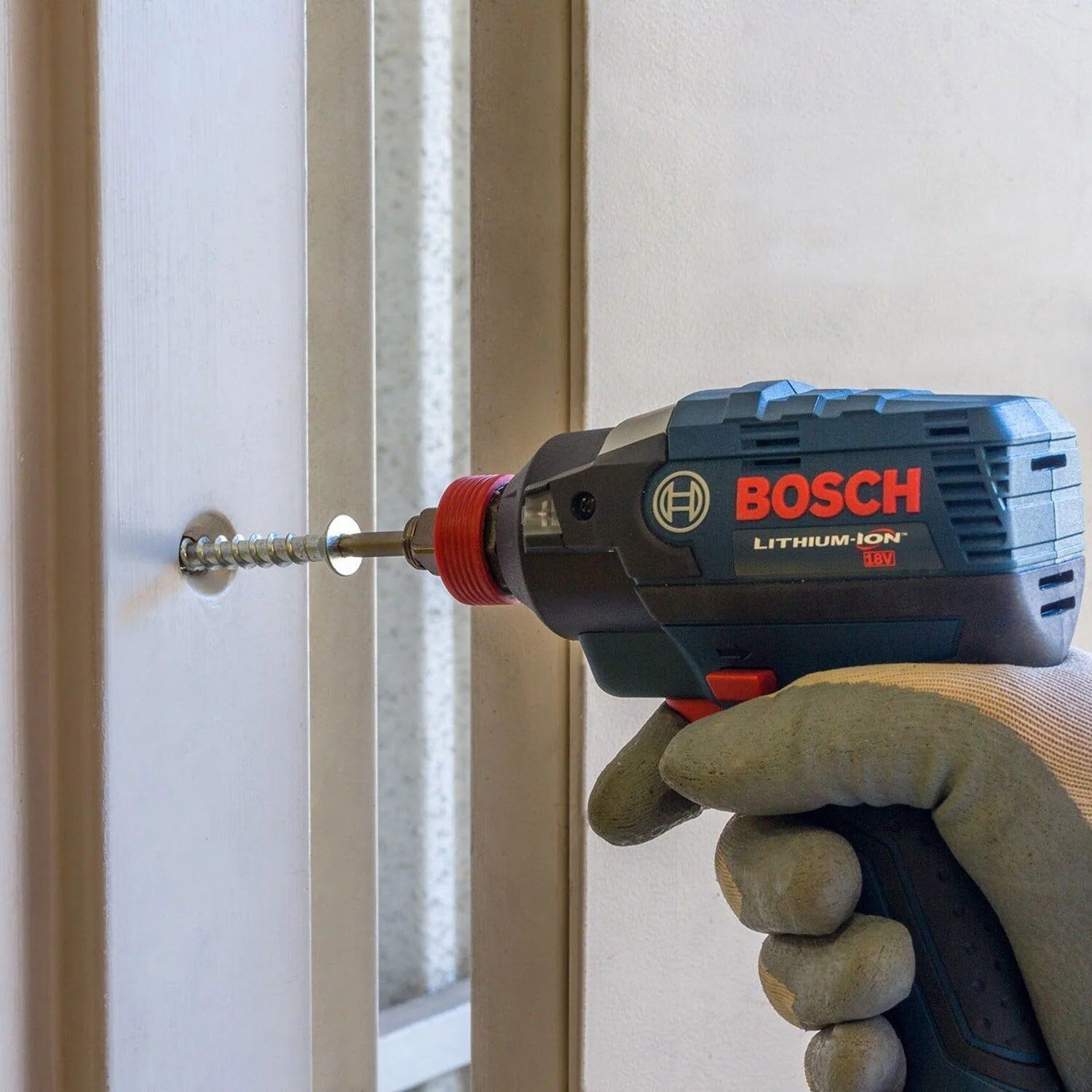

Simpson THD37300CS6SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson THD37300CS6SS Specifications
| Diameter | 3/8 in. |
| Length | 3 in. |
| Material | 316 Stainless Steel |
| Drill Bit Size | 3/8 in. |
| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2 in. - 9/16 in. |
| Head Type | Flat Head |
| Quantity | 25 |
NOTE: Ensure holes in metal fixtures match the specified diameter to maintain load capacity.
