Simpson Anchors | SKU:
THD37500CS

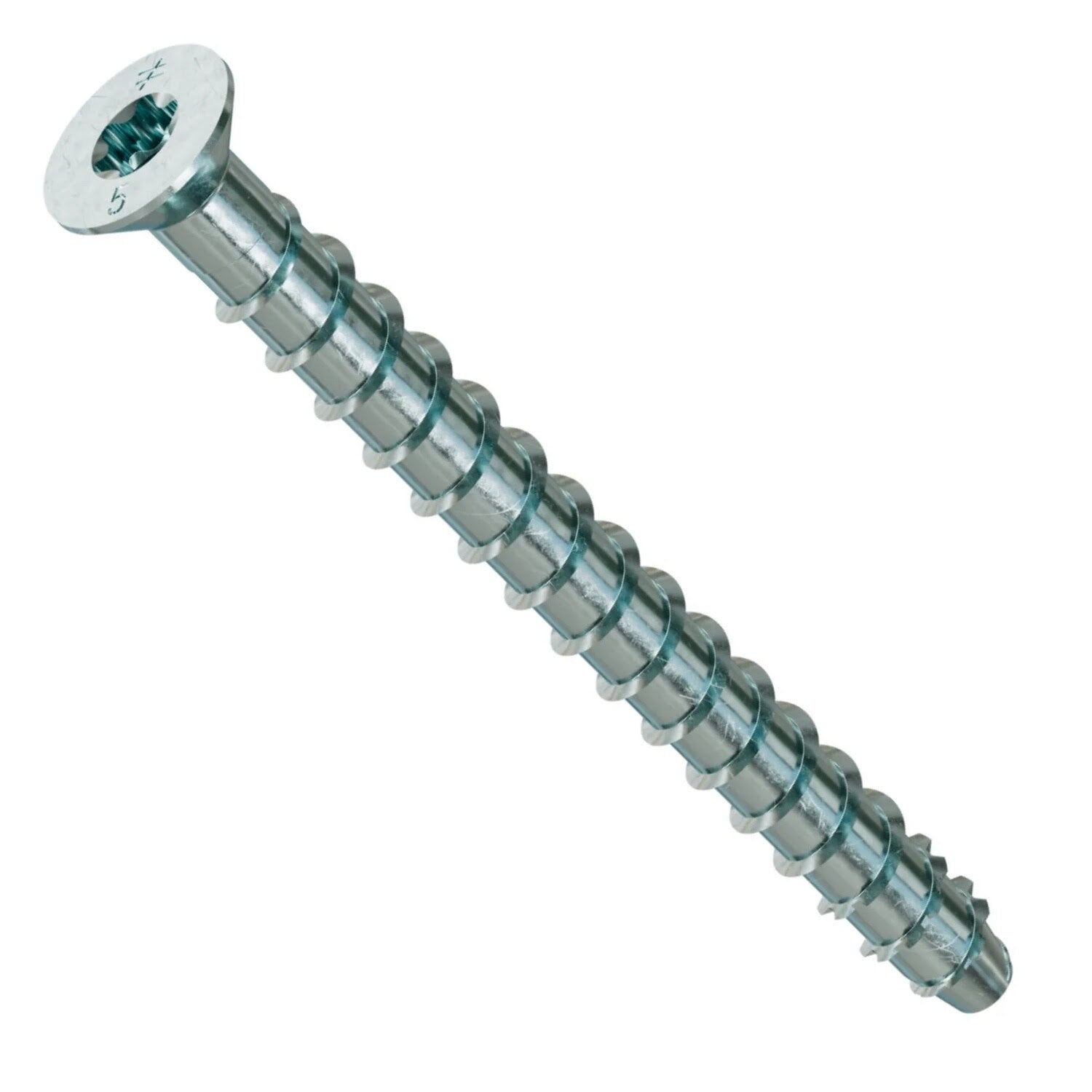

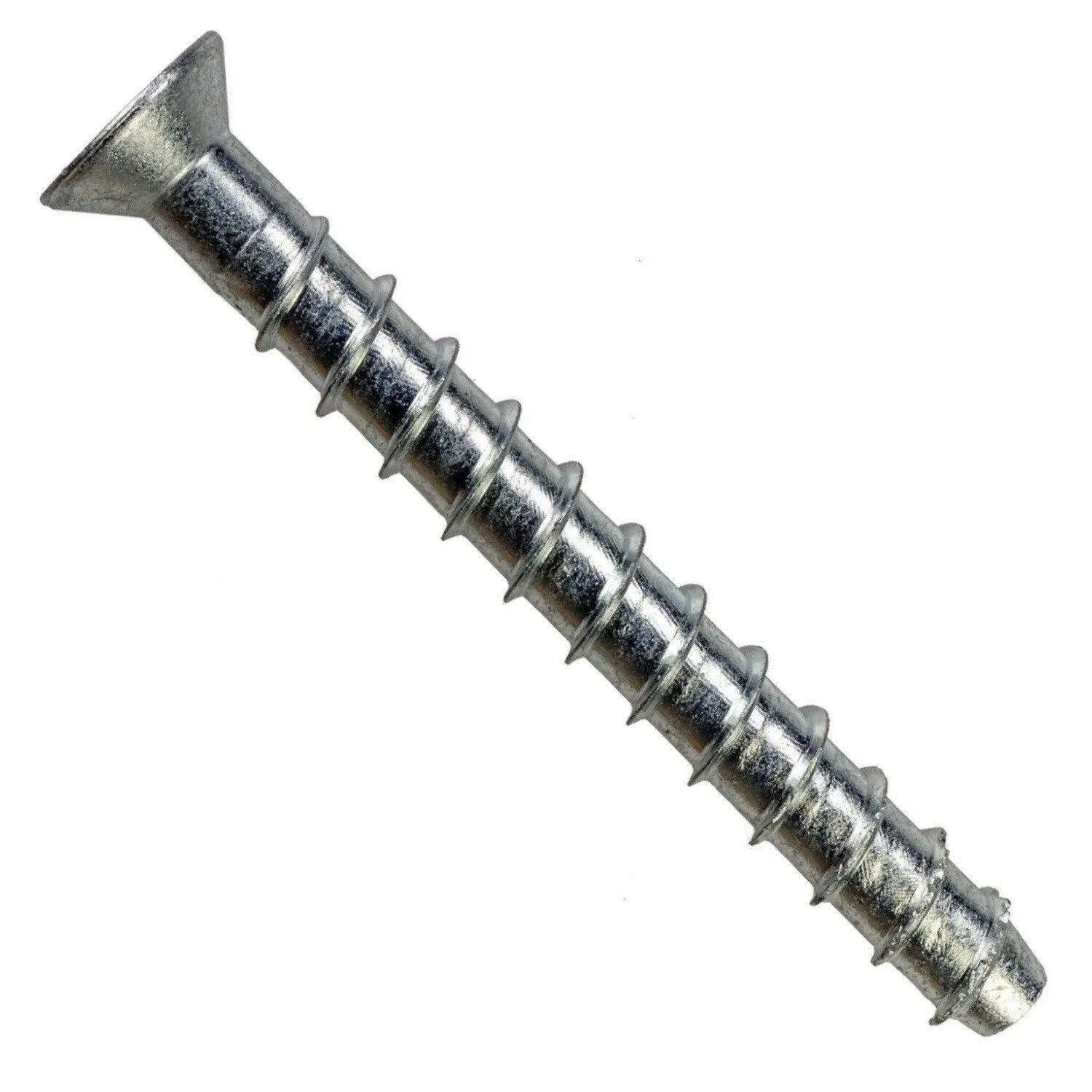

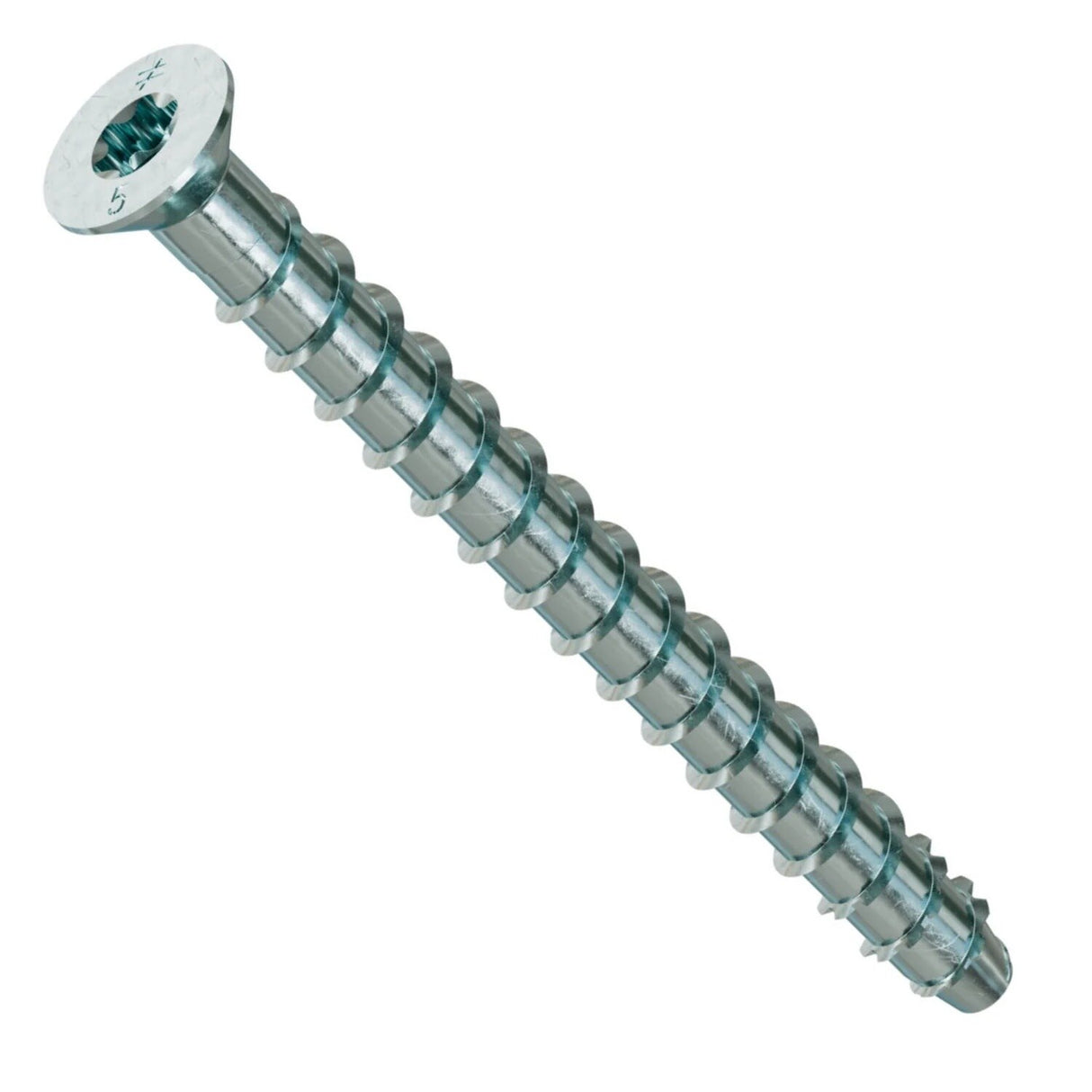

Simpson Strong-Tie THD37500CS Titen HD (3/8" x 5") Zinc-Plated Countersunk Head HD Screw Anchor (50 Pack)
$132.24
Unit price
/
Unavailable
Description
Description
Simpson THD37500CS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation and reliable performance.
Simpson THD37500CS Includes
- (50) Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor 3/8 in. x 5 in.
- (1) Driver Bit
Simpson THD37500CS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes with hole size same as anchor size
- No special drill bit required
- Removable for temporary anchoring or movable fixtures
- Countersunk head for flush installation
- Available in 1/4" and 3/8" diameters
Simpson THD37500CS Applications
- Temporary anchoring for movable fixtures
- Interior installations in dry, non-corrosive environments
- Static and seismic loading applications

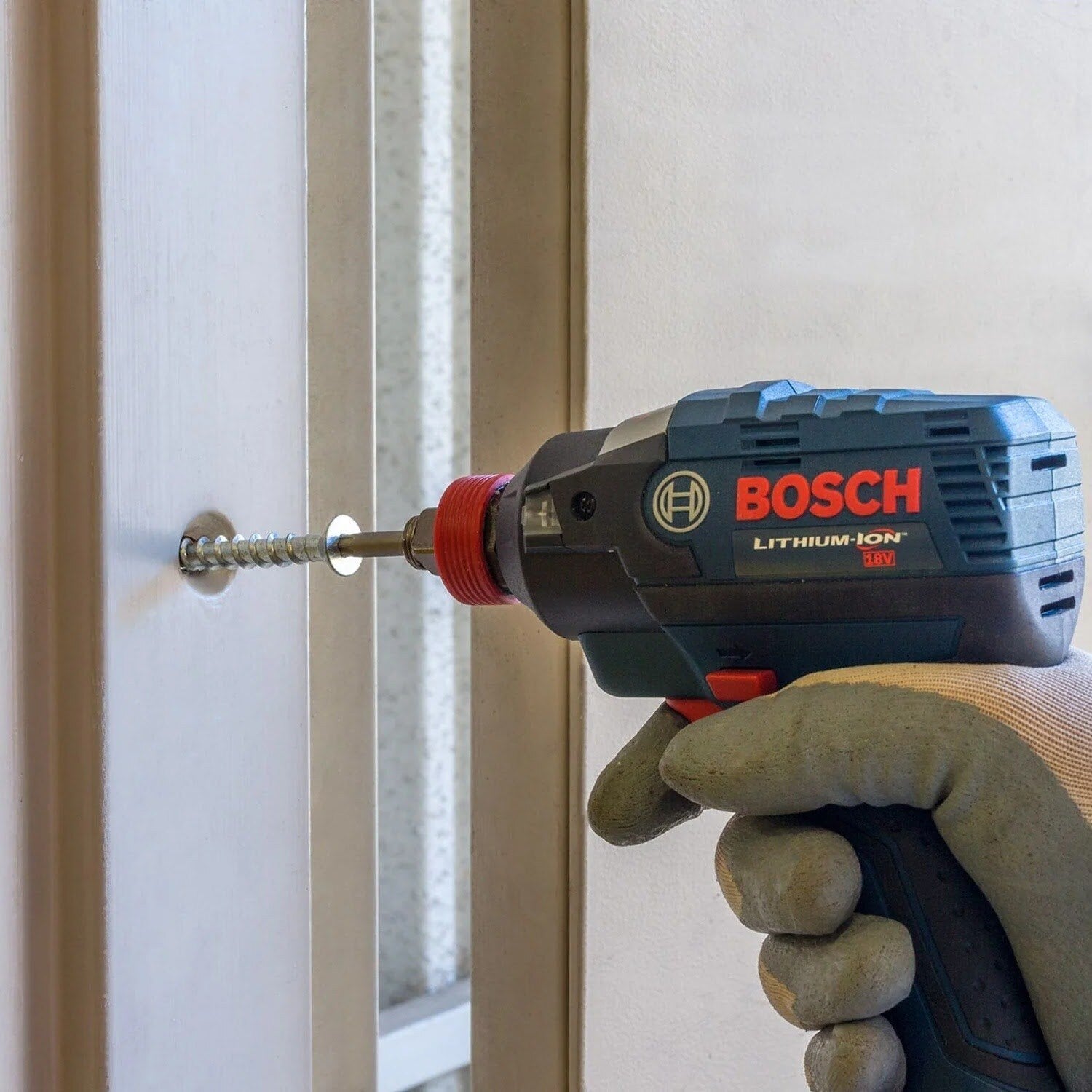

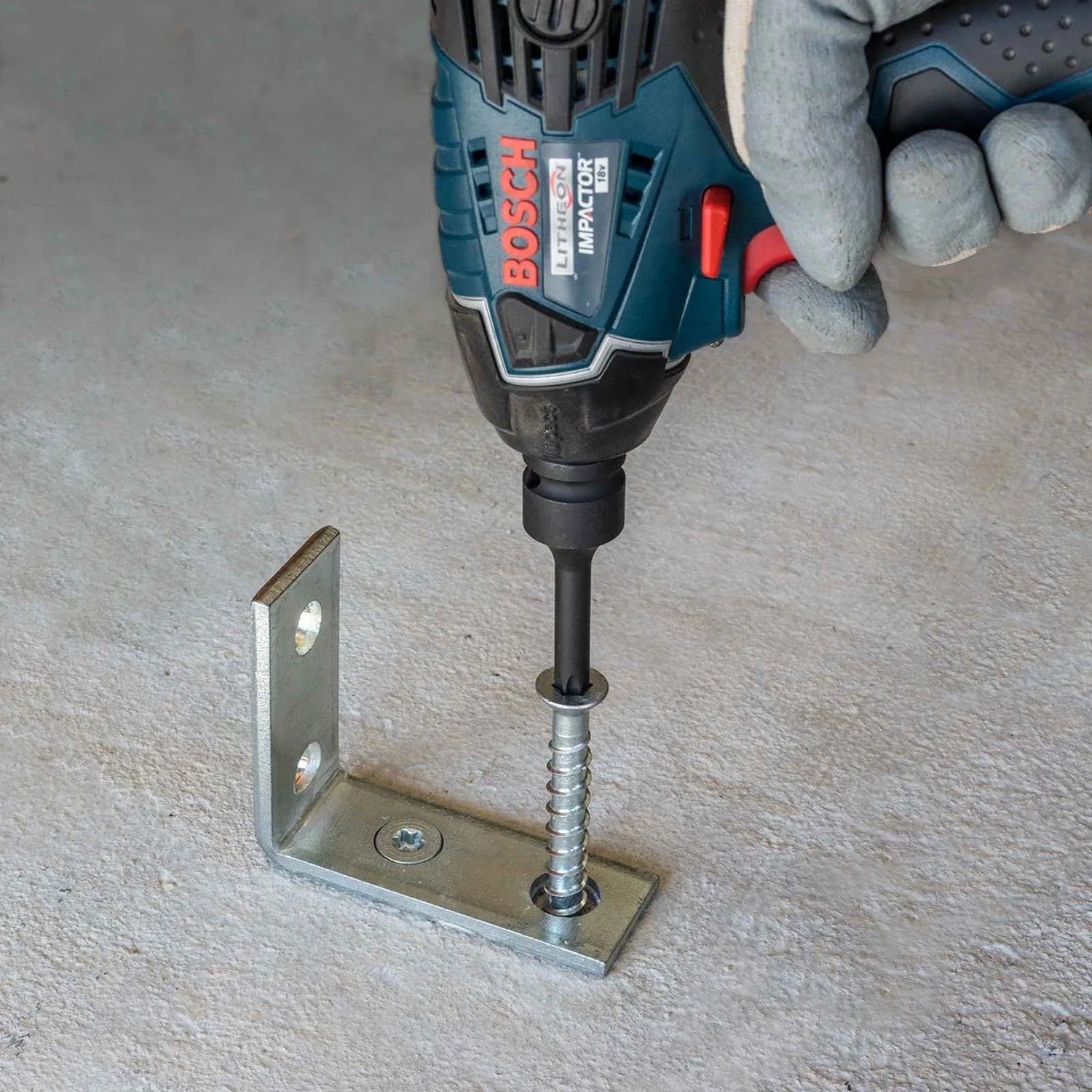

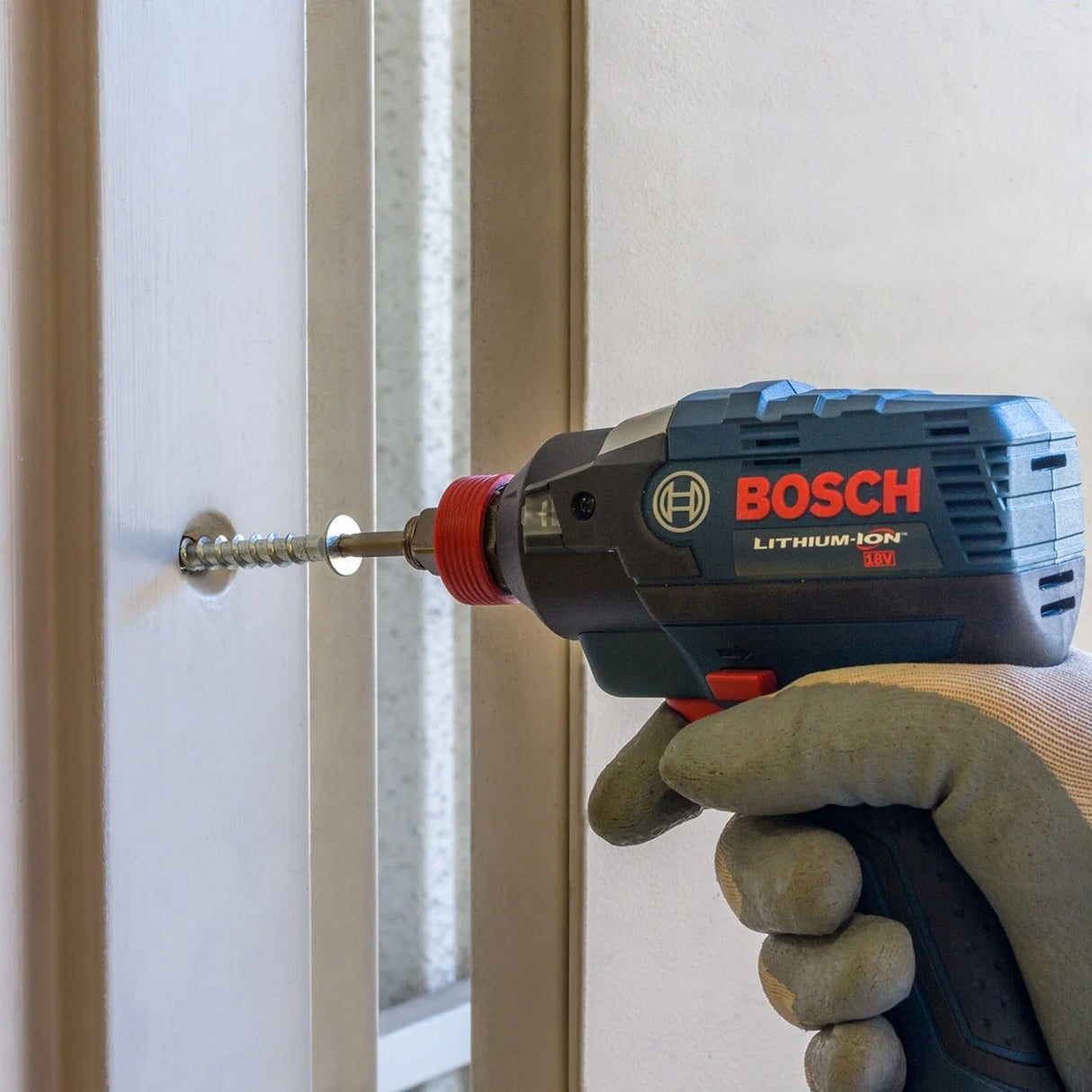

Simpson THD37500CS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson THD37500CS Specifications
| Diameter | 3/8" |
| Length | 5" |
| Finish | Zinc |
| Material | Carbon Steel |
| Drill Bit Size | 3/8" |

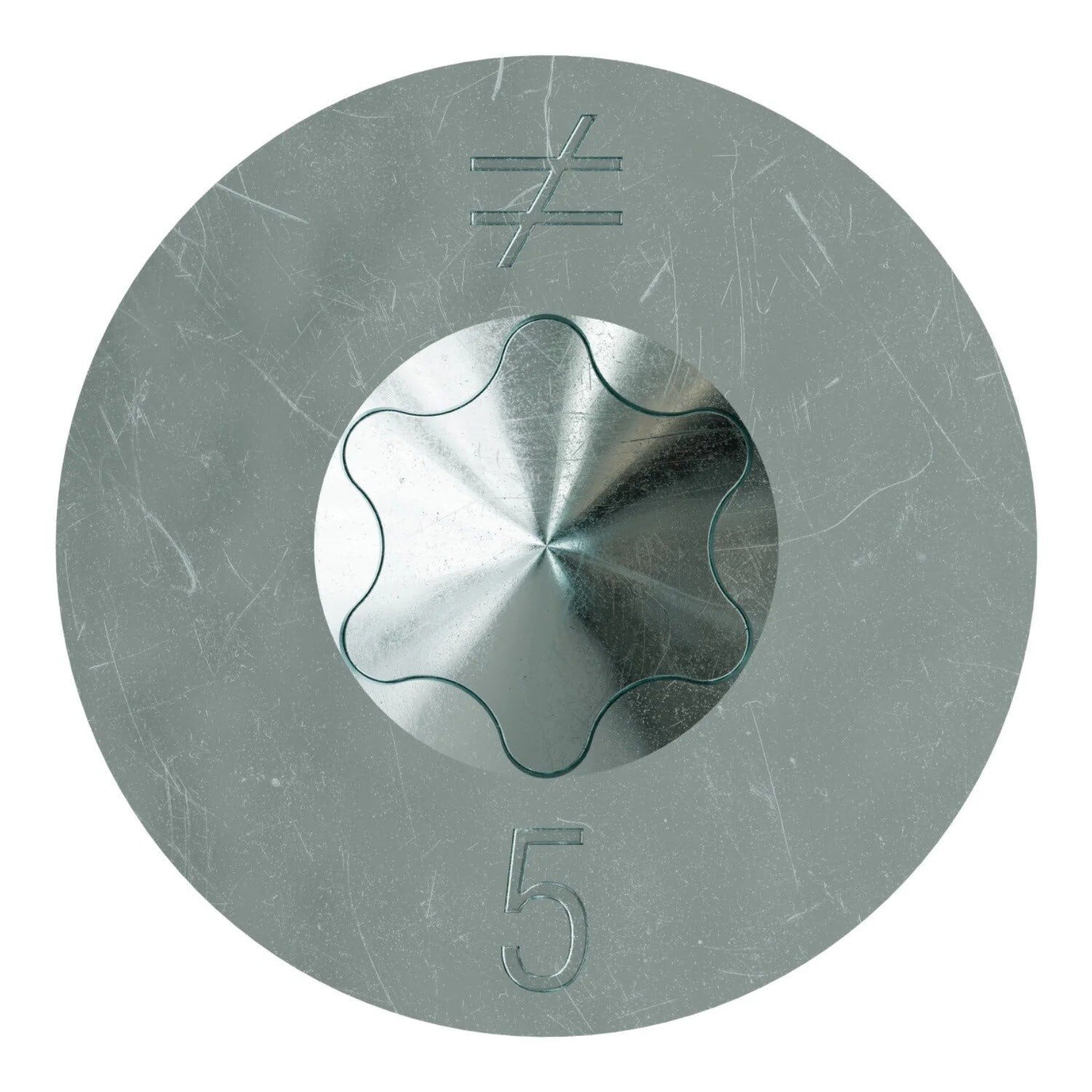

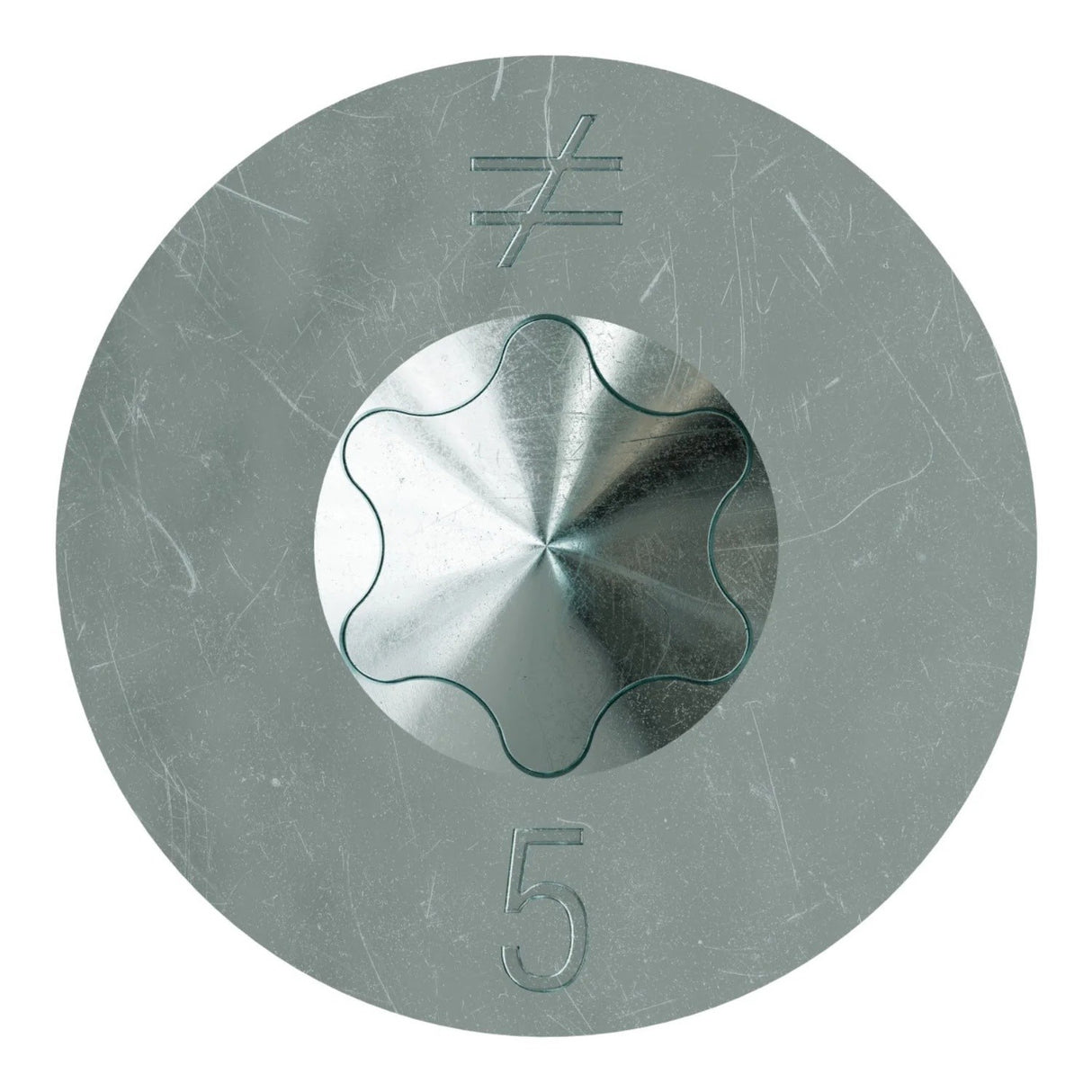

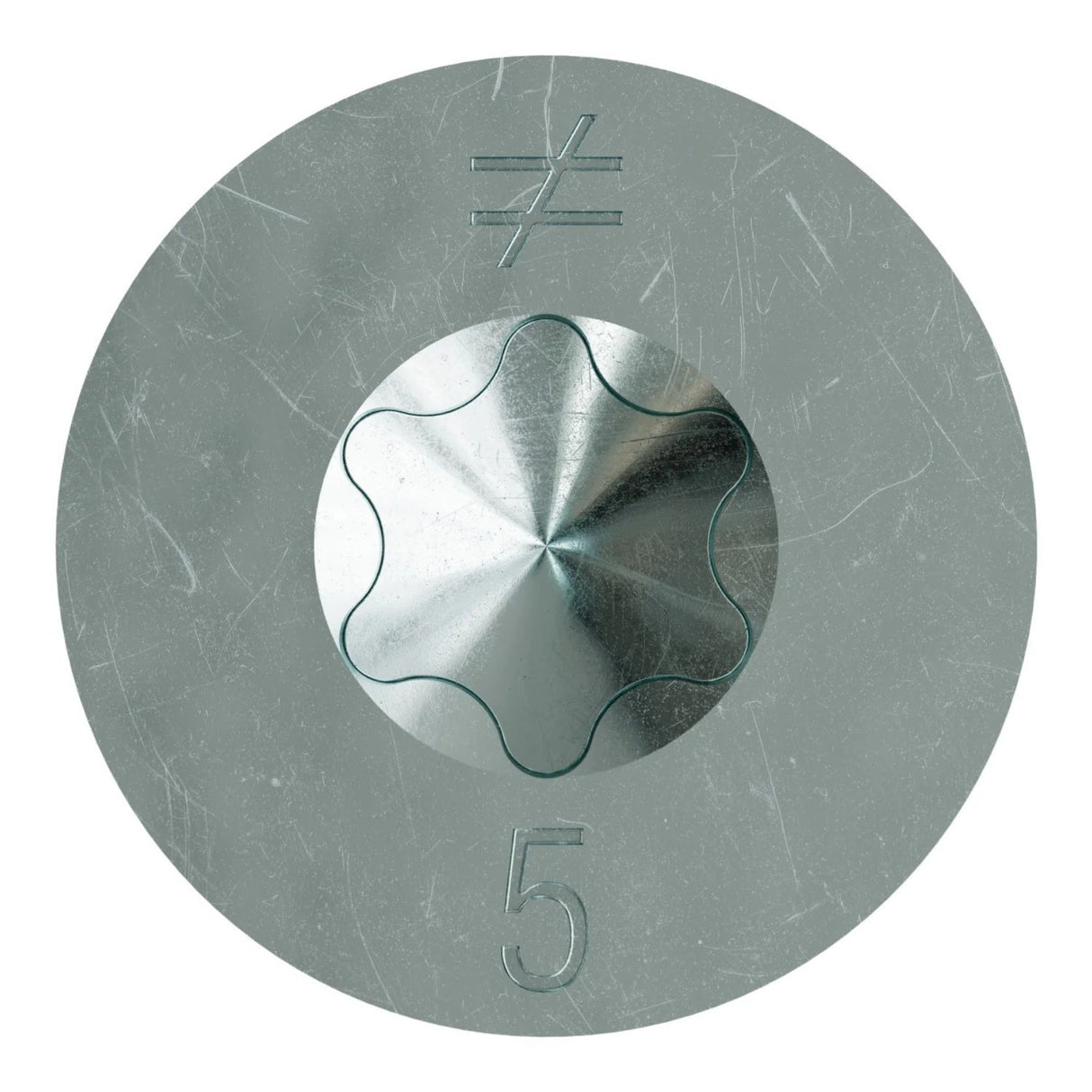

| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2" to 9/16" |
| Head Type | Flat Head |
| Quantity | 50 |
NOTE: Ensure holes in metal fixtures match the specified diameter to maintain load capacity
