Simpson Strong-Tie THD37600H4SS Description

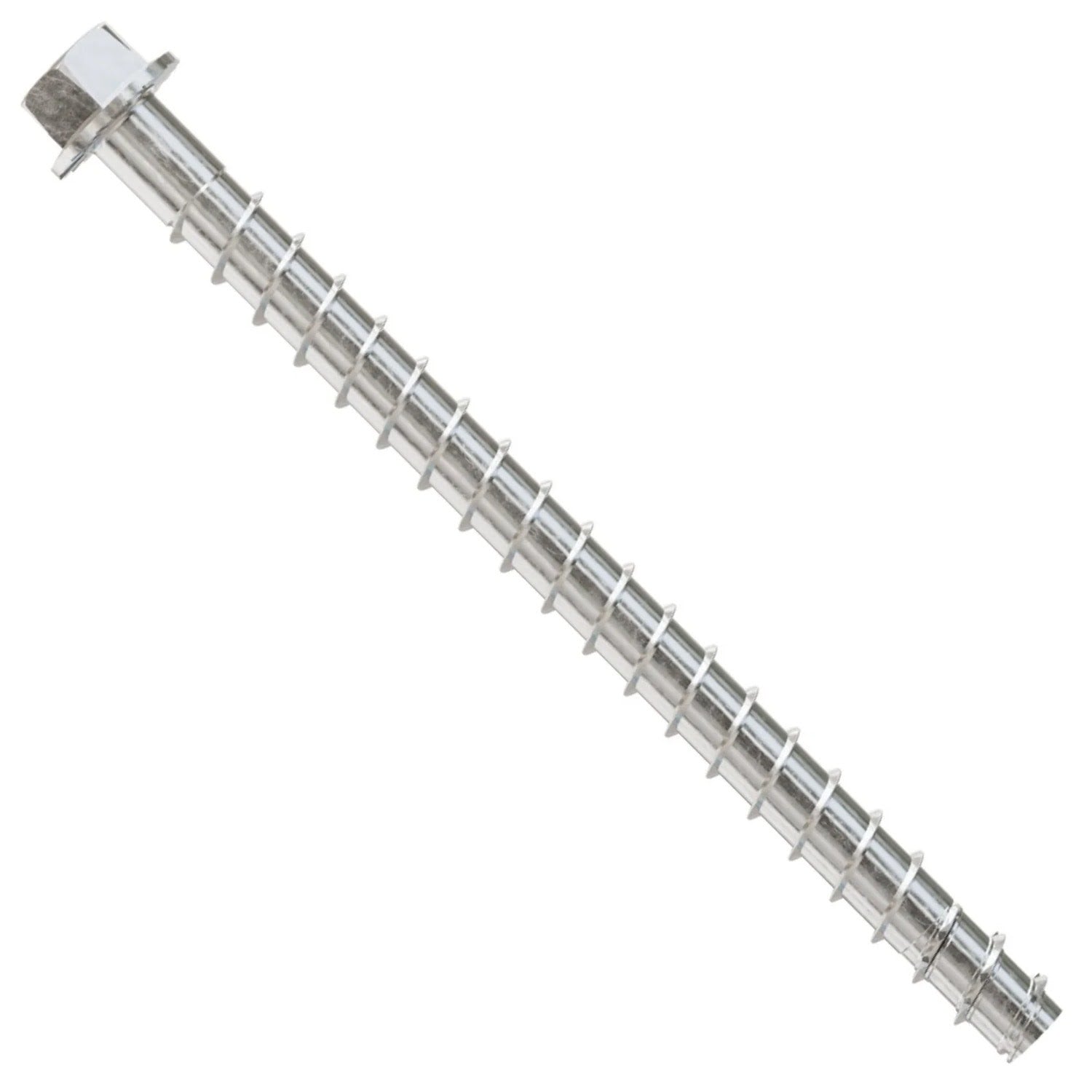

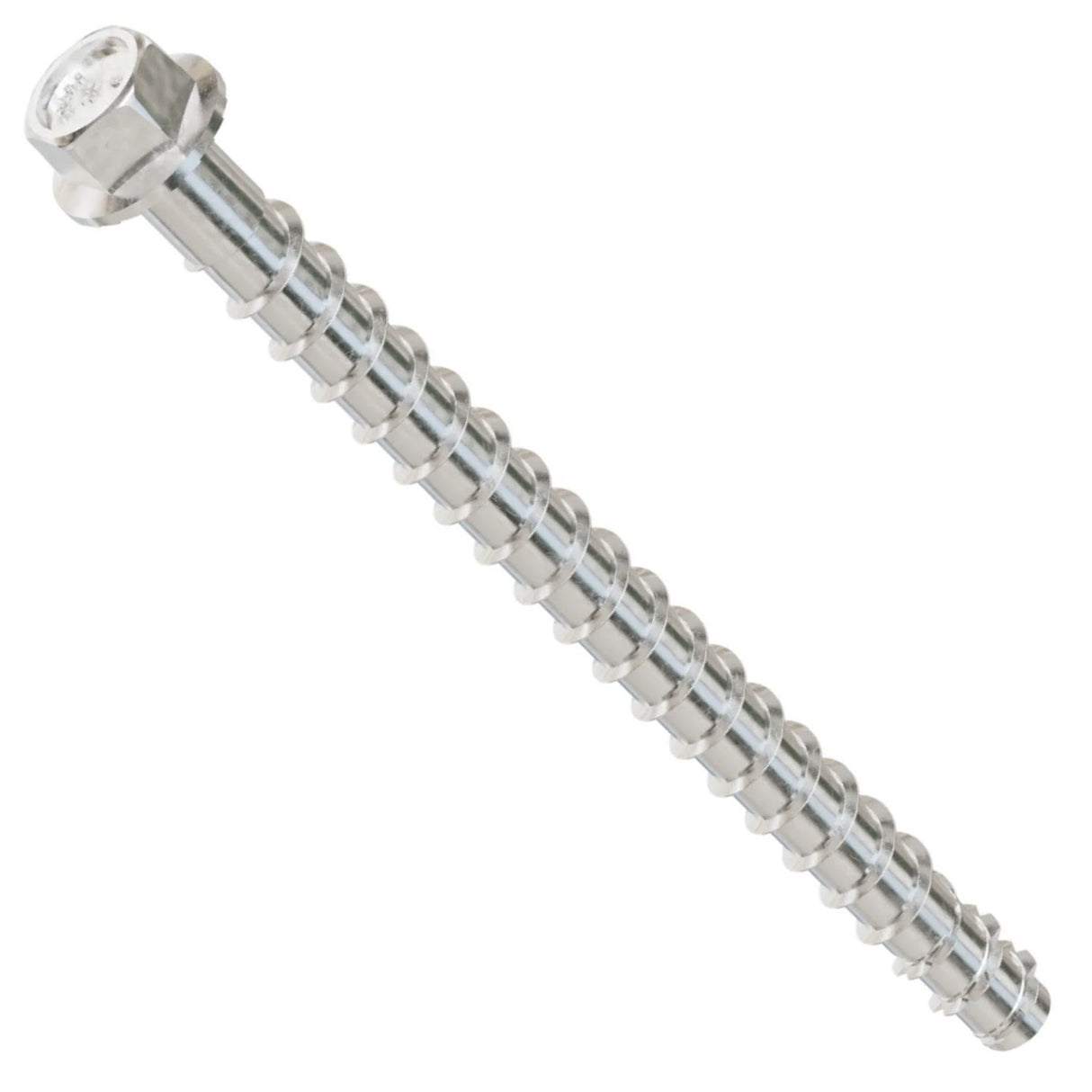

The Titen HD Screw Anchor is a high-performance, corrosion-resistant fastener designed for secure anchoring in concrete and masonry applications.
Simpson Strong-Tie THD37600H4SS Includes
- (50) Titen HD Screw Anchor 304 Stainless Steel 3/8 in. x 6 in.
Simpson Strong-Tie THD37600H4SS Features
- Corrosion-resistant 304 stainless steel construction
- Patented thread design with serrated cutting teeth for easy installation
- Suitable for exterior or corrosive environments
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THD37600H4SS Applications
- Concrete and masonry anchoring
- General exterior applications
- Mechanical, electrical, and plumbing installations
Simpson Strong-Tie THD37600H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD37600H4SS Specifications
| Material | 304 Stainless Steel |
| Diameter | 3/8 in. |
| Length | 6 in. |
| Drill Bit Size | 3/8 in. |
| Drive Type | 9/16 in. Hex |
| Fixture Hole Size | 1/2 in. - 9/16 in. |

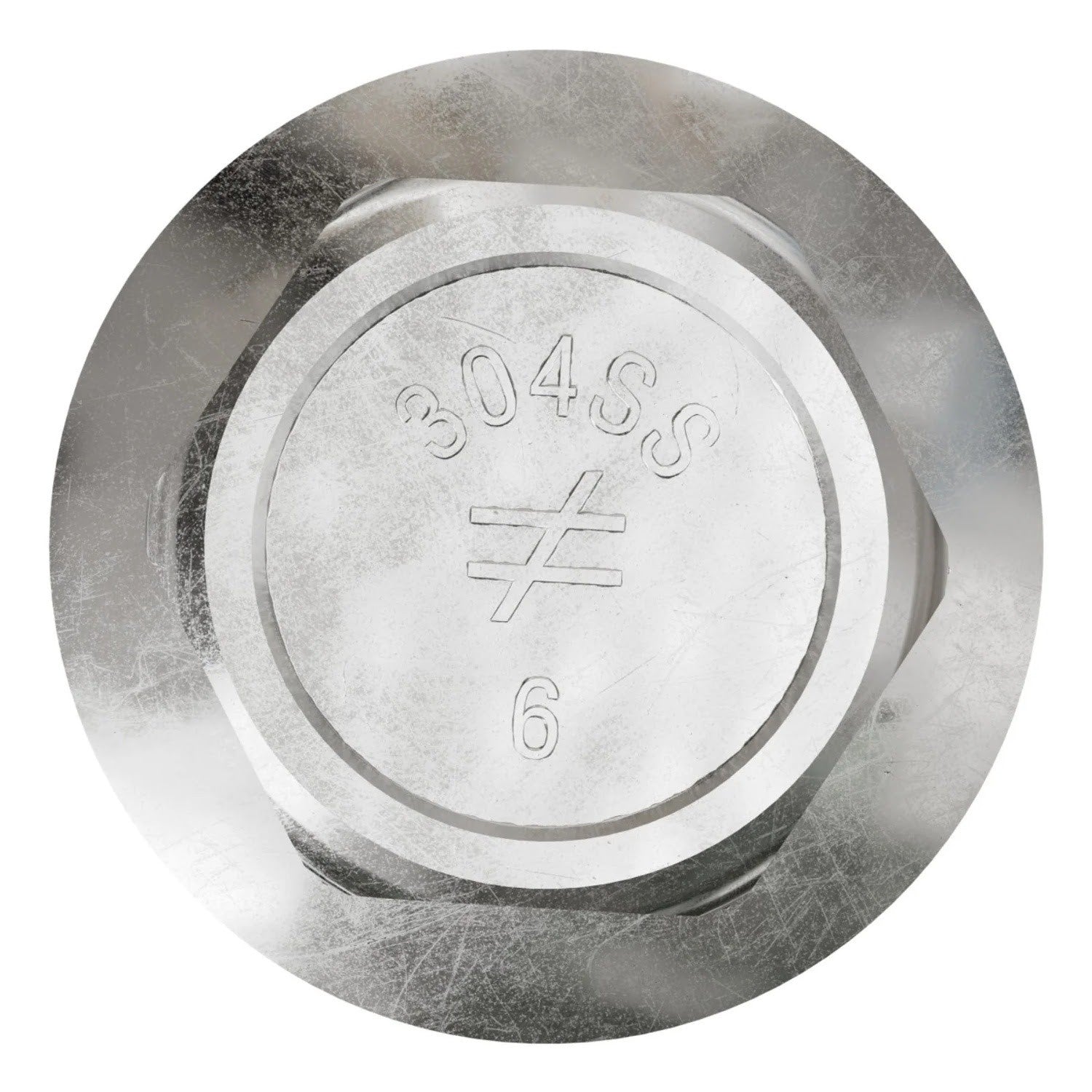

| Head Type | Hex Head |
| Quantity | 50 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
Toolup Part # :
825772
