Simpson Anchors | SKU:
THD37600HF1

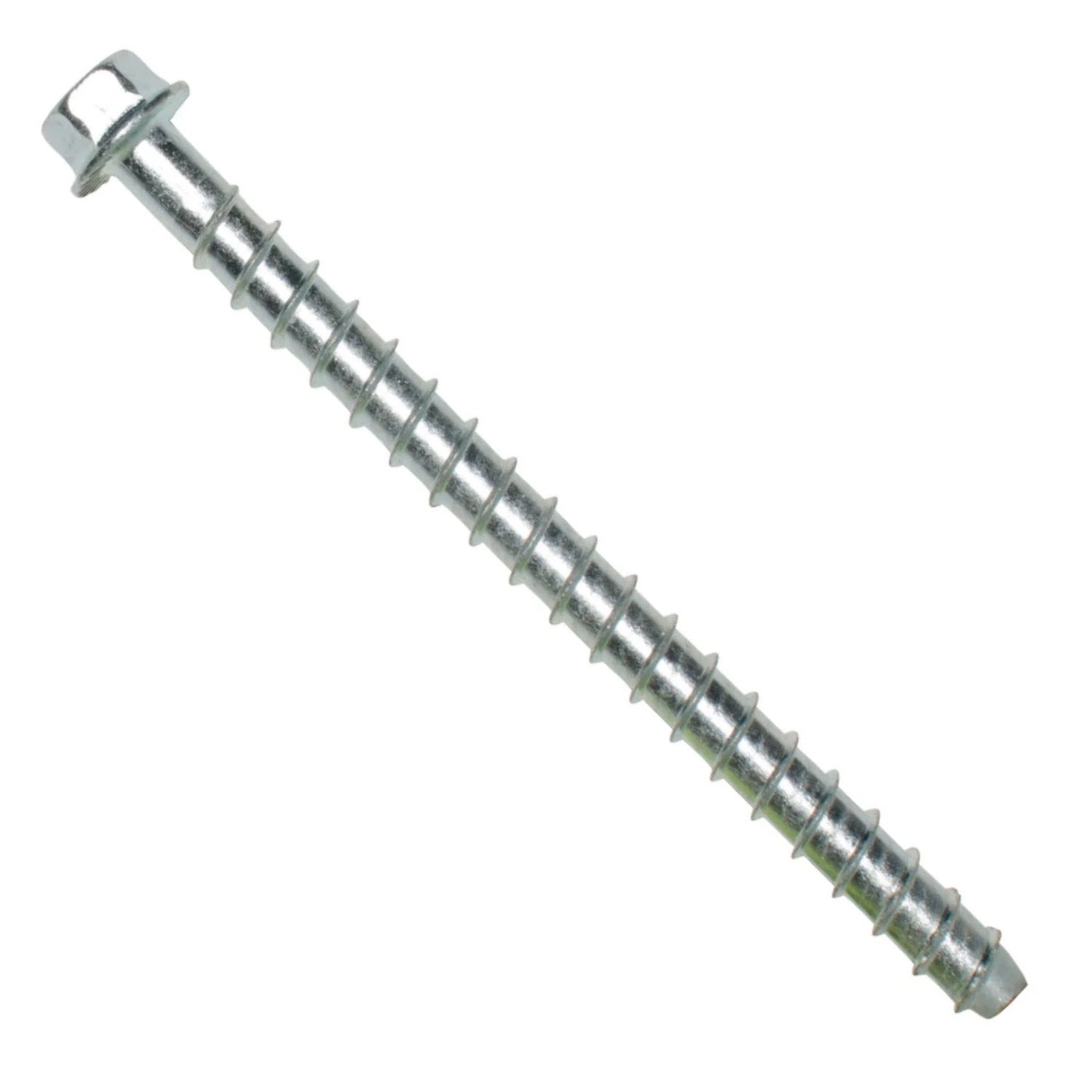

Simpson Strong-Tie THD37600HF1 Titen HD (3/8" x 6") Heavy-Duty Screw Anchor for Concrete and Masonry
$3.48
Unit price
/
Unavailable
Description
Description
Simpson THD37600HF1 Description
The Simpson THD37600HF1 Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for concrete and masonry applications. It features a patented thread design for efficient load transfer and easy installation.
Simpson THD37600HF1 Includes
- (1) Heavy-Duty Screw Anchor for Concrete and Masonry, Zinc Plated, 3/8" x 6"
Simpson THD37600HF1 Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required
- Hex-washer head requires no separate washer
- Removable for temporary anchoring
- Use in dry interior environments only
Simpson THD37600HF1 Applications
- Concrete and masonry anchoring
- Temporary anchoring for formwork and bracing
- Dry interior environments
Simpson THD37600HF1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD37600HF1 Specifications
| Diameter | 3/8" |
| Length | 6" |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 3/8" |
| Drive Type | 9/16" Hex |
| Fixture Hole Size | 1/2"-9/16" |
| Head Type | Hex Head |
NOTE: Ensure the correct drill bit size and installation torque are used to achieve optimal performance.
