Simpson Anchors | SKU:
THD501300H

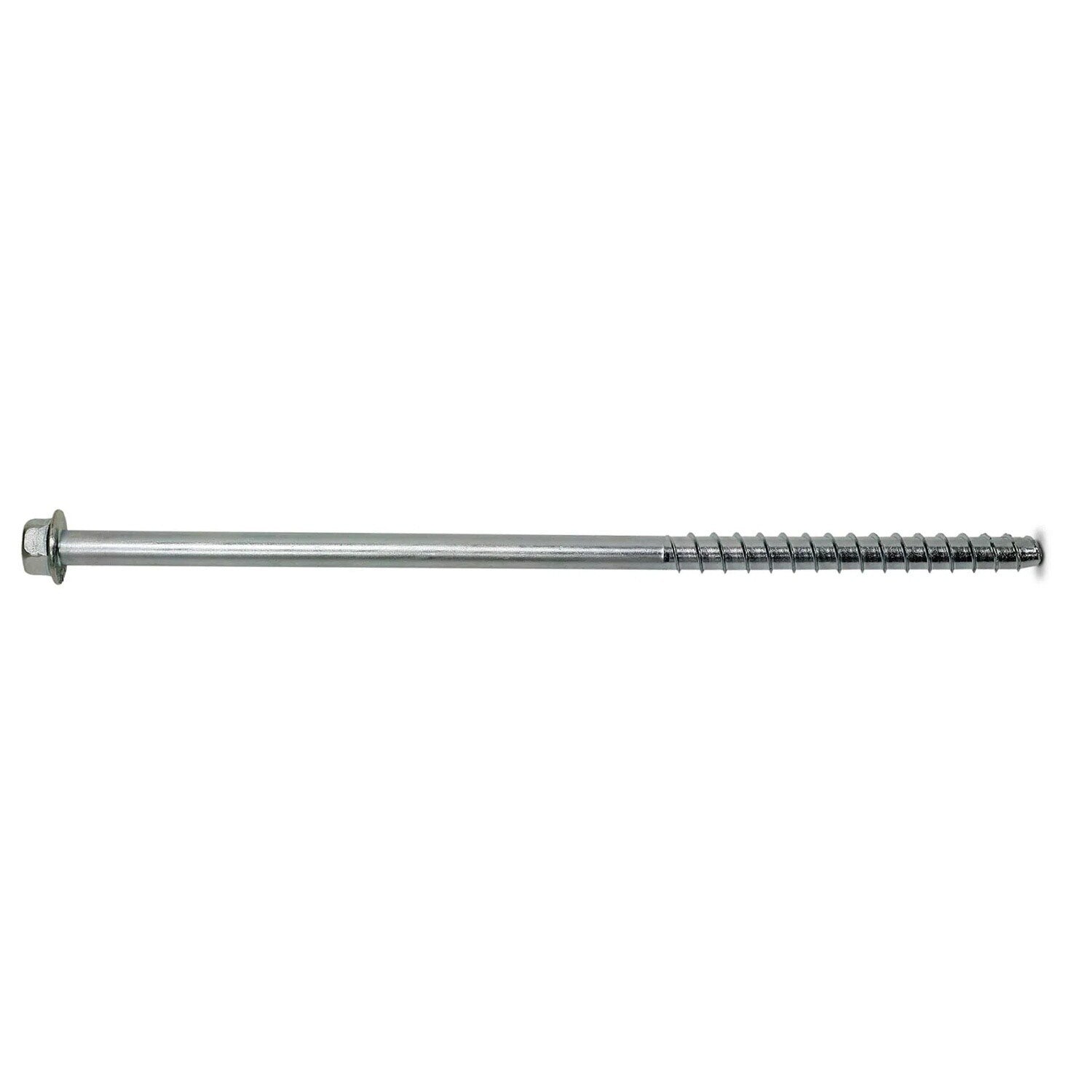

Simpson Strong-Tie THD501300H Titen HD(1/2" x 13") Heavy-Duty Screw Anchor - Zinc Plated (5 Pack)
$70.08
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD501300H Description
The Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson Strong-Tie THD501300H Includes
- (5) Titen HD Screw Anchor Zinc Plated 1/2 in. x 13 in.
Simpson Strong-Tie THD501300H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Use in dry interior environments only
Simpson Strong-Tie THD501300H Applications
- Concrete anchoring for mechanical, electrical, and plumbing installations
- Temporary anchoring for formwork and bracing
- Applications requiring removable anchors
Simpson Strong-Tie THD501300H Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD501300H Specifications
| Diameter | 1/2 in. |
| Length | 13 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
