Simpson Anchors | SKU:
THD501400H

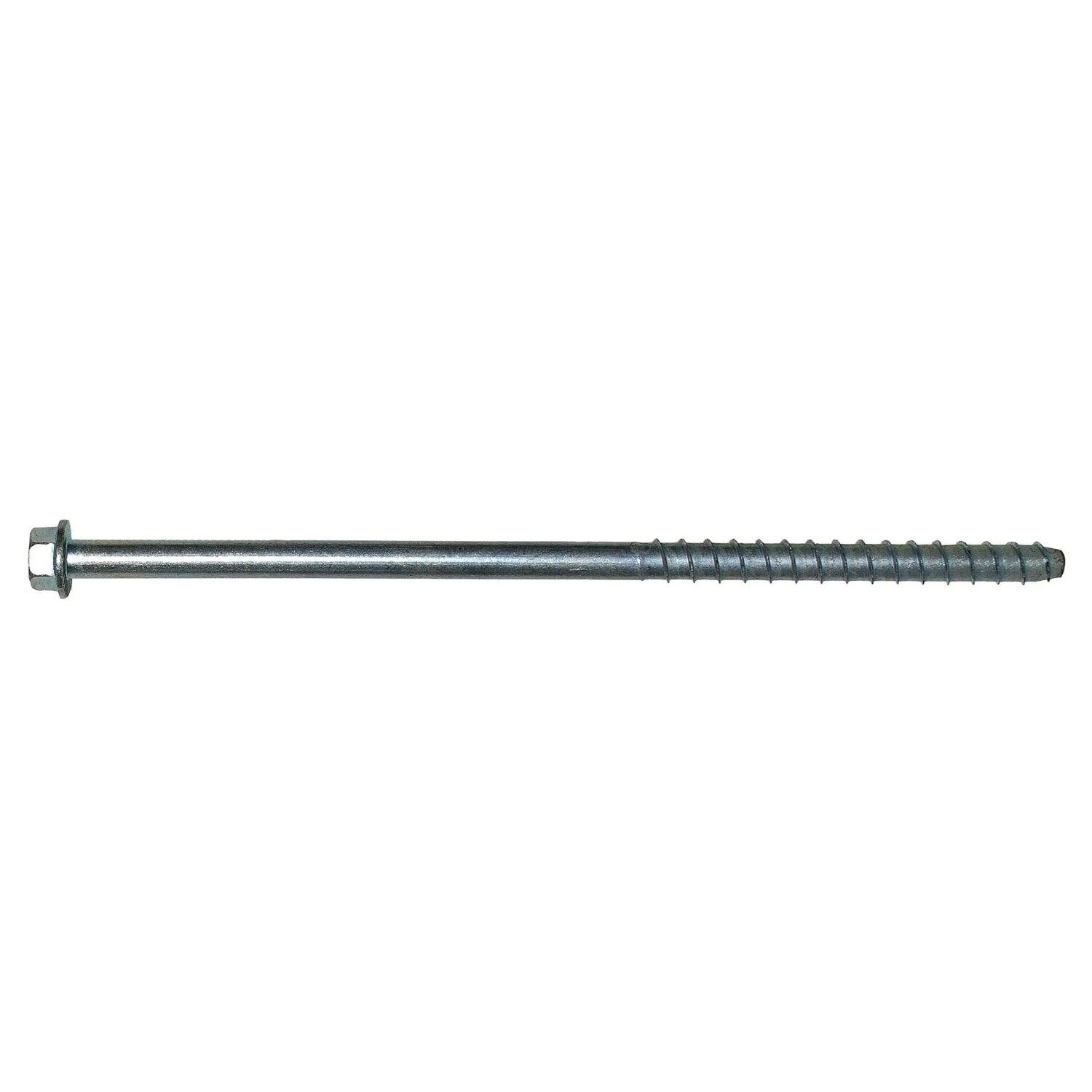

Simpson Strong-Tie THD501400H Titen HD (1/2" x 14") Heavy-Duty Screw Anchor - Zinc Plated (5 Pack)
$68.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD501400H Description
The Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for quick and easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson Strong-Tie THD501400H Includes
- (5) Titen HD Screw Anchor Zinc Plated 1/2 in. x 14 in.
Simpson Strong-Tie THD501400H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process for enhanced tip hardness
- No special drill bit required for installation
- Hex-washer head provides a clean installed appearance
- Removable for temporary anchoring or applications requiring fixture movement
- Designed for use in dry interior environments
Simpson Strong-Tie THD501400H Applications
- Concrete anchoring in cracked and uncracked concrete
- Temporary anchoring for formwork and bracing
- Mechanical, electrical, and plumbing applications
Simpson Strong-Tie THD501400H Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD501400H Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/2 in. |
| Length | 14 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
