Simpson Anchors | SKU:
THD50234RH

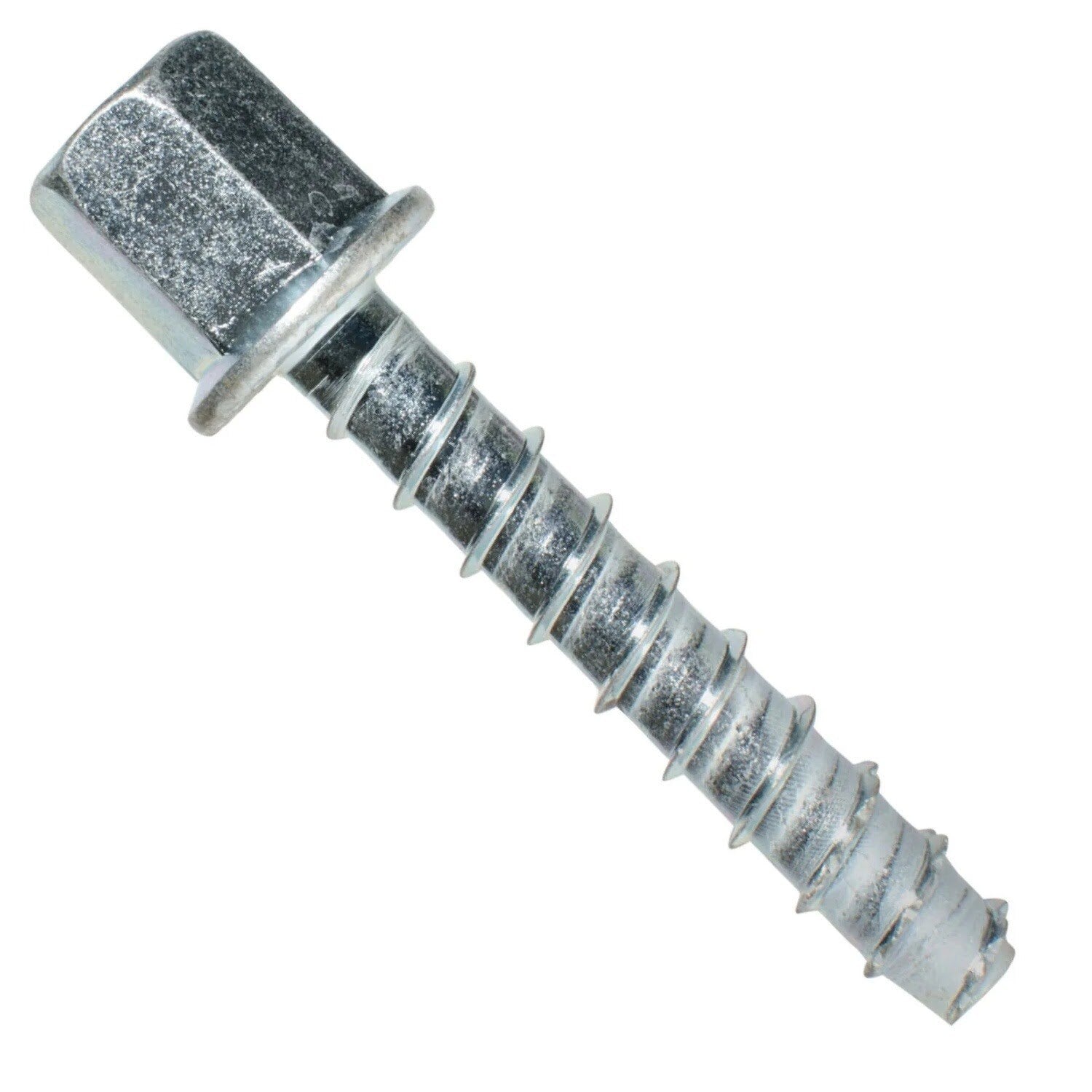

Simpson Strong-Tie THD50234RH Titen HD (3/8" x 2-3/4") Threaded Rod Hanger for 1/2-in. Rod (50 Pack)
$95.56
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson THD50234RH Description
The Titen HD Threaded Rod Hanger is a high-performance anchor designed for hanging threaded rods from concrete ceilings, ideal for applications like false ceilings, HVAC systems, and pipes.
Simpson THD50234RH Includes
- (50) Titen HD Threaded Rod Hanger for 1/2-in. Rod
Simpson THD50234RH Features
- Thread design undercuts to efficiently transfer the load to the base material
- Serrated cutting teeth and thread design enable quick and easy installation
- Specialized heat-treating process creates tip hardness to facilitate cutting while the anchor body remains ductile
- Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits
- Installs with standard-sized sockets
- Use in dry interior environments only
- Code listed for cracked and uncracked concrete applications under the 2015, 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713
- FM listed
Simpson THD50234RH Applications
- Hanging threaded rods from concrete ceilings
- Supporting false ceilings
- HVAC system installations
- Pipe hanging
Simpson THD50234RH Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to the specified embedment depth plus minimum hole depth overdrill.
- Blow the hole clean of dust and debris using compressed air.

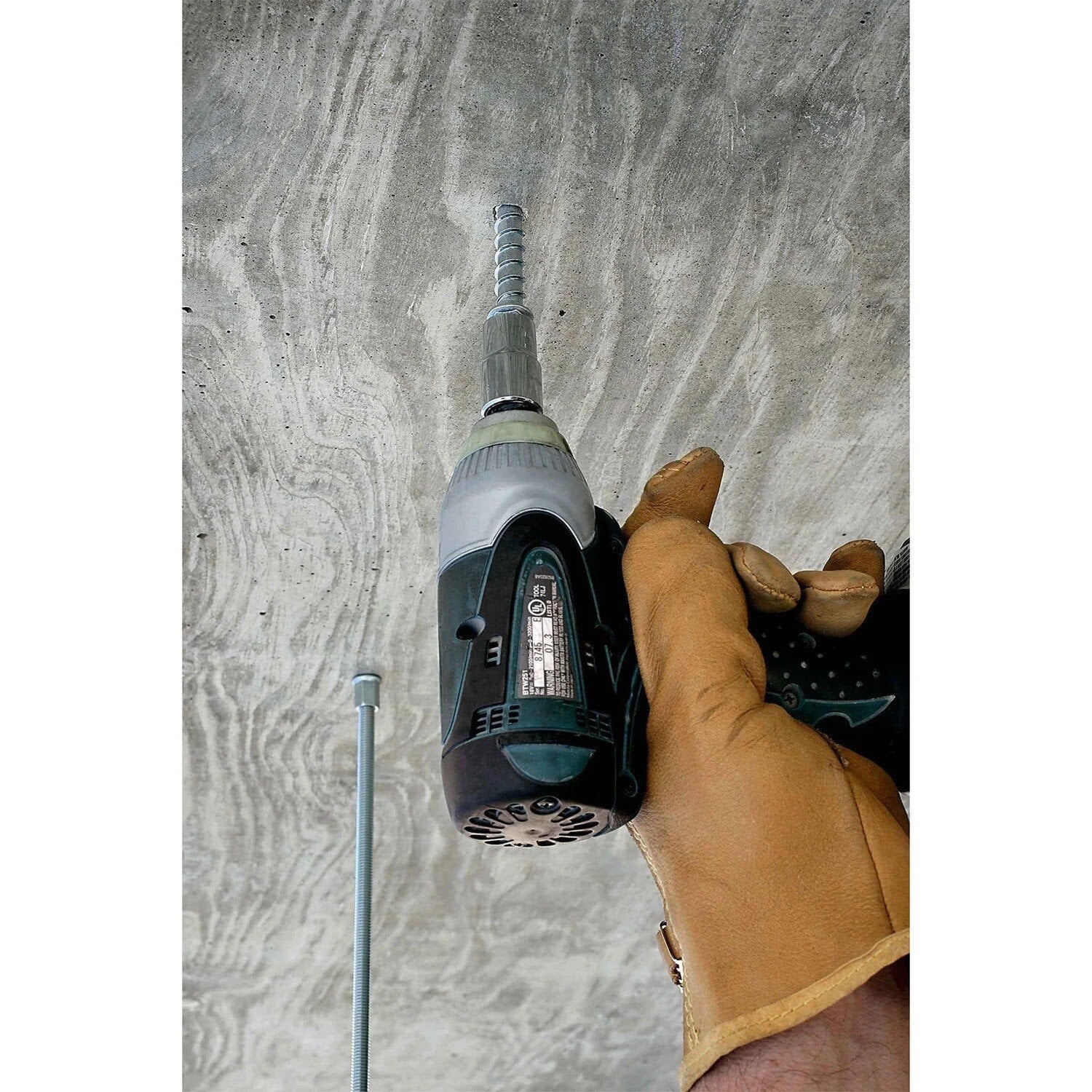

- Install with a torque wrench, driver drill, hammer drill or cordless impact wrench.
- Fully insert threaded rod.
Simpson THD50234RH Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Rod Diameter | 1/2" |
| Drill Bit Diameter | 3/8" |
| Wrench Size | 11/16" |
| Min. Embedment | 2 3/4" |
| Box Quantity | 50 |
| Carton Quantity | 100 |
NOTE: This anchor is designed to accept 1/2" diameter threaded rod but has a 3/8" shank diameter.
