Simpson Anchors | SKU:
THD50300H6SS

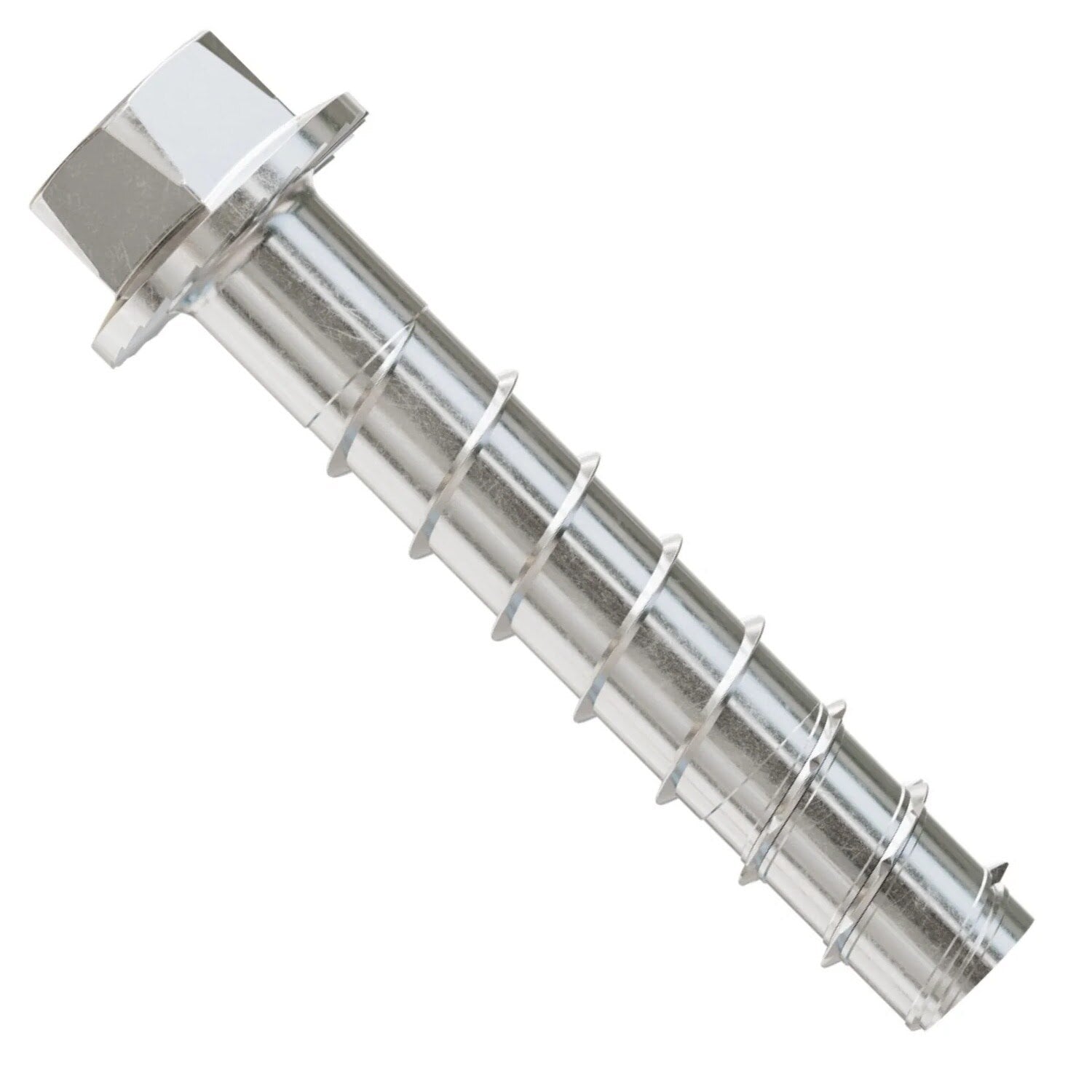

Simpson Strong-Tie THD50300H6SS Titen HD (1/2" x 3") Heavy Duty SS Screw Anchor - Type 316 (25 Pack)
Free Shipping
$219.84
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD50300H6SS Description
The Titen HD Screw Anchor is a high-performance, corrosion-resistant anchor designed for exterior or corrosive environments. Made from 316 stainless steel, it ensures durability and reliability.
Simpson Strong-Tie THD50300H6SS Includes
- (25) Titen HD Screw Anchor 316 Stainless Steel
Simpson Strong-Tie THD50300H6SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THD50300H6SS Applications
- Mechanical, electrical, and plumbing installations
- Securing fixtures in exterior or corrosive environments
Simpson Strong-Tie THD50300H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD50300H6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 1/2 in. |
| Length | 3 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 25 |
NOTE: Use a Titen HD screw anchor one time only. Installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
