Simpson Anchors | SKU:
THD50400HMG

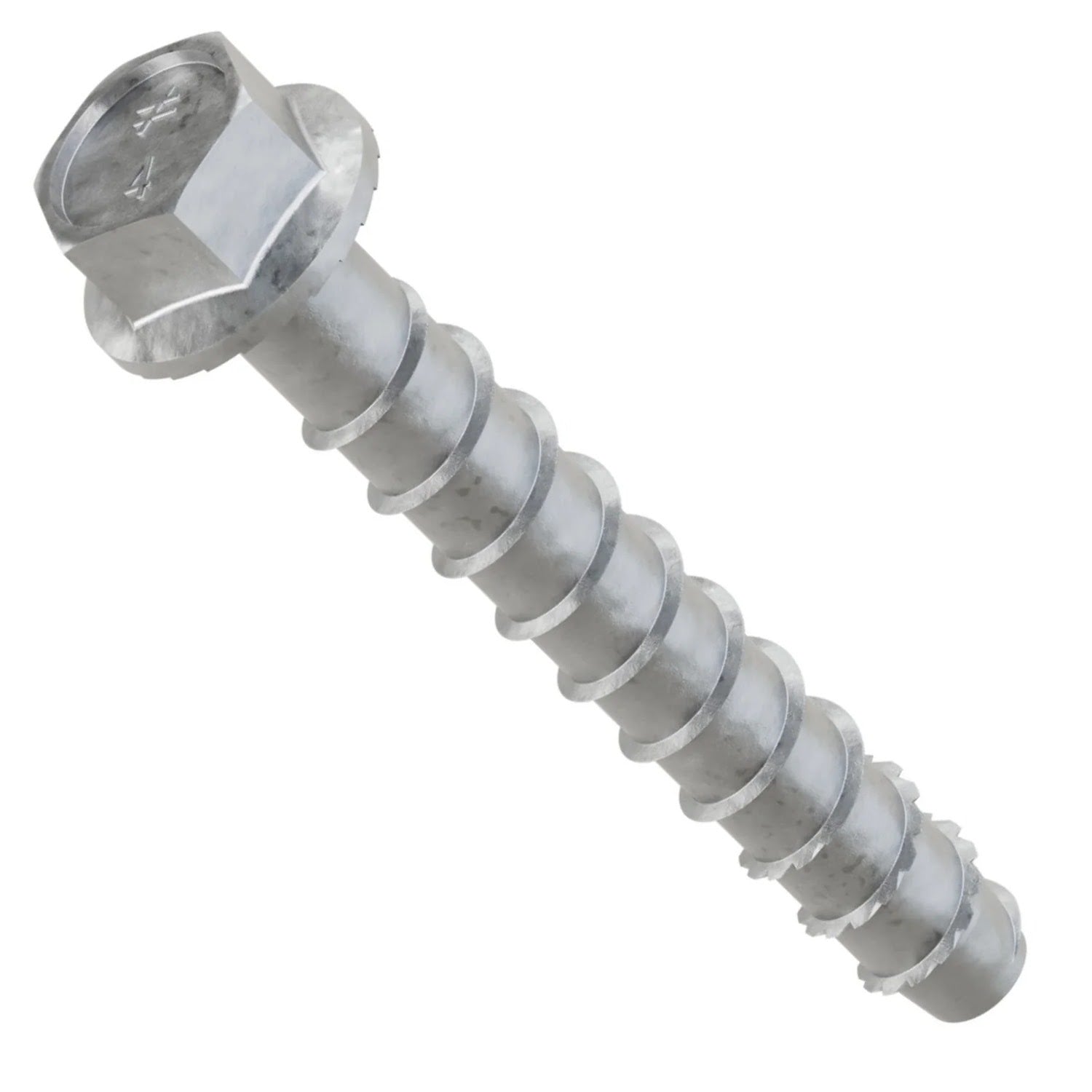

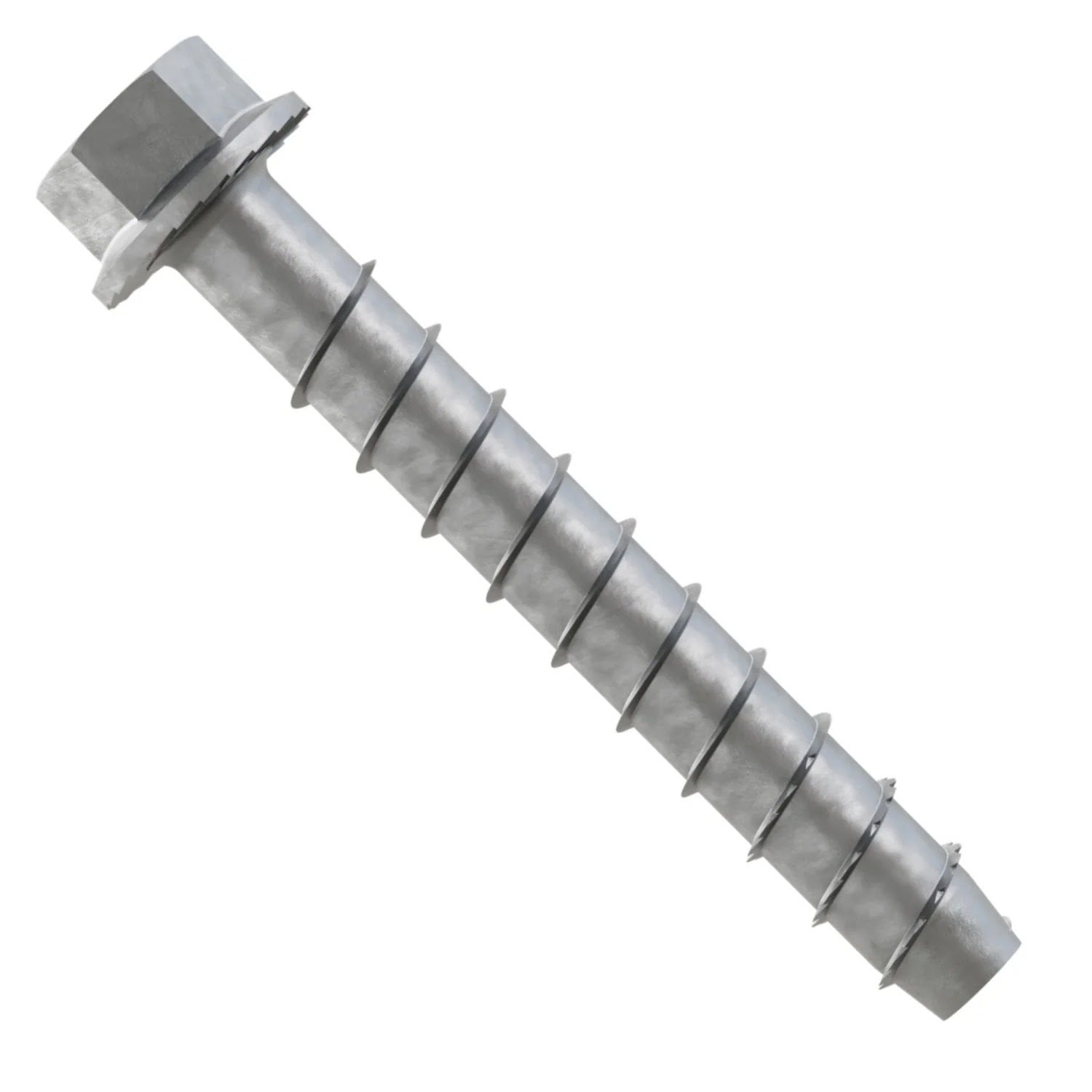

Simpson Strong-Tie THD50400HMG Titen HD(1/2" x 4") Mechanically Galvanized Heavy-Duty Screw Anchor (20 Pack)
$95.25
Unit price
/
Unavailable
Description
Description
Simpson THD50400HMG Description
The Simpson Titen HD Screw Anchor Mechanically Galvanized is a high-performance anchoring solution for concrete and masonry applications, offering superior holding power and corrosion resistance.
Simpson THD50400HMG Includes
- (20) Titen HD Screw Anchor Mechanically Galvanized 1/2 in. x 4 in.
Simpson THD50400HMG Features

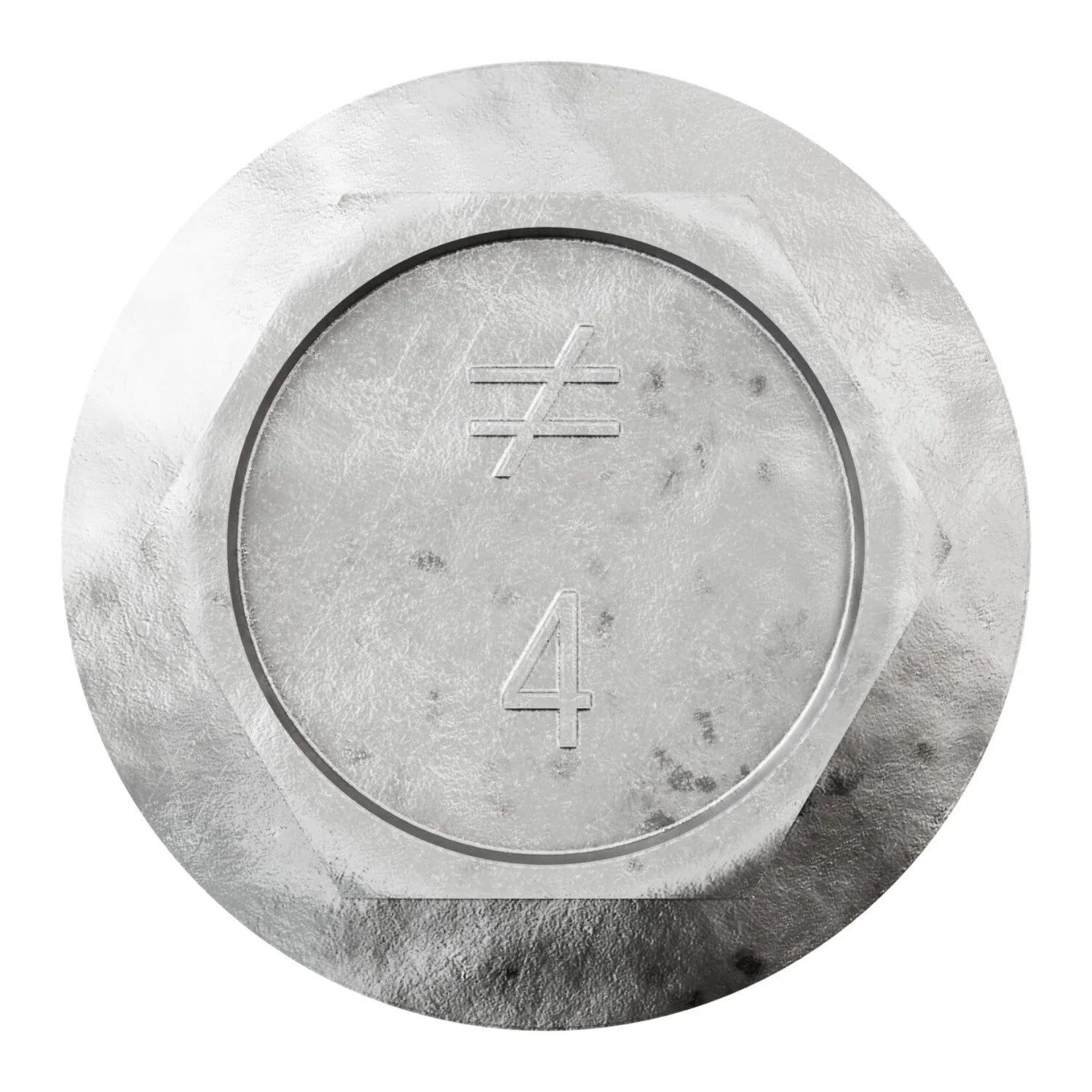

- Head-stamped for easy identification
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THD50400HMG Applications
- Sill plates on foundations
- Ledger board installs for decks or balconies

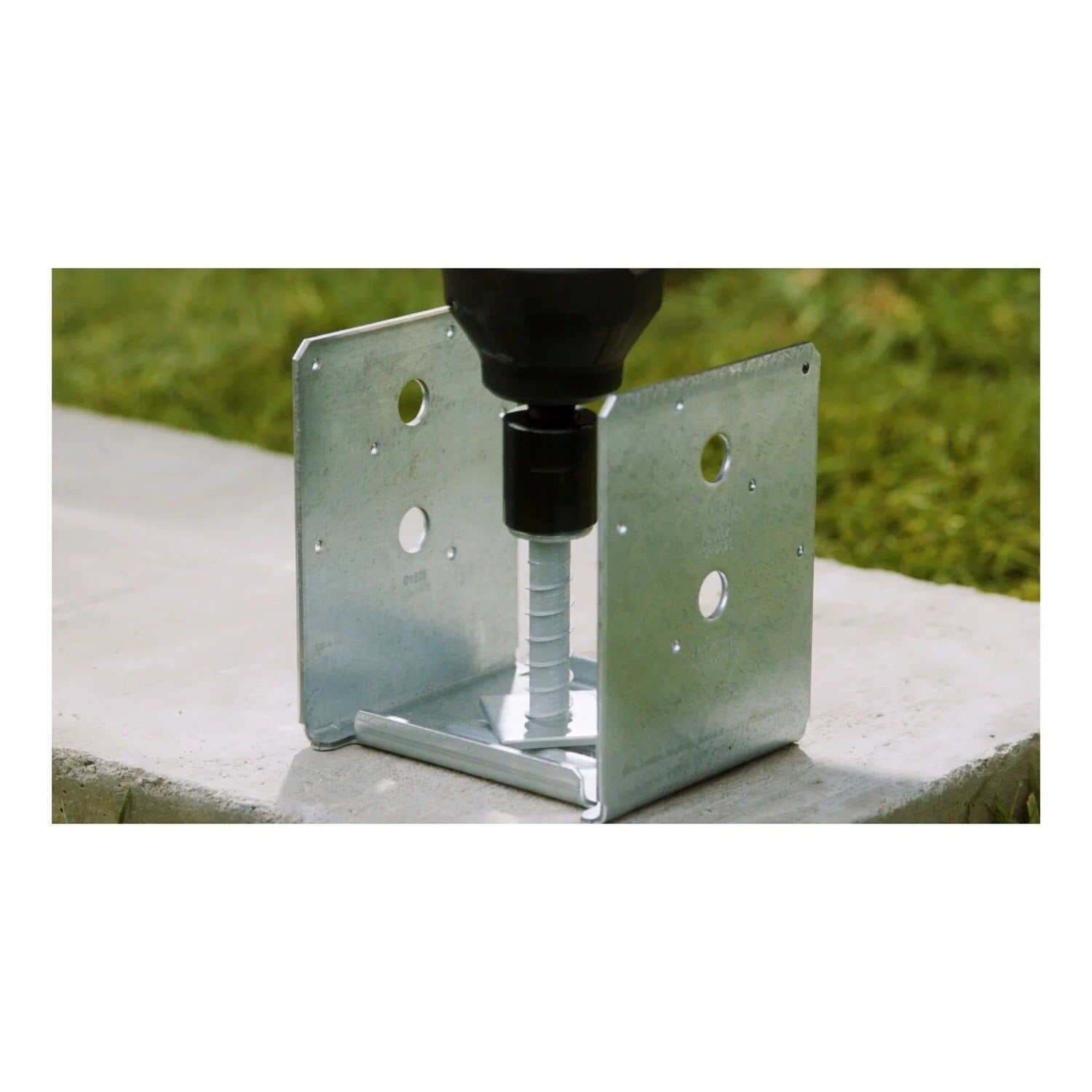

- Anchoring post bases—interior or exterior
- Seating, holdowns, and hardware that need real anchoring strength
- Wood or metal connections into concrete or block
Simpson THD50400HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Clean out any dust or debris from the hole.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THD50400HMG Specifications
| Diameter | 1/2" |
| Length | 4" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 1/2" |
| Fixture hole size | 5/8" - 11/16" |
| Thread length | 3-1/2" |
| Wrench size | 3/4" |
NOTE: Use a Titen HD screw anchor one time only—installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
