Simpson Anchors  |  SKU: THD50500H4SS  |  Barcode: 707392430124

Simpson Strong-Tie THD50500H4SS Titen HD (1/2" x 5") Heavy Duty SS Screw Anchor - Type 304 (20 Pack)

$149.86 $162.86

Description

Simpson THD50500H4SS Description

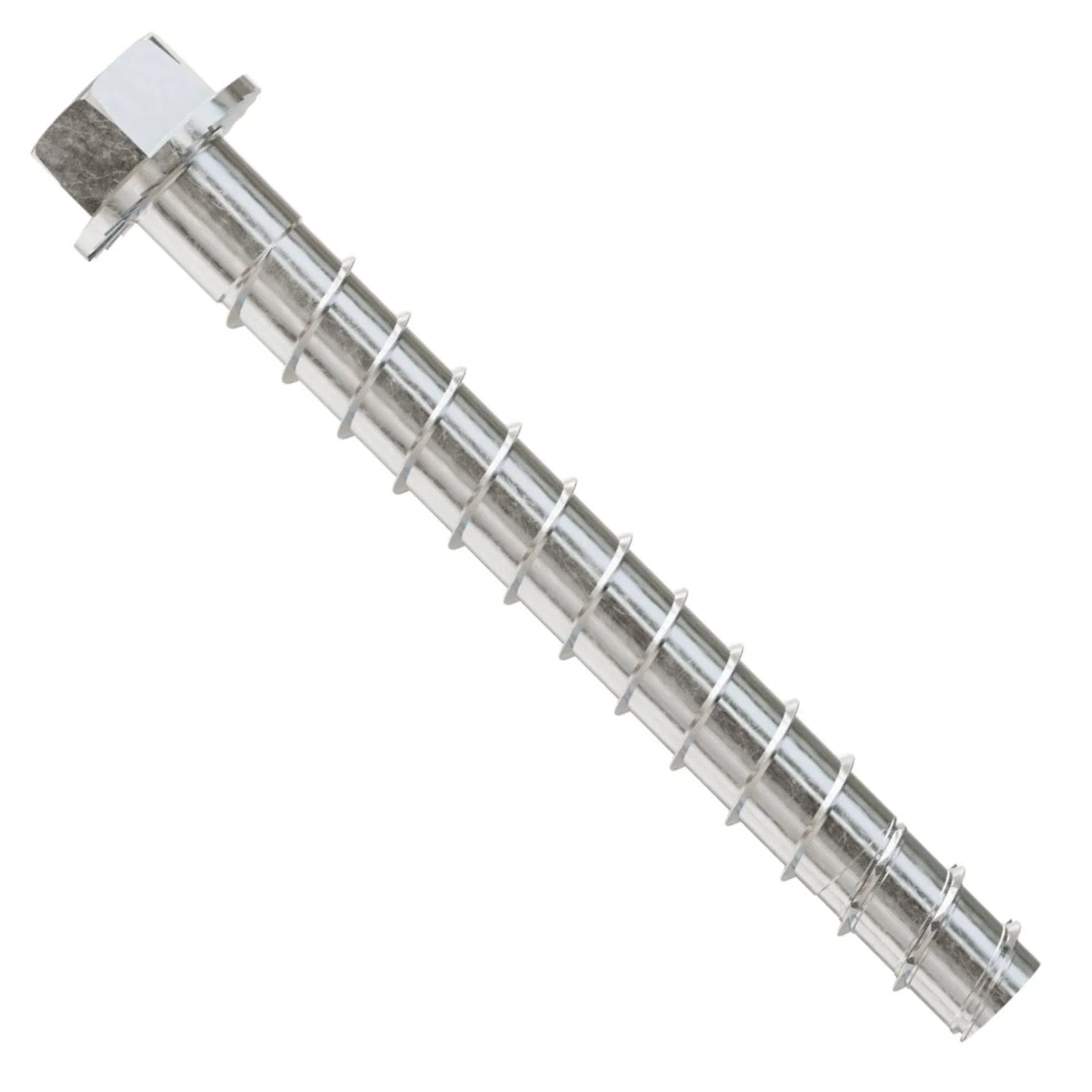

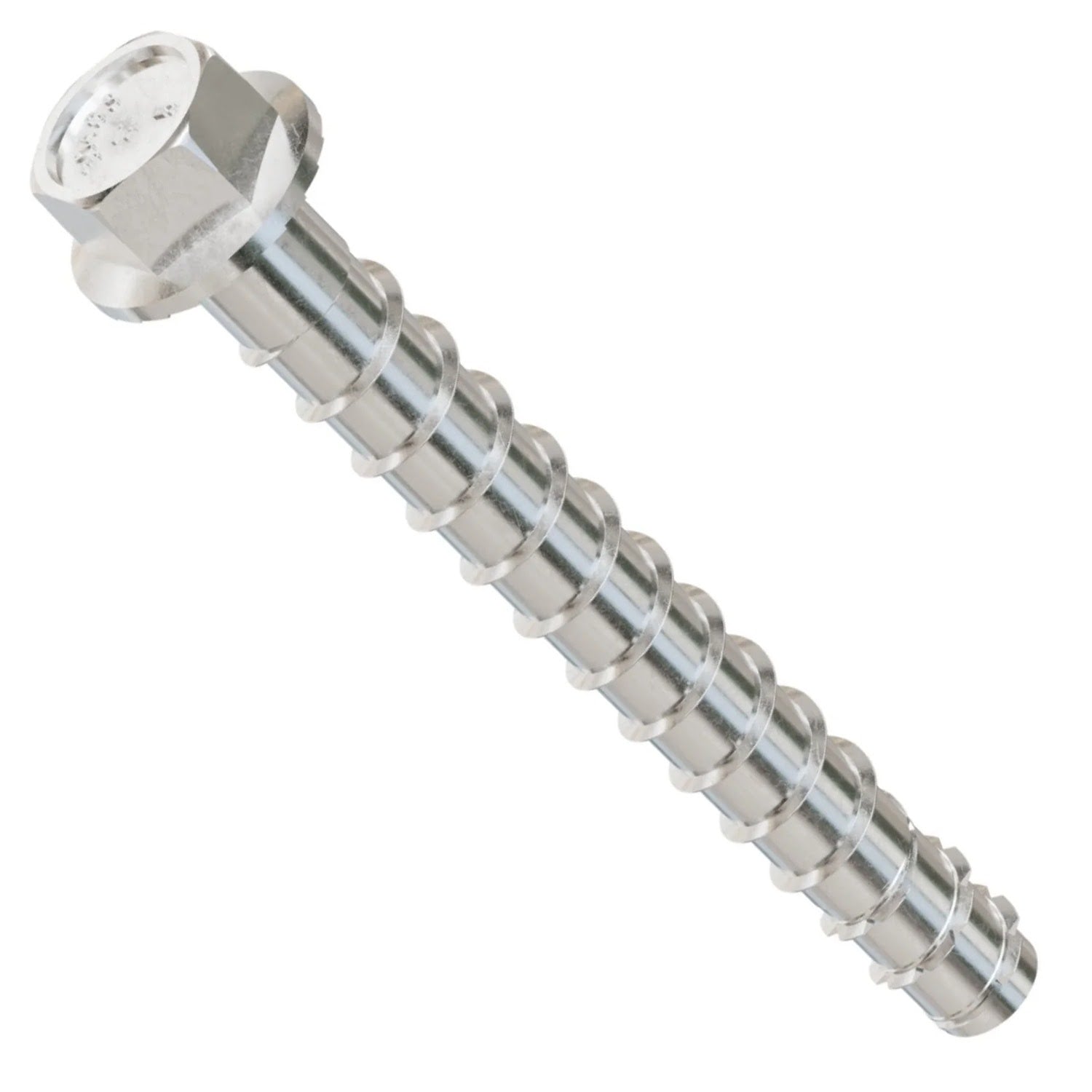

The Simpson Titen HD Screw Anchor is a high-performance, self-undercutting anchor made of 304 stainless steel, ideal for general exterior applications.

Simpson THD50500H4SS Includes

  • (20) 1/2" x 5" Titen HD Screw Anchor

Simpson THD50500H4SS Features

  • Self-undercutting design for secure installation
  • Patented thread design with serrated cutting teeth
  • Made of 304 stainless steel for corrosion resistance

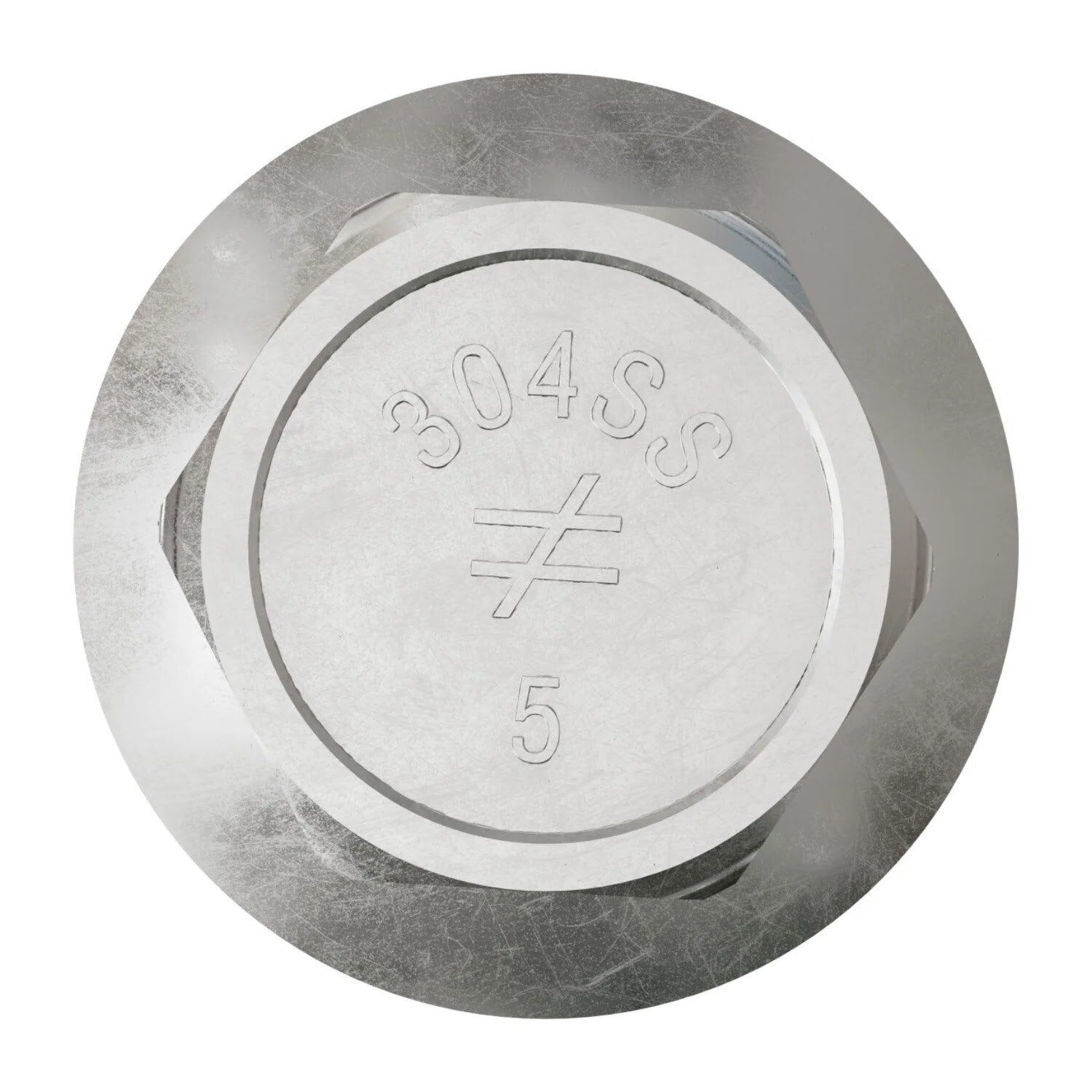

  • Hex head for easy driving
  • Designed for general exterior applications

Simpson THD50500H4SS Applications

  • Securing fixtures to concrete surfaces
  • General exterior applications
  • Non-expansion anchoring for structural stability

Simpson THD50500H4SS Installation Overview

  1. Drill a hole using a 1/2" drill bit
  2. Insert the anchor into the hole
  3. Drive the anchor using a 3/4" hex driver
  4. Ensure the anchor is securely seated

Simpson THD50500H4SS Specifications

Diameter 1/2"
Length 5"
Material 304 Stainless Steel
Drill bit size 1/2"
Drive type 3/4" Hex
Fixture hole size 5/8"-11/16"
Head type Hex Head
Manufacturer name Simpson Strong-Tie
Quantity 20

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
