Simpson Anchors | SKU:
THD50500H6SS

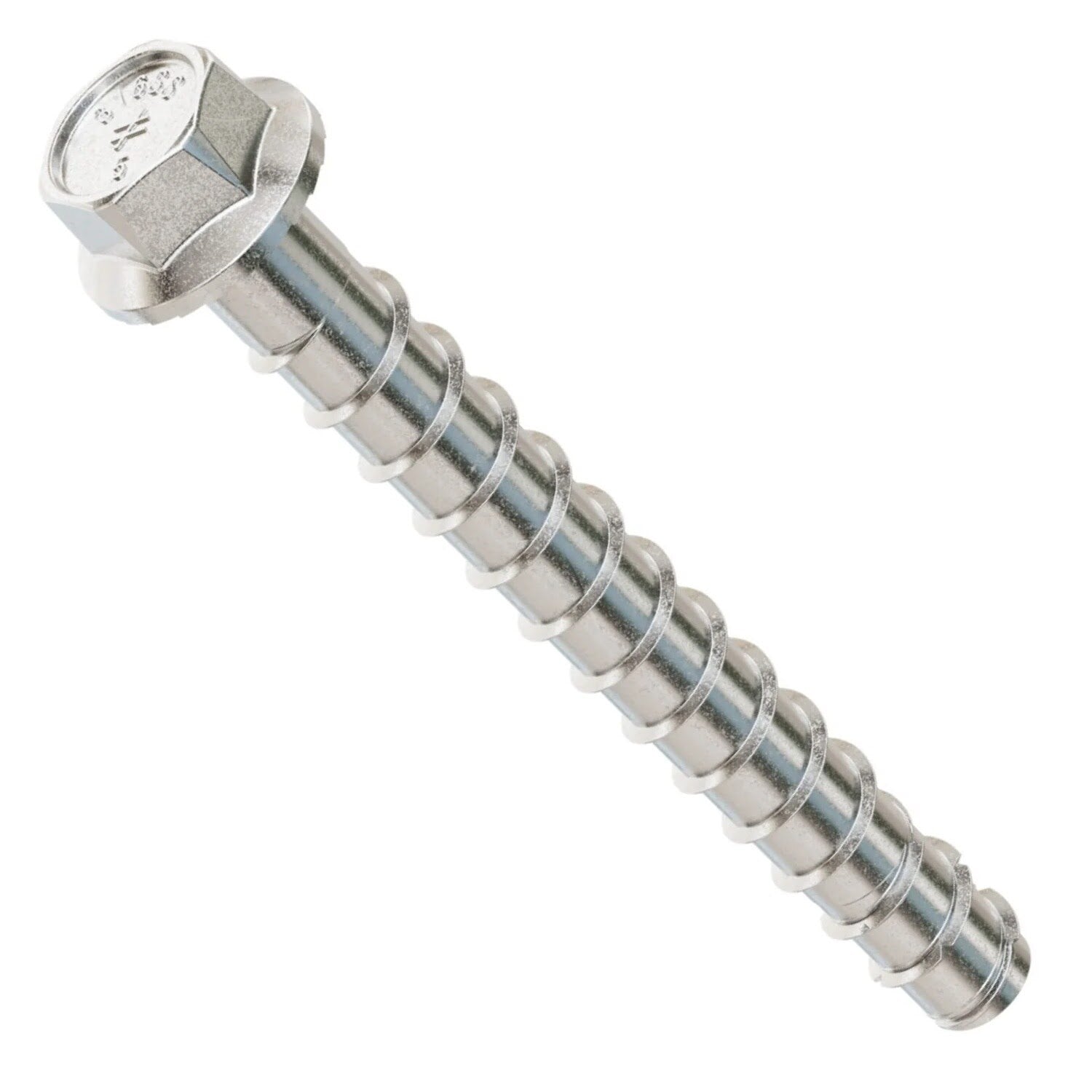

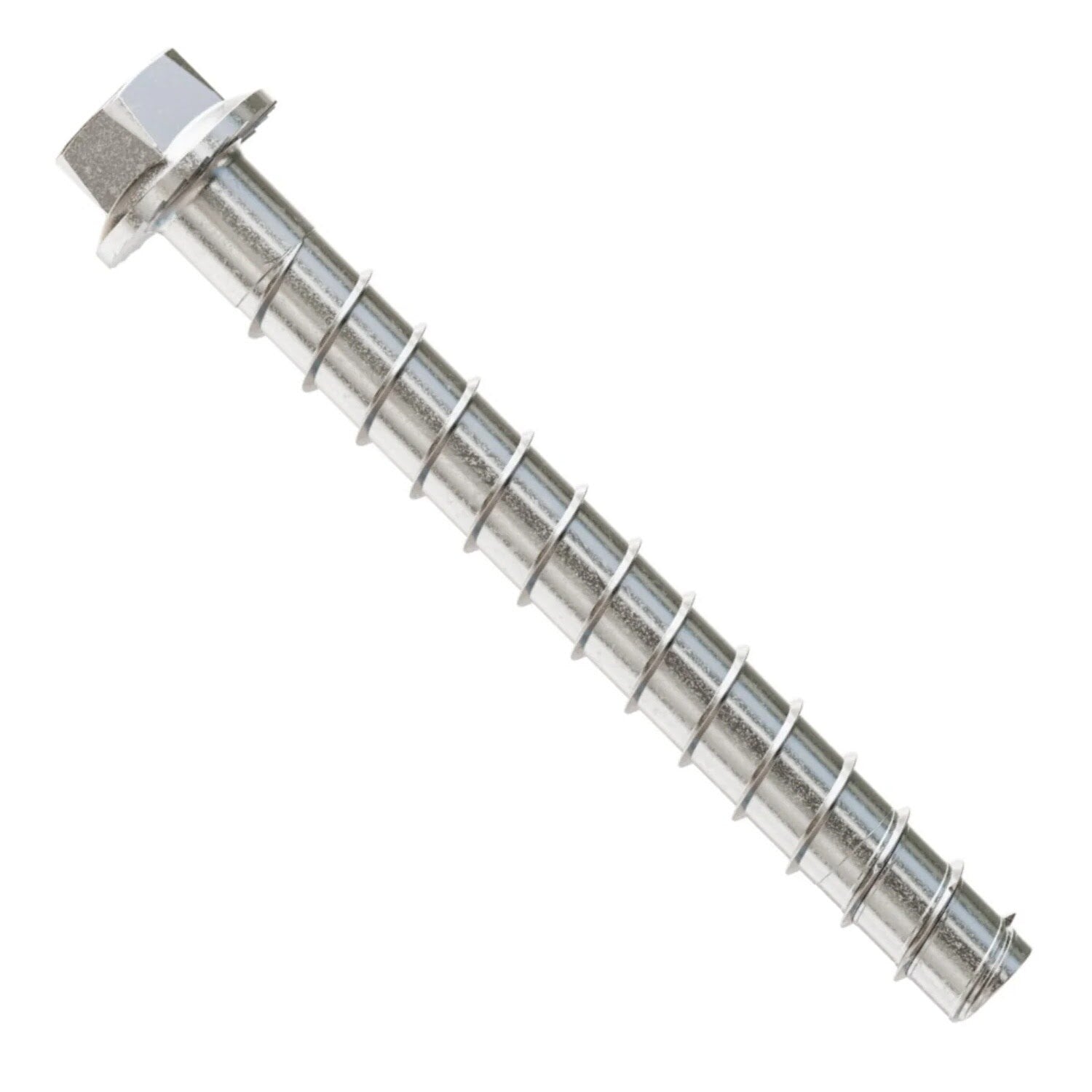

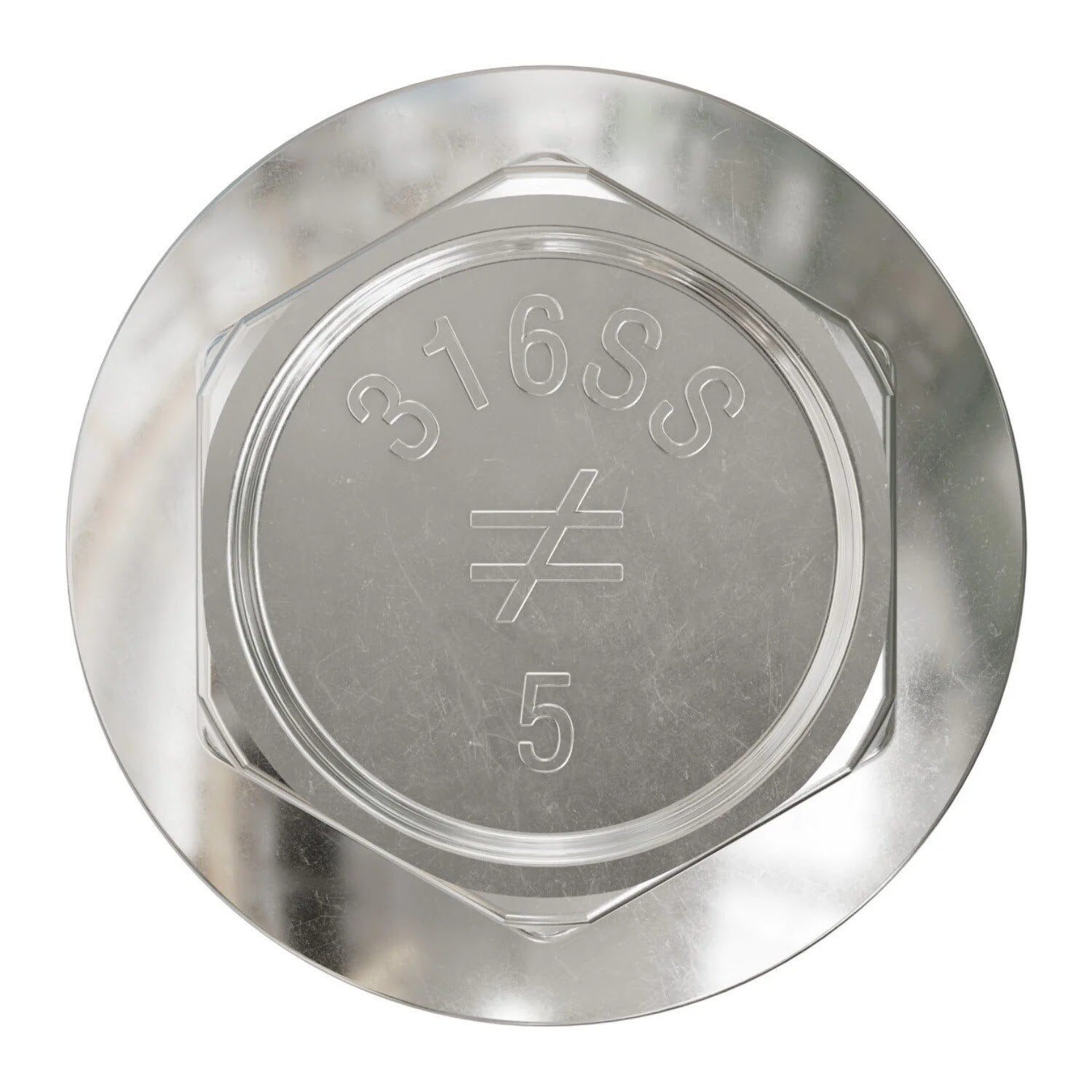

Simpson Strong-Tie THD50500H6SS Titen HD (1/2" x 5") Heavy Duty SS Screw Anchor - Type 316 (20 Pack)
Free Shipping
$199.68
Unit price
/
Unavailable
Description
Description
Simpson THD50500H6SS Description
The Titen HD Screw Anchor is a high-performance, corrosion-resistant fastener made of 316 stainless steel, ideal for exterior or corrosive environments.
Simpson THD50500H6SS Includes
- (20) 1/2" x 5" Titen HD Screw Anchor
Simpson THD50500H6SS Features
- Corrosion-resistant 316 stainless steel construction
- Patented thread design with serrated cutting teeth for easy installation
- Tested in accordance with ACI355.2, AC193, and AC106
- Hex head for secure fastening
- Designed for quick and easy installation
Simpson THD50500H6SS Applications
- Exterior construction requiring corrosion-resistant fasteners
- Mechanical, electrical, and plumbing installations
- Securing fixtures in concrete and masonry
Simpson THD50500H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50500H6SS Specifications
| Diameter | 1/2" |
| Length | 5" |
| Drill Bit Size | 1/2" |
| Drive Type | 3/4" Hex |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Hex Head |
| Material | 316 Stainless Steel |
| Quantity | 20 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
