Simpson Anchors | SKU:
THD50500HMG

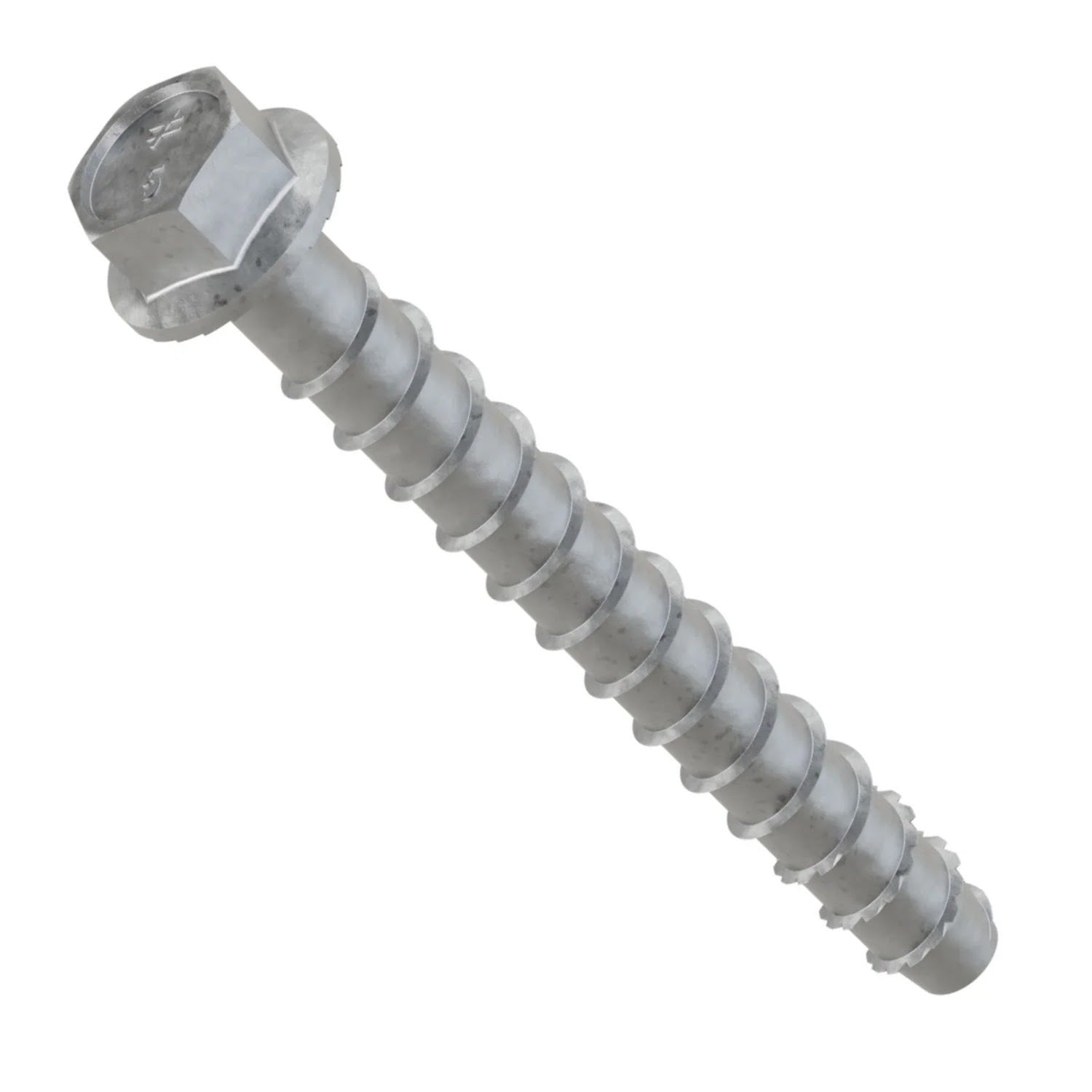

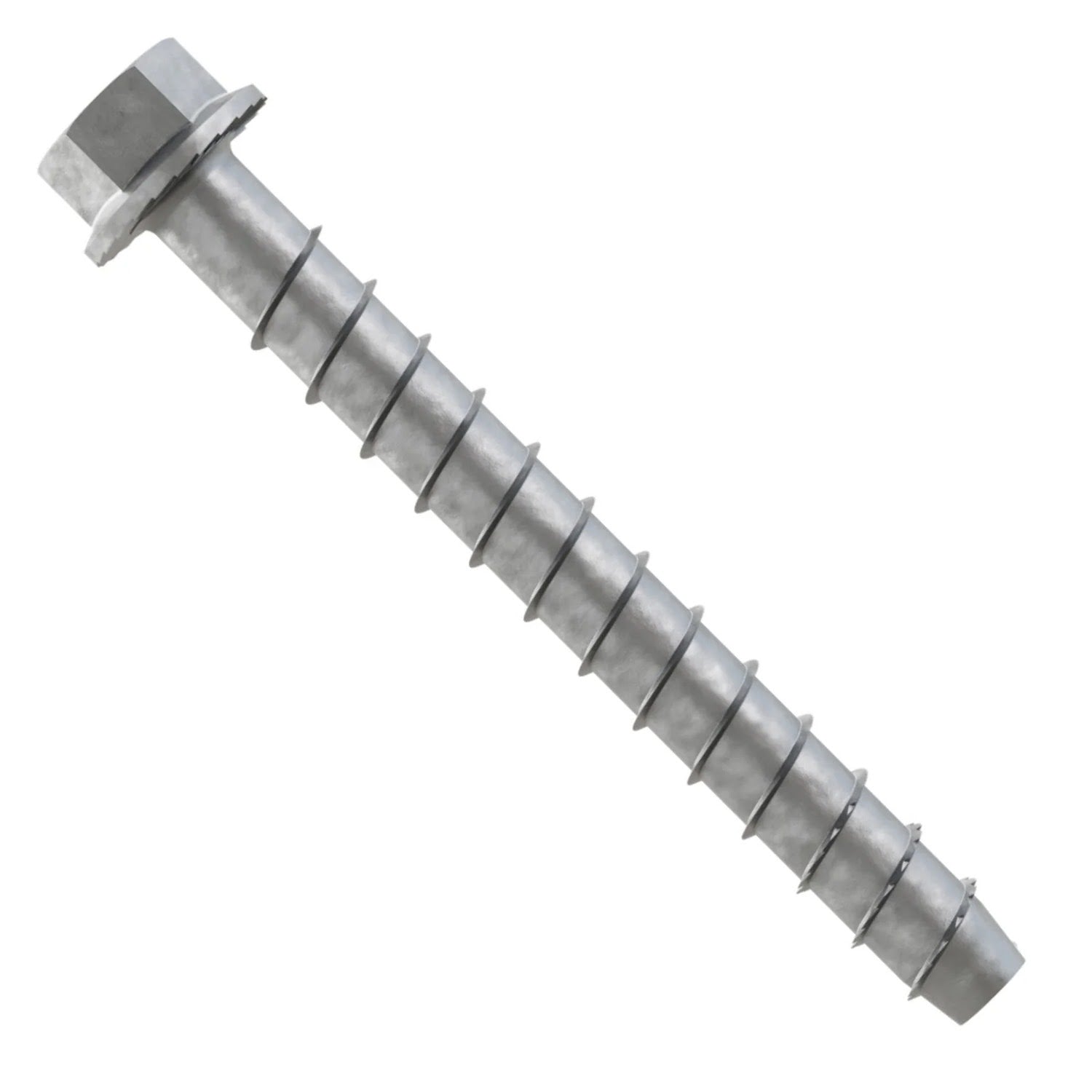

Simpson Strong-Tie THD50500HMG Titen HD (1/2" x 5") Mechanically Galvanized Heavy-Duty Screw Anchor (20 Pack)
$87.75
Unit price
/
Unavailable
Description
Description
Simpson THD50500HMG Description
The Titen HD Screw Anchor is a high-strength, mechanically galvanized anchor designed for quick installation in concrete and masonry.
Simpson THD50500HMG Includes
- (20) 1/2" x 5" Titen HD Screw Anchor
Simpson THD50500HMG Features

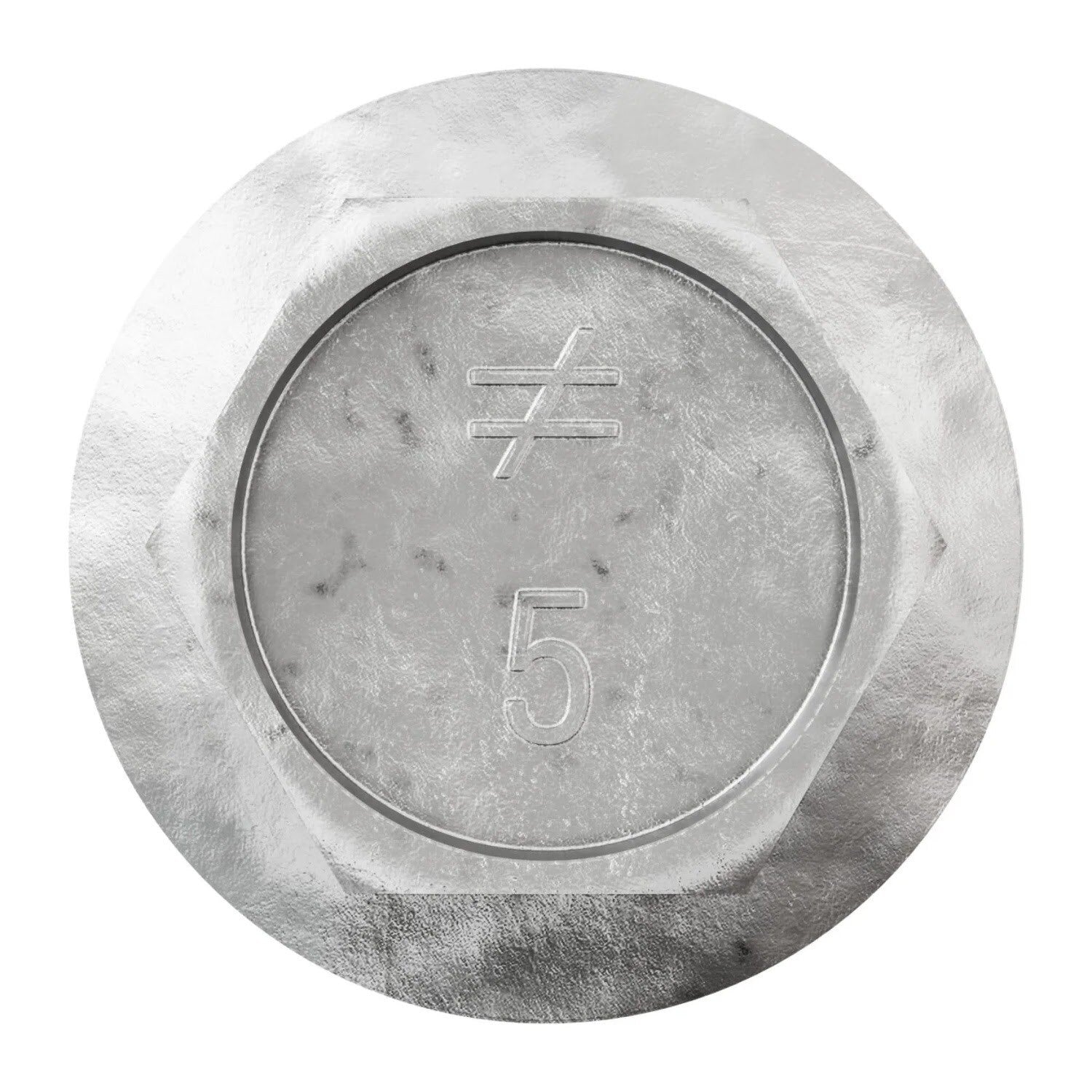

- Head-stamped for easy identification
- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Standard fractional sizes with hole size equal to anchor size
- Specialized heat-treating for tip hardness and ductility
- Hex washer head eliminates need for separate washer
- Fully removable for temporary applications
- Code listed for exterior applications
Simpson THD50500HMG Applications
- Sill plates
- Ledgers

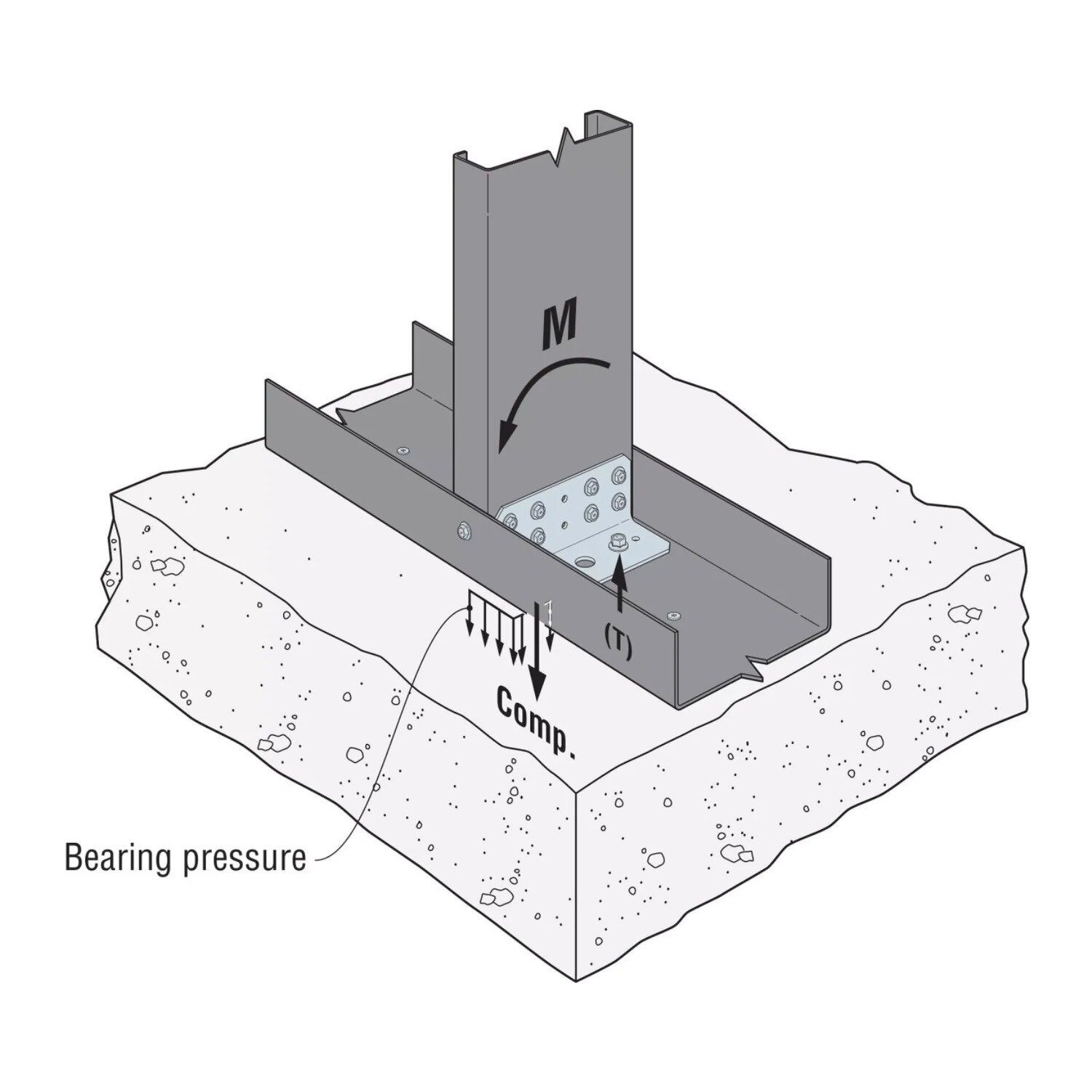

- Post bases
- Seating
- Holdown applications
- Temporary anchoring
Simpson THD50500HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50500HMG Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 1/2" |
| Length | 5" |
| Drill Bit Diameter | 1/2" |
| Drive Type | 3/4" Hex |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Hex Head |
| Quantity | 20 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
