Simpson Strong-Tie THD50500HMGF1 Description

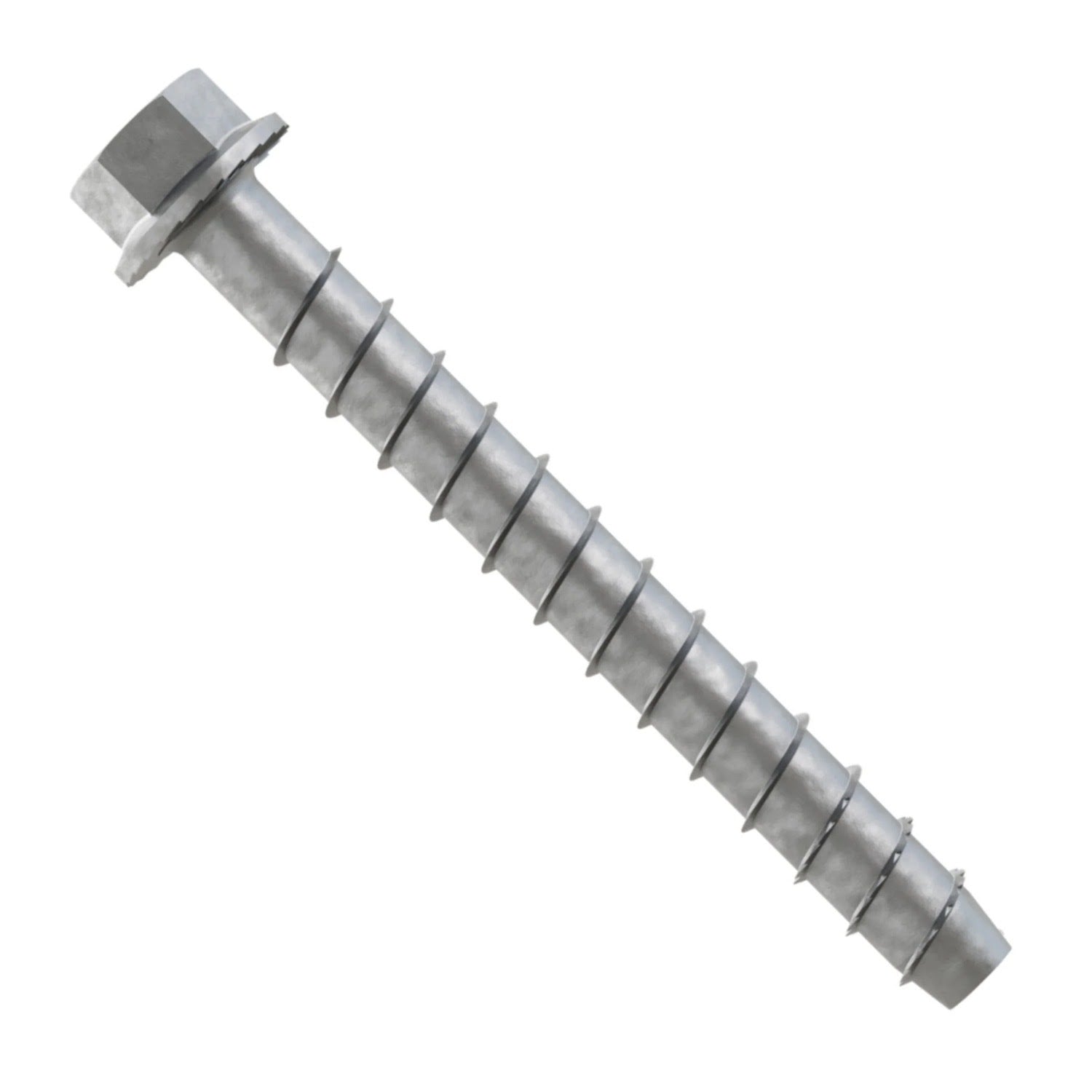

The Titen HD 1/2" x 5" Mechanically Galvanized Heavy-Duty Screw Anchor is designed for anchoring into concrete or masonry, offering exceptional holding power and corrosion resistance.
Simpson Strong-Tie THD50500HMGF1 Includes

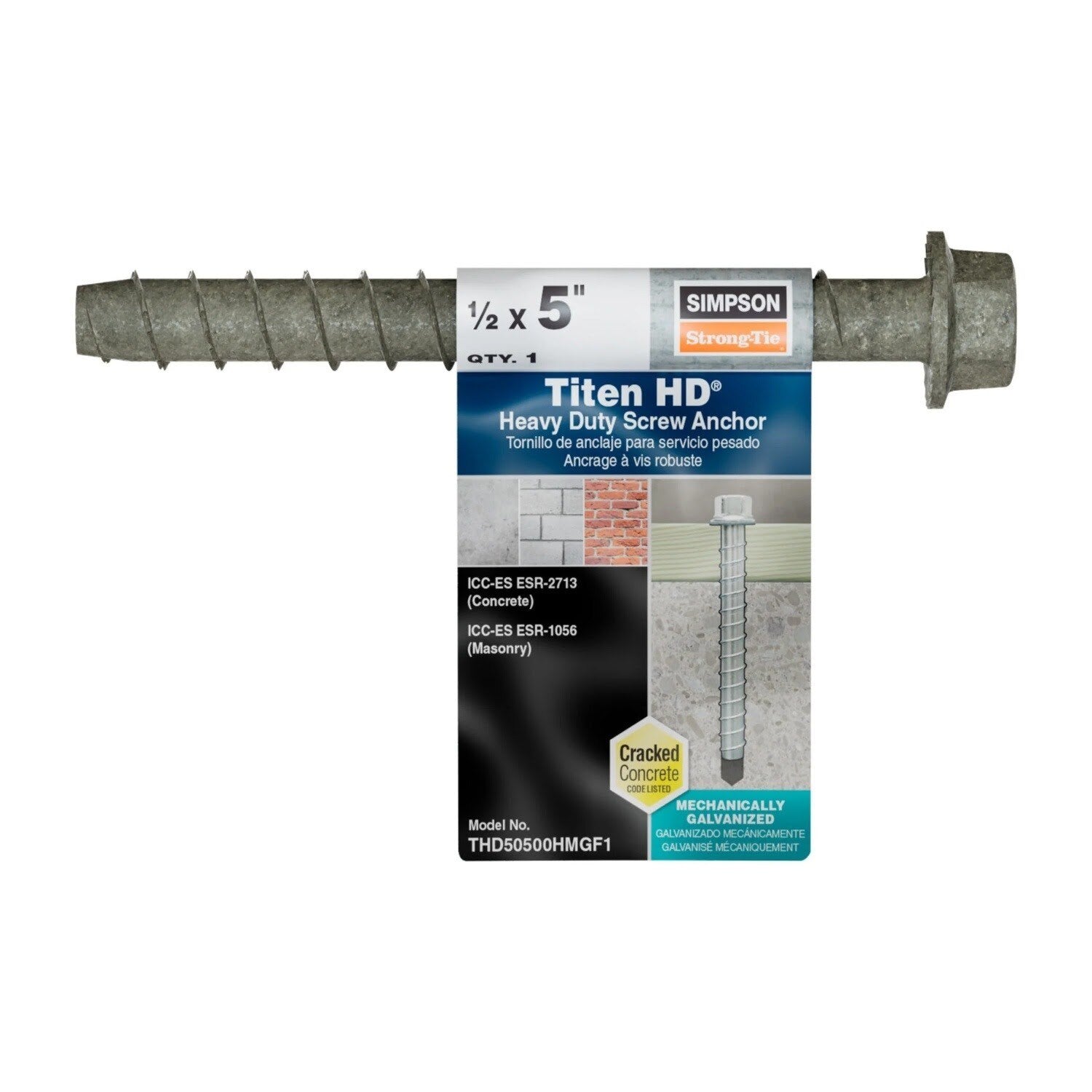

- (1) Titen HD 1/2" x 5" Mechanically Galvanized Heavy-Duty Screw Anchor
Simpson Strong-Tie THD50500HMGF1 Features

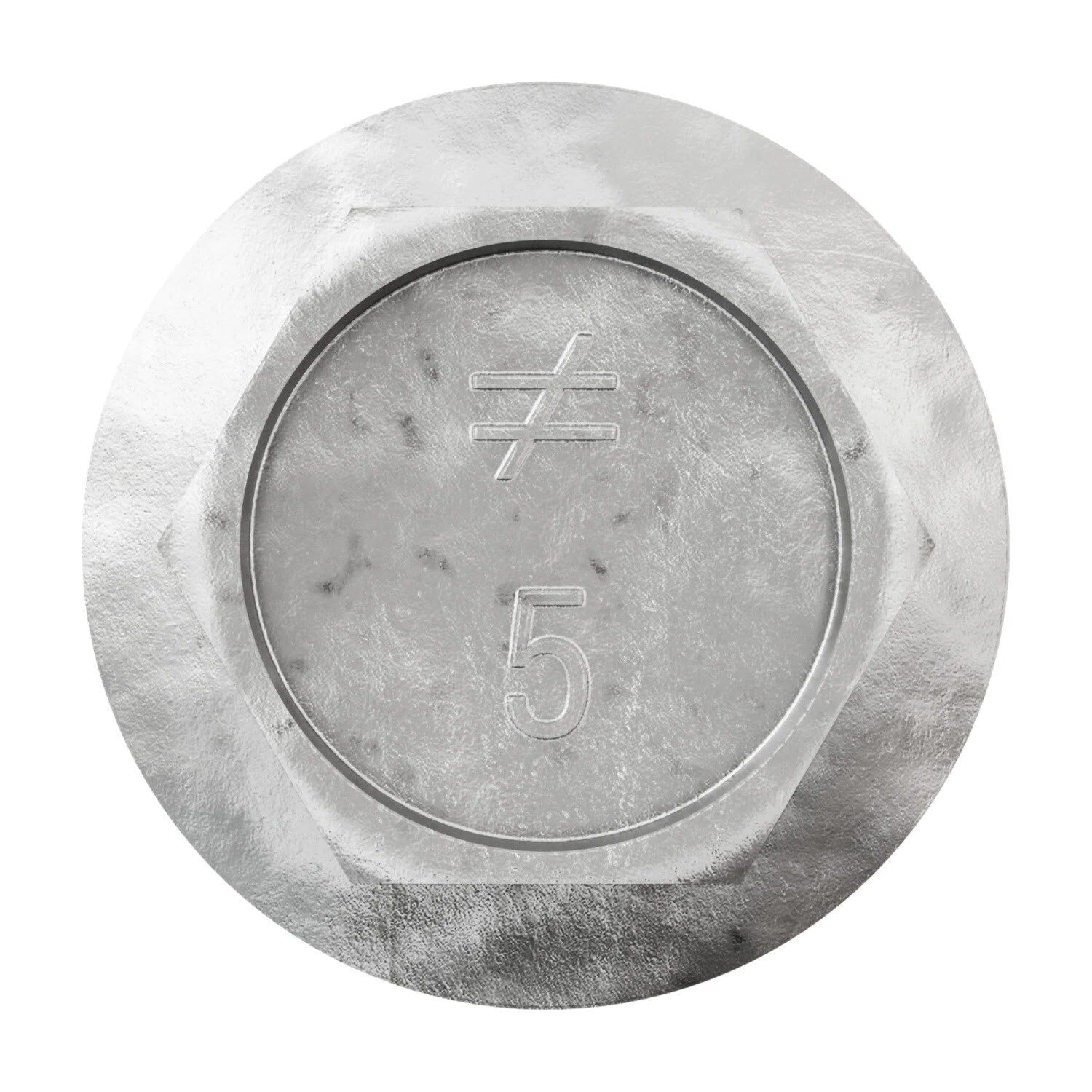

- Head-stamped for easy identification

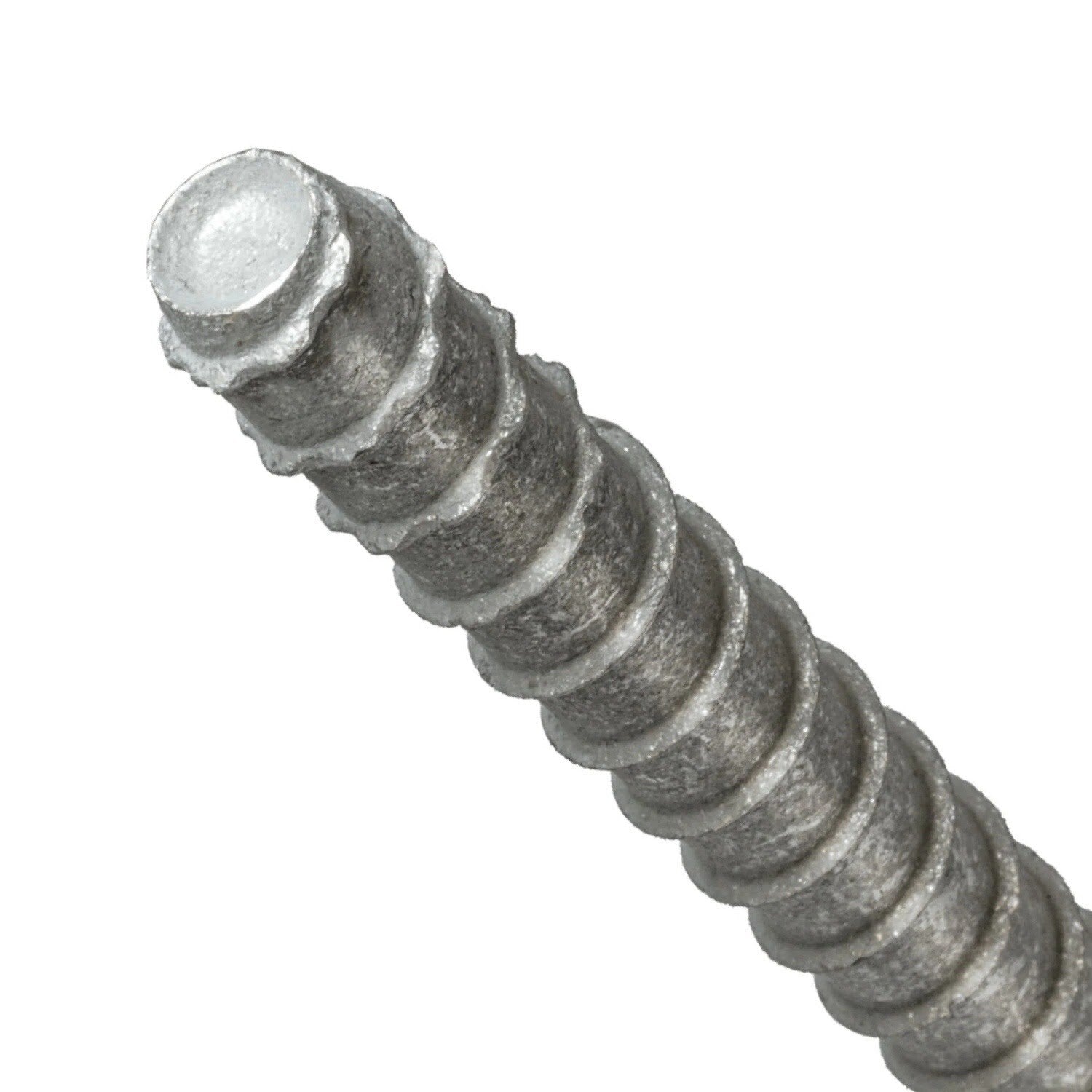

- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Hex washer head eliminates need for separate washer
- Fully removable and reusable
- Code listed for exterior applications
Simpson Strong-Tie THD50500HMGF1 Applications
- Anchoring sill plates on foundations
- Ledger board installations for decks or balconies

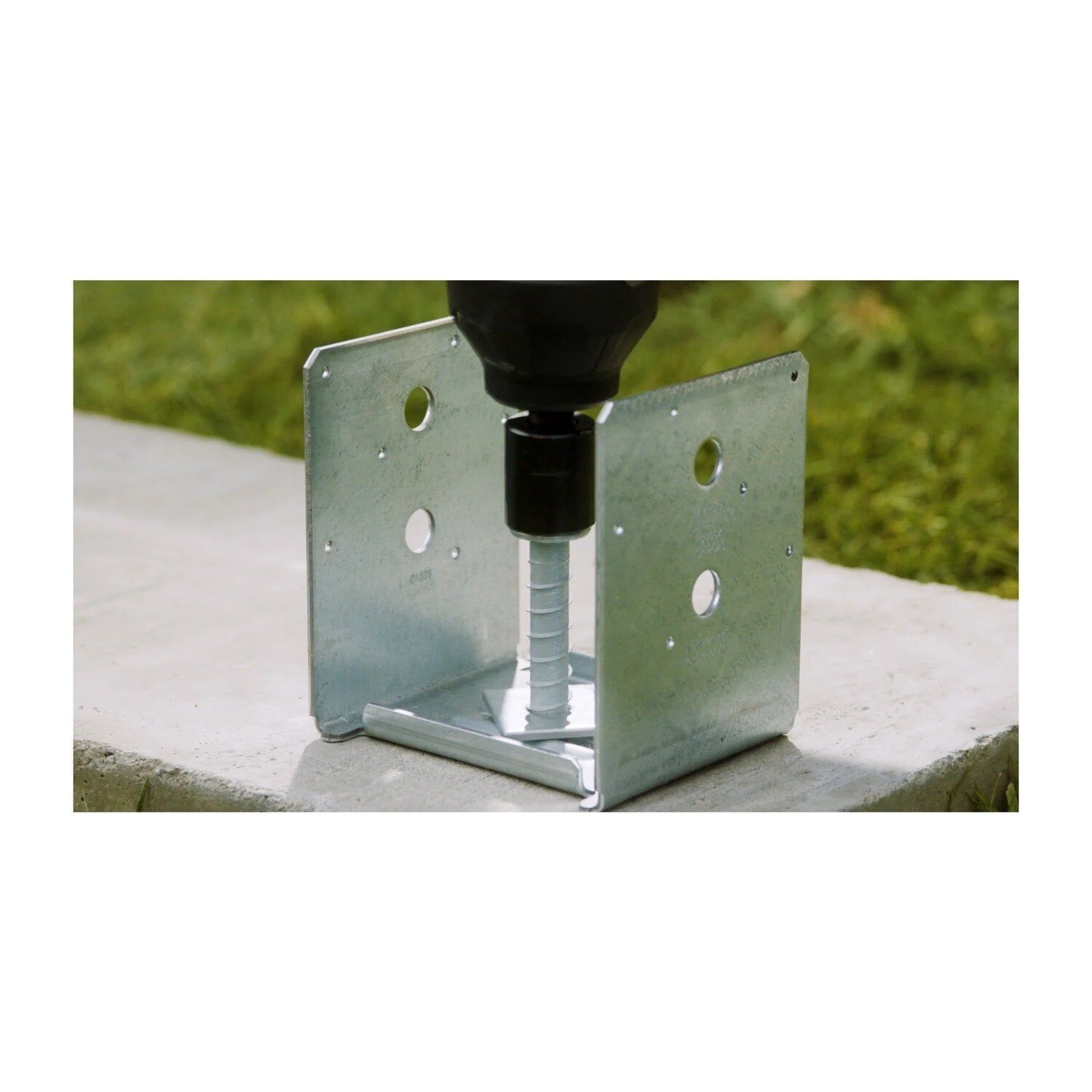

- Securing post bases for interior or exterior use
- Connecting wood or metal to concrete or masonry
Simpson Strong-Tie THD50500HMGF1 Installation Overview
- Drill a hole to the specified diameter and depth.
- Clean the hole of dust and debris.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the head is flush with the fixture.
Simpson Strong-Tie THD50500HMGF1 Specifications
| Diameter | 1/2" |
| Length | 5" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 1/2" |
| Fixture Hole Size | 5/8" - 11/16" |
| Thread Length | 4-1/2" |
| Wrench Size | 3/4" |
NOTE: Use a Titen HD screw anchor one time only—installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
