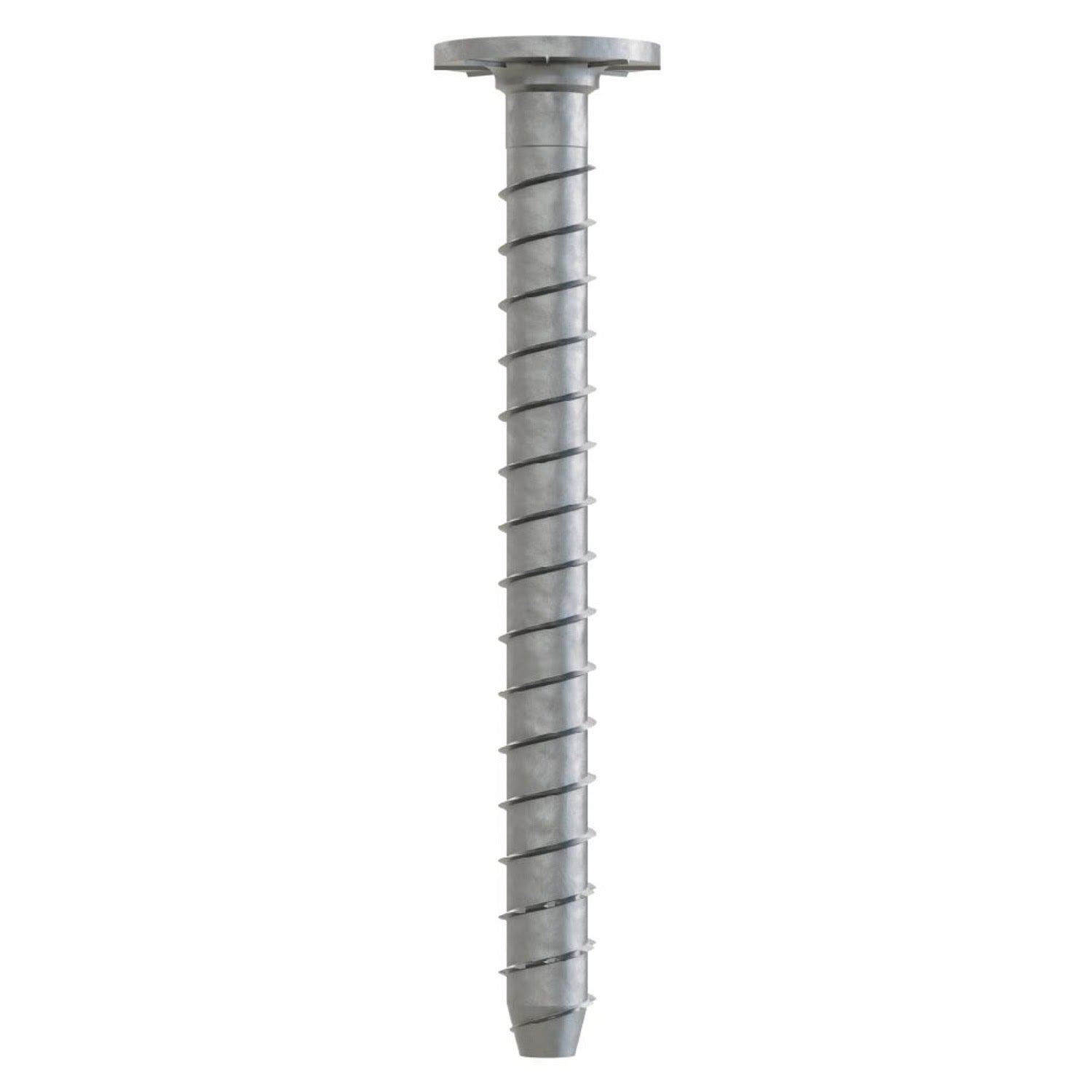

Simpson Strong-Tie THD50500WHMG Titen HD (1/2" x 5") Titen HD Washer-Head Heavy-Duty Screw Anchor (15 Pack)
$83.72
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD50500WHMG Description
The Titen HD Washer-Head Heavy-Duty Screw Anchor is a reliable solution for anchoring in concrete, featuring a mechanically galvanized finish for durability and a washer head for versatile applications.
Simpson Strong-Tie THD50500WHMG Includes
- (15) 1/2 in. x 5 in. Mechanically Galvanized Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THD50500WHMG Features
- Qualified for cracked and uncracked concrete under static, wind, and seismic loading conditions
- Available in 1/2" and 5/8" diameters
- Standard fractional sizes with matching hole size
- No special drill bit required
- Removable for temporary anchoring
- Washer head for applications incompatible with hex head
- Mechanically galvanized for exterior applications
Simpson Strong-Tie THD50500WHMG Applications
- Concrete anchoring for static, wind, and seismic conditions
- Temporary anchoring where fixtures may need to be moved
- Exterior applications requiring corrosion resistance
Simpson Strong-Tie THD50500WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the washer head contacts the fixture.
Simpson Strong-Tie THD50500WHMG Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Size | 1/2 in. x 5 in. |
| Drill Bit Diameter | 1/2 in. |
| Recommended Fixture Hole Size | 11/16 to 3/4 in. |
NOTE: For permanent applications, use a Titen HD one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
