Simpson Anchors | SKU:
THD50600H4SS

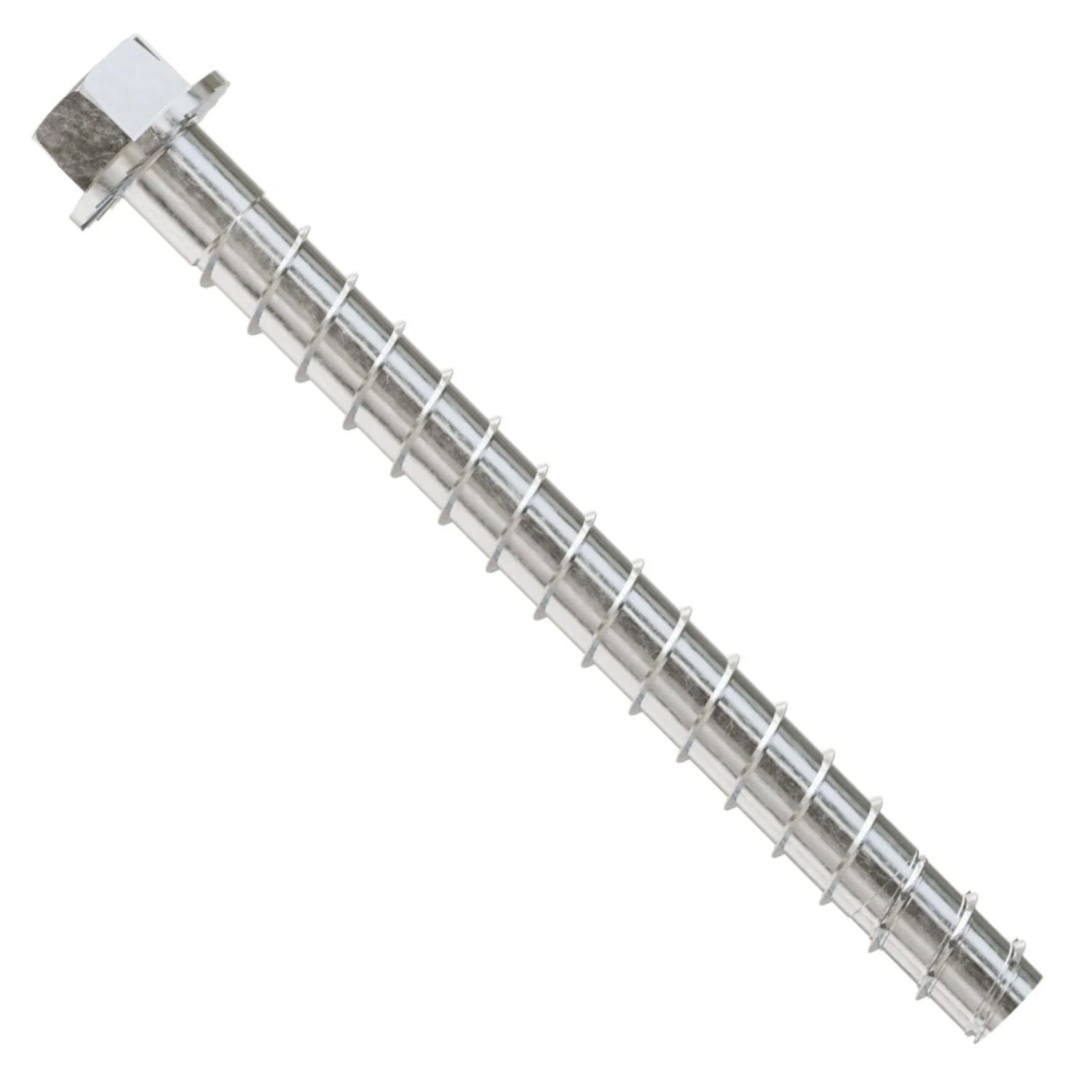

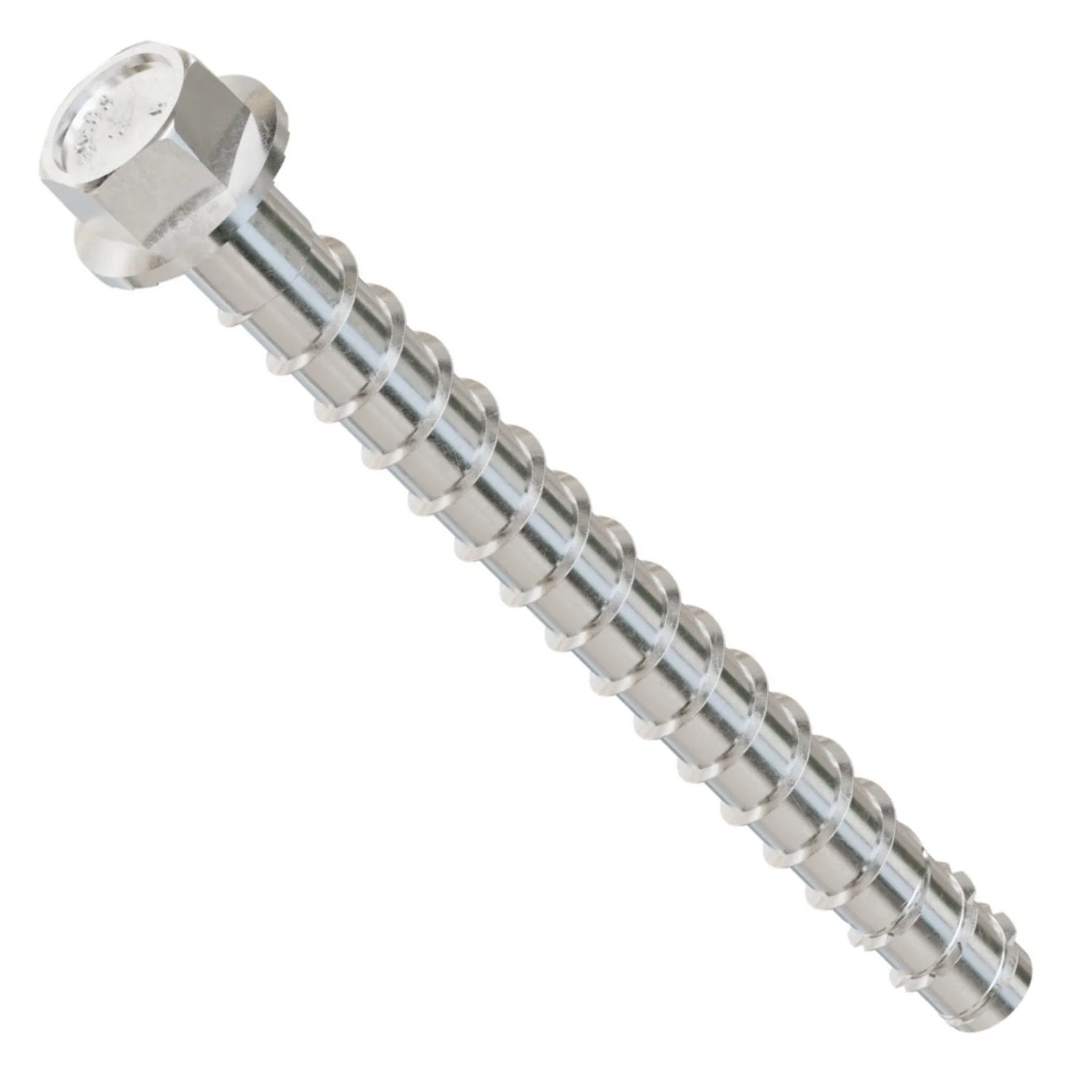

Simpson Strong-Tie THD50600H4SS Titen HD (1/2" x 6") Heavy Duty SS Screw Anchor - Type 304 (20 Pack)
$179.12
Unit price
/
Unavailable
Description
Description
Simpson THD50600H4SS Description
The Simpson Titen HD Screw Anchor is a high-performance, self-undercutting anchor made of 304 stainless steel, ideal for exterior applications.
Simpson THD50600H4SS Includes
- (20) 1/2 in. x 6 in. Titen HD Screw Anchor
Simpson THD50600H4SS Features
- Made of 304 stainless steel for durability and corrosion resistance
- Self-undercutting design for easy installation
- Patented thread design with serrated cutting teeth
- Suitable for exterior applications
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson THD50600H4SS Applications
- Exterior construction requiring reliable anchoring
- Mechanical, electrical, and plumbing installations
- General fastening in corrosive environments
Simpson THD50600H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50600H4SS Specifications
| Diameter | 1/2 in. |
| Length | 6 in. |
| Material | 304 Stainless Steel |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |

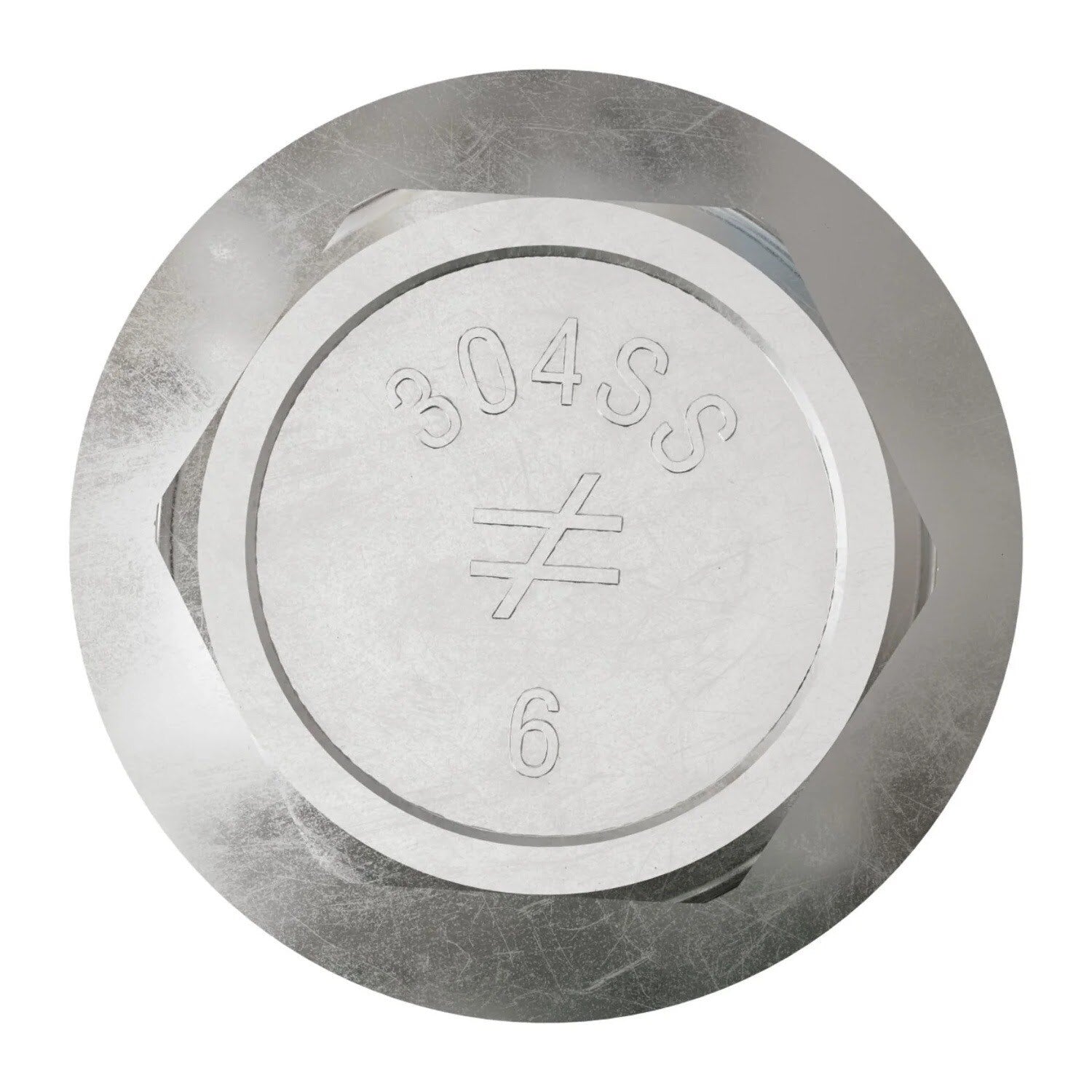

| Head Type | Hex Head |
| Quantity | 20 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values
