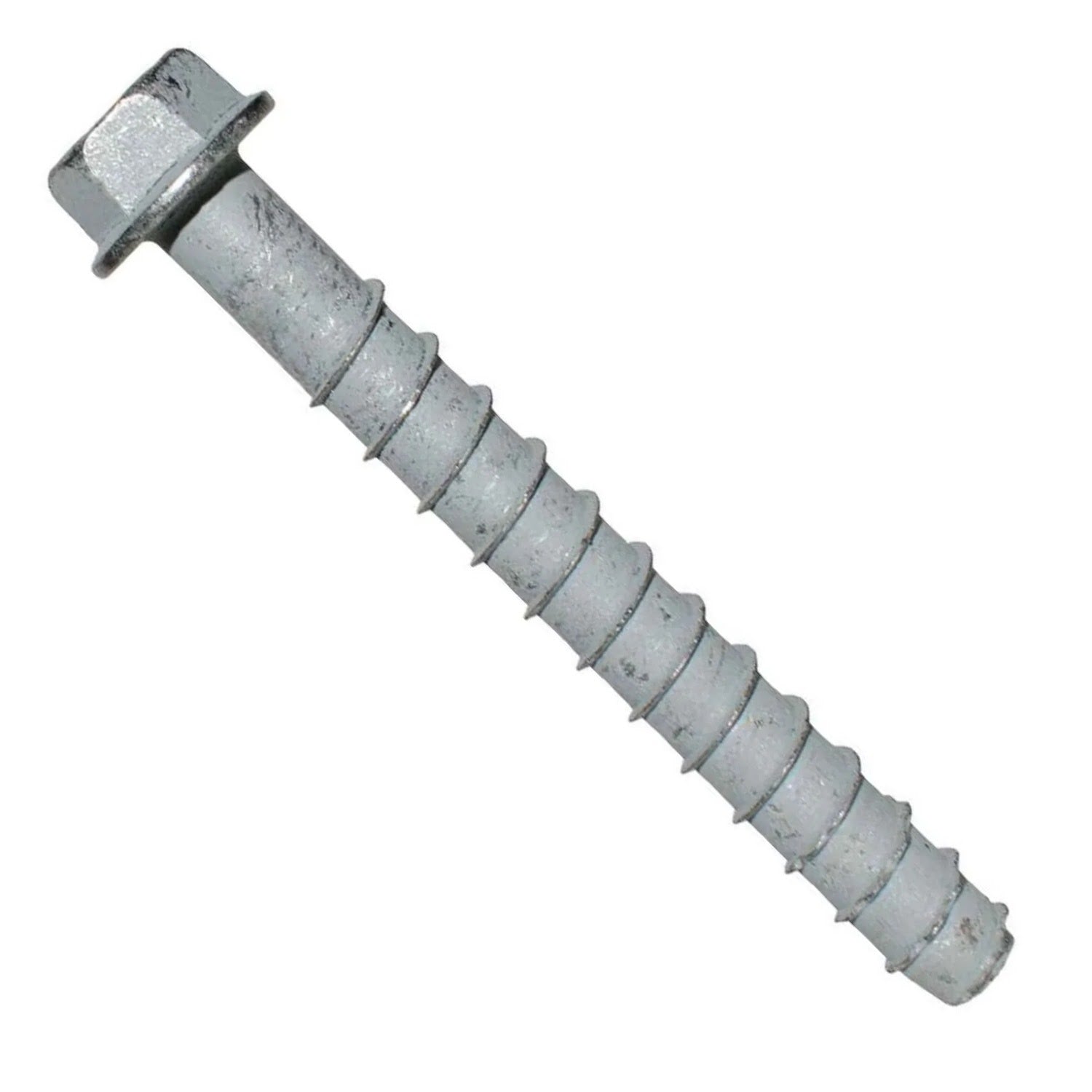

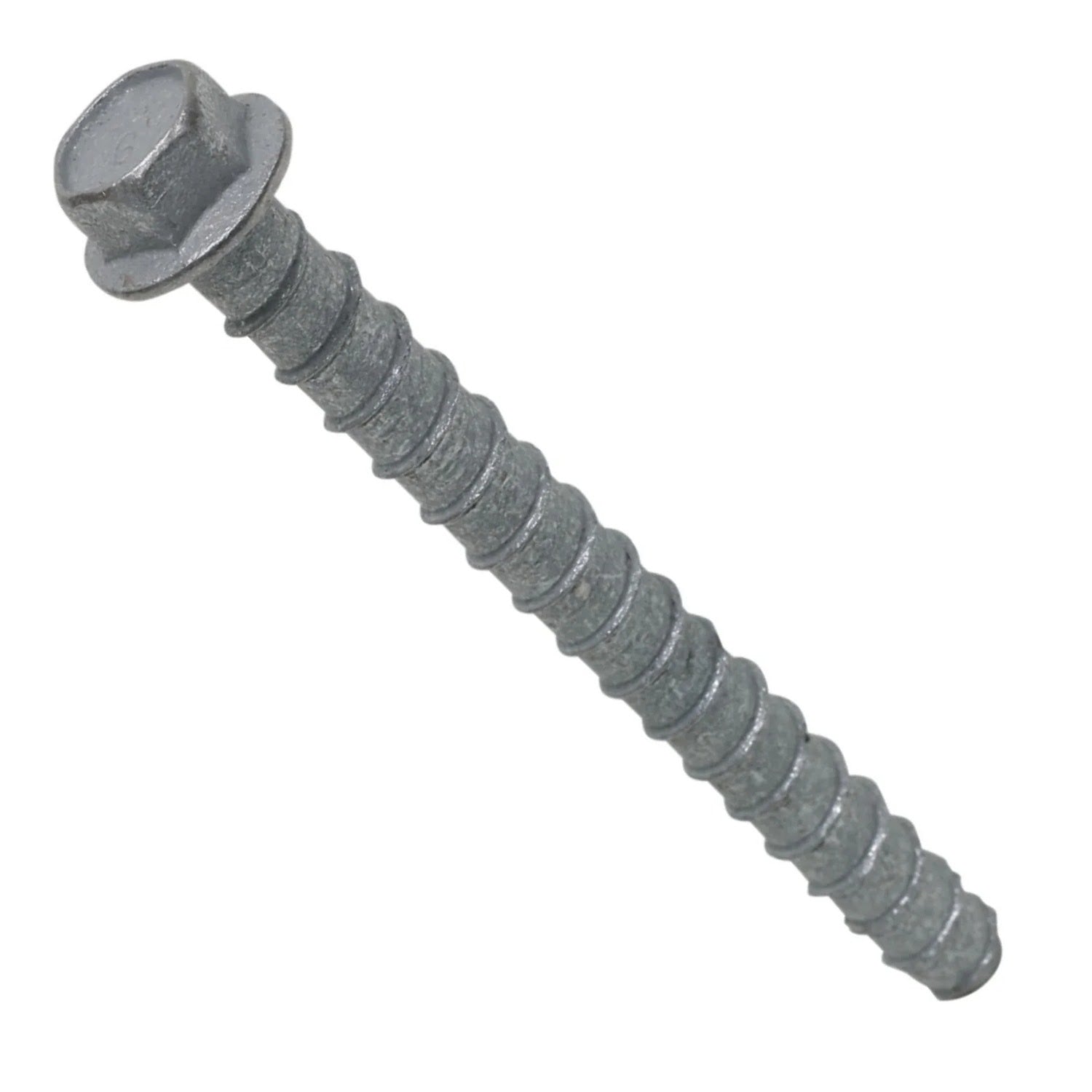

Simpson Strong-Tie THD50600HMGF1 Titen HD (1/2" x 6") Mechanically Galvanized Heavy-Duty Screw Anchor

Simpson THD50600HMGF1 Features

• Head-stamped for easy identification

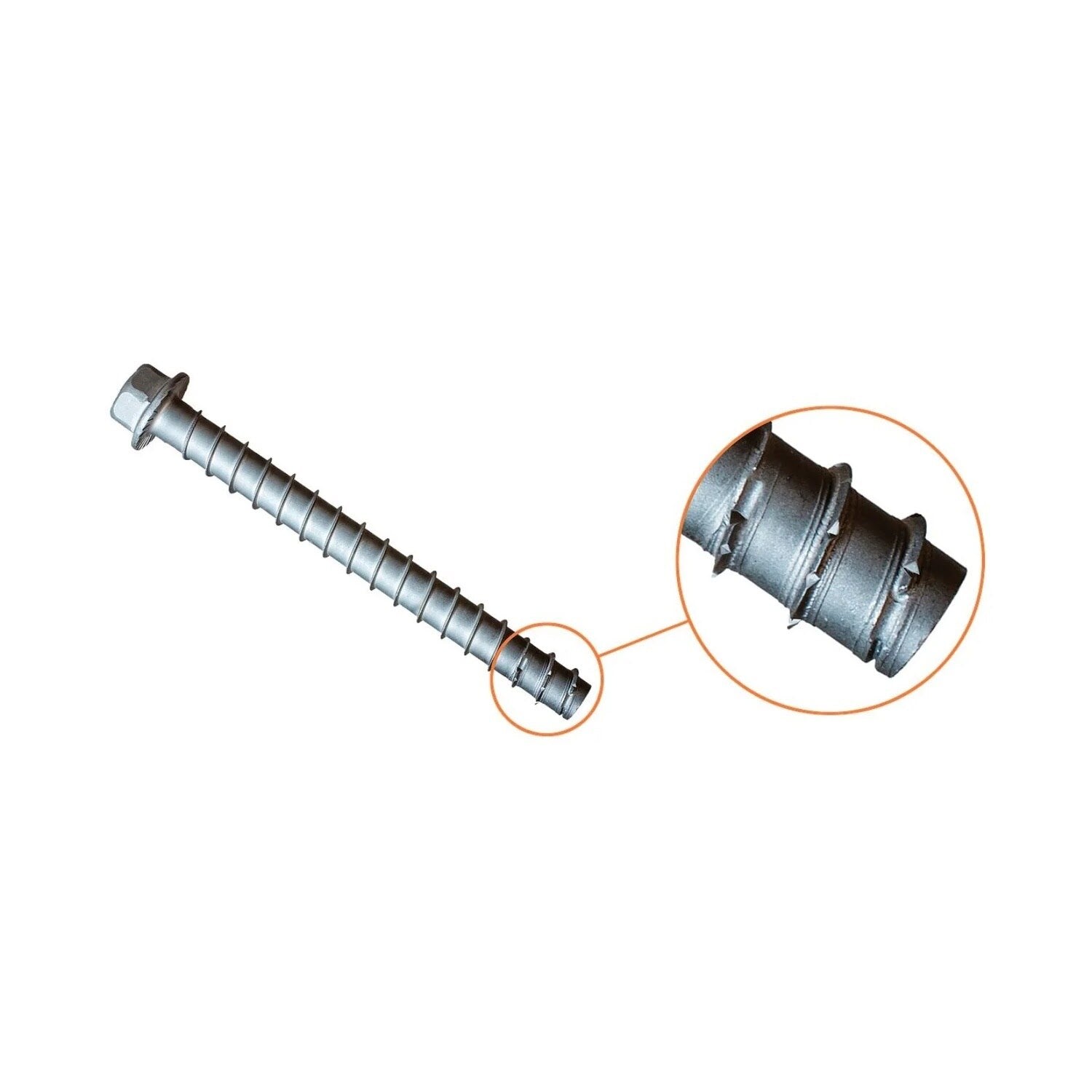

• Serrated teeth on the tip facilitates cutting and reduces installation torque
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes, hole size equals anchor size
• Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
• Hex washer head requires no separate washer, unless required by code
• Fully and easily removable
• Code listed for exterior applications

Simpson THD50600HMGF1 Applications

• Anchorage Solutions: Ideal for securing fixtures in cracked and uncracked concrete and masonry.
• Exterior Applications: Suitable for outdoor use due to its mechanical galvanizing.
• Interior Pressure-Treated Wood Applications: Can be used for sill plates and other wood-based anchoring.

Simpson THD50600HMGF1 Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Insert the anchor through the fixture and into the hole.
3. Tighten the anchor until the hex-washer head contacts the fixture.
