Simpson Anchors | SKU:
THD50600WH
Simpson Strong-Tie THD50600WH Titen HD (1/2" x 6") Washer-Head Heavy-Duty Screw Anchor (15 Pack)
$45.32
Unit price
/
Unavailable
Description
Description
Simpson THD50600WH Description

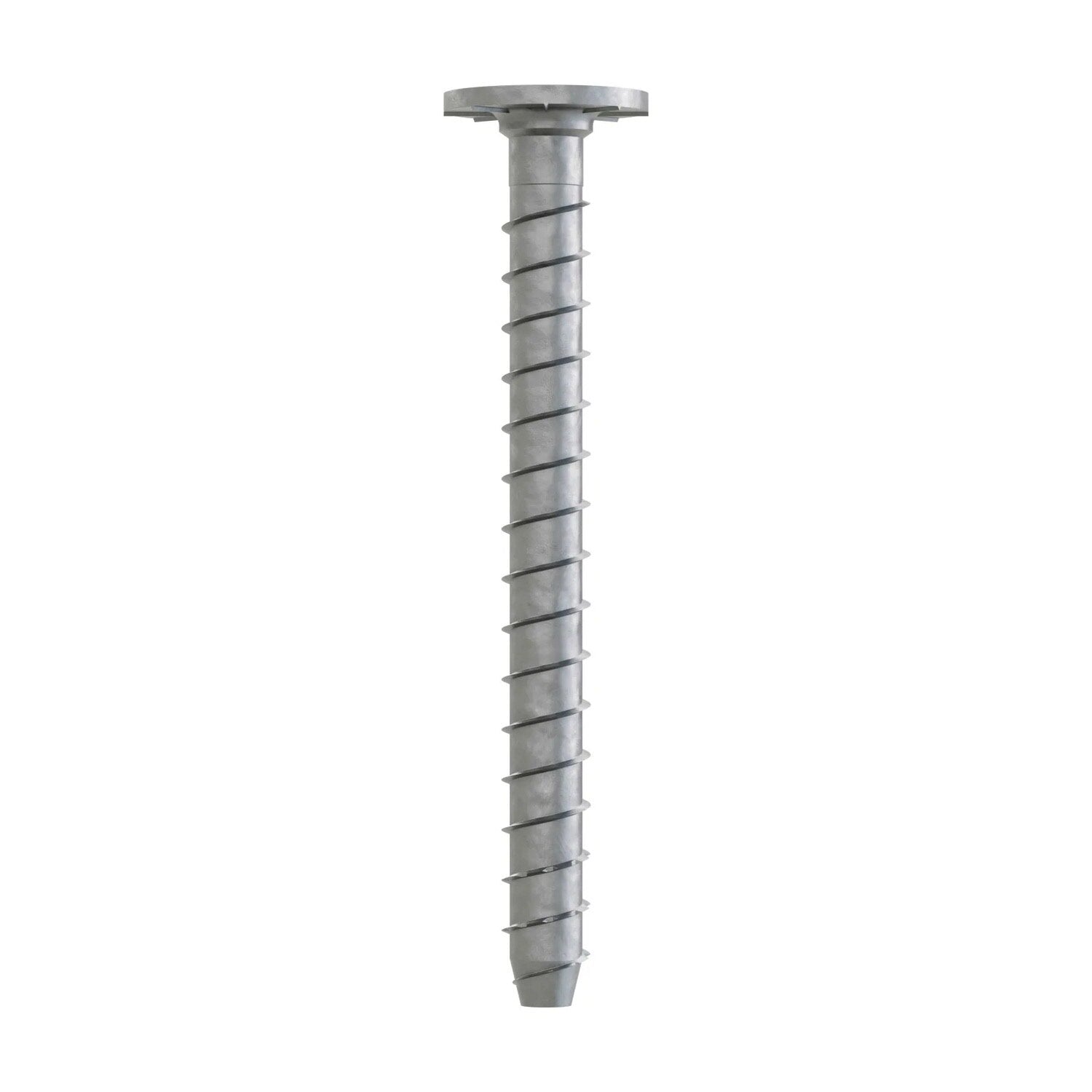

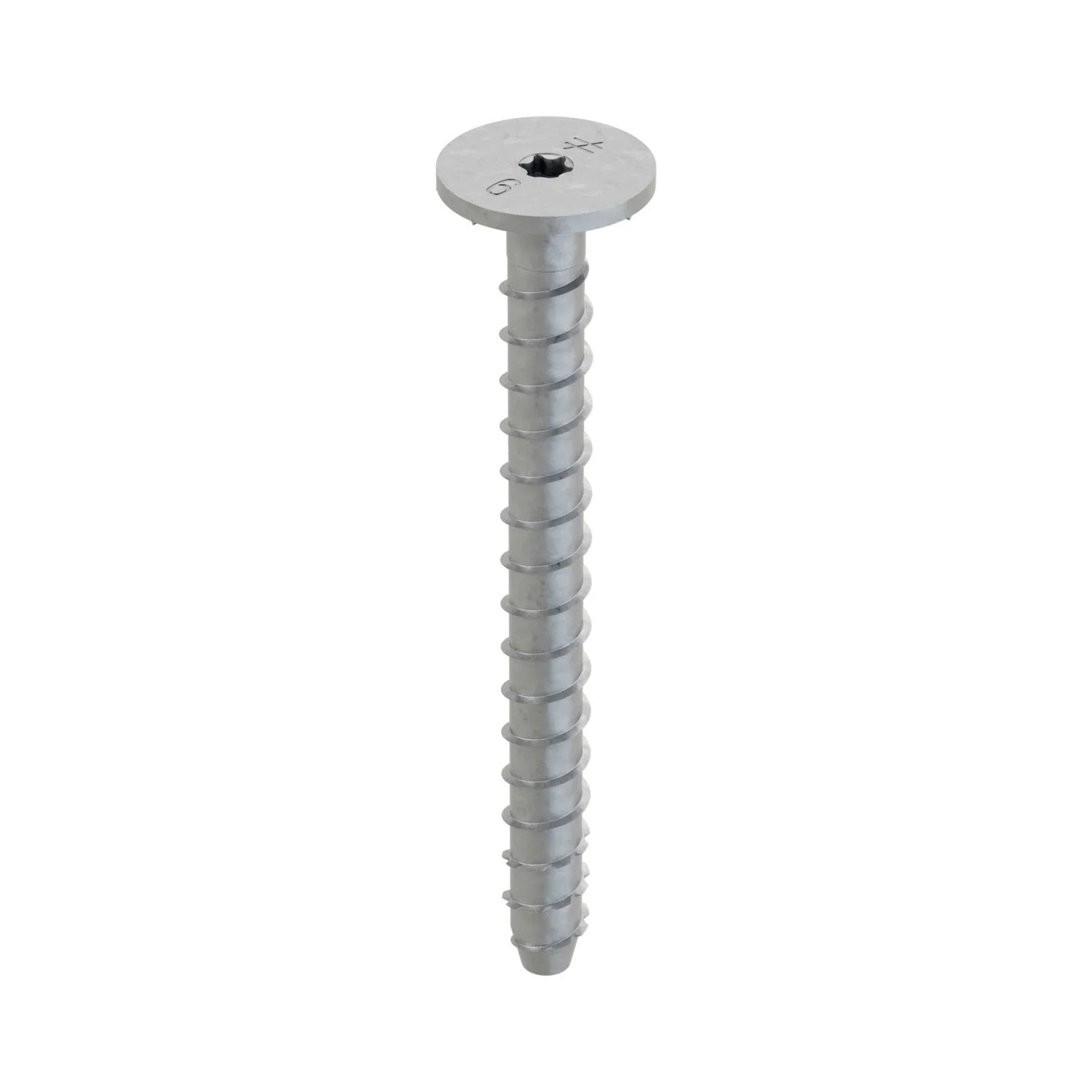

The Titen HD Washer-Head Heavy-Duty Screw Anchor is a high-strength anchor designed for cracked and uncracked concrete and masonry applications. Featuring a washer-head design for low-profile installations, it is ideal for sill plates and modular systems.
Simpson THD50600WH Includes
- (15) Titen HD Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. Socket Adapter
- (2) T-Drive Bits
Simpson THD50600WH Features
- Tested in accordance with ACI 355.2 and AC193
- Qualified for static, wind, and seismic loading conditions

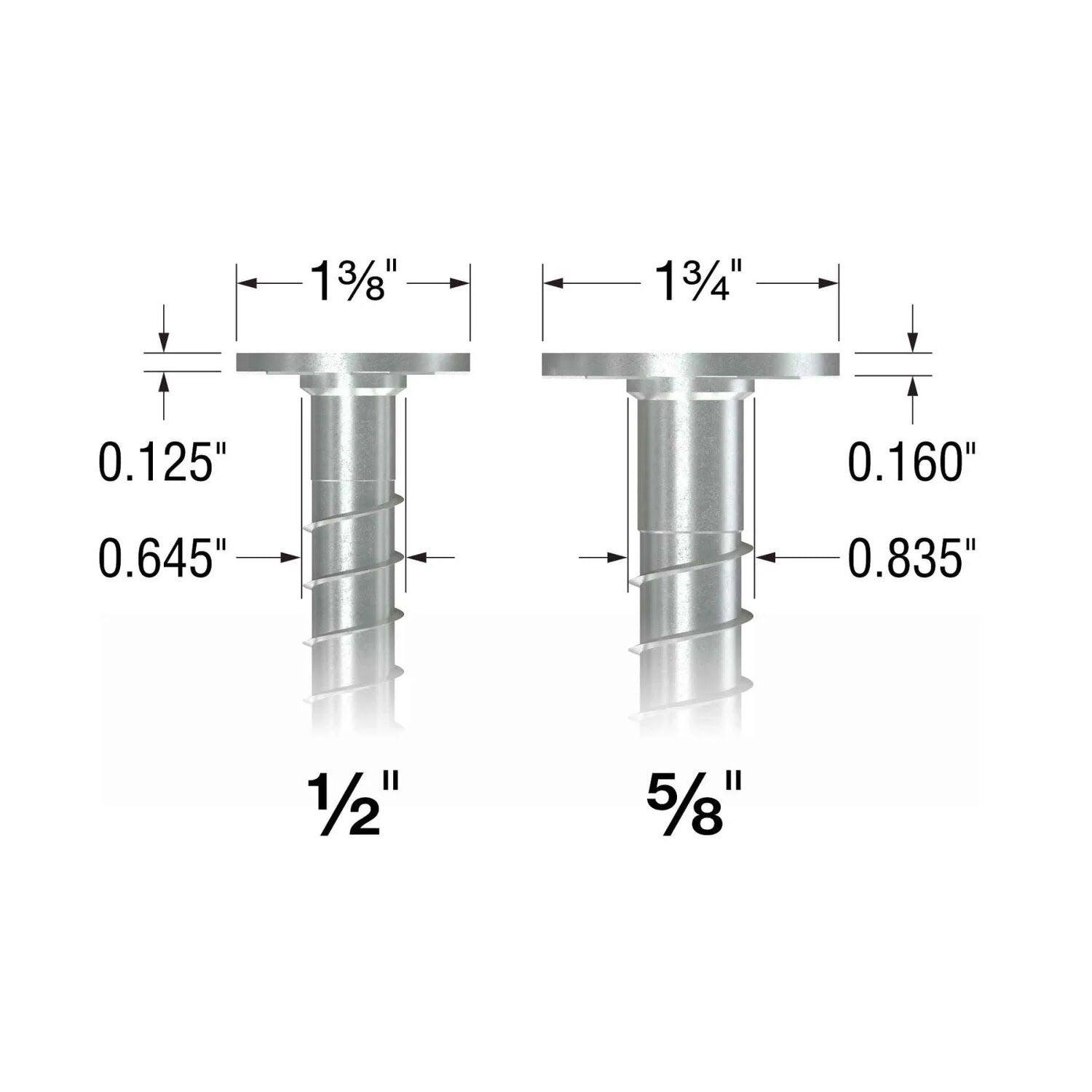

- Available in 1/2" and 5/8" diameters
- Standard fractional sizes with matching hole size
- No special drill bit required
- Includes 1/2-in. socket adapter and (2) T-drive bits
- Removable for temporary anchoring
- Washer head allows compatibility with applications unsuitable for hex heads
Simpson THD50600WH Applications
- Concrete anchoring for cracked and uncracked surfaces

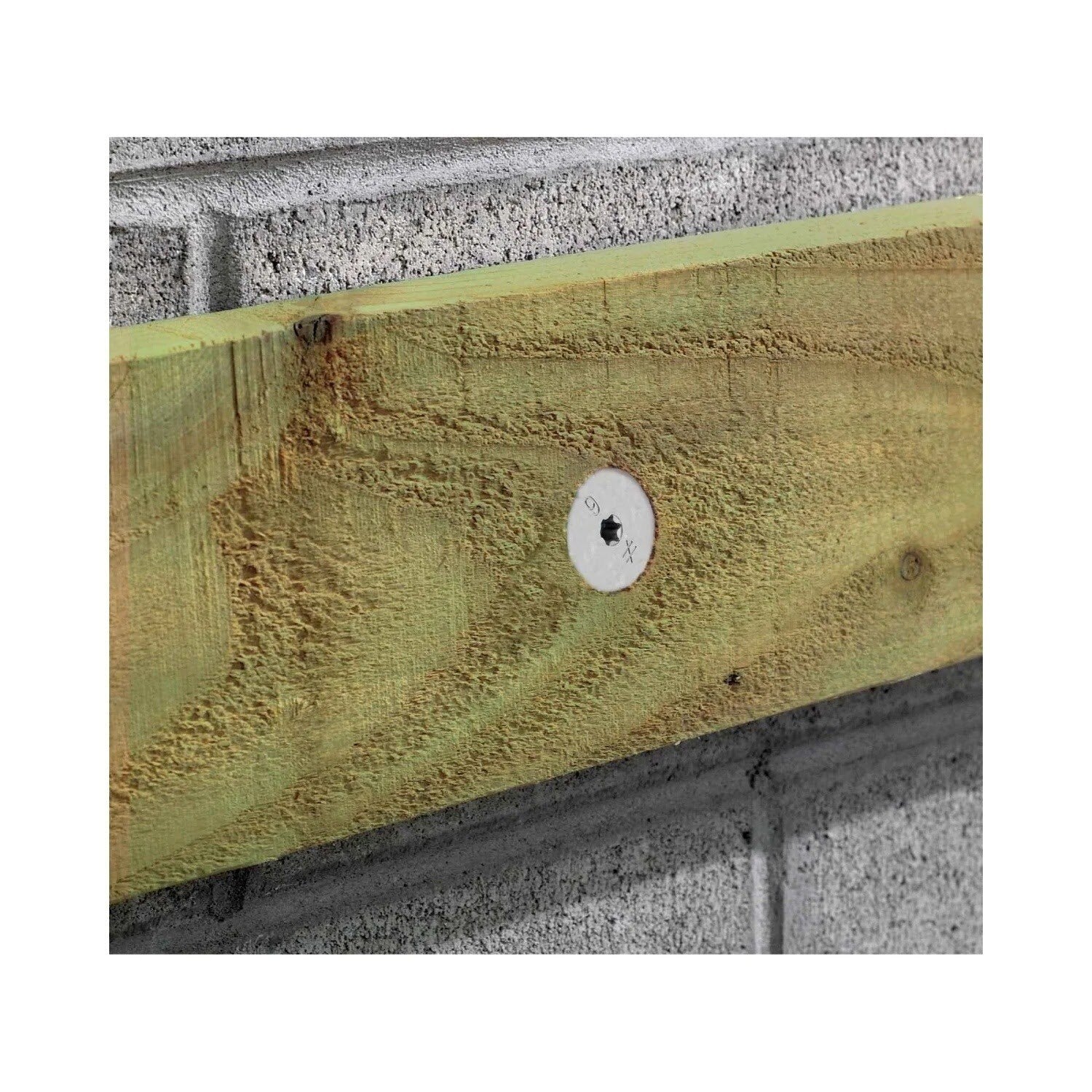

- Masonry anchoring

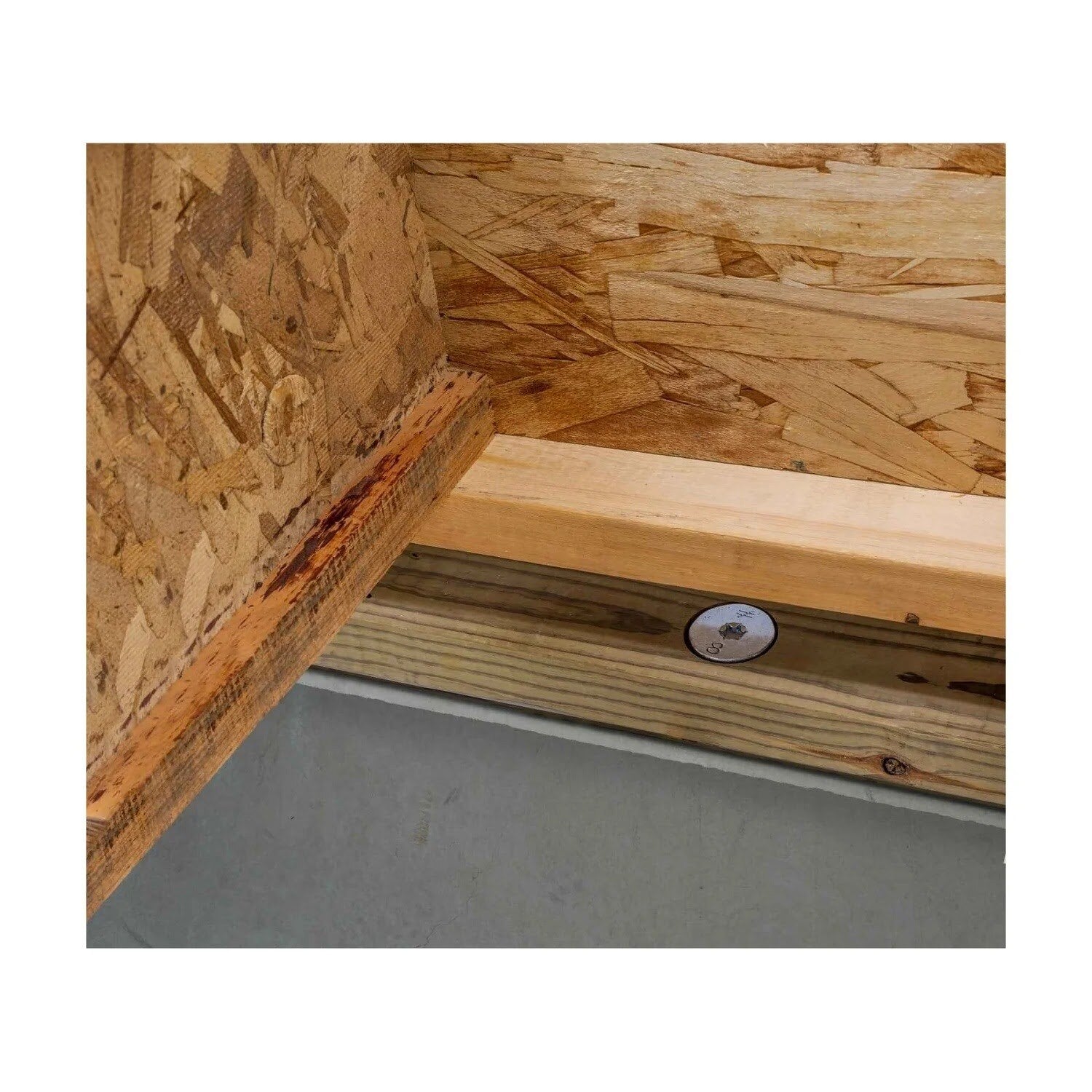

- Sill plate applications
- Modular wall and floor systems
Simpson THD50600WH Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the washer head contacts the fixture.
Simpson THD50600WH Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/2" |
| Length | 6" |
| Drill Bit Size | 1/2" |

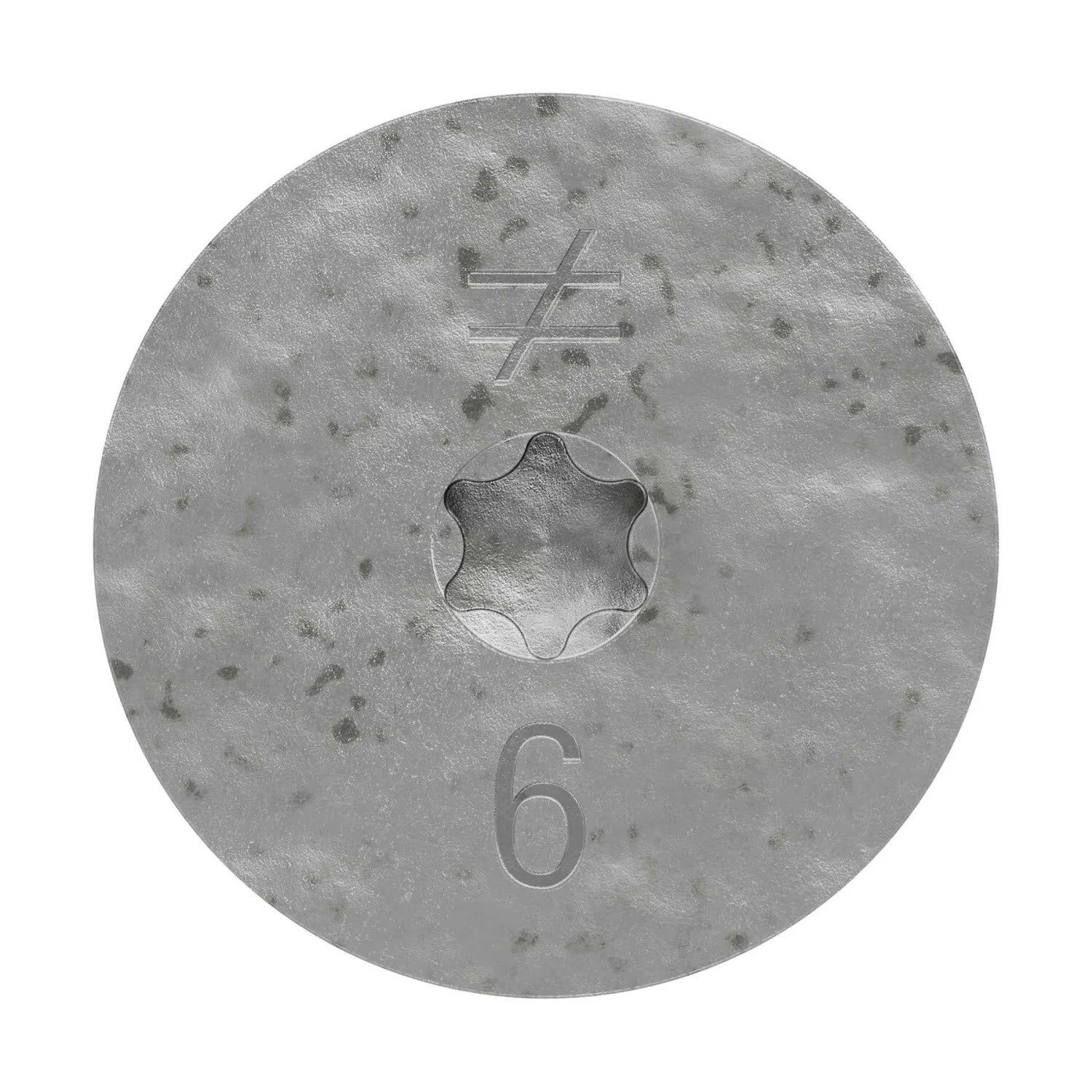

| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Washer Head |
| Quantity | 15 |
NOTE: Ensure holes in metal fixtures match the specified diameter to maintain load capacity.
