Simpson Strong-Tie THD50600WHMG Titen HD (1/2" x 6") Mechanically Galvanized Washer-Head HD Screw Anchor (15 Pack)
$85.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD50600WHMG Description

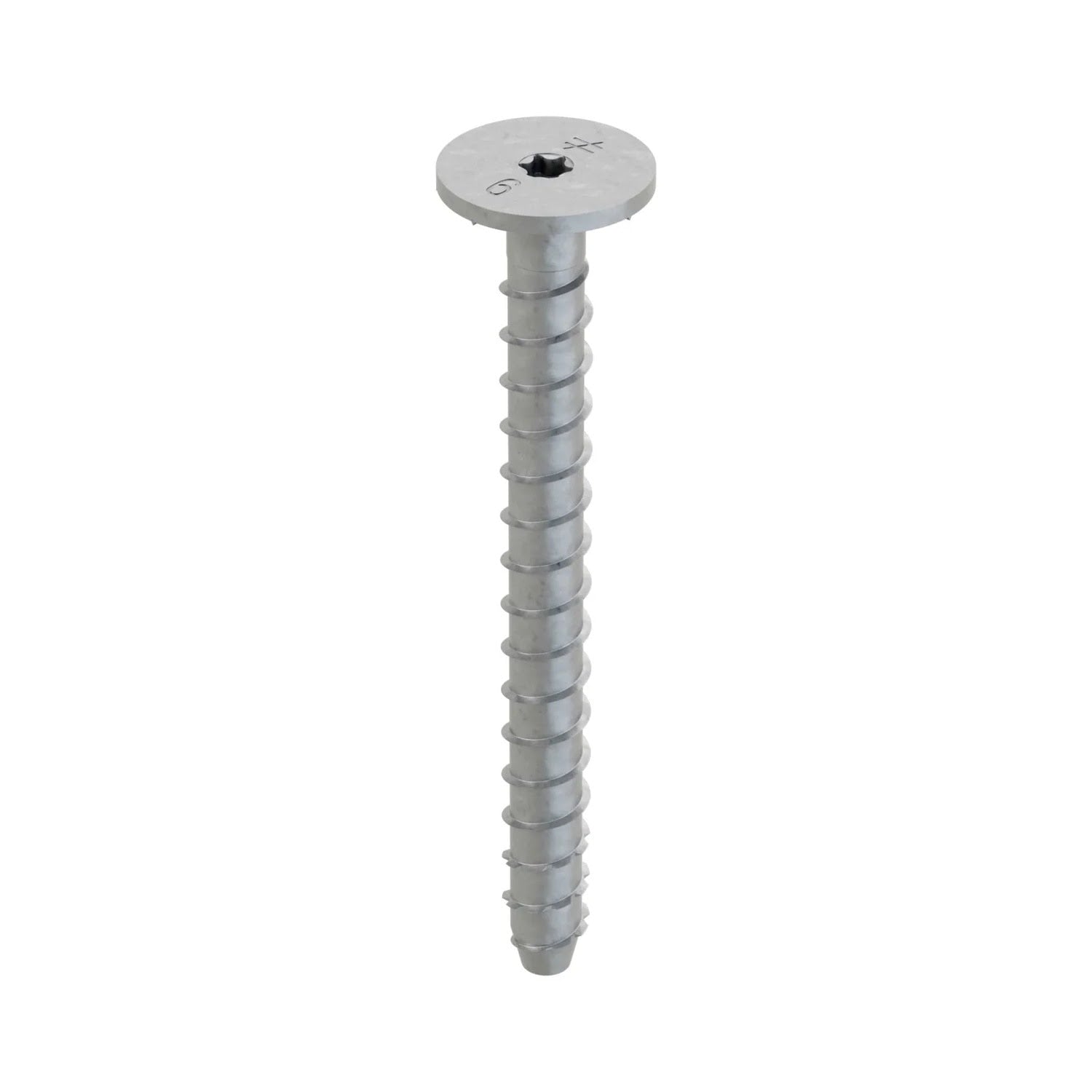

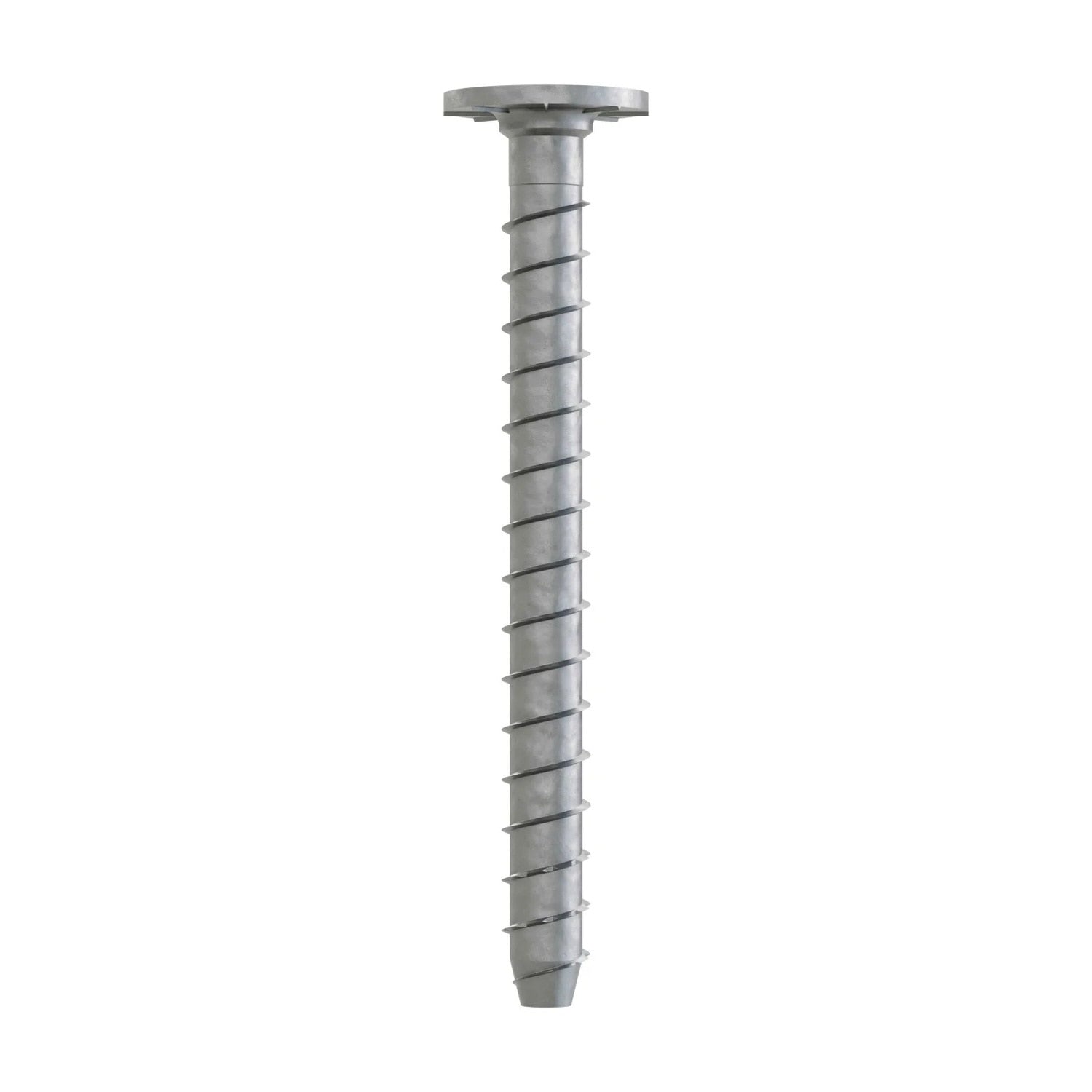

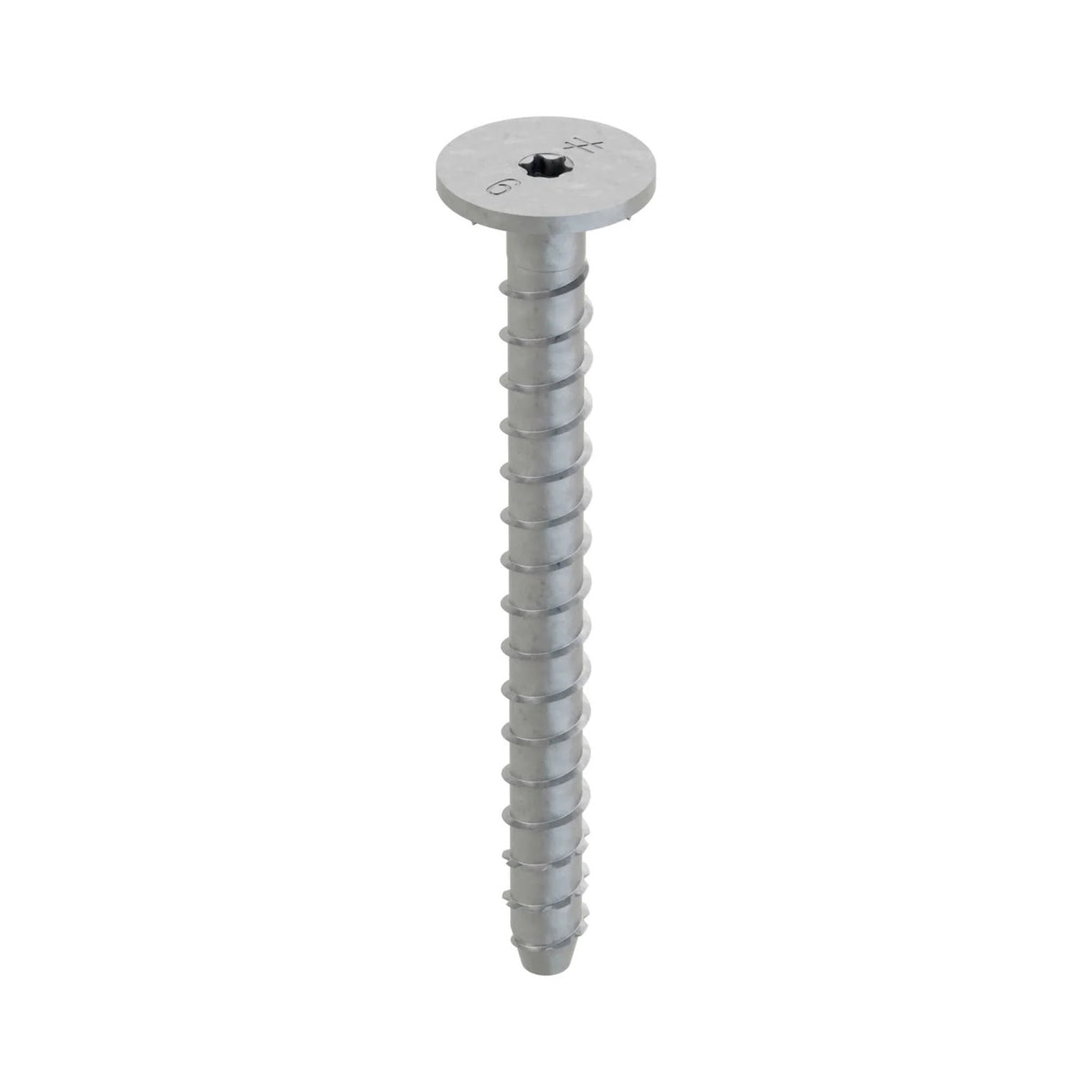

The Titen HD 1/2 in. x 6 in. Mechanically Galvanized Washer-Head Heavy-Duty Screw Anchor is a high-strength anchor designed for cracked and uncracked concrete applications, featuring a patented thread design for easy installation.
Simpson Strong-Tie THD50600WHMG Includes
- (15) 1/2 in. x 6 in. Mechanically Galvanized Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THD50600WHMG Features
- Qualified for cracked and uncracked concrete under static, wind, and seismic loading conditions
- Patented thread design with serrated cutting teeth for easy installation
- Mechanically galvanized for exterior applications

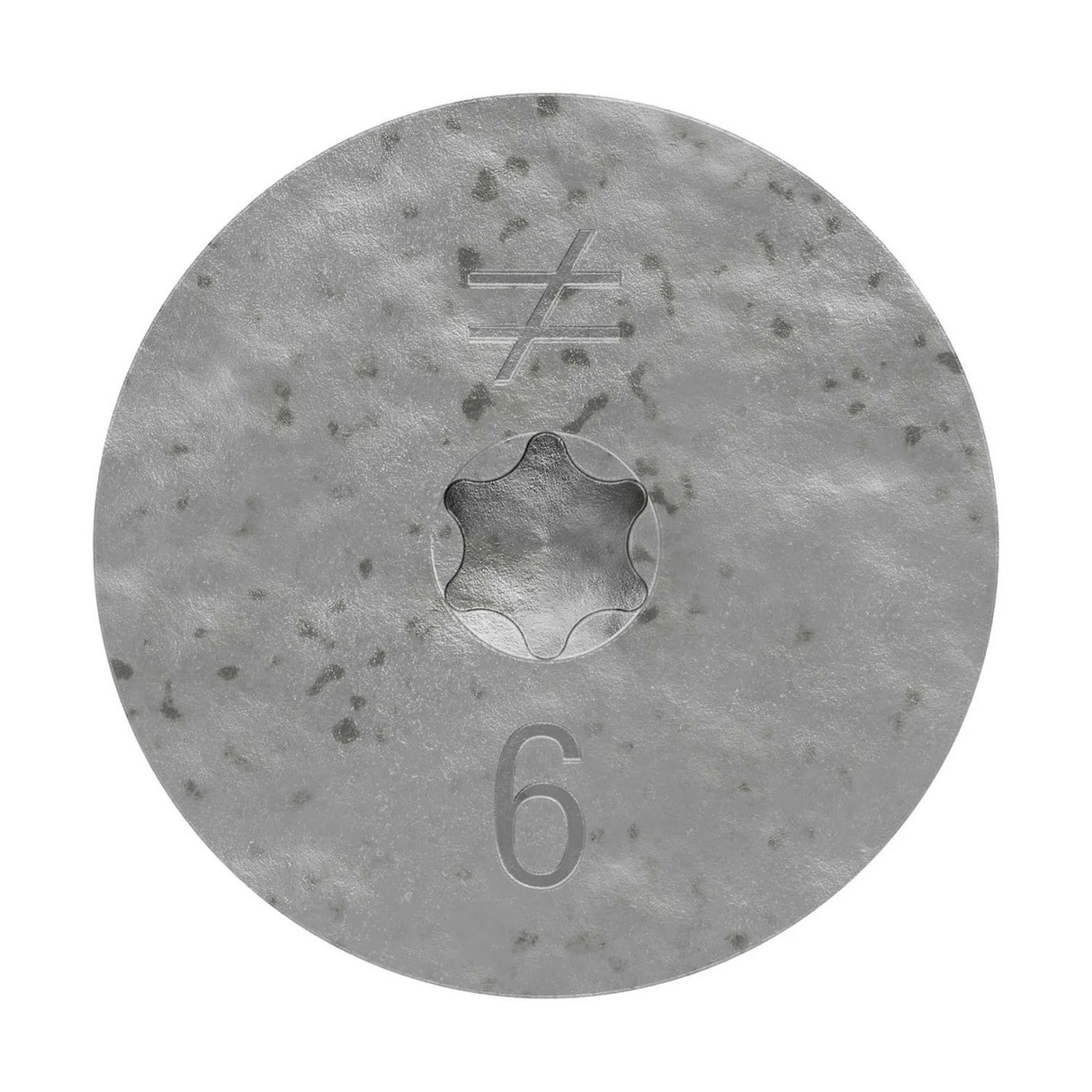

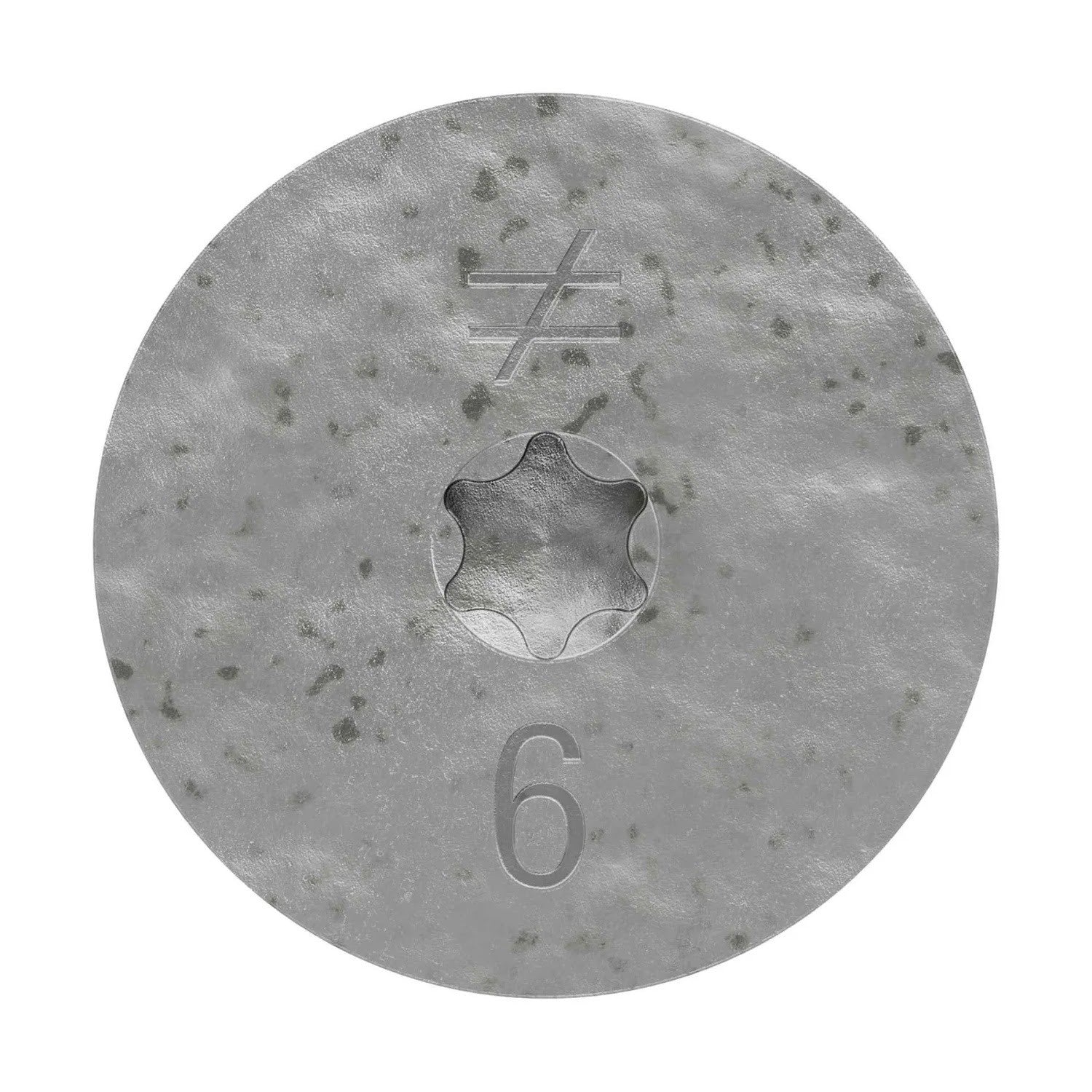

- Washer head design for compatibility with various applications
- Removable for temporary anchoring needs
Simpson Strong-Tie THD50600WHMG Applications

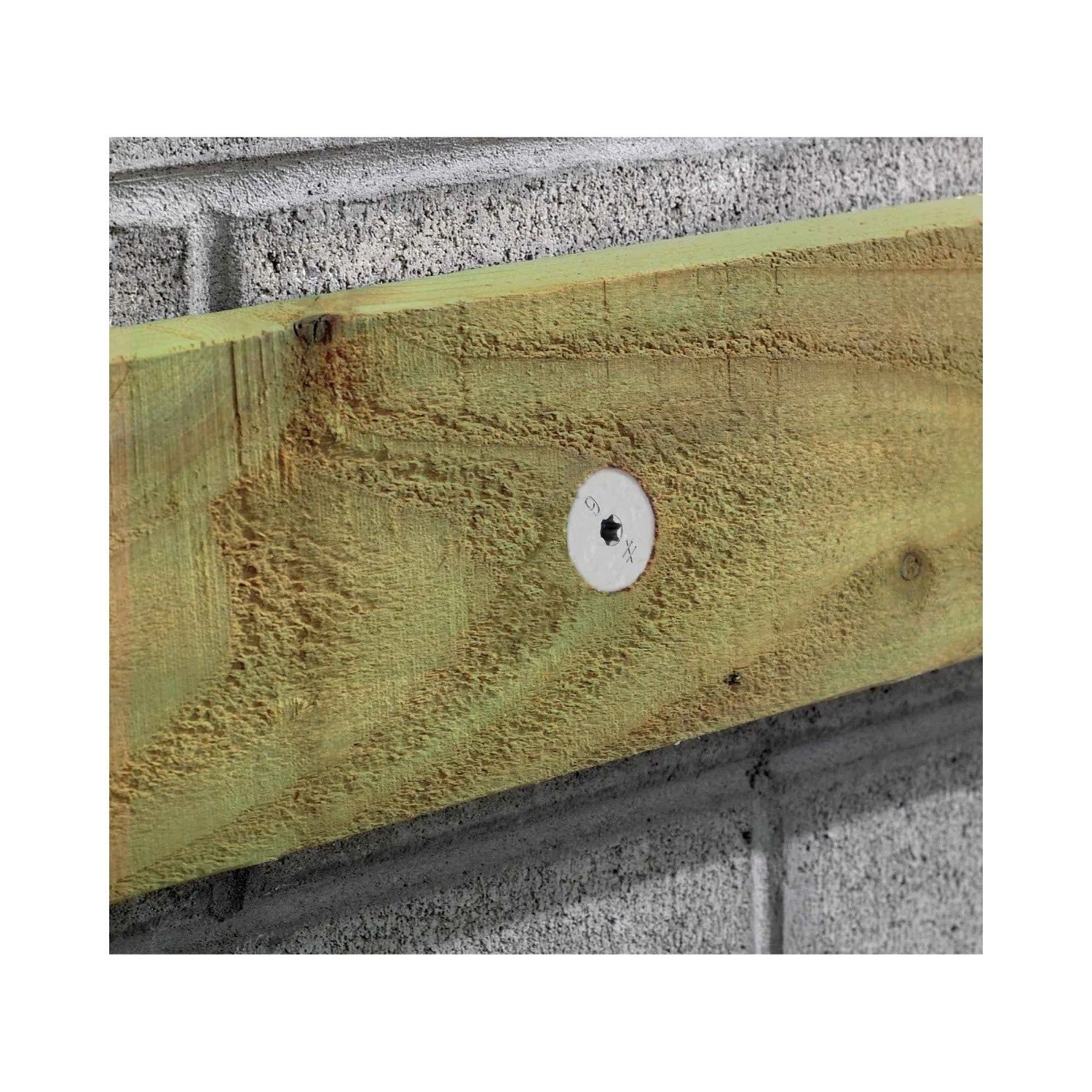

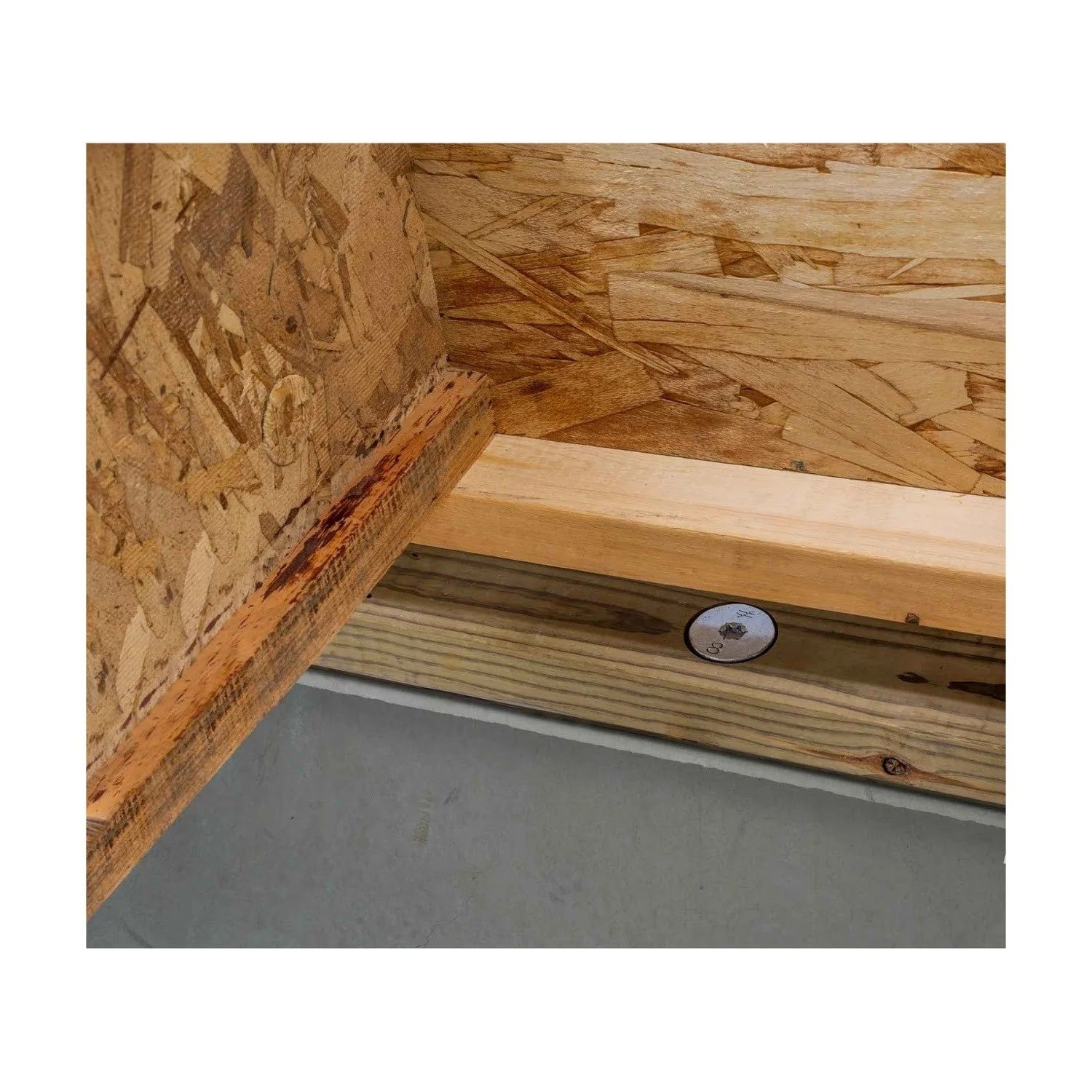

- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring or applications requiring fixture movement
- Exterior applications requiring corrosion resistance
Simpson Strong-Tie THD50600WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the washer head contacts the fixture.

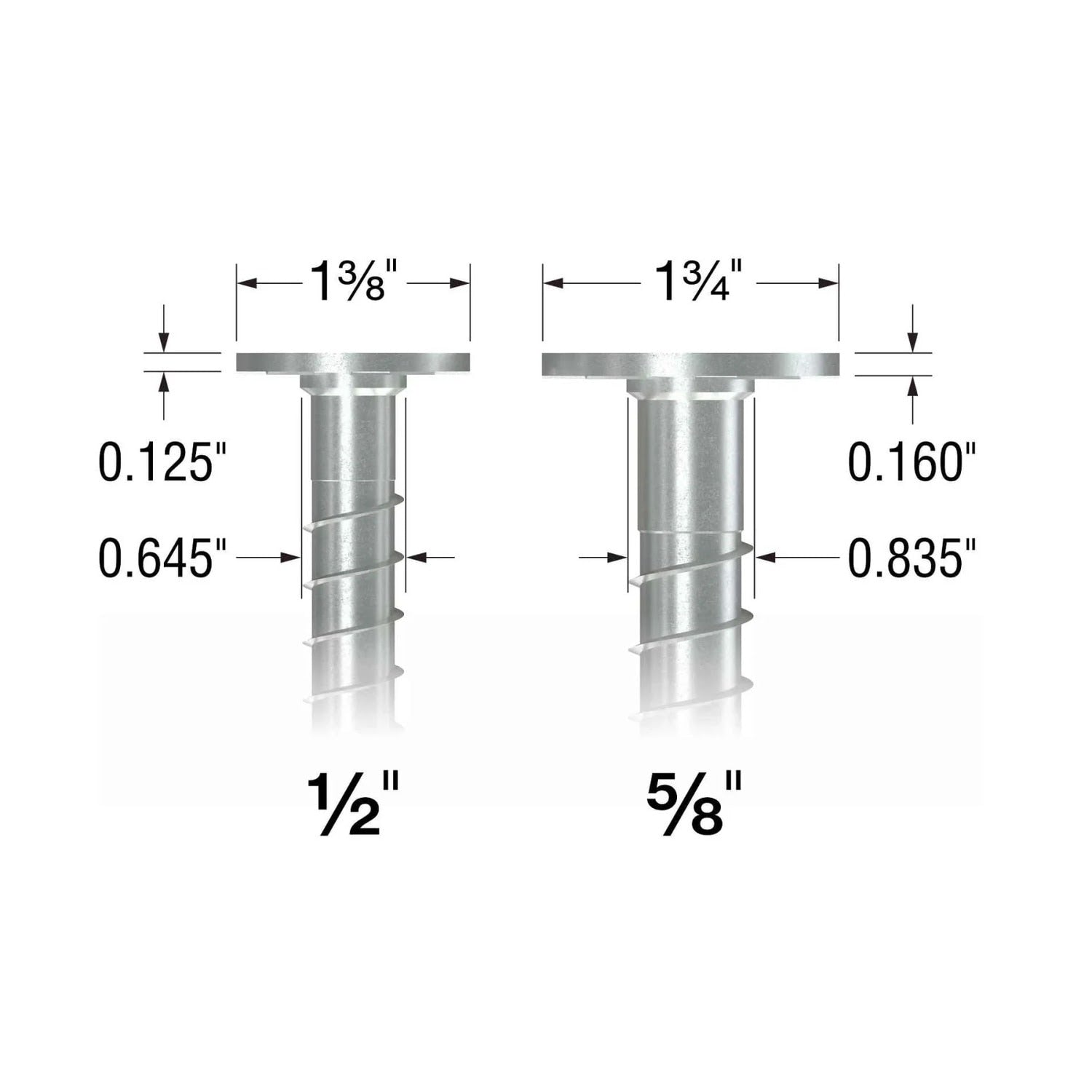

Simpson Strong-Tie THD50600WHMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Length | 6 in. |
| Diameter | 1/2 in. |
| Drive Type | T50 Star Drive |
| Drill Bit Size | 1/2 in. |
| Fixture Hole Size | 3/4 in. to 13/16 in. |
