Simpson Anchors | SKU:
THD50612H4SS

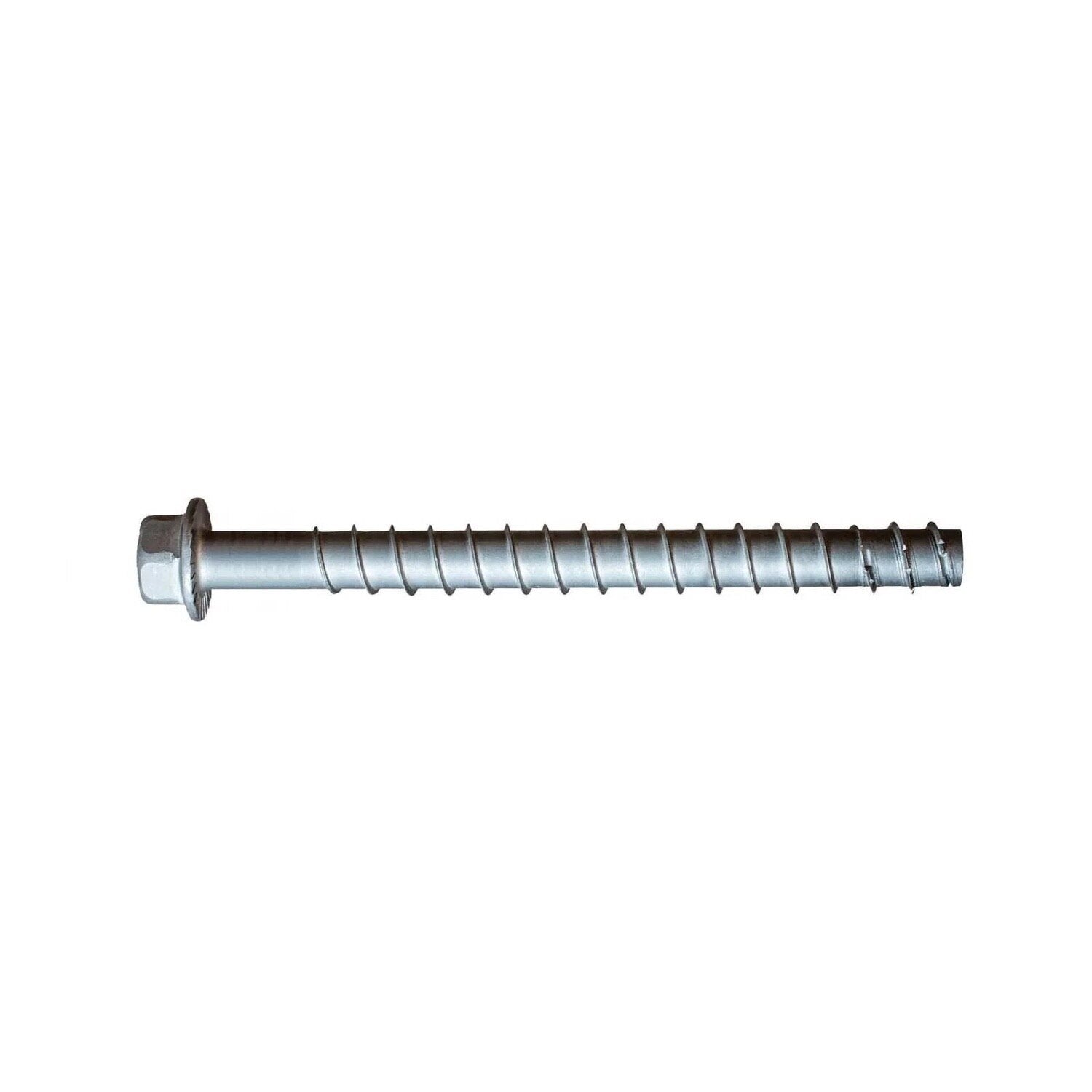

Simpson Strong-Tie THD50612H4SS Titen HD (1/2" x 6-1/2") Heavy Duty SS Screw Anchor - Type 304 (20 Pack)
Free Shipping
$209.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD50612H4SS Description
The Titen HD Screw Anchor is a high-performance, corrosion-resistant fastener made from 304 stainless steel, ideal for exterior or corrosive environments.
Simpson Strong-Tie THD50612H4SS Includes
- (20) Titen HD Screw Anchor 304 Stainless Steel
Simpson Strong-Tie THD50612H4SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson Strong-Tie THD50612H4SS Applications
- Mechanical applications in exterior environments
- Electrical installations requiring secure anchoring
- Plumbing setups in corrosive conditions
Simpson Strong-Tie THD50612H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD50612H4SS Specifications
| Material | 304 Stainless Steel |
| Diameter | 1/2 in. |
| Length | 6-1/2 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 20 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
