Simpson Anchors | SKU:
THD50800H4SS

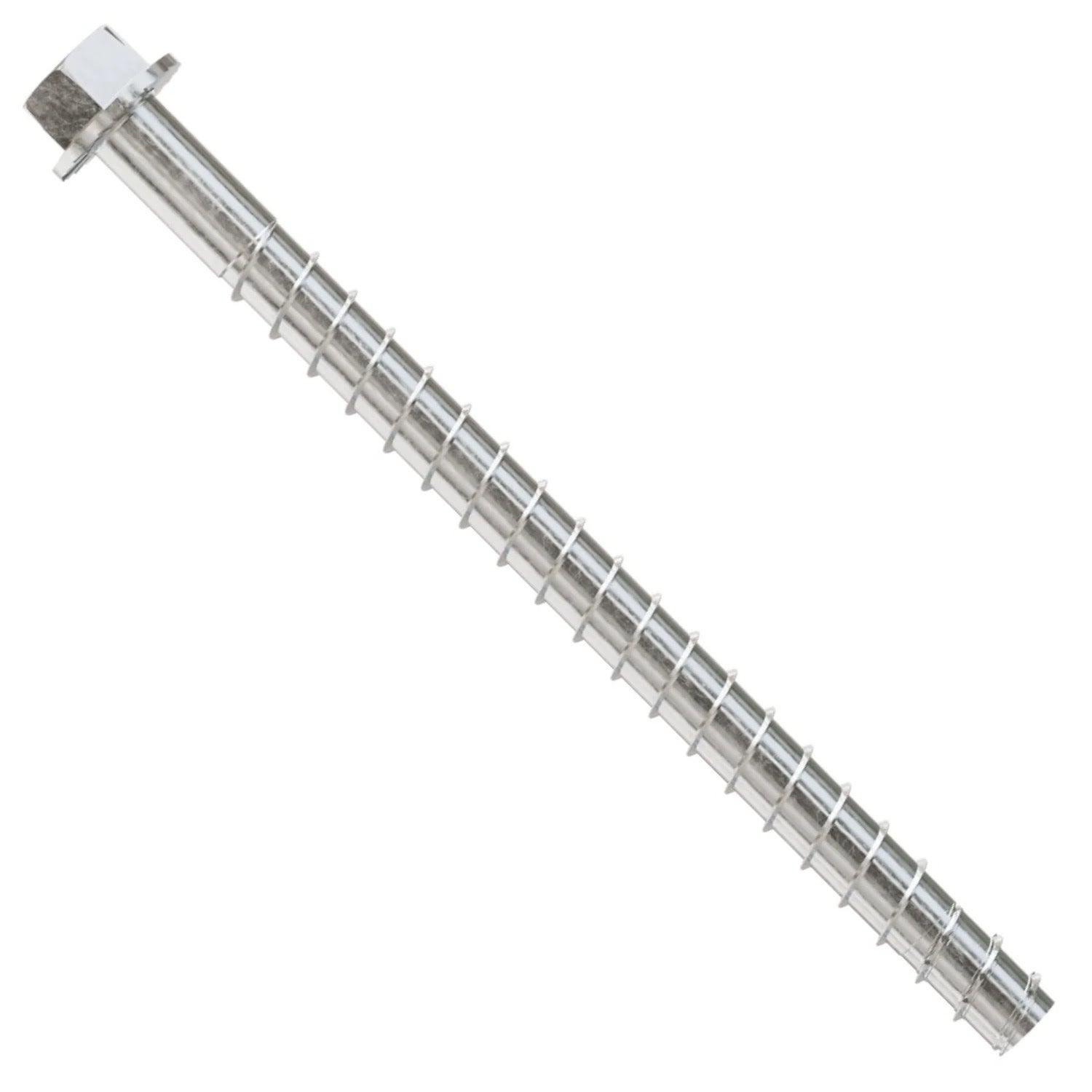

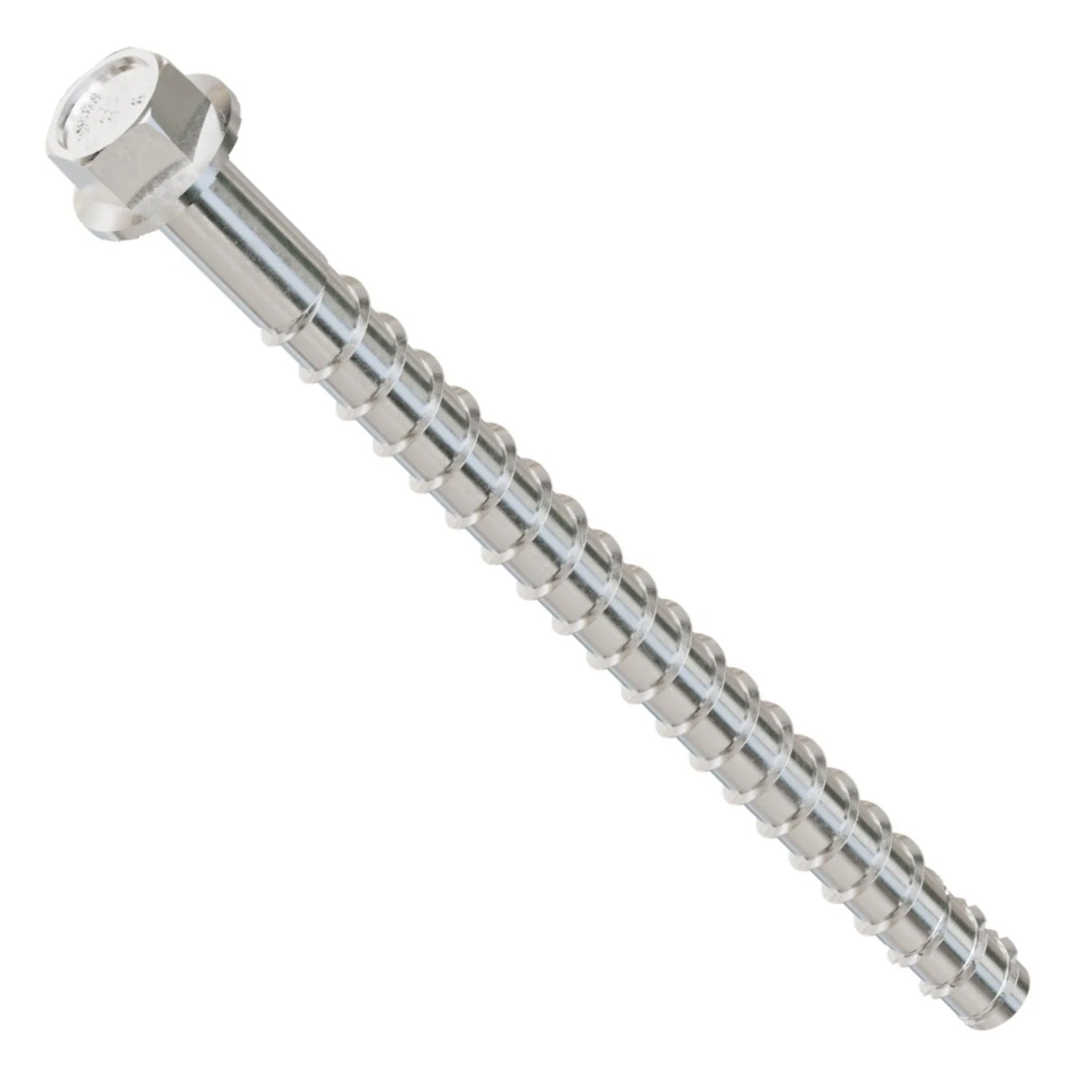

Simpson Strong-Tie THD50800H4SS Titen HD (1/2" x 8") Heavy Duty SS Screw Anchor - Type 304 (20 Pack)
Free Shipping
$210.55
Unit price
/
Unavailable
Description
Description
Simpson THD50800H4SS Description
The Titen HD Screw Anchor is a high-performance, self-undercutting, non-expansion screw anchor made of 304 stainless steel, ideal for exterior applications.
Simpson THD50800H4SS Includes
- (20) 1/2 in. x 8 in. Titen HD Screw Anchor
Simpson THD50800H4SS Features
- Self-undercutting design for secure installation
- Non-expansion mechanism prevents damage to base material
- Made of 304 stainless steel for corrosion resistance
- Patented thread design with serrated cutting teeth for easy installation
- Suitable for general exterior applications
Simpson THD50800H4SS Applications
- Exterior construction requiring secure anchoring
- Mechanical, electrical, and plumbing installations
- General-purpose anchoring in concrete and masonry
Simpson THD50800H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50800H4SS Specifications
| Diameter | 1/2 in. |
| Length | 8 in. |

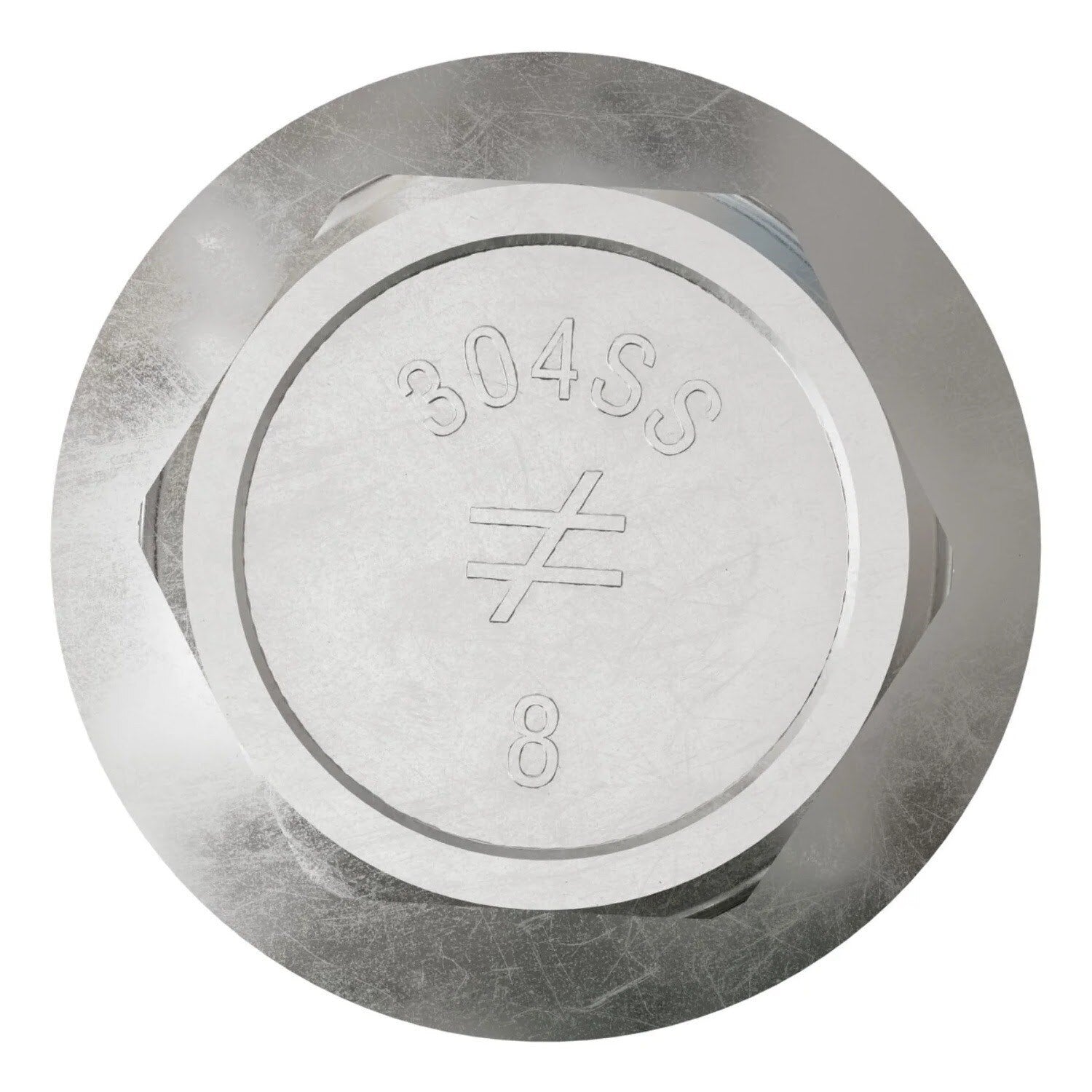

| Material | 304 Stainless Steel |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 20 |
NOTE: Use the correct fixture hole sizes for steel thicker than 12 gauge to ensure proper installation.
