Simpson Anchors | SKU:
THD50800H6SSF1

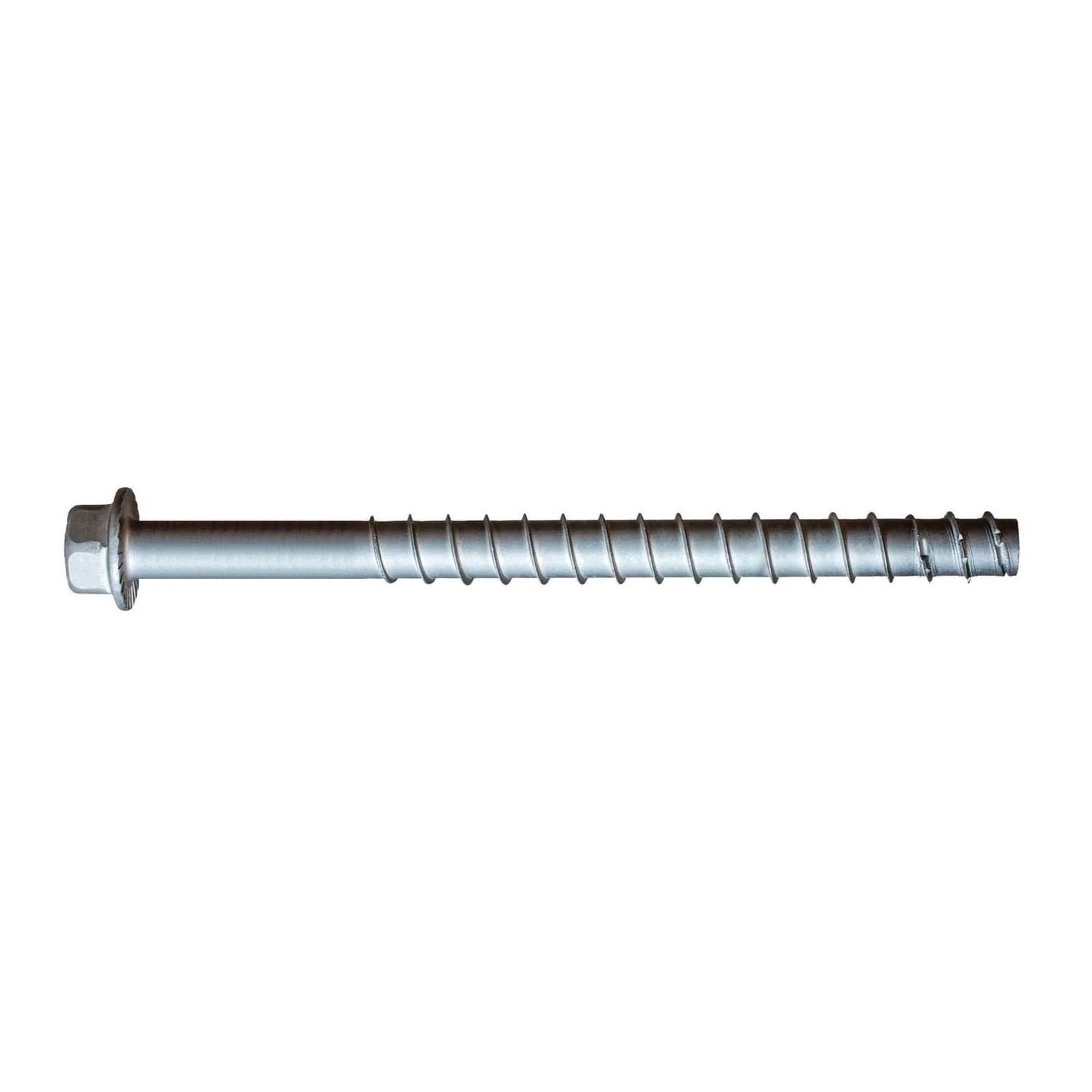

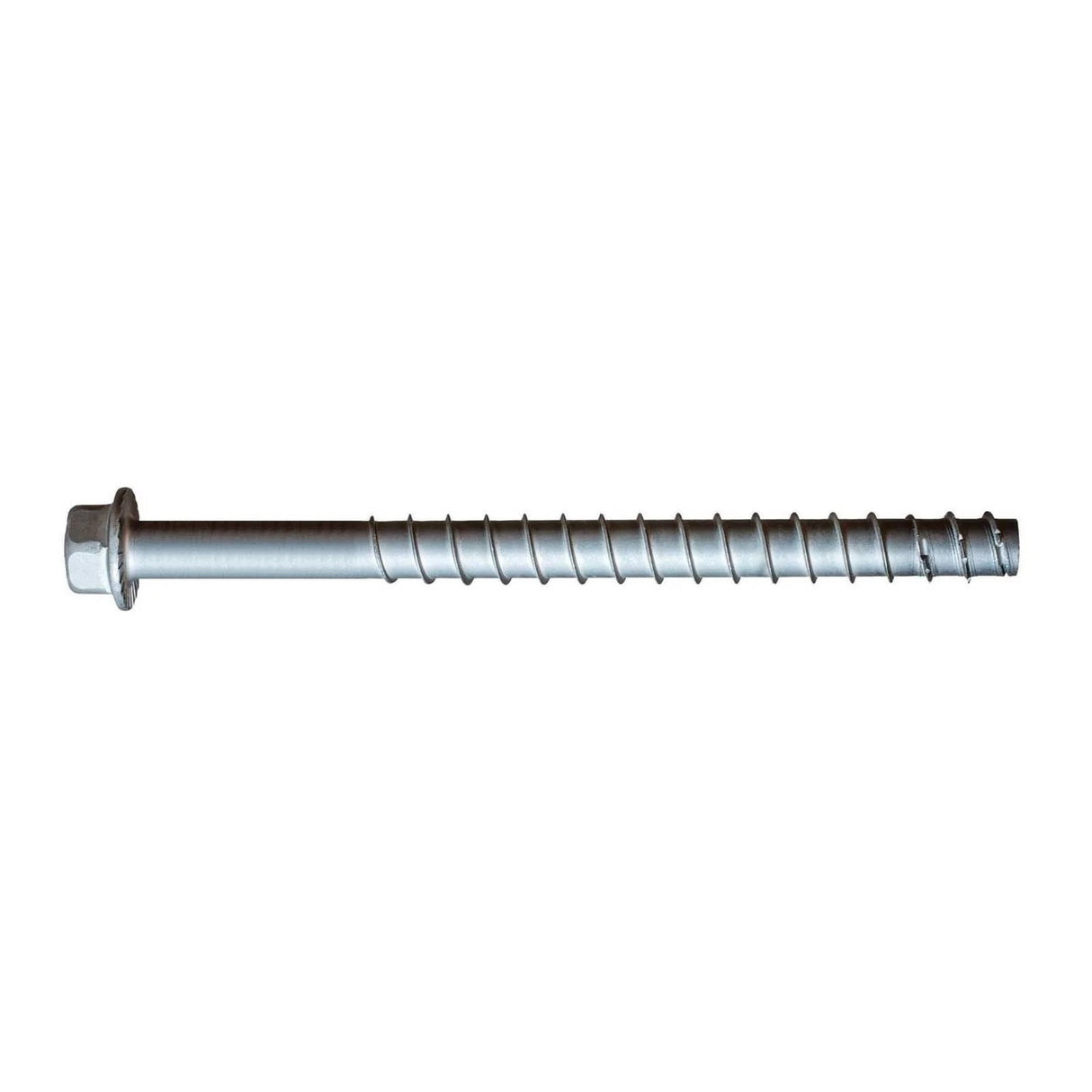

Simpson Strong-Tie THD50800H6SSF1 Titen HD(1/2" x 8") Heavy Duty SS Screw Anchor - Type 316
$19.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie Titen HD Description
The Simpson Strong-Tie Titen HD stainless-steel screw anchor is designed for concrete and masonry applications, offering superior corrosion resistance and efficient installation.
Simpson Strong-Tie Titen HD Includes
- (1) Titen HD Screw Anchor
Simpson Strong-Tie Titen HD Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance
- Innovative carbon-steel thread effectively cuts the concrete while limiting carbon steel in the anchor
- Made from Type 316 stainless steel for superior corrosion resistance
- Caution: Use a Titen HD screw anchor one time only; installing the anchor multiple times may reduce load capacity
Simpson Strong-Tie Titen HD Applications
- Concrete and masonry anchoring
- Corrosive environments such as salt water
- Chemical or extreme environments
- Structural support in construction
Simpson Strong-Tie Titen HD Installation Overview
- Prepare the drill site and ensure proper alignment.
- Drill the hole using a standard-sized ANSI tolerance drill bit.
- Insert the Titen HD screw anchor into the hole.
- Tighten the anchor using an impact wrench or hand tool.
- Verify the anchor is securely installed.
Simpson Strong-Tie Titen HD Specifications
| Diameter | 1/2 in. |
| Length | 8 in. |
| Material | Type 316 Stainless Steel |
| Drill Bit Size | 1/2 in. |
| Fixture Hole Size | 5/8 to 11/16 in. |
| Drive Type | 3/4 in. Hex |
| Head Type | Hex Head |
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
