Simpson Anchors | SKU:
THD50800HMG

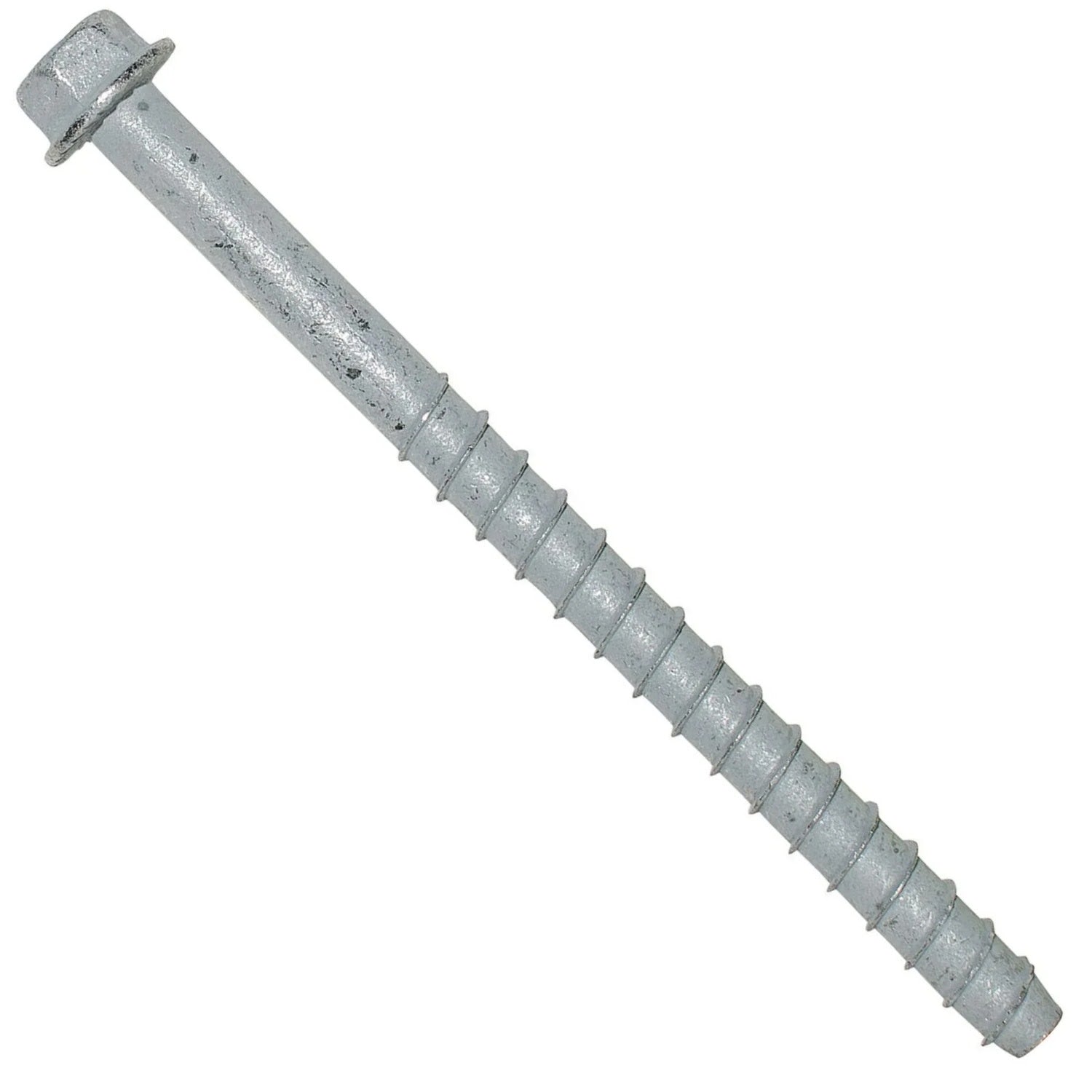

Simpson Strong-Tie THD50800HMG Titen HD (1/2" x 8") Mechanically Galvanized Heavy-Duty Screw Anchor (20 Pack)
$178.26
Unit price
/
Unavailable
Description
Description
Simpson THD50800HMG Description
The Simpson Titen HD Screw Anchor Mechanically Galvanized is designed for heavy-duty anchoring in concrete and masonry, featuring serrated threads for reduced torque and a durable galvanized finish.
Simpson THD50800HMG Includes
- (20) 1/2 in. x 8 in. Titen HD Screw Anchor Mechanically Galvanized
Simpson THD50800HMG Features
- Head-stamped for easy identification
- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Standard fractional sizes with matching hole size
- Specialized heat-treating for tip hardness
- Hex washer head eliminates need for separate washer
- Fully removable
- Code listed for exterior applications
Simpson THD50800HMG Applications
- Anchoring sill plates to foundations
- Ledger board installations for decks or balconies
- Securing post bases for interior or exterior use
- Anchoring seating, holdowns, and hardware
- Connecting wood or metal to concrete or masonry
Simpson THD50800HMG Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Blow the hole clean using compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50800HMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/2 in. |
| Length | 8 in. |
| Drill Bit Size | 1/2 in. |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Thread Length | 5-1/2 in. |
| Wrench Size | 3/4 in. |
NOTE: Use the correct hole size and installation method to ensure optimal performance and load capacity
