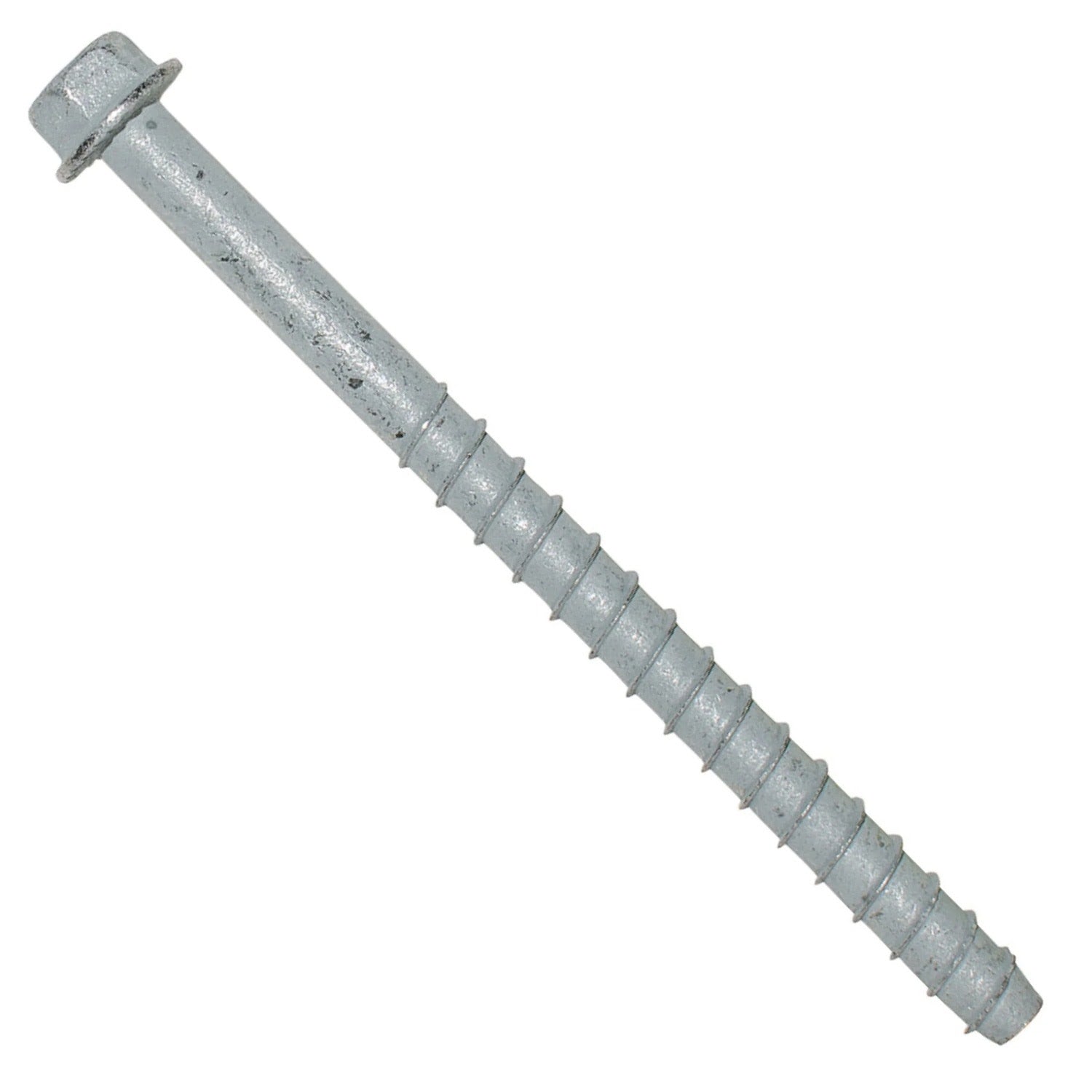

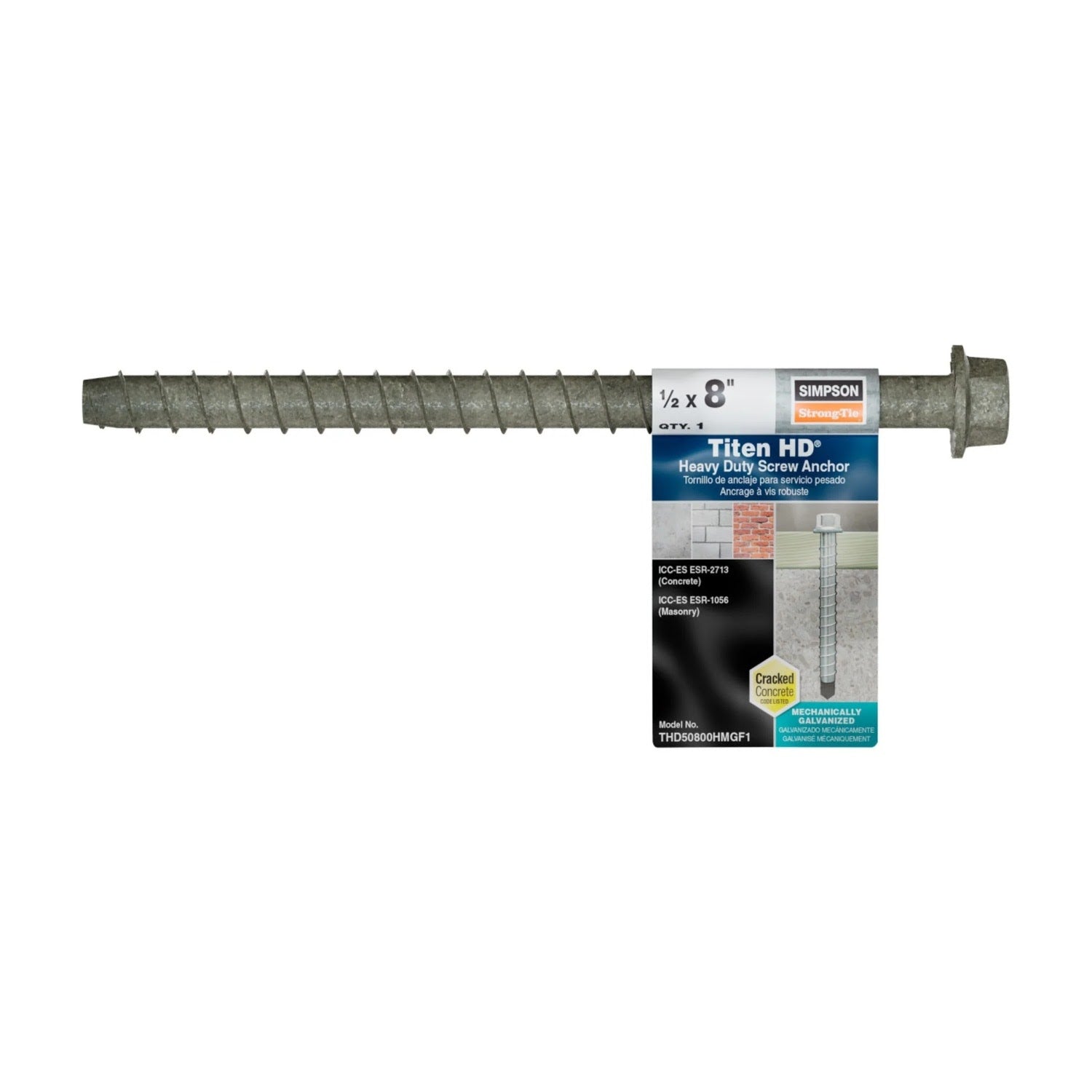

Simpson Strong-Tie THD50800HMGF1 Titen HD (1/2" x 8") Mechanically Galvanized Heavy-Duty Screw Anchor

Simpson Strong-Tie THD50800HMGF1 Features

• Head-stamped for easy identification

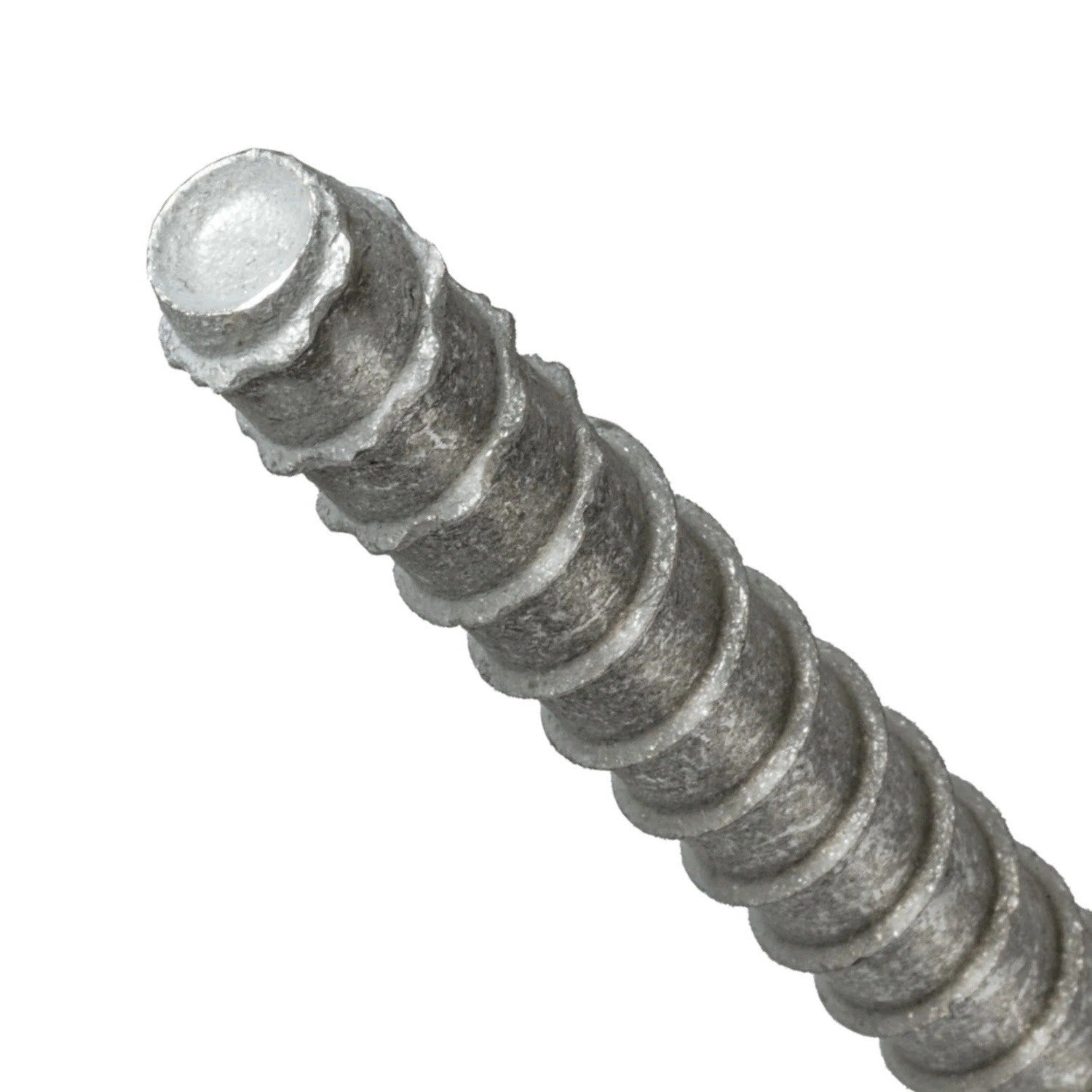

• Serrated teeth on the tip facilitates cutting and reduces installation torque
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes, hole size equals anchor size
• Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
• Hex washer head requires no separate washer, unless required by code
• Fully and easily removable
• Code listed for exterior applications

Simpson Strong-Tie THD50800HMGF1 Applications

• Sill plates on foundations
• Ledger board installs for decks or balconies

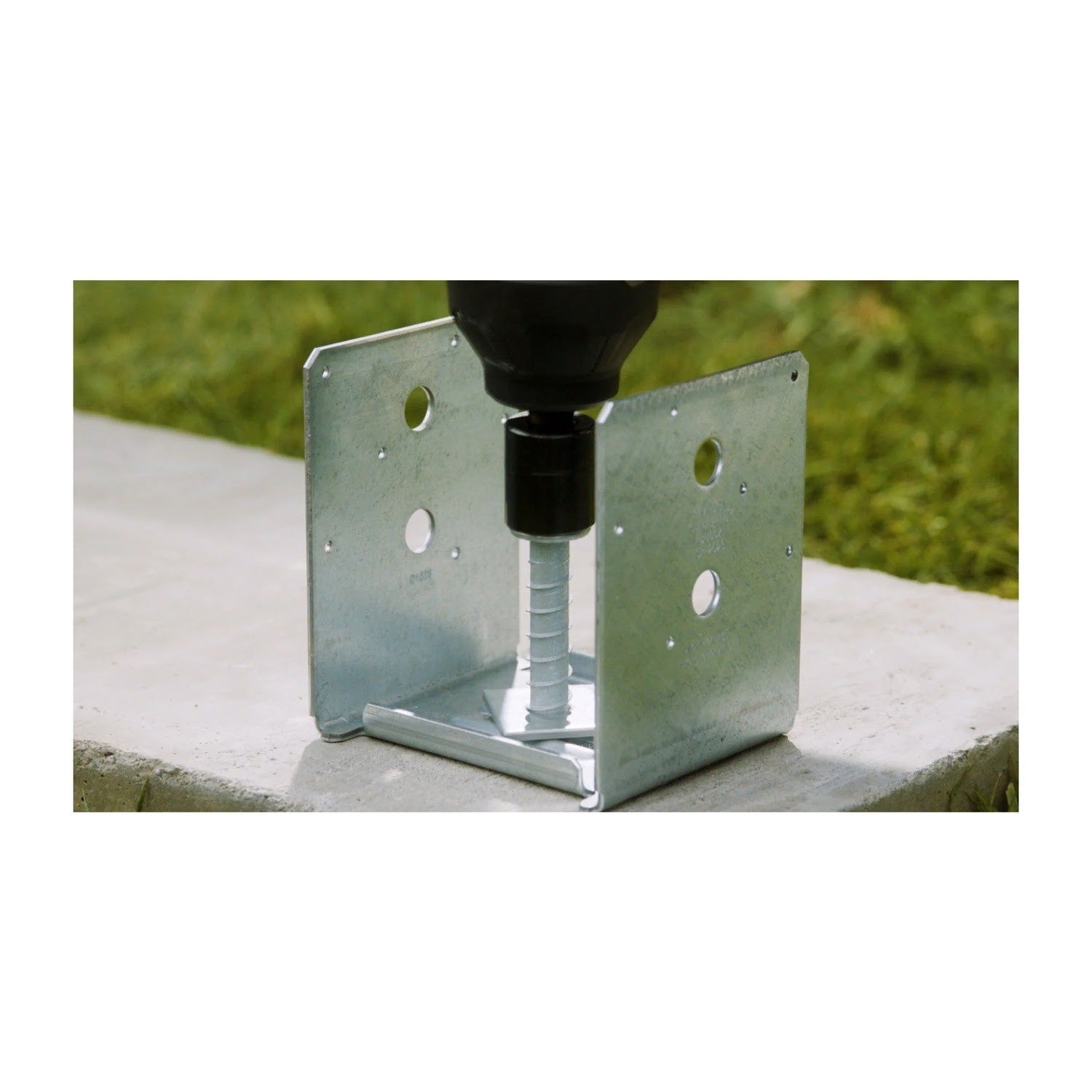

• Anchoring post bases—interior or exterior
• Seating, holdowns, and hardware that need real anchoring strength
• Wood or metal connections into concrete or block

Simpson Strong-Tie THD50800HMGF1 Installation Overview

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
2. Clean out any dust or debris from the hole.
3. Insert the anchor through the fixture and into the hole.
4. Tighten the anchor into the base material until the hex-washer head contacts the fixture.
