Simpson Anchors | SKU:
THD50800WH

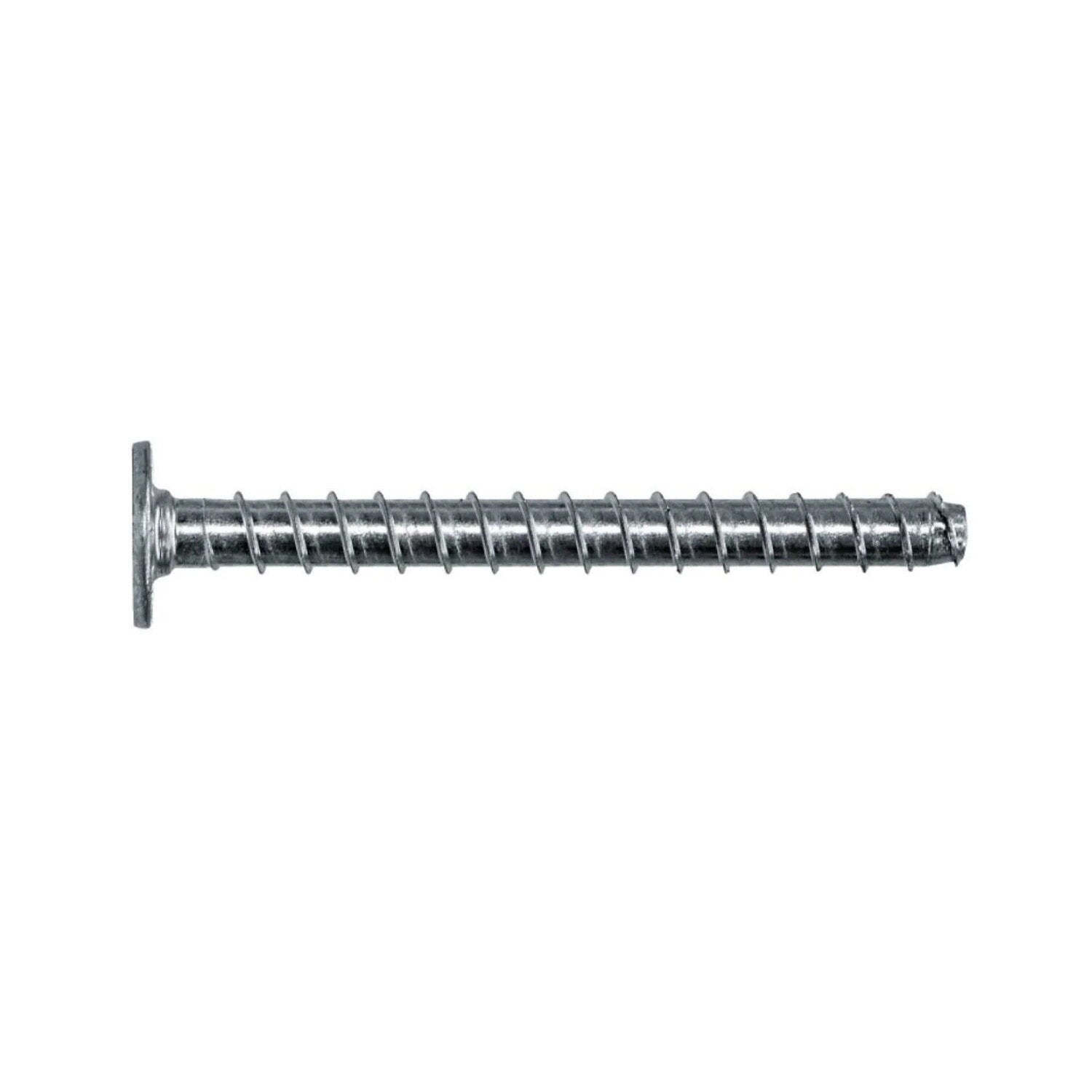

Simpson Strong-Tie THD50800WH Titen HD (1/2" x 8") Washer-Head Heavy-Duty Screw Anchor - Zinc Plated (15 Pack)
$93.43
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD50800WH Description
The Titen HD Washer-Head Heavy-Duty Screw Anchor is a high-strength anchor designed for cracked and uncracked concrete and masonry applications. Its washer-head design ensures a low-profile installation, ideal for sill plate applications.
Simpson Strong-Tie THD50800WH Includes
- (15) Titen HD Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THD50800WH Features
- Tested in accordance with ACI 355.2 and AC193
- Qualified for static, wind, and seismic loading conditions

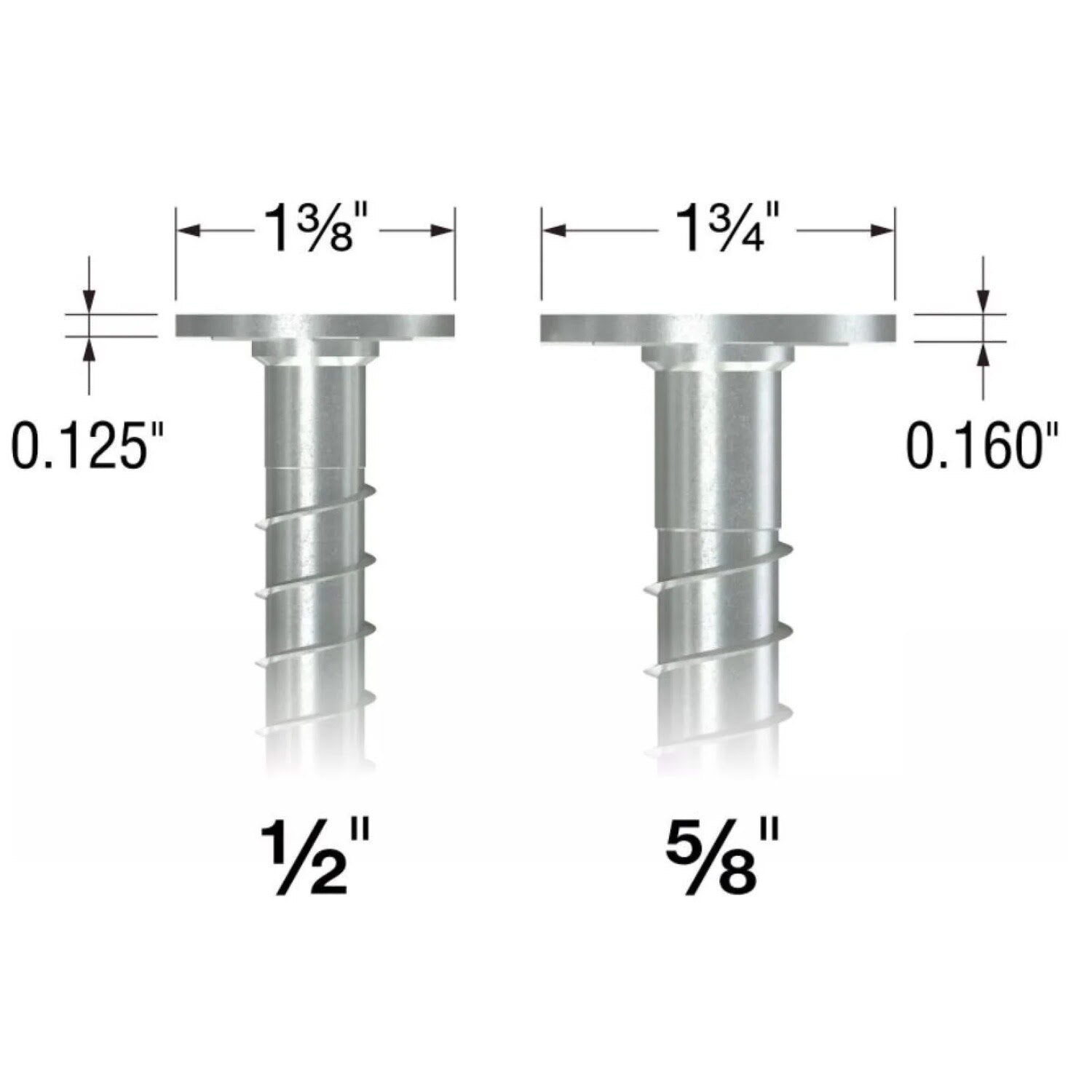

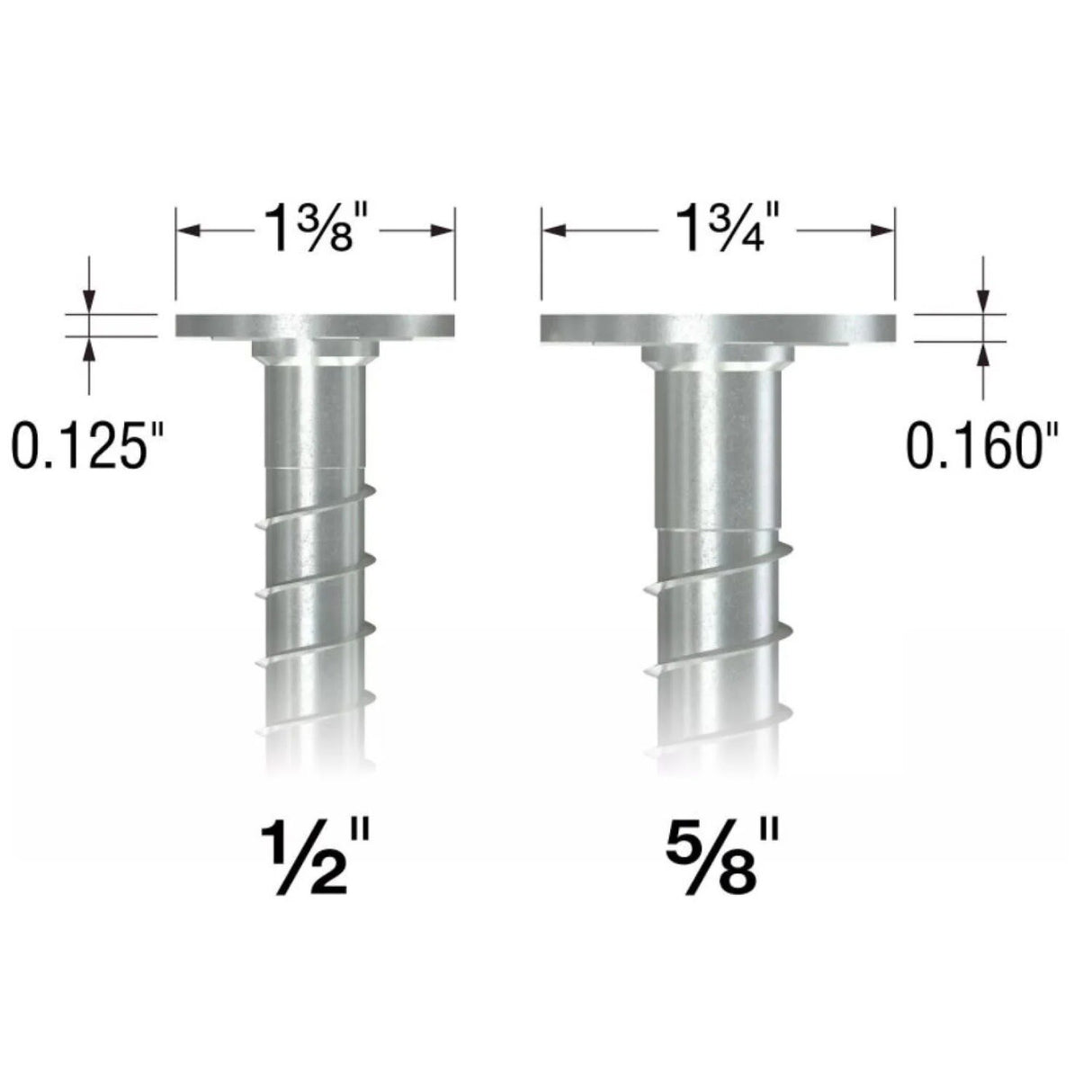

- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

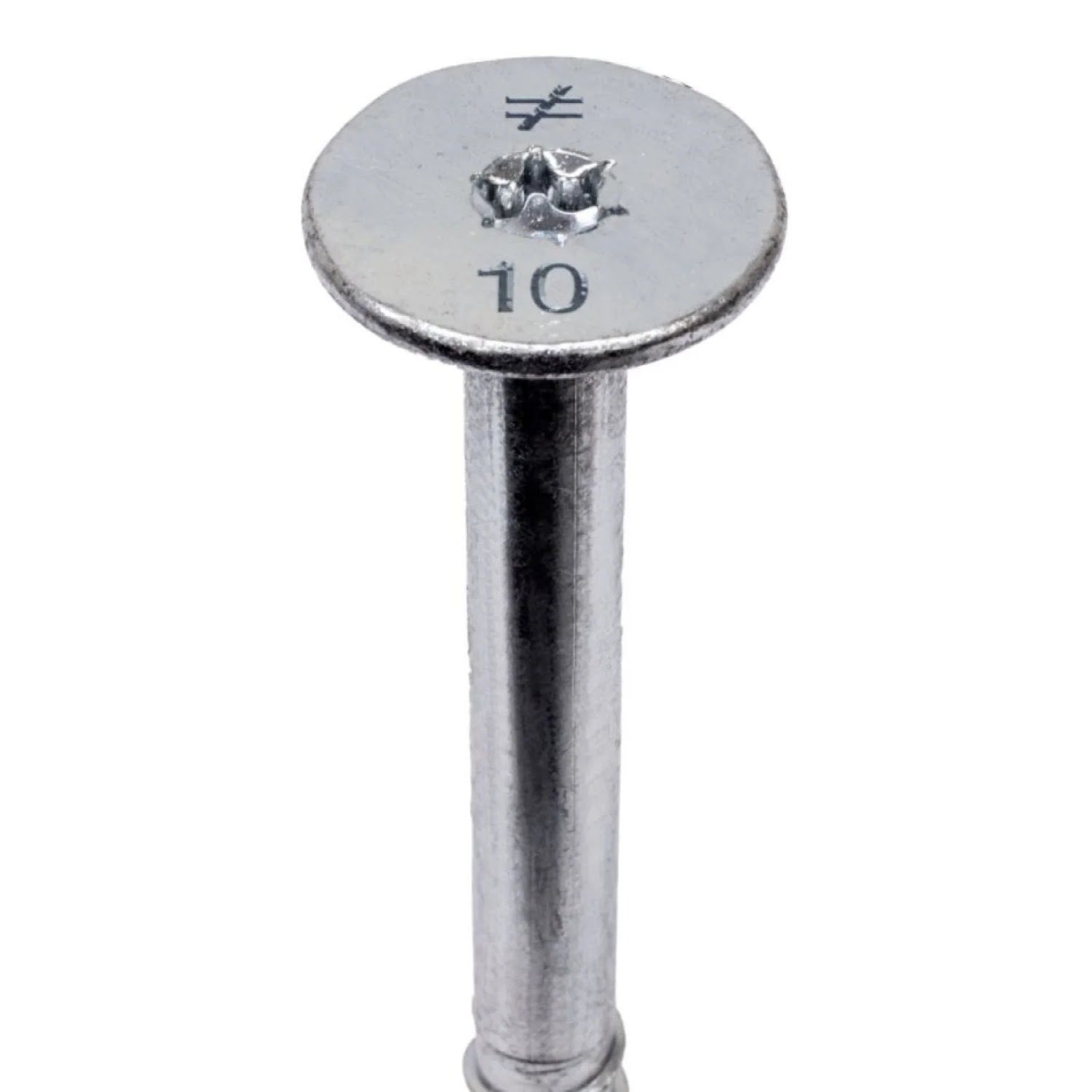

- Washer head allows screw anchor applications incompatible with a hex head
Simpson Strong-Tie THD50800WH Applications
- Cracked and uncracked concrete anchoring
- Masonry anchoring
- Sill plate applications
- Modular wall and floor systems
Simpson Strong-Tie THD50800WH Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THD50800WH Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/2 in. |
| Length | 8 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Washer Head |
| Quantity | 15 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
