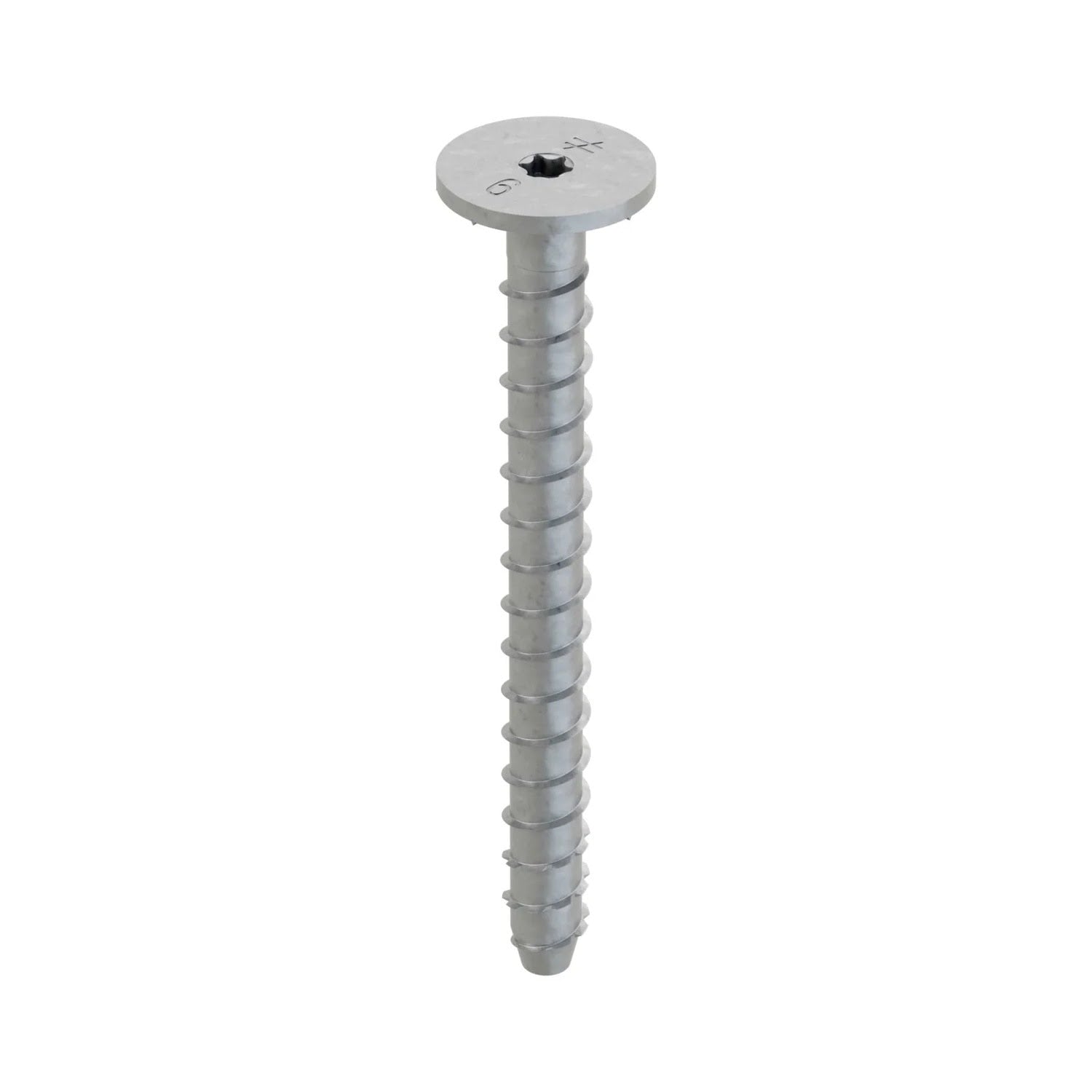

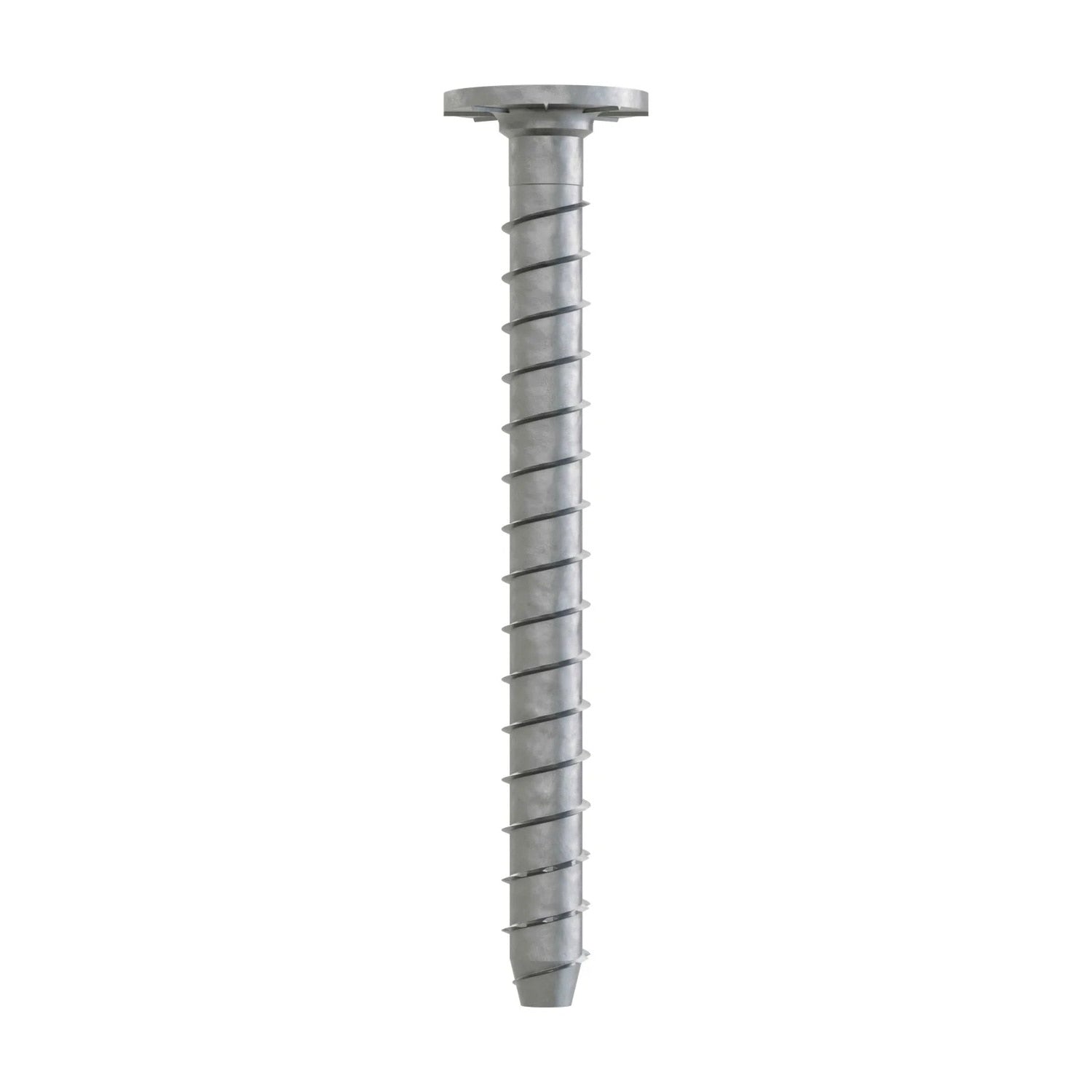

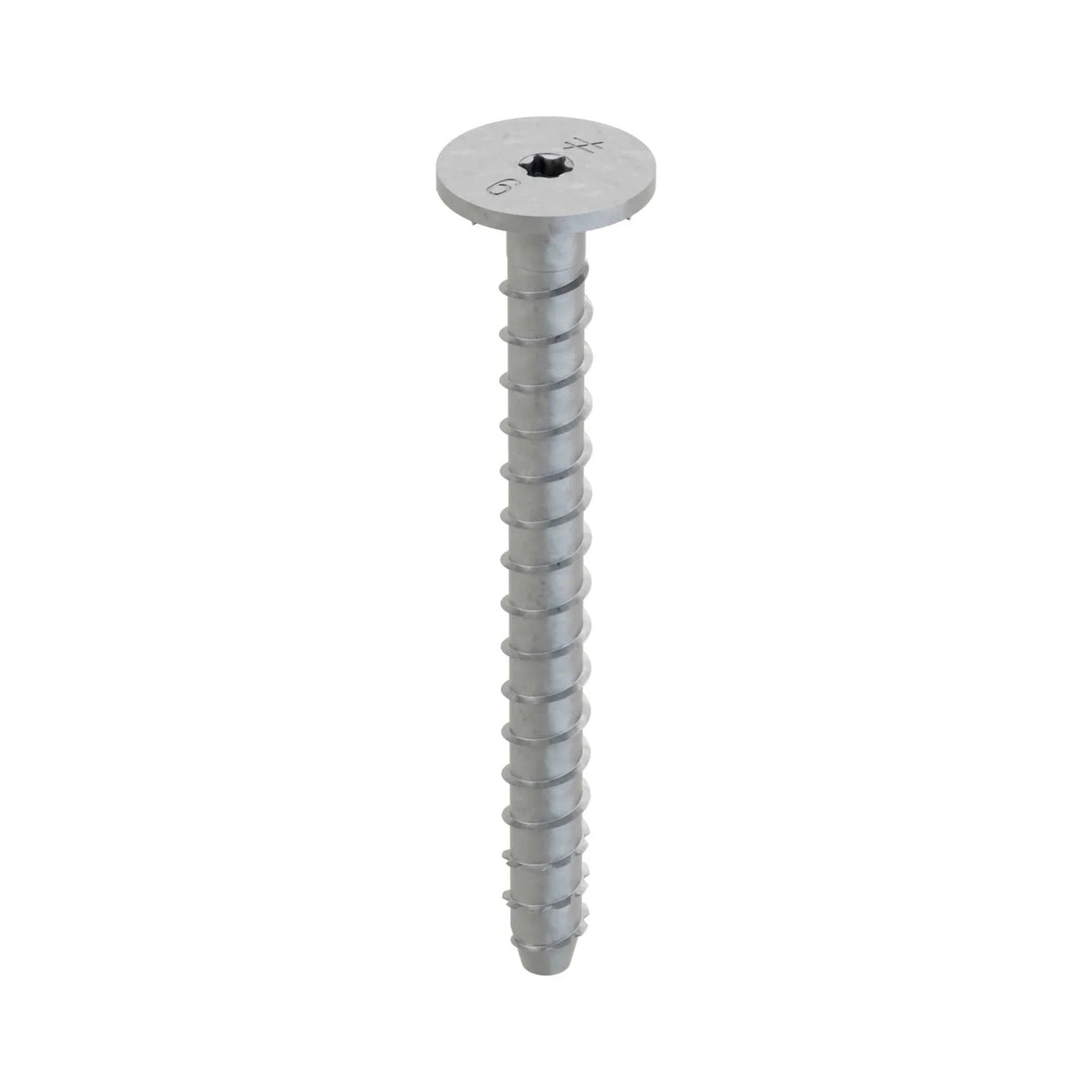

Simpson Strong-Tie THD50800WHMG Titen HD (1/2" x 8") Mechanically Galvanized Washer-Head HD Screw Anchor (15 Pack)
Description
Description
Simpson Strong-Tie THD50800WHMG Description
Titen HD screw anchors are high strength anchors designed to be quickly and easily installed in cracked and uncracked concrete applications.
Simpson Strong-Tie THD50800WHMG Includes
- (15) Titen HD Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THD50800WHMG Features
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions

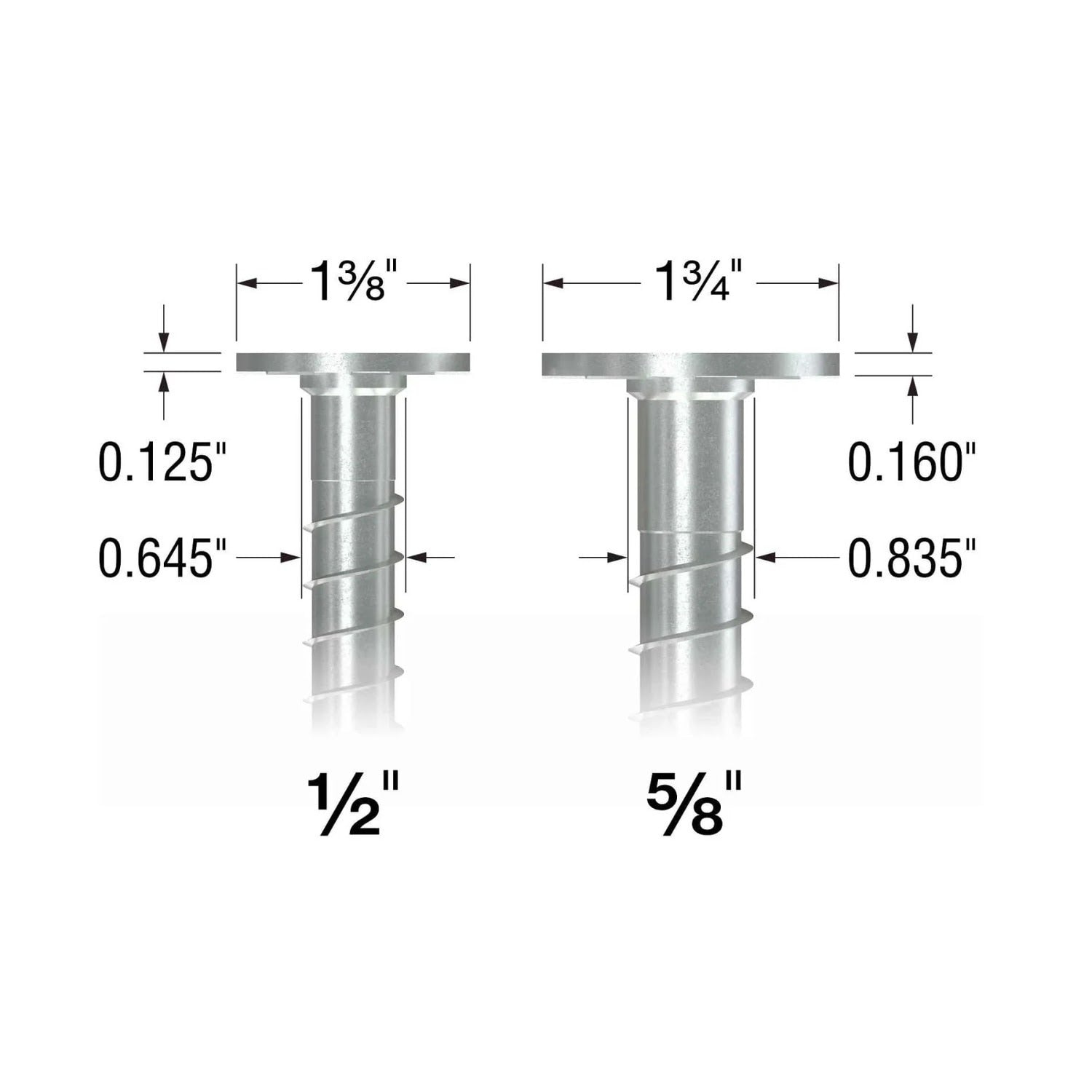

- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

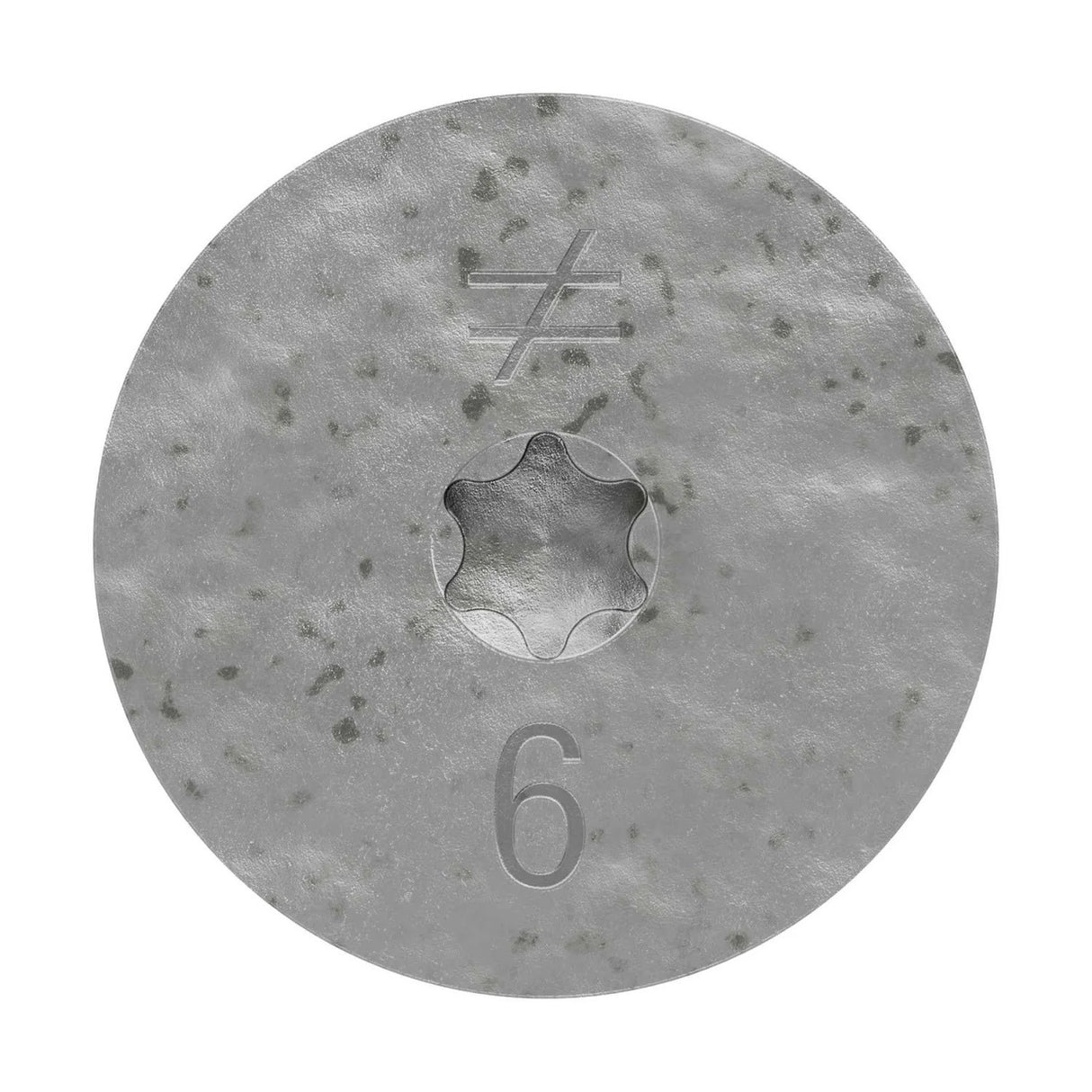

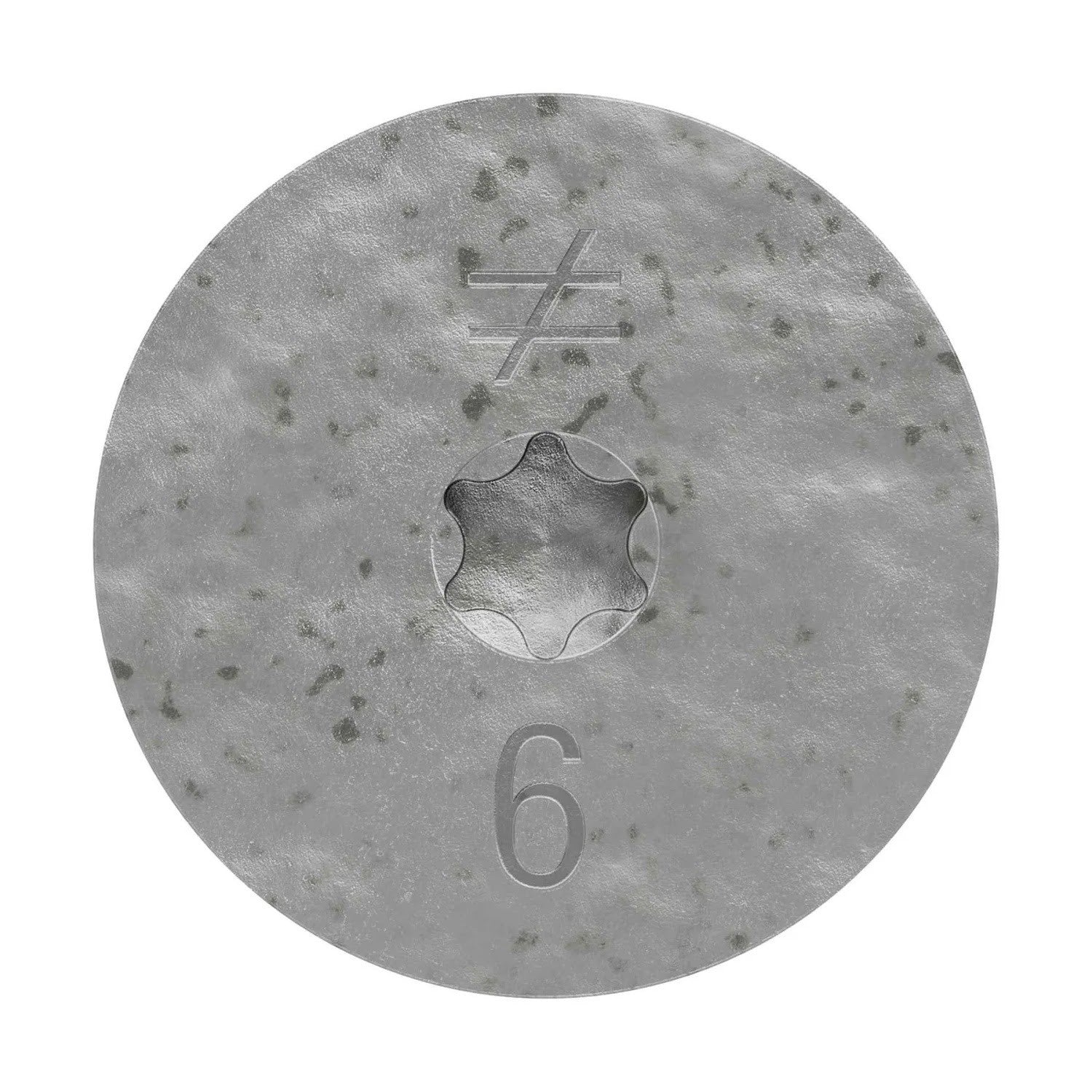

- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
Simpson Strong-Tie THD50800WHMG Applications

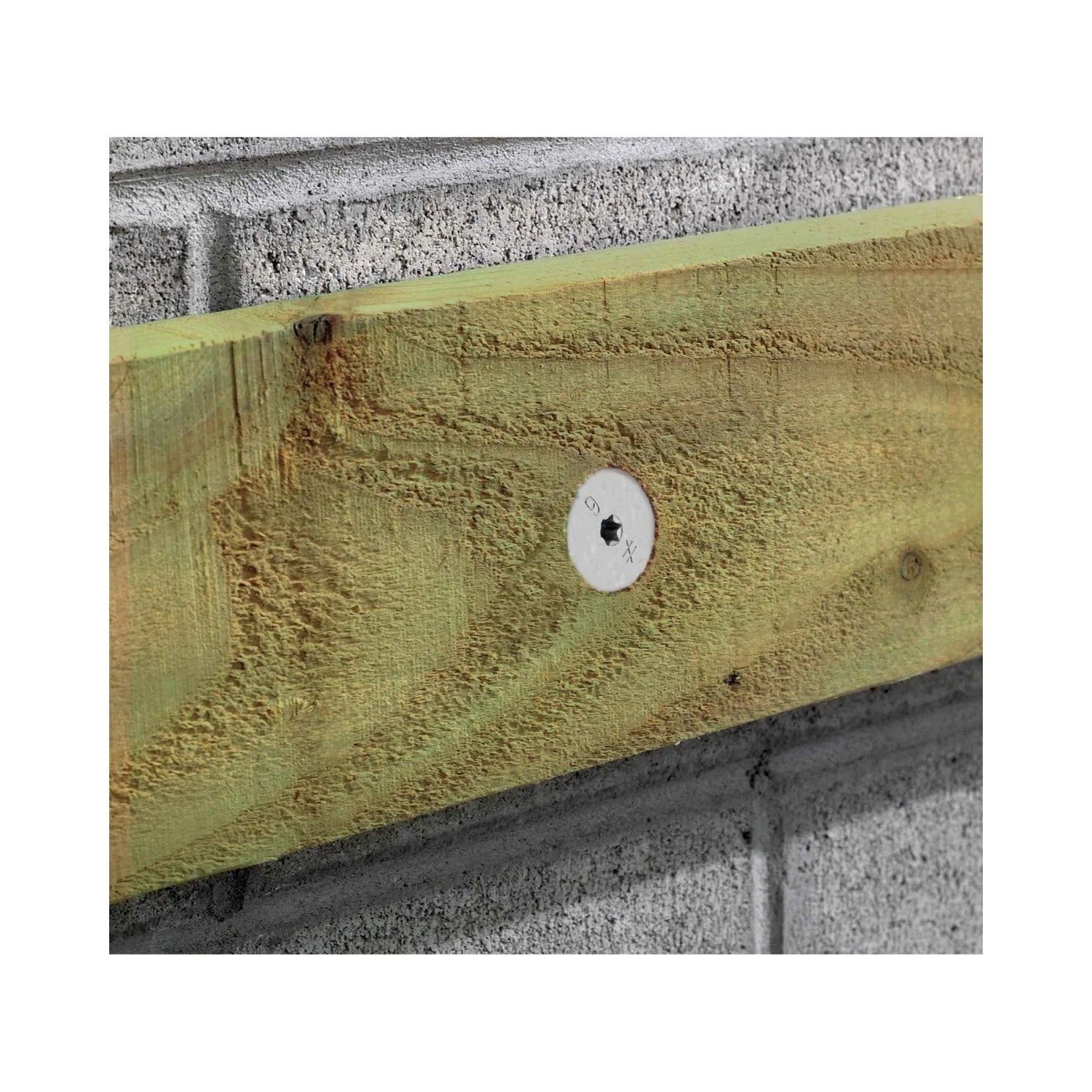

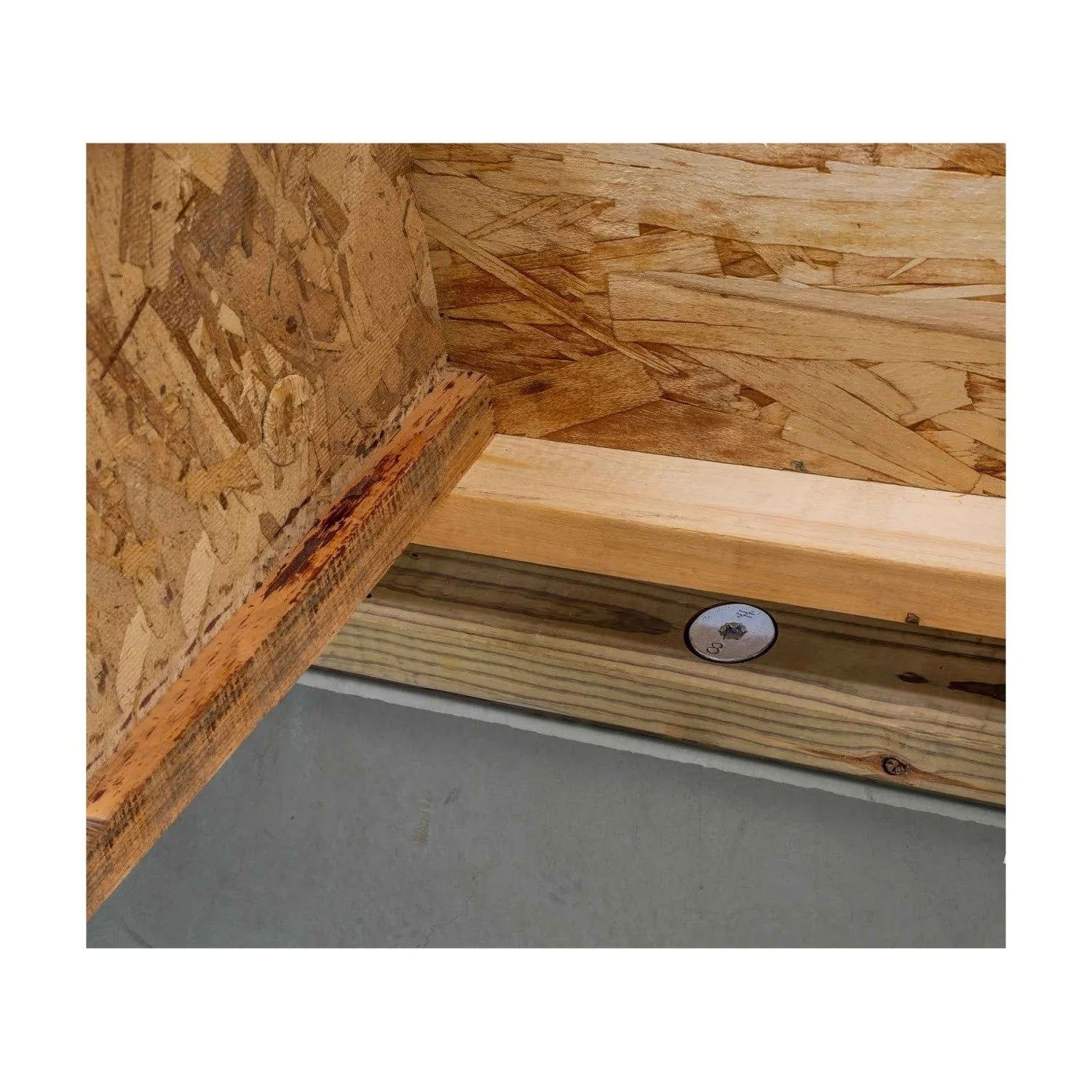

- Concrete anchoring for structural and non-structural applications
- Temporary anchoring for fixtures that may need to be moved
- Exterior applications requiring corrosion resistance
Simpson Strong-Tie THD50800WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THD50800WHMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Length | 8" |
| Drill Bit Size | 1/2" |
| Drive Type | T50 Star Drive |
| Fixture Hole Size | 3/4" to 13/16" |
| Quantity | 15 |
NOTE: Holes in metal fixtures to be mounted should match the diameter specified in the table below. For permanent applications, use a Titen HD one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity. Do not use impact wrenches to install into hollow CMU. Oversized holes in base material will reduce or eliminate the mechanical interlock of the threads with the base material and reduce the anchor’s load capacity. Installation of concrete screw generally is influenced by many factors such as but not limited to, concrete compressive strength, type of aggregate, installation location, installation direction and tools used for installation.
