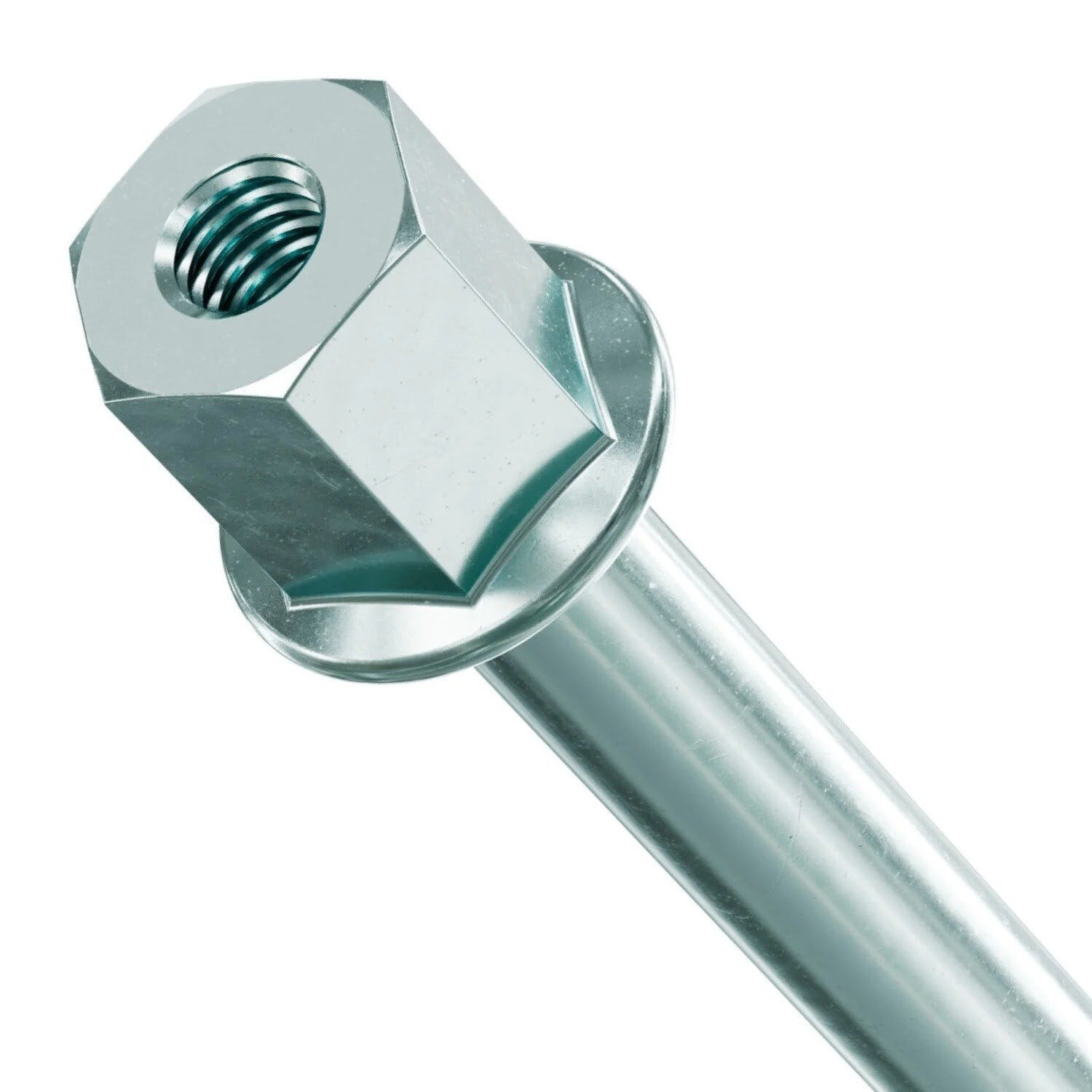

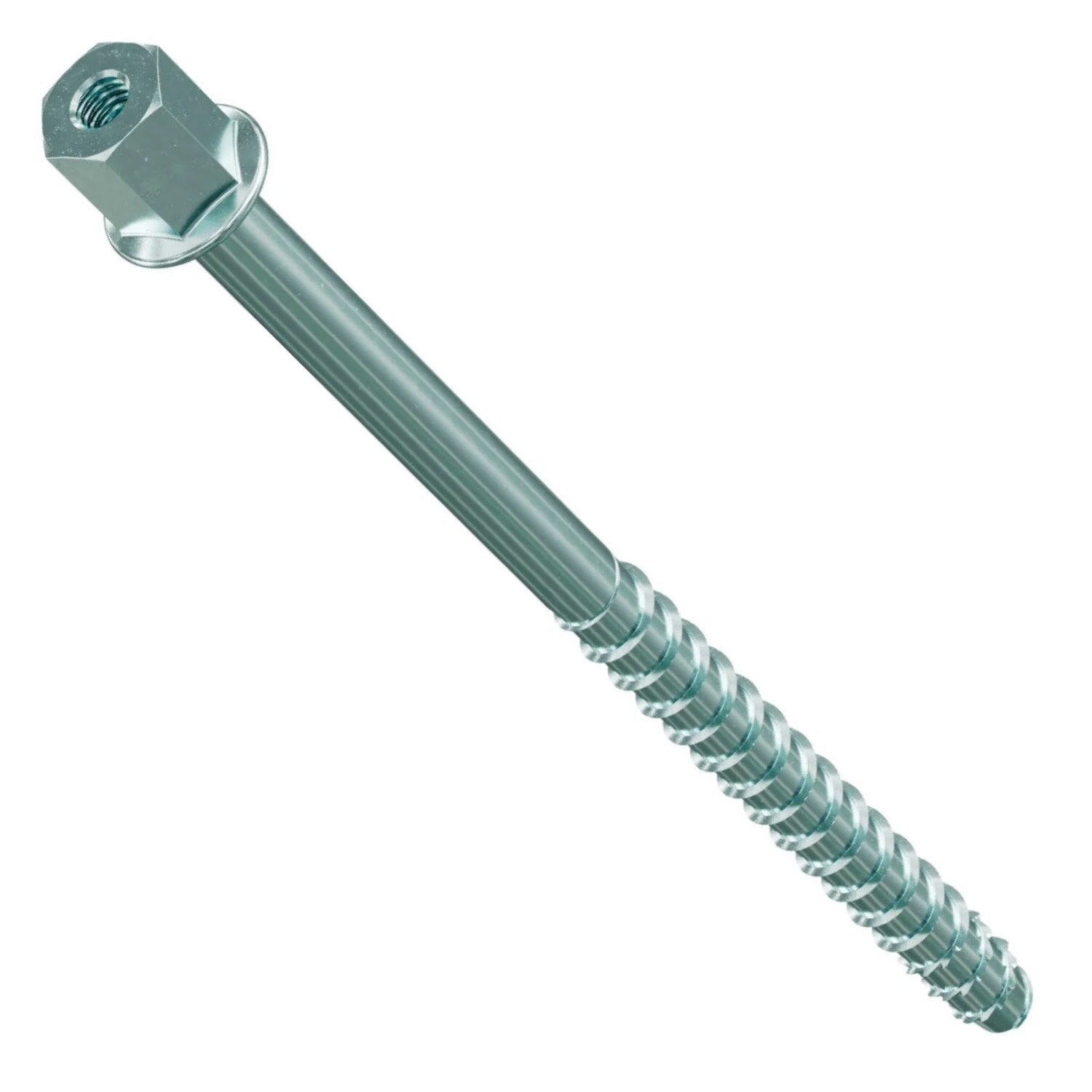

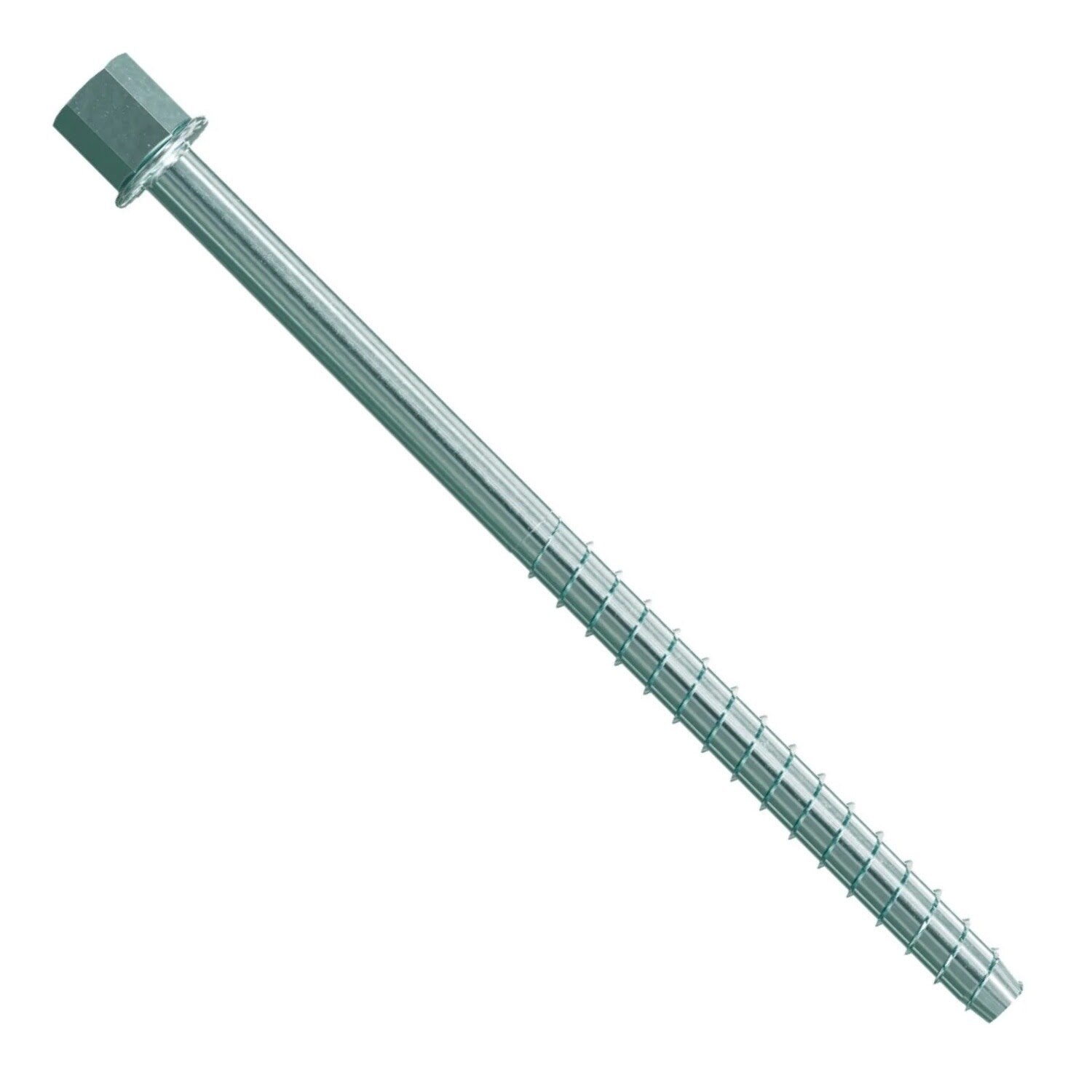

Simpson Strong-Tie THD5093437RC Description
The Titen HD Rod Coupler is engineered for efficient attachment of threaded rods to concrete stem walls or thickened slab footings, seamlessly integrating into single or multi-story rod tiedown systems.
Simpson Strong-Tie THD5093437RC Includes
- (20) Titen HD Rod Coupler Screw Anchor Zinc
Simpson Strong-Tie THD5093437RC Features
- Code listed in ESR-2713 for wind and seismic loading

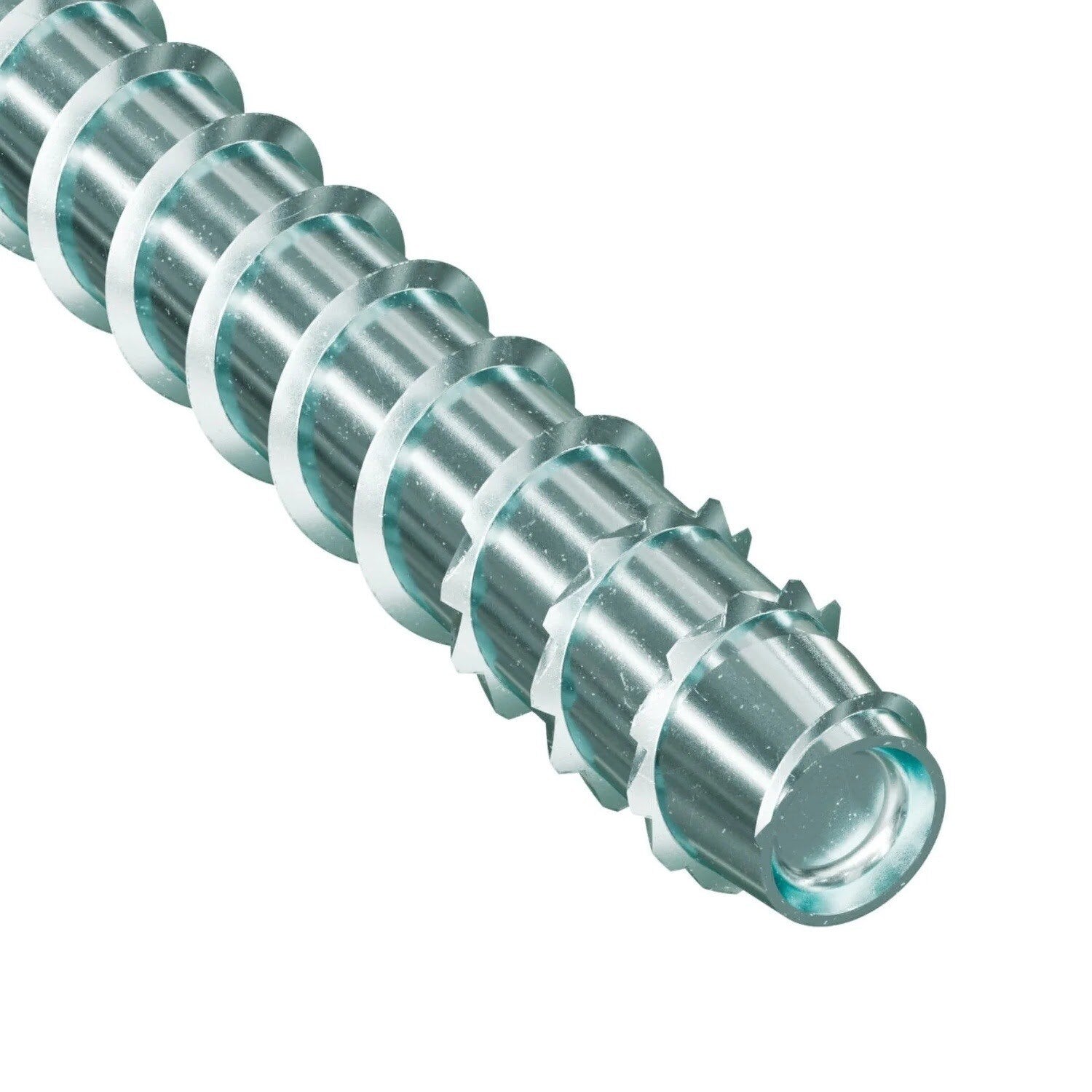

- Quick installation with serrated cutting teeth and thread design
- Durable construction with carbon steel and zinc-plated finish
- Compatible with threaded rods in 3/8" and 1/2" diameters
- Designed for use in dry interior environments
Simpson Strong-Tie THD5093437RC Applications

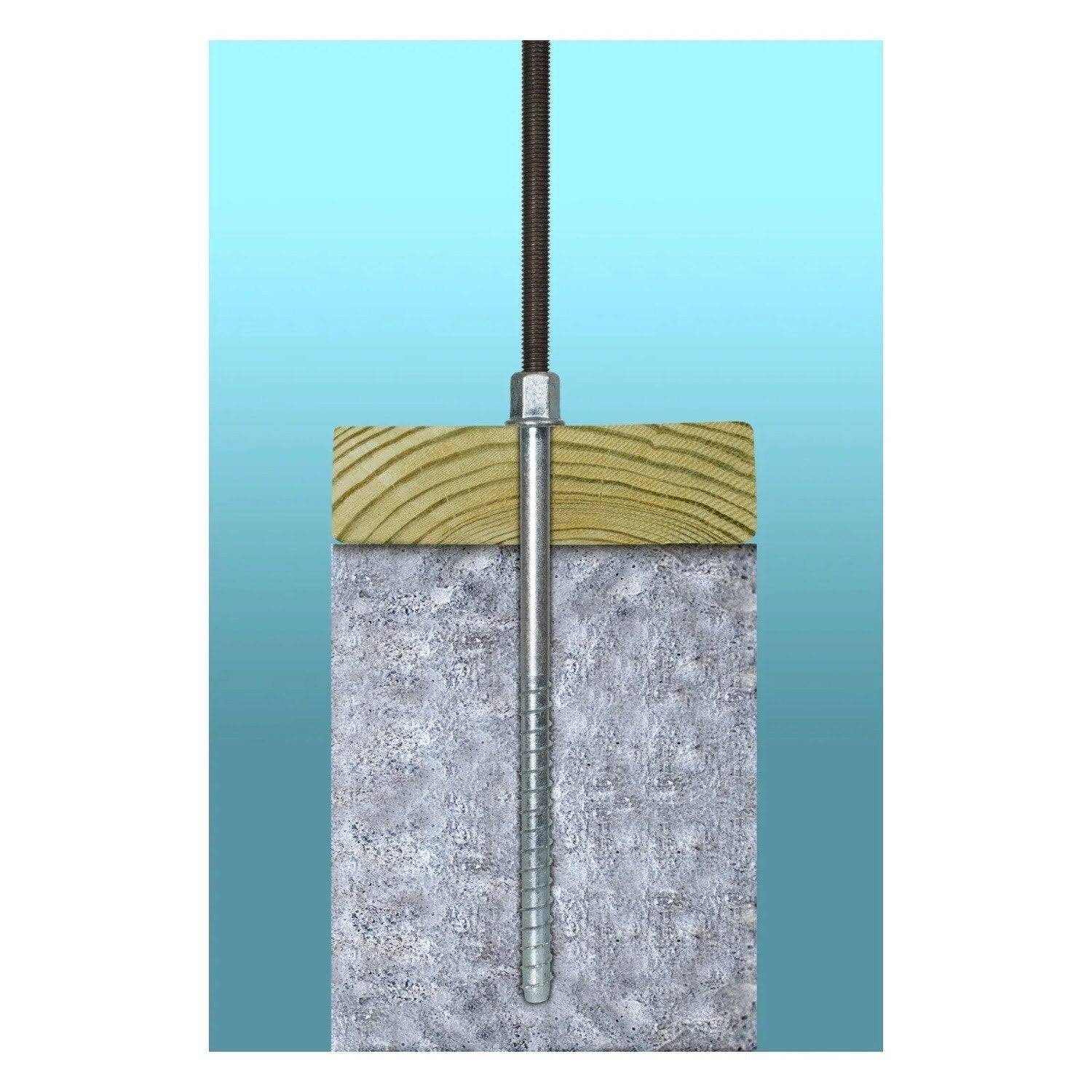

- Efficient attachment of threaded rods to concrete stem walls
- Integration into single or multi-story rod tiedown systems
- Use in dry interior environments
Simpson Strong-Tie THD5093437RC Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment
- Blow the hole clean of dust and debris using compressed air
- Tighten the anchor with appropriate size socket until the head sits flush against base material
Simpson Strong-Tie THD5093437RC Specifications
| Material | Carbon Steel |
| Finish | Zinc plated |
| Diameter | 1/2" |
| Length | 9-3/4" |
| Accepts rod size | 3/8" |
| Drill bit size | 1/2" |
| Wrench size | 3/4" |
| Quantity | 20 |
NOTE: Avoid oversized holes to maintain mechanical interlock and load capacity. The Titen HD Rod Coupler is designed for single-use applications; repeated installations may reduce effectiveness.
