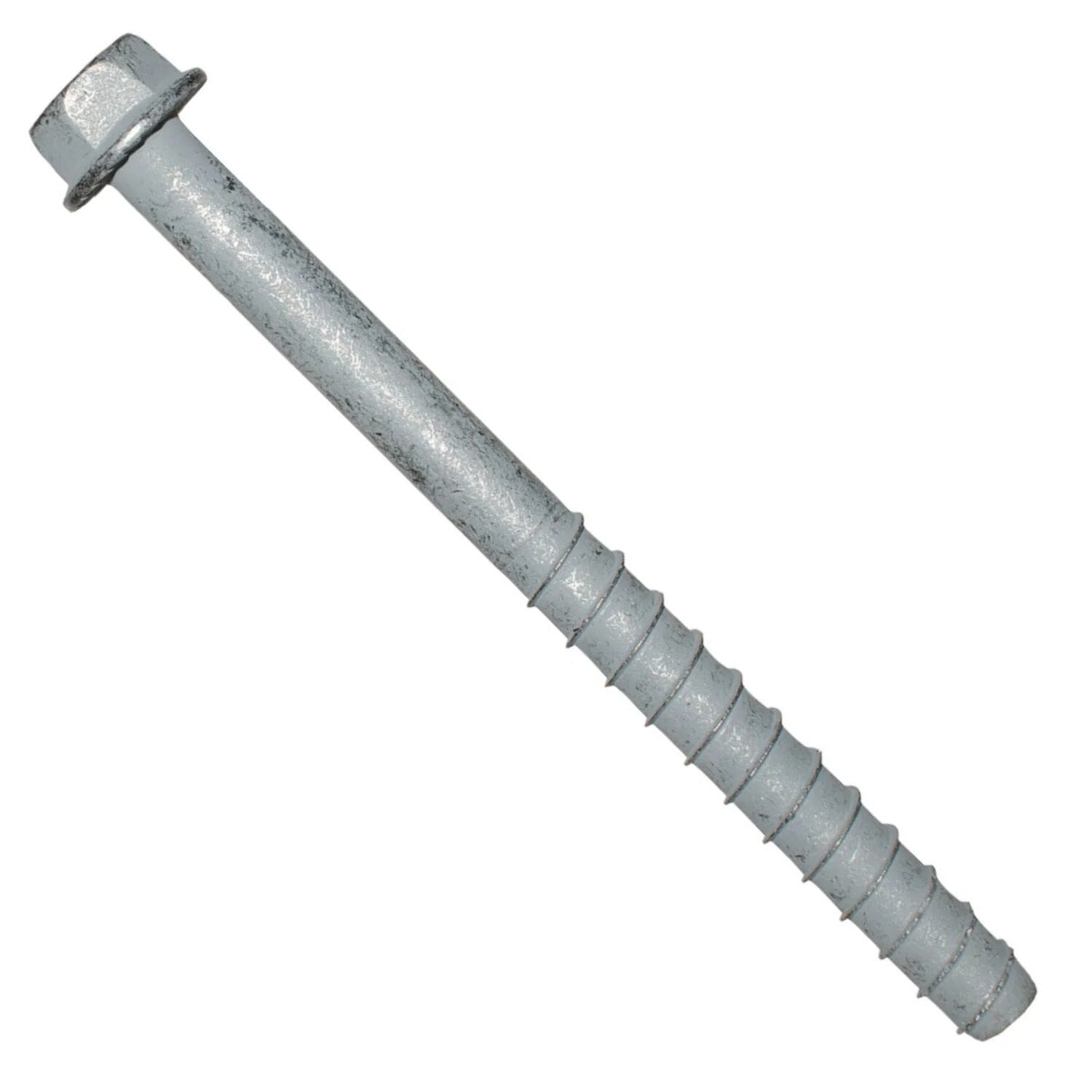

Simpson Strong-Tie THD75100HMG (3/4" x 10") Mechanically Galvanized Heavy-Duty Screw Anchor (5 Pack)
Description
Description
Simpson THD75100HMG Description
Titen HD Screw Anchors are high-strength, mechanically galvanized anchors designed for quick installation in concrete and masonry. Ideal for exterior and pressure-treated wood applications.
Simpson THD75100HMG Includes
- (5) 3/4" x 10" Titen HD Screw Anchor
Simpson THD75100HMG Features
- High-strength design for reliable performance
- Mechanically galvanized for corrosion resistance
- Patented thread design with serrated cutting teeth for easy installation
- Suitable for cracked and uncracked concrete and masonry
- Easily removable for temporary applications
Simpson THD75100HMG Applications
- Sill plates: Securely fastens wood sill plates to concrete foundations
- Ledgers: Provides strong attachment for ledger boards

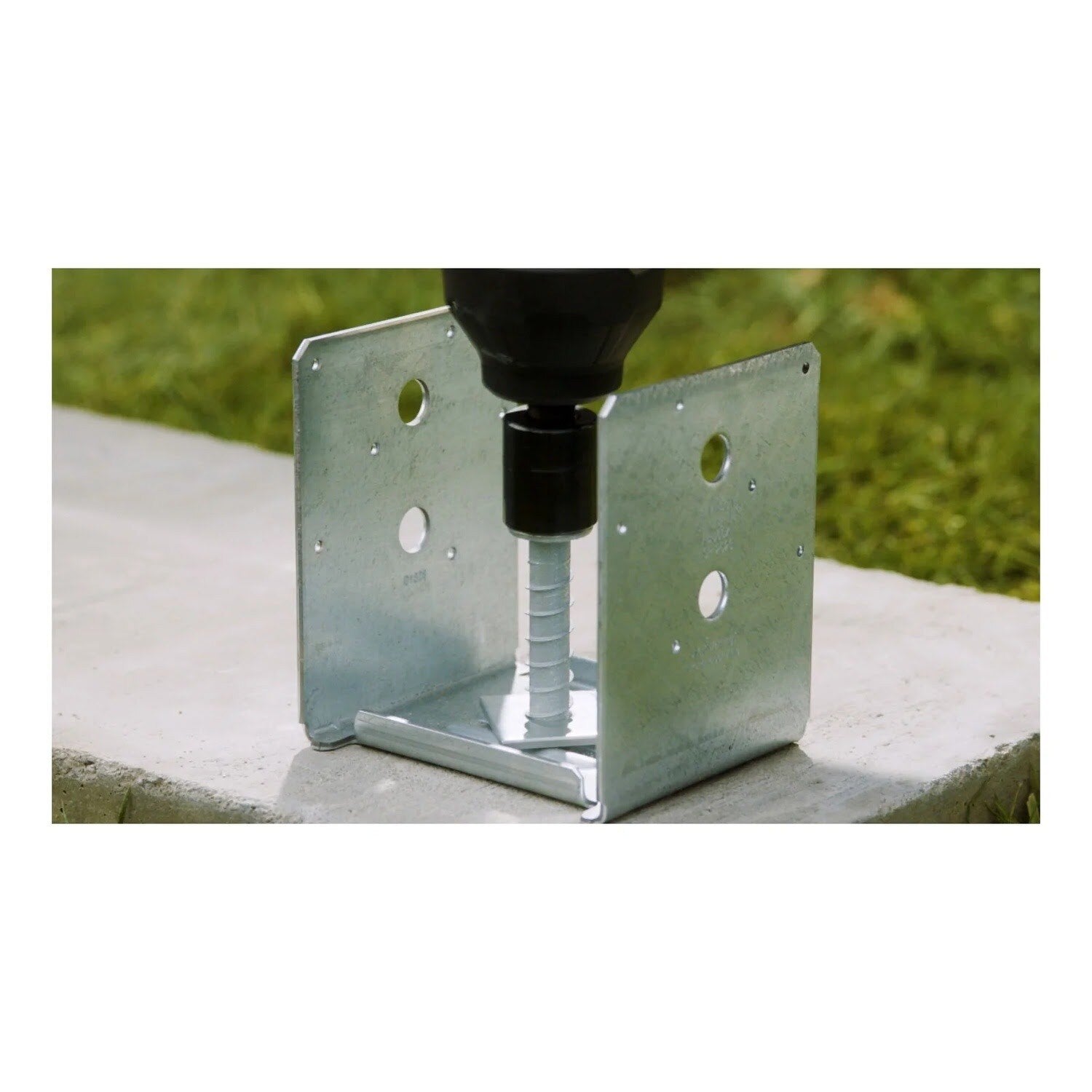

- Post bases: Ensures stable anchoring of posts
- Seating: Reliable anchoring for seating installations
- Holdown applications: Effective for various structural holdown needs
Simpson THD75100HMG Installation Overview
- Drill a hole using a 3/4" drill bit
- Clean the hole of debris
- Insert the Titen HD Screw Anchor into the hole
- Tighten using a 1-1/8" hex drive
- Ensure the anchor is securely seated
Simpson THD75100HMG Specifications
Diameter | 3/4" |
Finish | Galvanized |
Length | 10" |
Drill bit size | 3/4" |
Drive type | 1-1/8" Hex |
Fixture hole size | 7/8"-15/16" |
Head type | Hex Head |
Material | Carbon Steel |
Quantity | 5 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
