Simpson Anchors | SKU:
THD75400H

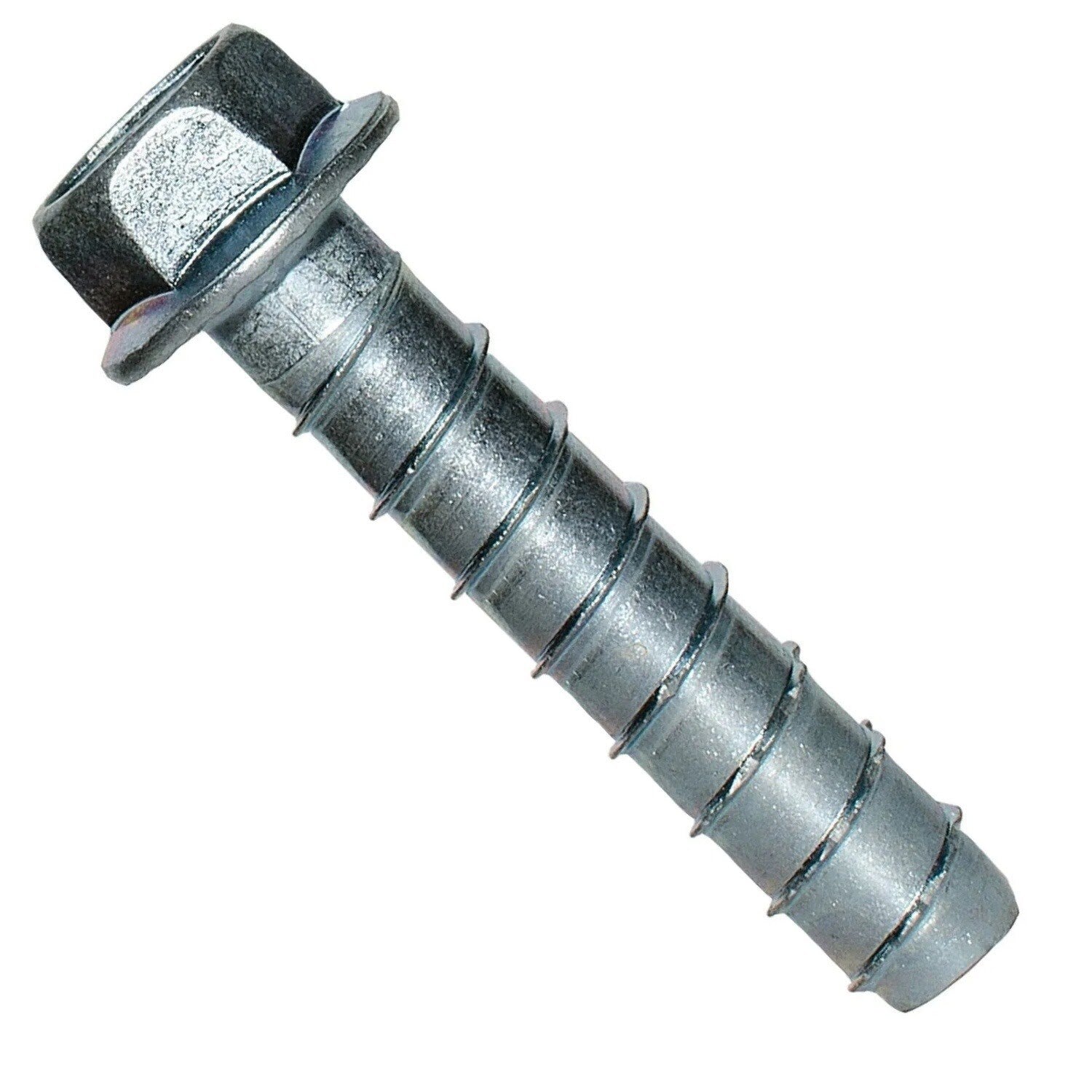

Simpson Strong-Tie THD75400H Titen HD (3/4" x 4") Heavy-Duty Screw Anchor - Zinc Plated (10 Pack)
$49.52
$59.16
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Strong-Tie THD75400H Description
The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson Strong-Tie THD75400H Includes
- (10) 3/4 in. x 4 in. Titen HD Screw Anchor Zinc Plated
Simpson Strong-Tie THD75400H Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- Hex-washer head requires no separate washer, providing a clean installed appearance
- Removable, ideal for temporary anchoring or applications where fixtures may need to be moved
Simpson Strong-Tie THD75400H Applications
- Concrete anchoring in dry, interior environments
- Temporary anchoring for formwork and bracing
- Mechanical, electrical, and plumbing installations
Simpson Strong-Tie THD75400H Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75400H Specifications
| Diameter | 3/4 in. |
| Length | 4 in. |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 3/4 in. |
| Drive Type | 1-1/8 in. Hex |
| Fixture Hole Size | 7/8 in. - 15/16 in. |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Use the correct drill bit size and follow installation guidelines to ensure optimal performance.
