Simpson Anchors | SKU:
THD75600H4SS
Simpson Strong-Tie THD75600H4SS Titen HD (3/4" x 6") Heavy Duty SS Screw Anchor - Type 304 (5 Pack)
$84.58
$90.48
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD75600H4SS Description

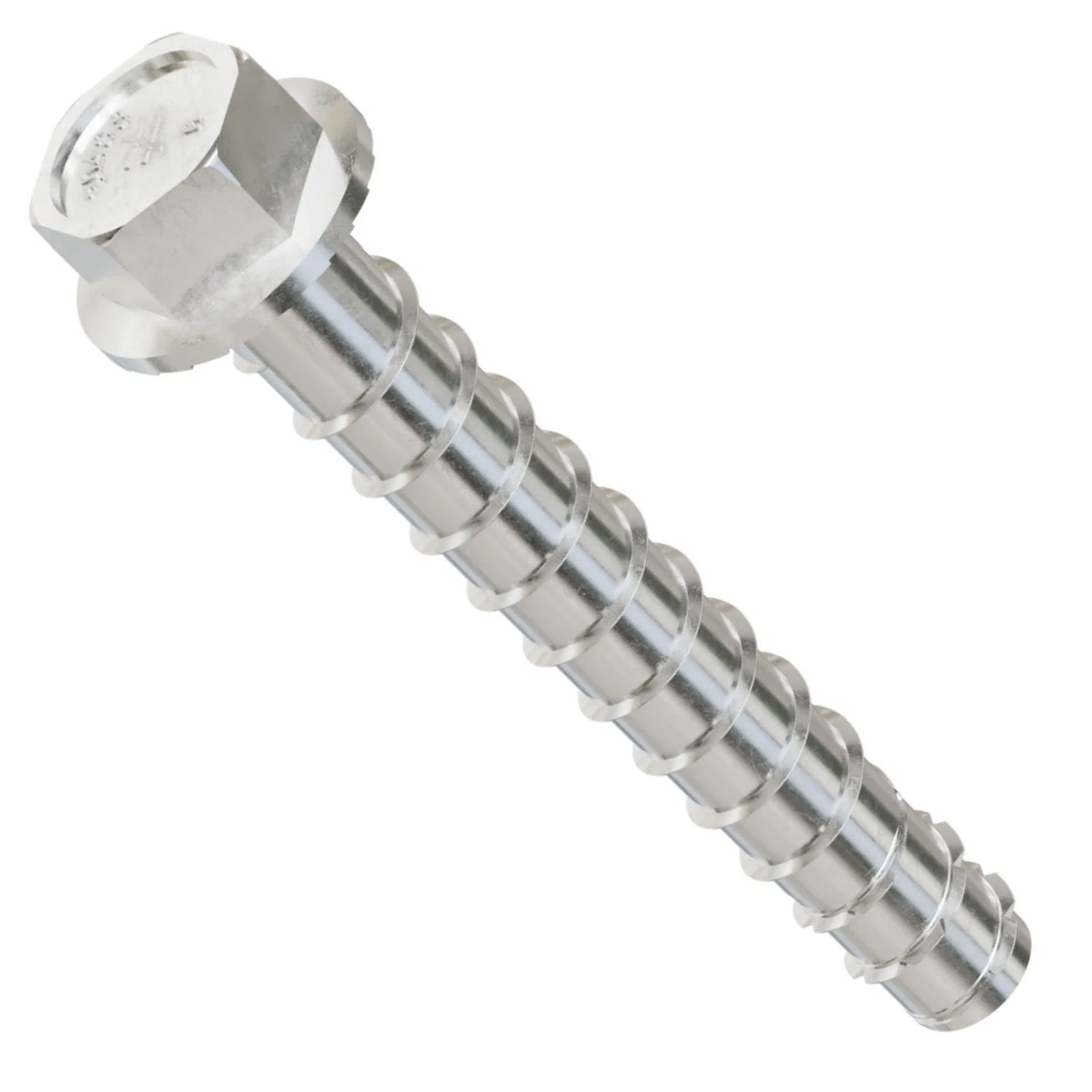

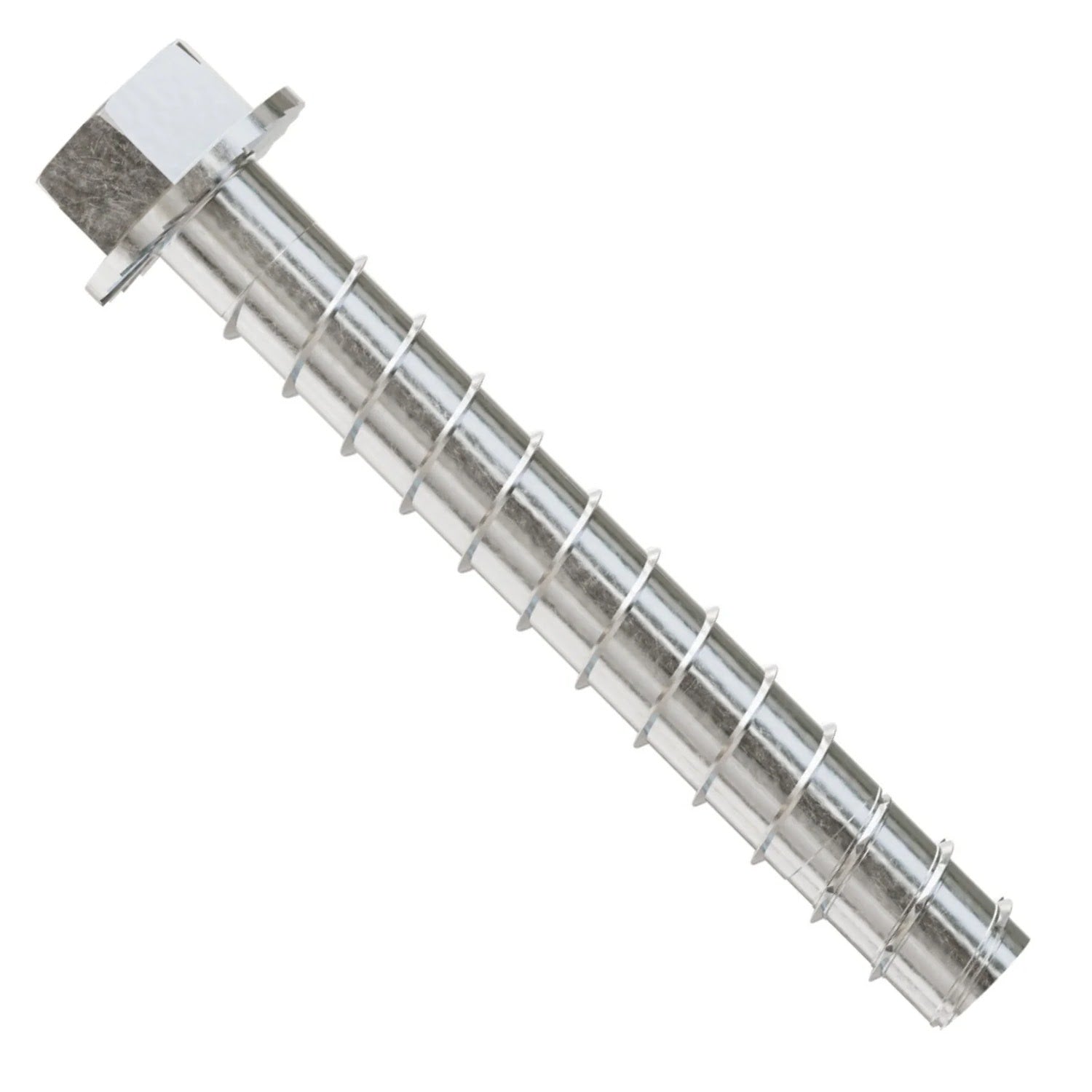

The Titen HD Screw Anchor is a high-performance, self-undercutting, non-expansion screw anchor made of 304 stainless steel, ideal for general exterior applications.
Simpson Strong-Tie THD75600H4SS Includes
- (5) Titen HD Screw Anchor 304 Stainless Steel 3/4 in. x 6 in.
Simpson Strong-Tie THD75600H4SS Features
- Made of 304 stainless steel for corrosion resistance
- Self-undercutting and non-expansion design
- Patented thread design with serrated cutting teeth for easy installation
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THD75600H4SS Applications
- General exterior applications
- Mechanical, electrical, and plumbing installations
Simpson Strong-Tie THD75600H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75600H4SS Specifications
| Diameter | 3/4 in. |
| Length | 6 in. |
| Material | 304 Stainless Steel |
| Drill Bit Size | 3/4 in. |
| Drive Type | 1-1/8 in. Hex |
| Fixture Hole Size | 7/8 in. - 15/16 in. |

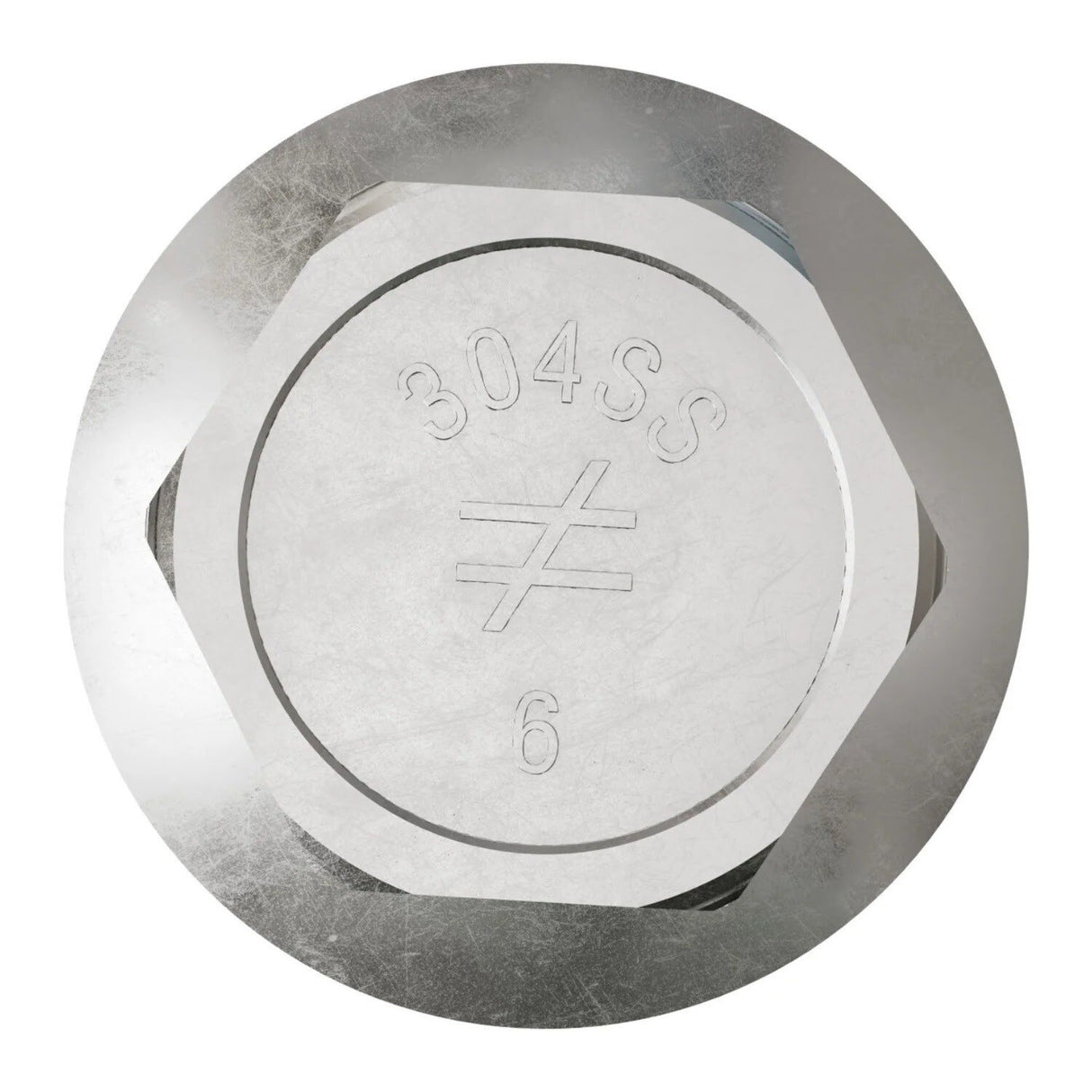

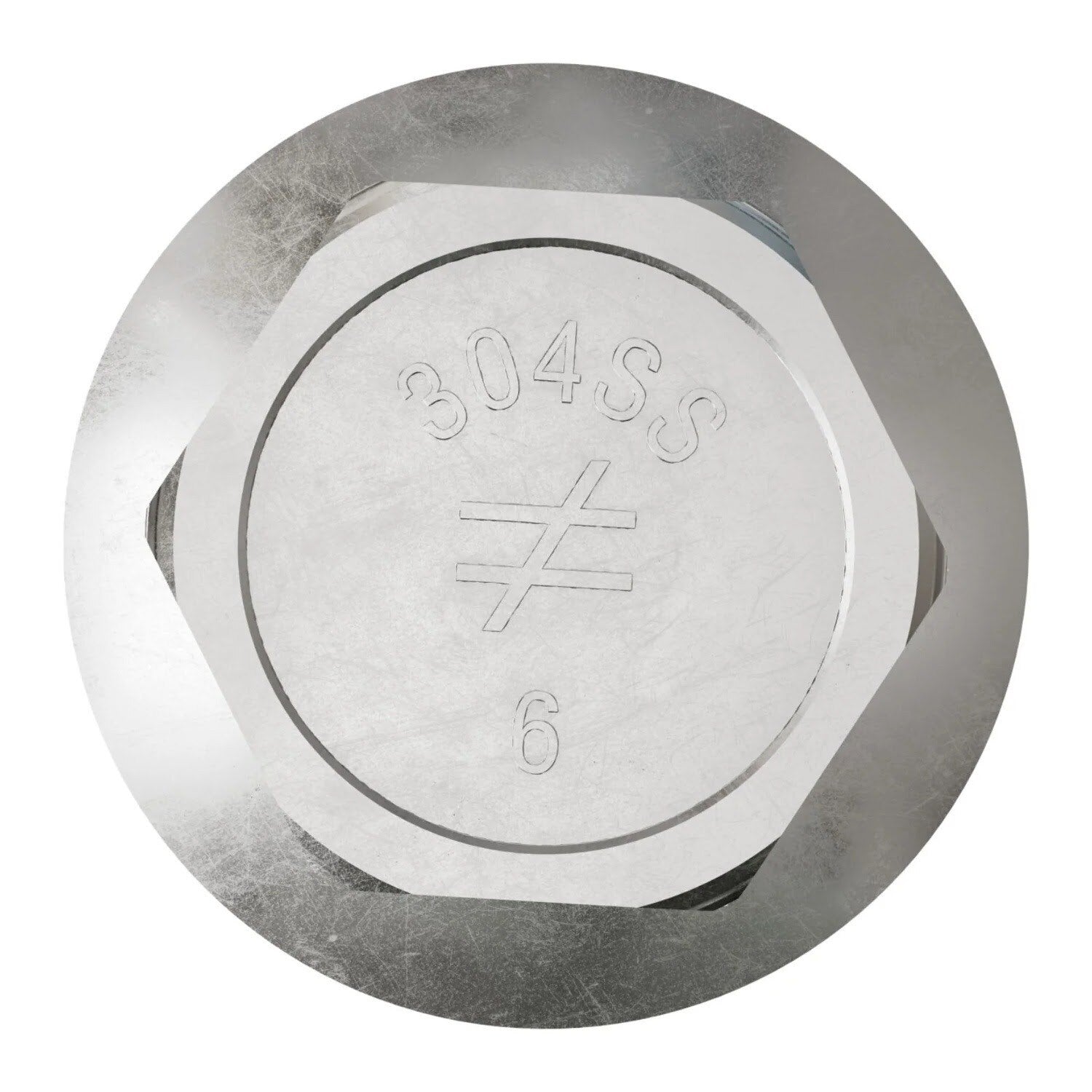

| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
