Simpson Anchors | SKU:
THD75700H4SS

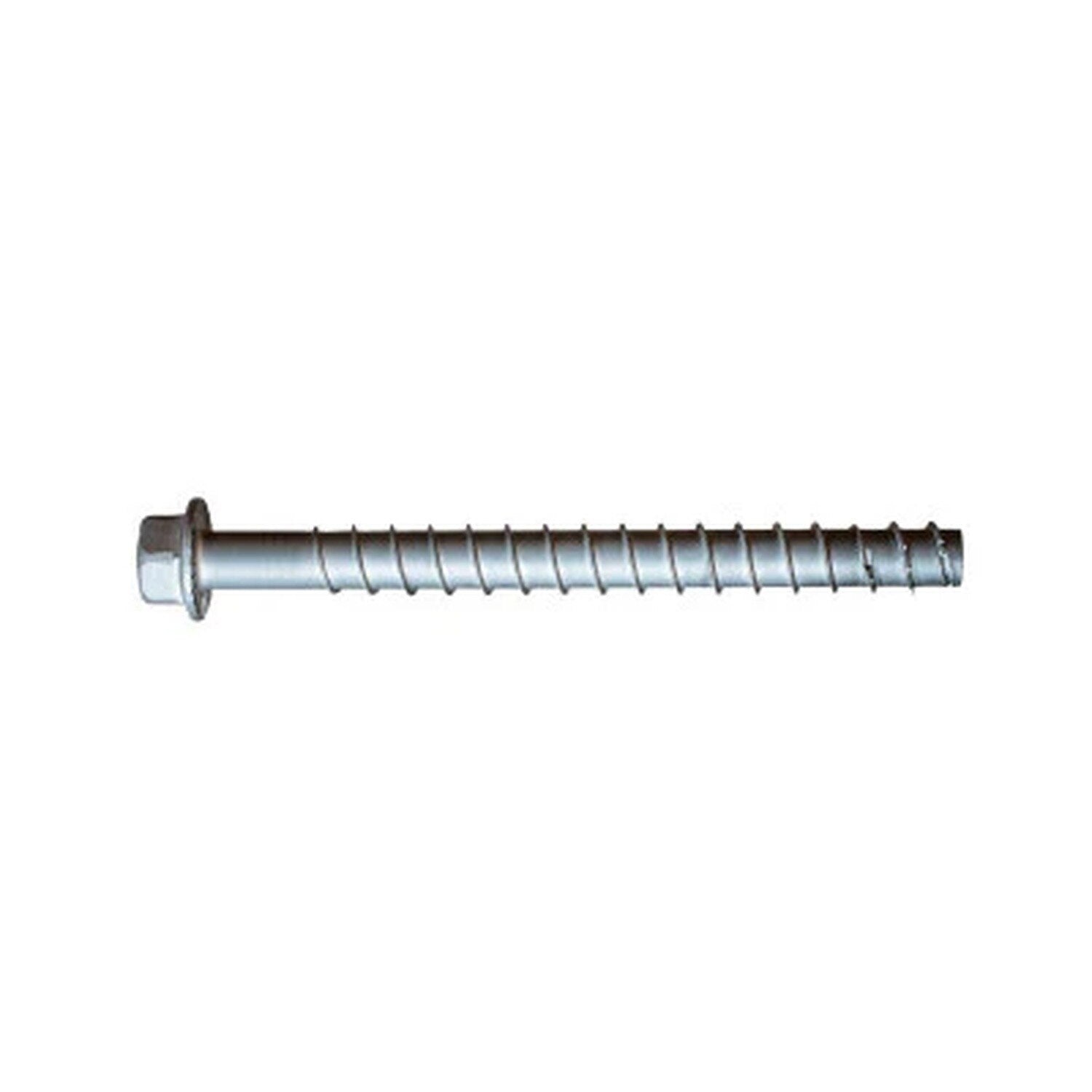

Simpson Strong-Tie THD75700H4SS Titen HD (3/4" x 7") Heavy Duty SS Screw Anchor - Type 304 (5 Pack)
$105.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD75700H4SS Description
The Titen HD Screw Anchor is a self-undercutting, non-expansion screw anchor designed for quick and easy installation. Made of 304 stainless steel, it is ideal for general exterior applications.
Simpson Strong-Tie THD75700H4SS Includes
- (5) Titen HD Screw Anchor 304 Stainless Steel
Simpson Strong-Tie THD75700H4SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson Strong-Tie THD75700H4SS Applications
- General exterior applications
- Mechanical, electrical, and plumbing installations
Simpson Strong-Tie THD75700H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75700H4SS Specifications
| Diameter | 3/4" |
| Length | 7" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/4" |
| Drive type | 1-1/8" Hex |
| Fixture hole size | 7/8"-15/16" |
| Head type | Hex Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 5 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values.
