Simpson Anchors | SKU:
THD75700H6SS

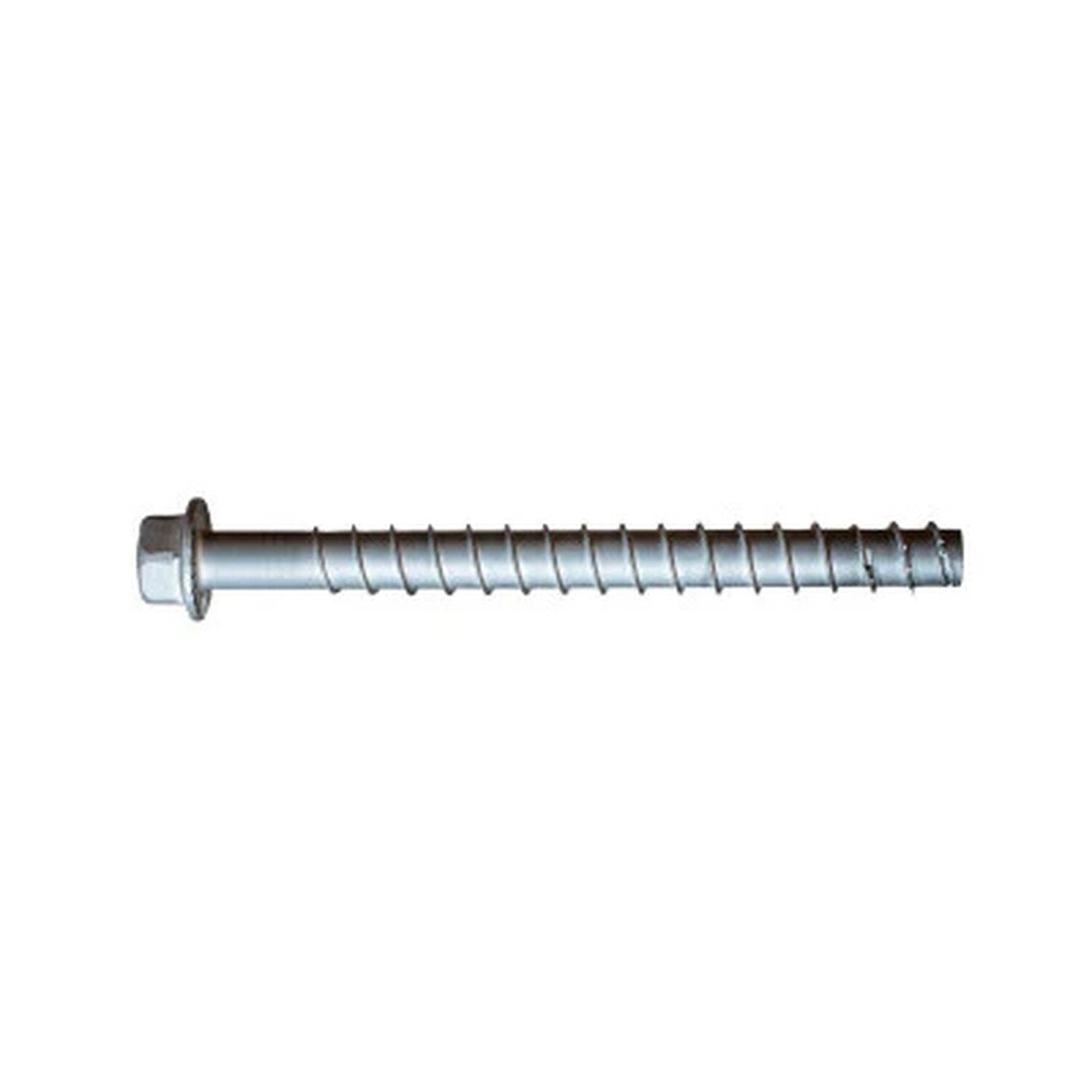

Simpson Strong-Tie THD75700H6SS Titen HD (3/4" x 7") Heavy Duty SS Screw Anchor - Type 316 (5 Pack)
$137.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD75700H6SS Description
Simpson Titen HD Screw Anchors are self-undercutting, non-expansion screw anchors designed for quick and easy installation, offering superior corrosion resistance for outdoor applications.
Simpson Strong-Tie THD75700H6SS Includes
- (5) Titen HD Screw Anchor 316 Stainless Steel
Simpson Strong-Tie THD75700H6SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson Strong-Tie THD75700H6SS Applications
- Outdoor applications requiring corrosion-resistant anchoring
- Mechanical, electrical, and plumbing installations
- Structural steel fixture mounting
Simpson Strong-Tie THD75700H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75700H6SS Specifications
| Diameter | 3/4" |
| Length | 7" |
| Material | 316 Stainless Steel |
| Drill bit size | 3/4" |
| Drive type | 1-1/8" Hex |
| Fixture hole size | 7/8"-15/16" |
| Head type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct fixture hole sizes for steel thicker than 12 gauge to ensure proper installation.
