Simpson Anchors | SKU:
THD75812H6SS

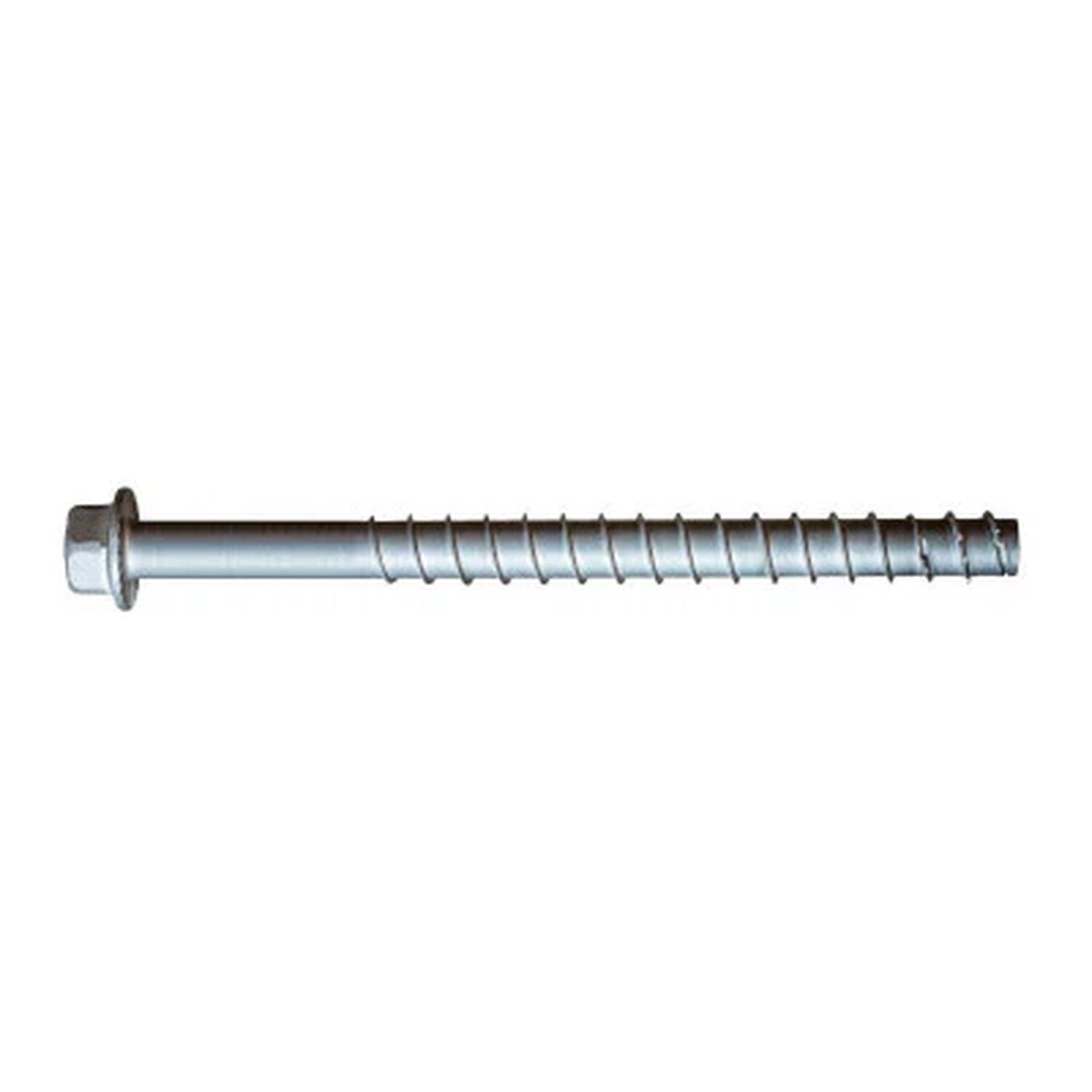

Simpson Strong-Tie THD75812H6SS Titen HD (3/4" x 8-1/2") Heavy Duty SS Screw Anchor - Type 316 (5 Pack)
$148.31
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD75812H6SS Description
Simpson Titen HD Screw Anchors are self-undercutting, non-expansion screw anchors designed for quick and easy installation. Made from 316 stainless steel, they offer excellent corrosion resistance, making them ideal for outdoor applications.
Simpson Strong-Tie THD75812H6SS Includes
- (5) Titen HD Screw Anchor 316 Stainless Steel
Simpson Strong-Tie THD75812H6SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193, and AC106
Simpson Strong-Tie THD75812H6SS Applications
- Outdoor applications requiring corrosion resistance
- Mechanical, electrical, and plumbing installations
Simpson Strong-Tie THD75812H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75812H6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 3/4 in. |
| Length | 8-1/2 in. |
| Drill Bit Size | 3/4 in. |
| Drive Type | 1-1/8 in. Hex |
| Fixture Hole Size | 7/8 in. - 15/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
