Simpson Anchors | SKU:
THDB25178HC20
Simpson Strong-Tie THDB25178HC20 Titen HD (1/4" x 1-7/8") Heavy-Duty Screw Anchor - Zinc Plated (20 Pack)
$16.01
Unit price
/
Unavailable
Description
Description
Simpson THDB25178HC20 Description

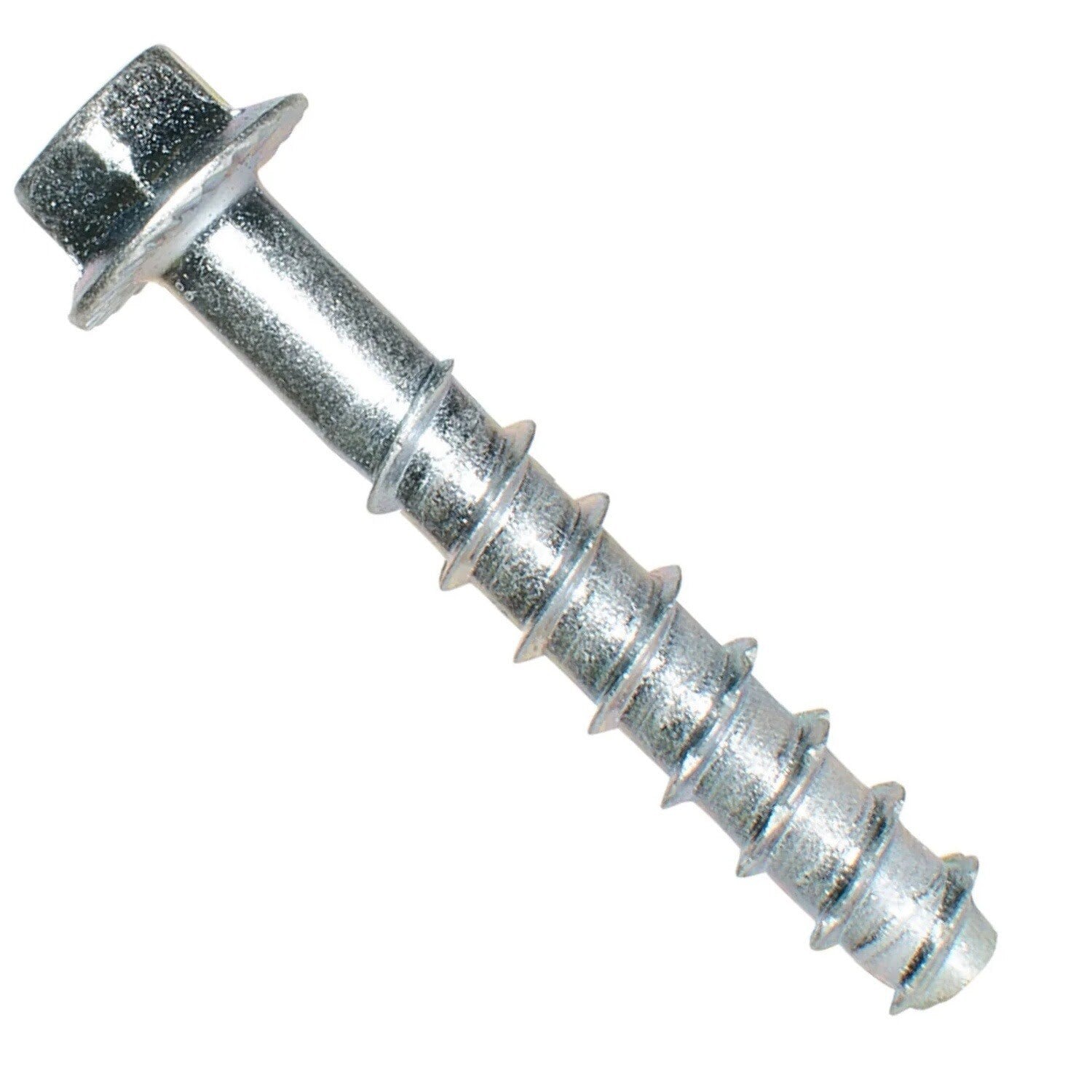

Titen HD Mini screw anchors are self-undercutting, non-expansion screw anchors designed for quick and easy installation. Featuring a patented thread design with serrated cutting teeth, these zinc concrete screws are ideal for dry, interior, and non-corrosive environments.

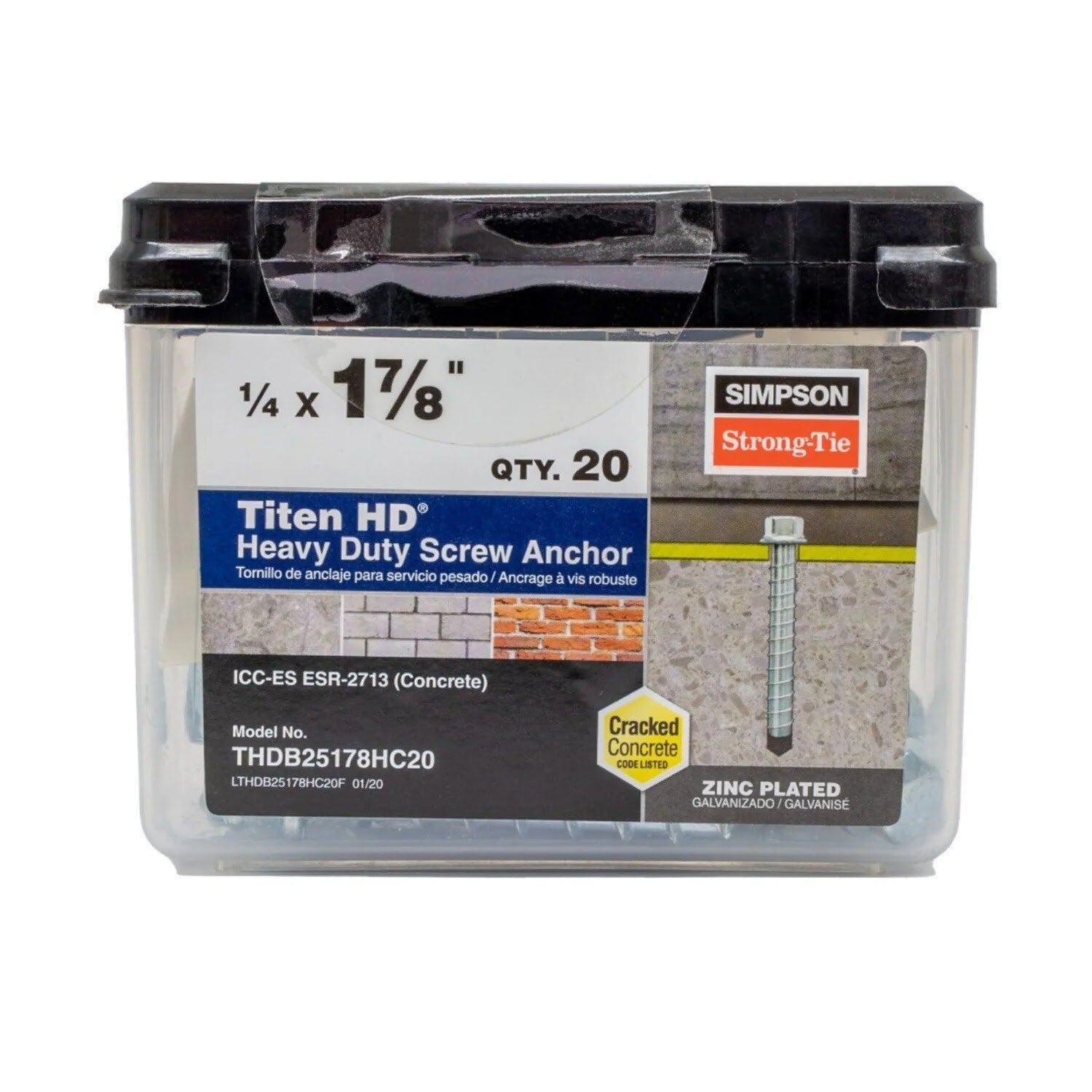

Simpson THDB25178HC20 Includes
- (20) 1/4" x 1-7/8" Titen HD Screw Anchor
Simpson THDB25178HC20 Features
- Self-undercutting design for secure anchoring
- Non-expansion mechanism prevents damage to base material
- Patented thread design with serrated cutting teeth for easy installation
- Zinc plating for corrosion resistance in dry, interior environments
- Hex head for easy driving and secure fit
Simpson THDB25178HC20 Applications
- Dry interior environments requiring secure anchoring
- Non-corrosive settings for temporary outdoor applications
- Concrete fastening for fixtures and supports

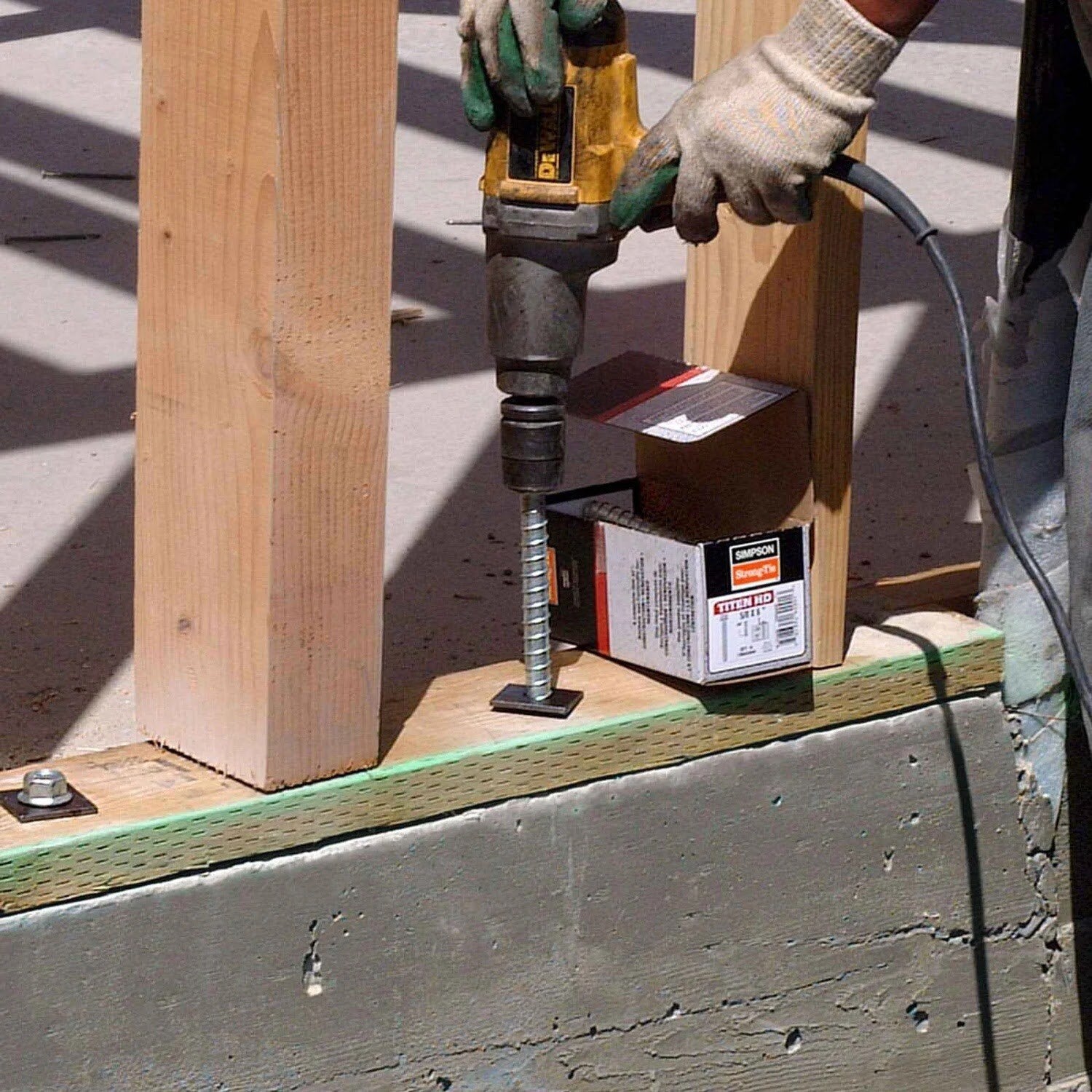

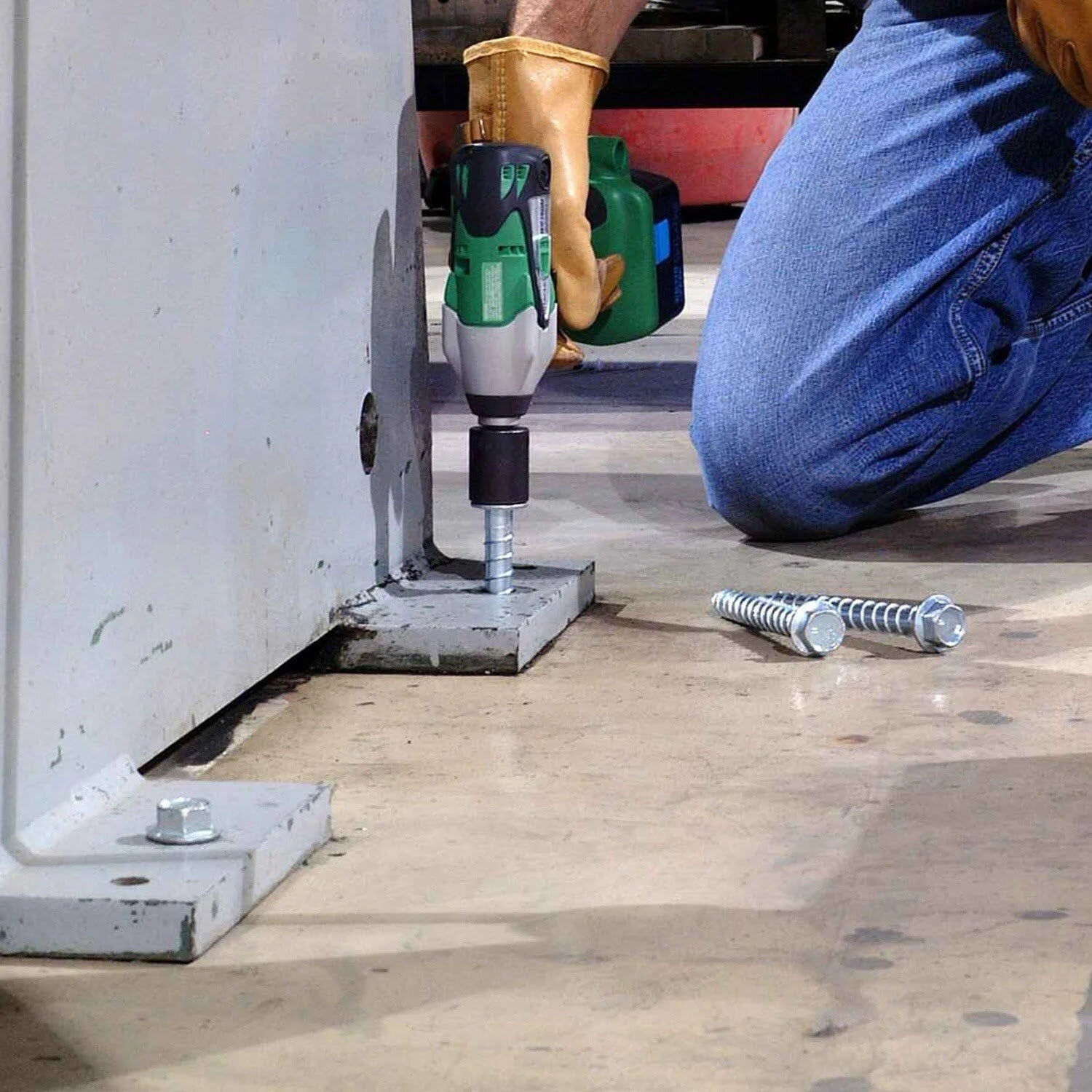

Simpson THDB25178HC20 Installation Overview
- Drill a hole using a 1/4" drill bit
- Clean the hole of debris
- Insert the Titen HD screw anchor into the hole
- Drive the anchor using a 3/8" hex driver
- Ensure the anchor is securely fastened
Simpson THDB25178HC20 Specifications
| Diameter | 1/4" |
| Finish | Zinc |
| Length | 1-7/8" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Drive type | 3/8" Hex |
| Fixture hole size | 3/8"-7/16" |
| Head type | Hex Head |
| Quantity | 20 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
