Simpson Anchors | SKU:
THDB25412CS

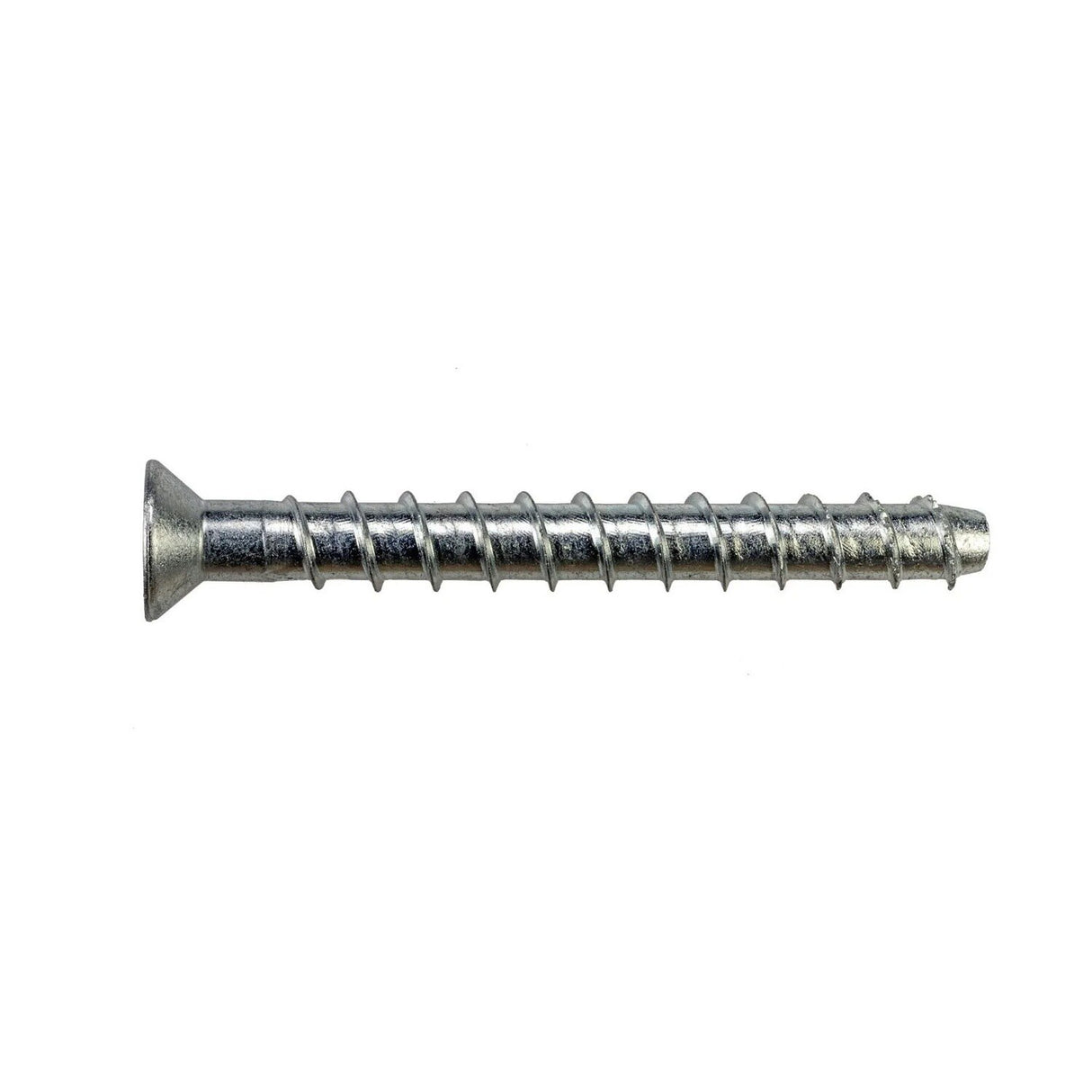

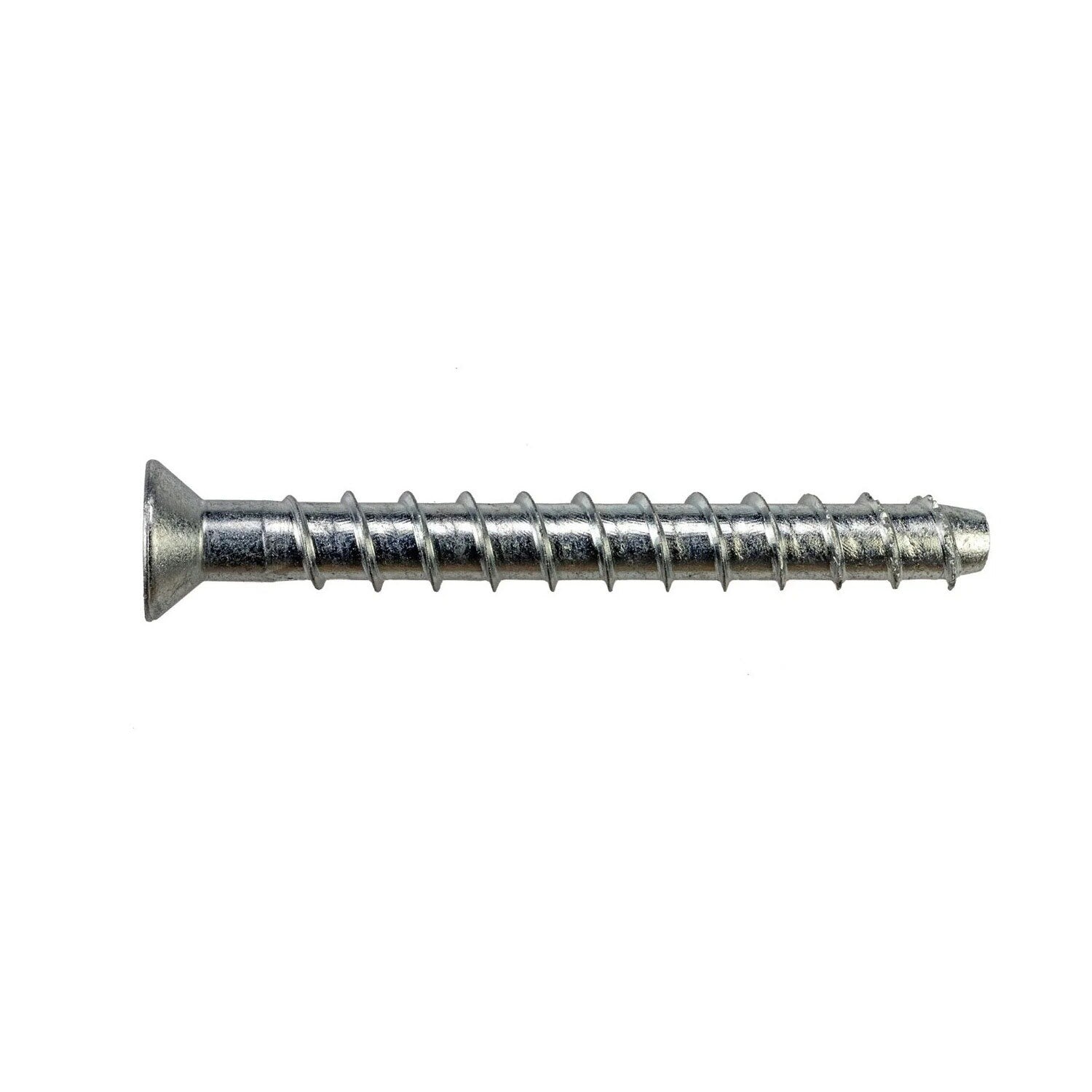

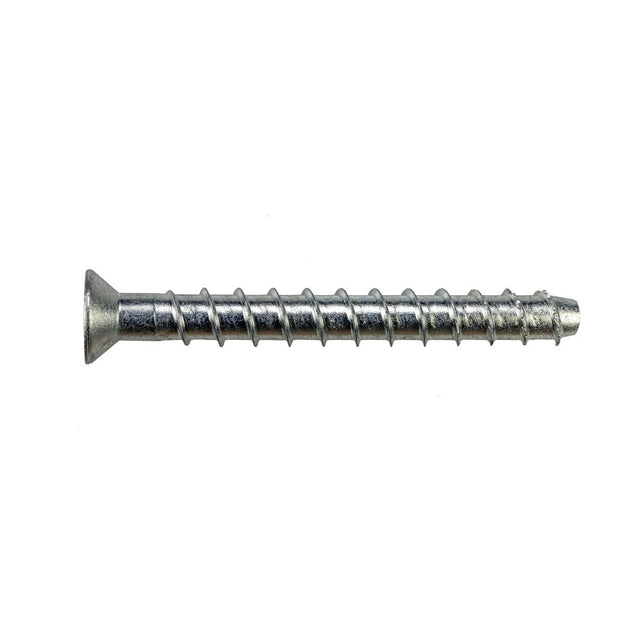

Simpson Strong-Tie THDB25412CS Titen HD(1/4" x 4-1/2") Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor (50 Pack)
$61.26
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB25412CS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation, featuring a countersunk head for flush installation and a zinc finish suitable for dry, interior environments.
Simpson Strong-Tie THDB25412CS Includes
- (50) Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor
Simpson Strong-Tie THDB25412CS Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required
- Removable, ideal for temporary anchoring
- Countersunk head allows screw anchor applications incompatible with a hex head
- Available in 1/4" and 3/8" diameters
Simpson Strong-Tie THDB25412CS Applications
- Temporary anchoring in construction projects
- Fixtures requiring frequent movement
- Interior installations in dry, non-corrosive environments

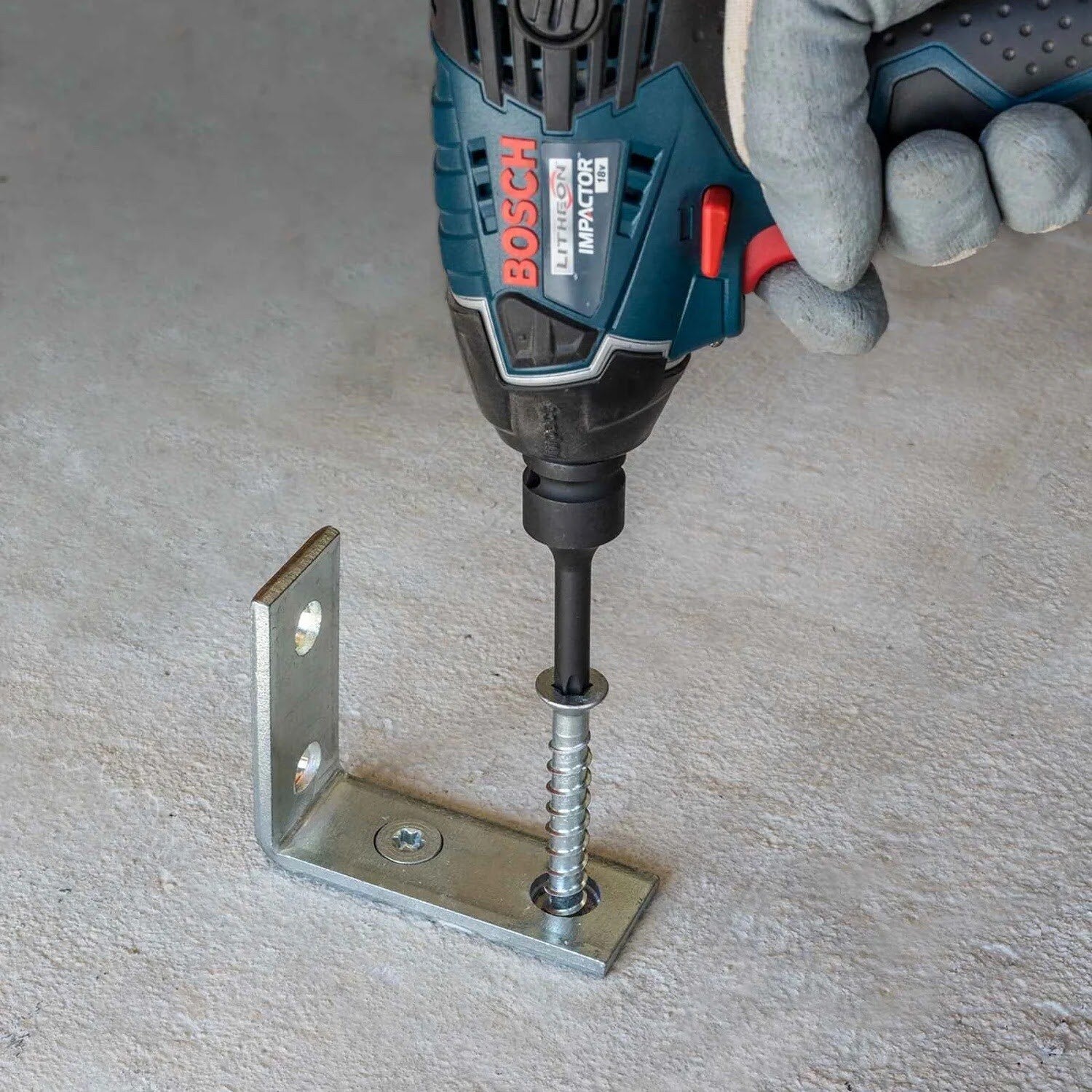

Simpson Strong-Tie THDB25412CS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THDB25412CS Specifications
| Diameter | 1/4" |
| Length | 4-1/2" |
| Material | Carbon Steel |
| Finish | Zinc |
| Drive Type | T30 6-Lobe |
| Fixture Hole Size | 3/8" to 7/16" |
| Quantity | 50 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
