Simpson Anchors | SKU:
THDB62100HMG

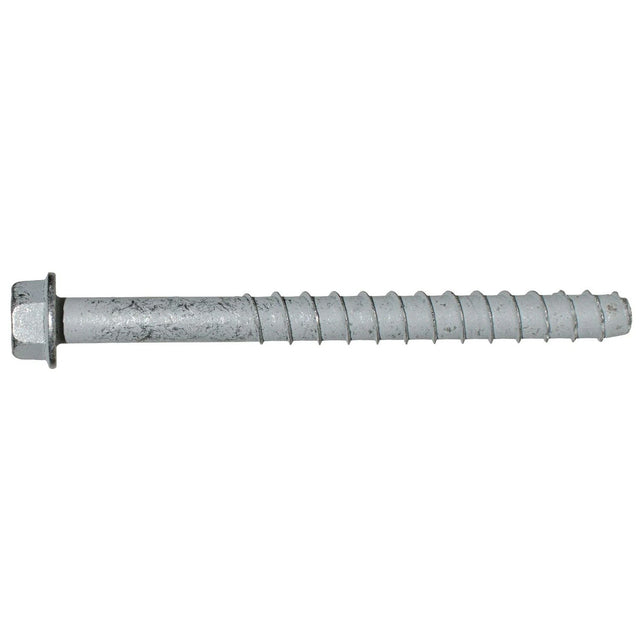

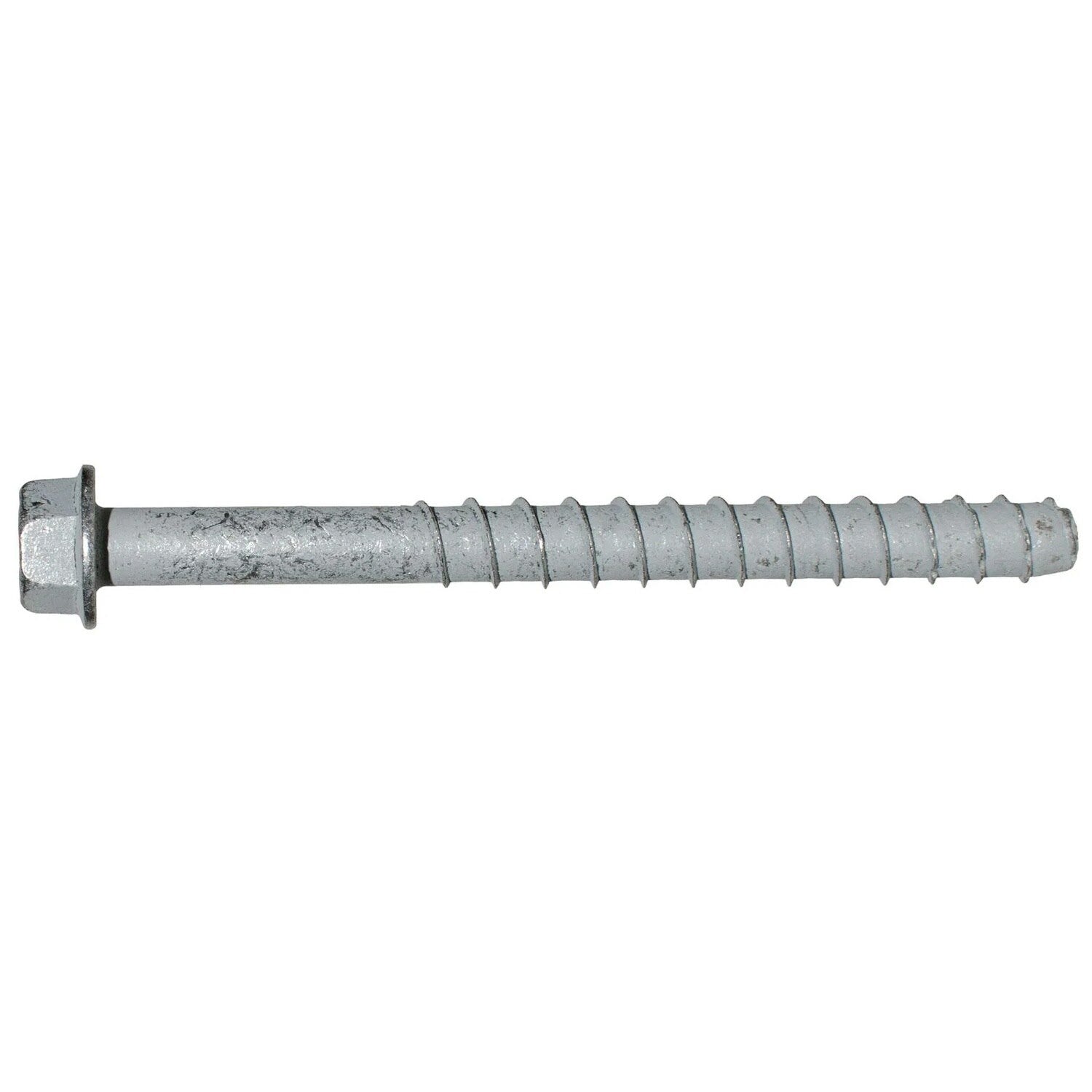

Simpson Strong-Tie THDB62100HMG Titen HD (5/8" x 10") Mechanically Galvanized Heavy-Duty Screw Anchor (10 Pack)
$134.25
Unit price
/
Unavailable
Description
Description
Simpson THDB62100HMG Description
Titen HD screw anchors are high-strength anchors designed for quick and easy installation in cracked and uncracked concrete and masonry.
Simpson THDB62100HMG Includes
- (10) 5/8" x 10" Titen HD Screw Anchor
Simpson THDB62100HMG Features
- Head-stamped for easy identification
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THDB62100HMG Applications
- Sill plates: Securely fastens sill plates to concrete or masonry.
- Ledgers: Provides reliable anchorage for ledger boards.
- Post bases: Ensures stable attachment of post bases.
- Seating: Suitable for seating applications.
- Holdown applications: Ideal for various holdown scenarios.
Simpson THDB62100HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THDB62100HMG Specifications
| Diameter | 5/8" |
| Finish | Mechanically Galvanized |
| Length | 10" |
| Material | Carbon Steel |
| Drill Bit Size | 5/8" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
