Simpson Anchors | SKU:
THDB62100WH

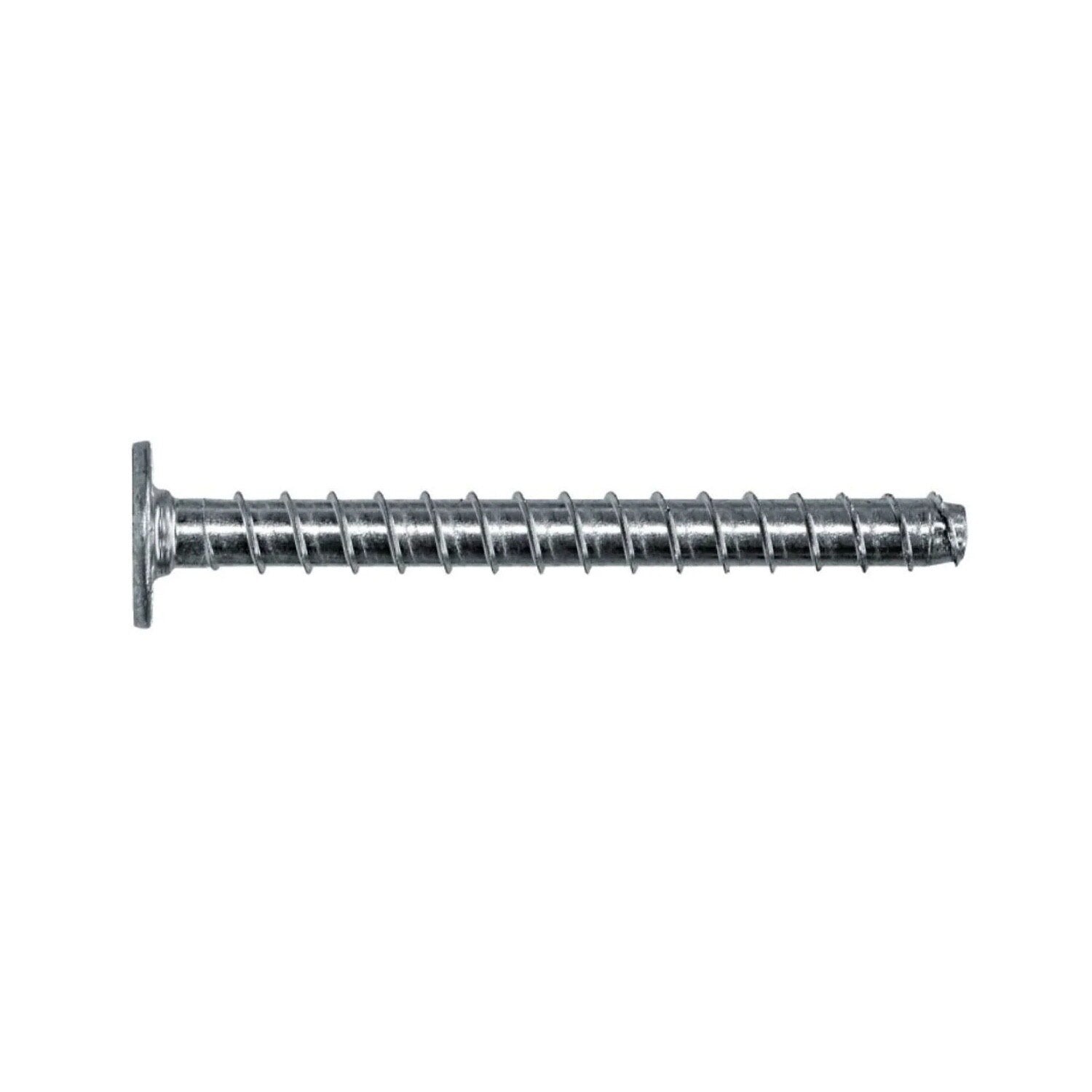

Simpson Strong-Tie THDB62100WH Titen HD (5/8" x 10") Washer-Head Heavy-Duty Screw Anchor (10 Pack)
$93.43
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62100WH Description
The Titen HD Washer-Head Heavy-Duty Screw Anchor is a high-strength anchor designed for use in cracked and uncracked concrete and masonry. Its washer-head design ensures a low-profile installation, ideal for sill plate applications.
Simpson Strong-Tie THDB62100WH Includes
- (10) Washer-Head Heavy-Duty Screw Anchors
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THDB62100WH Features
- Tested in accordance with ACI 355.2 and AC193
- Qualified for static, wind, and seismic loading conditions

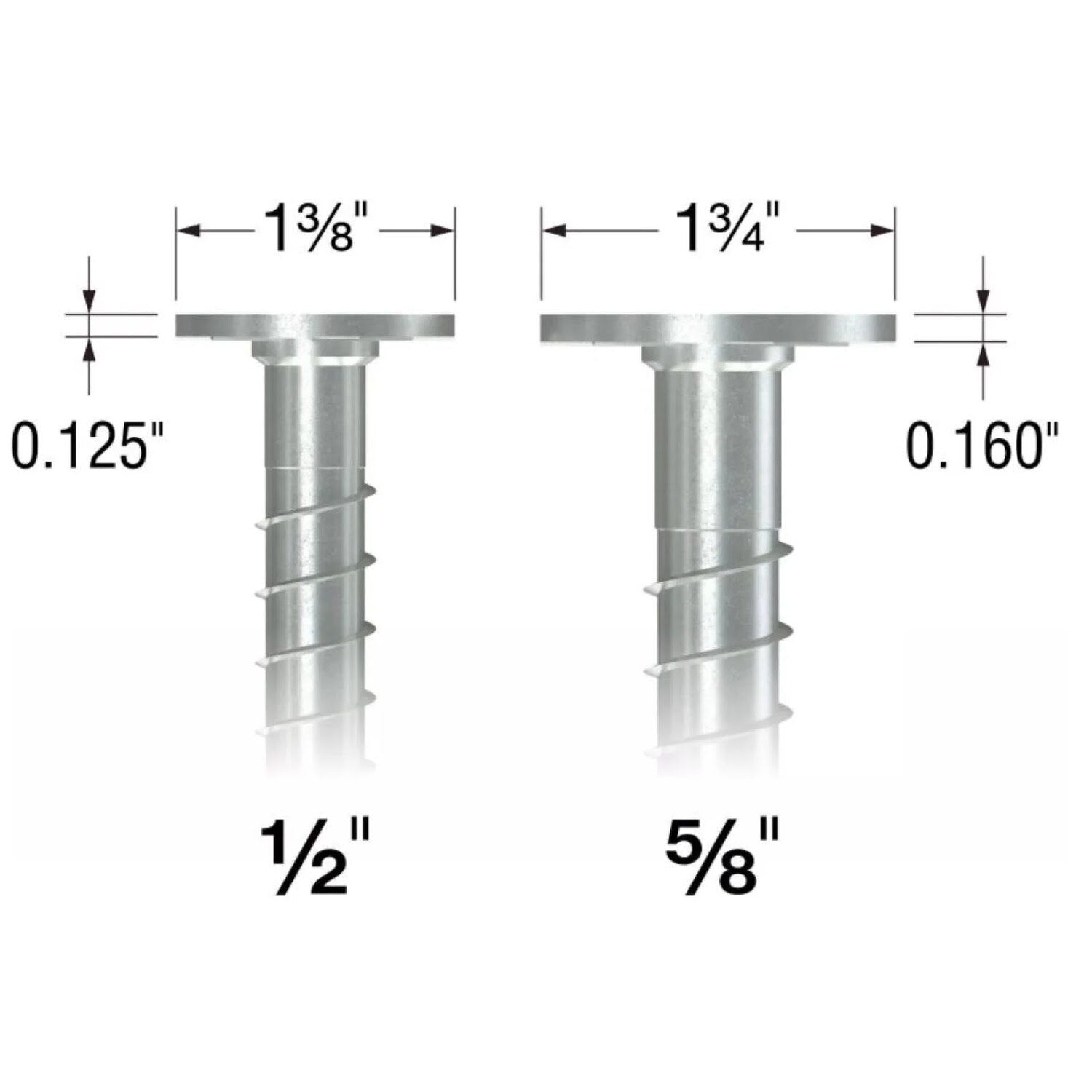

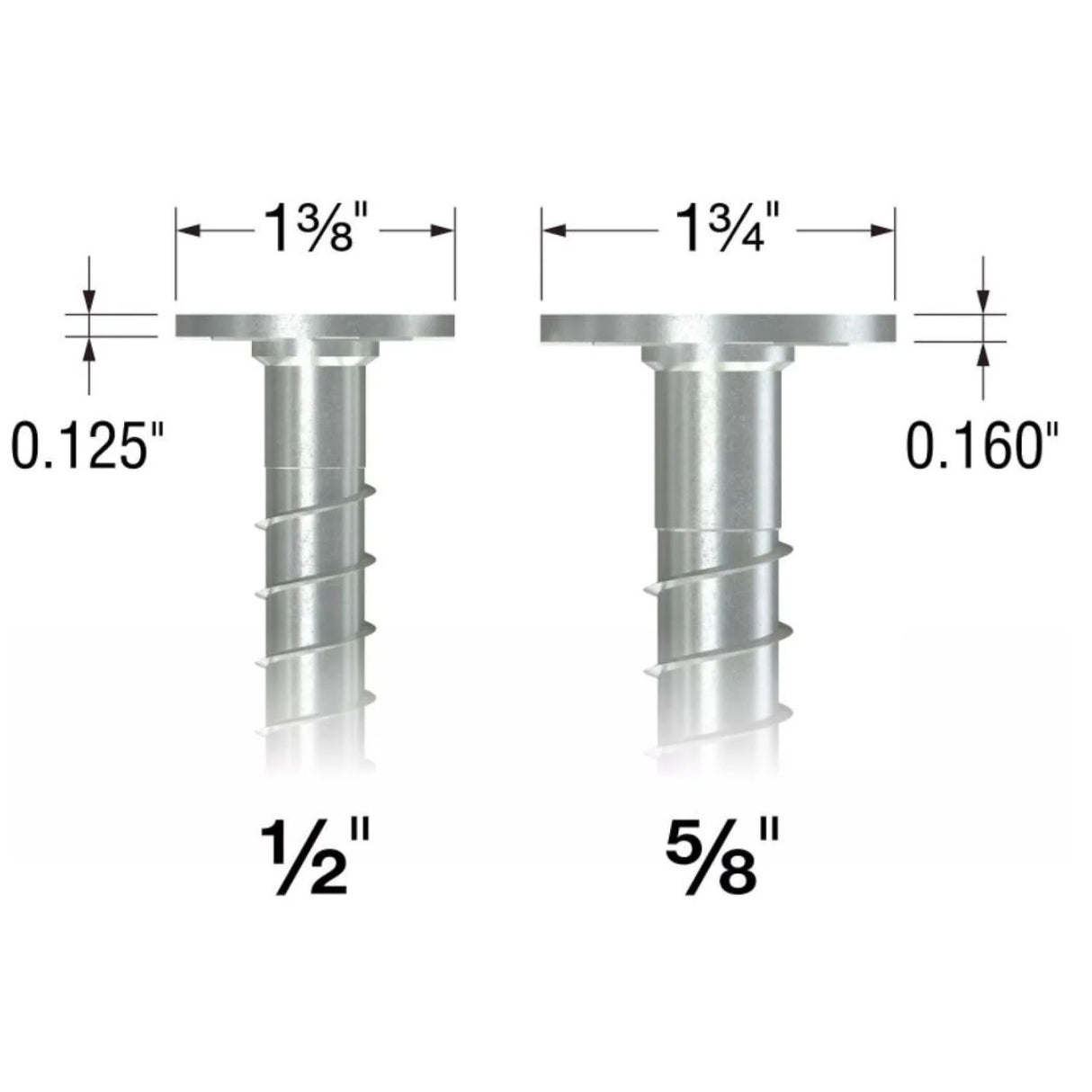

- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

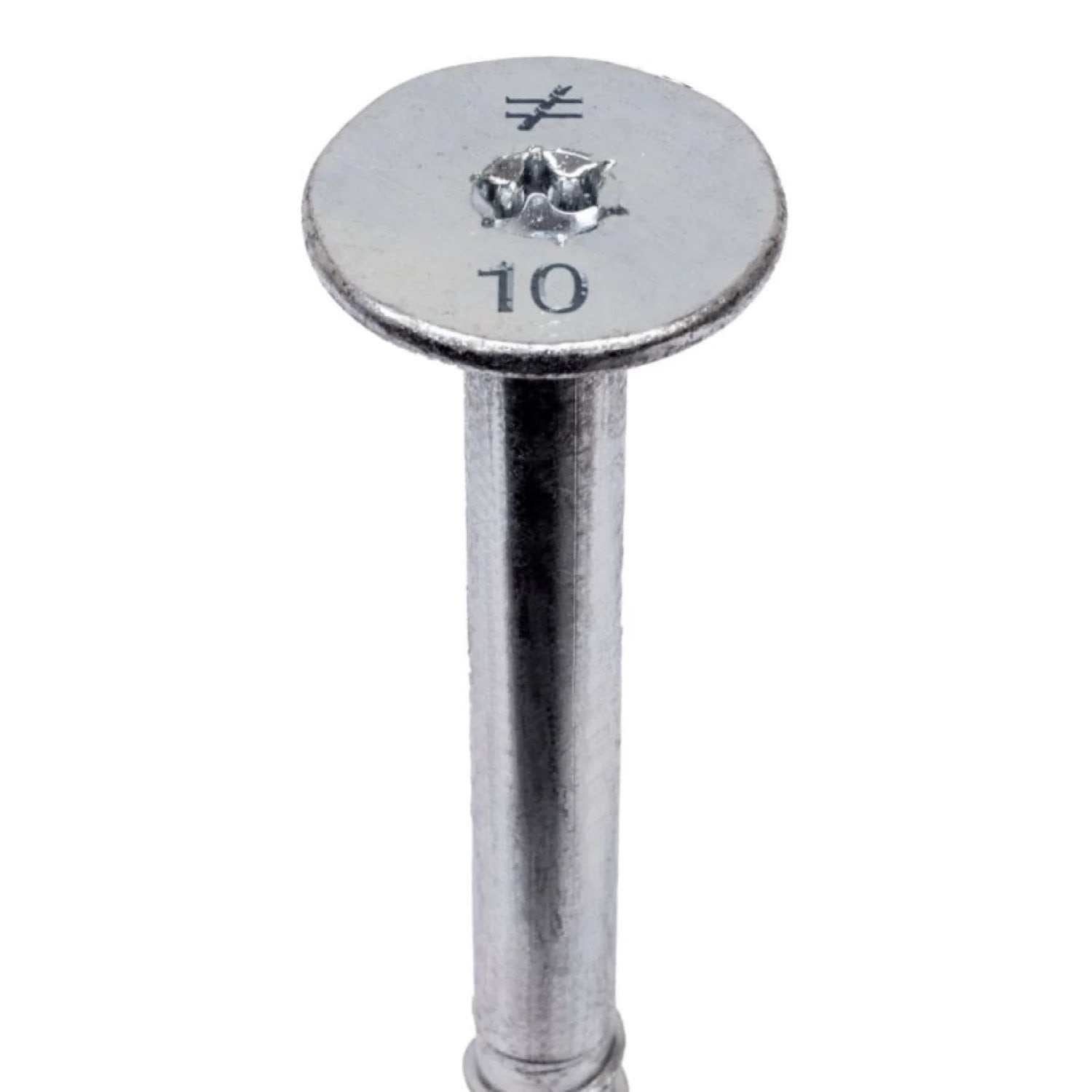

- Washer head allows screw anchor applications incompatible with a hex head
Simpson Strong-Tie THDB62100WH Applications
- Concrete anchoring for structural and non-structural applications
- Masonry anchoring for modular wall and floor systems
- Sill plate applications requiring low-profile head anchors
Simpson Strong-Tie THDB62100WH Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THDB62100WH Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 5/8" |
| Length | 10" |
| Drill Bit Size | 5/8" |
| Drive Type | T60 6-Lobe |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Washer Head |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
