Simpson Anchors | SKU:
THDB62400H

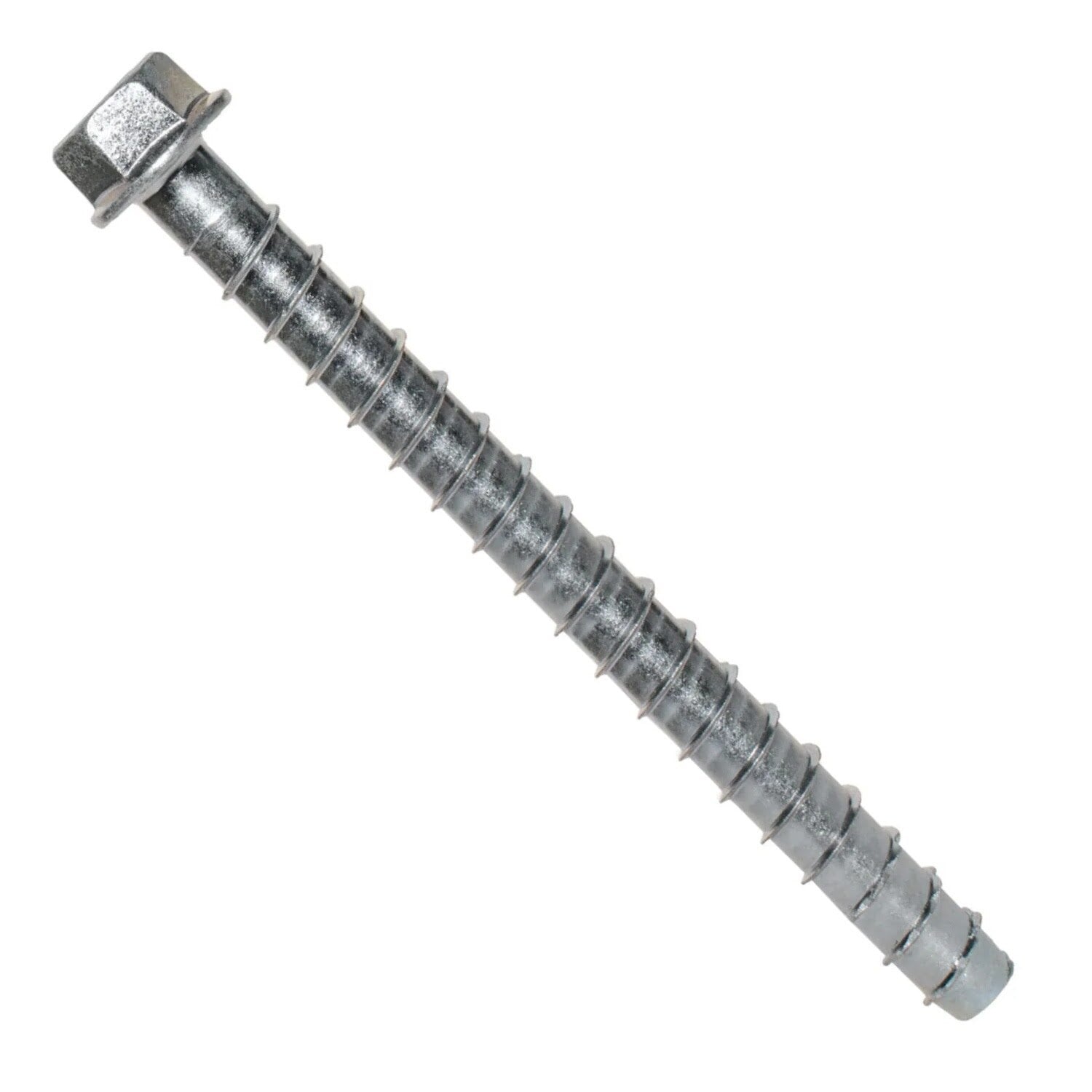

Simpson Strong-Tie THDB62400H Titen HD(5/8" x 4") Heavy-Duty Screw Anchor - Zinc Plated (10 Pack)
$31.45
$37.24
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Strong-Tie THDB62400H Description
The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson Strong-Tie THDB62400H Includes
- (10) Titen HD Screw Anchor Zinc Plated 5/8" x 4"
Simpson Strong-Tie THDB62400H Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable, ideal for temporary anchoring or applications where fixtures may need to be moved
- Use in dry interior environments only
Simpson Strong-Tie THDB62400H Applications
- Concrete anchoring in mechanical, electrical, and plumbing installations
- Temporary anchoring for formwork and bracing
- Interior dry environments requiring secure anchoring

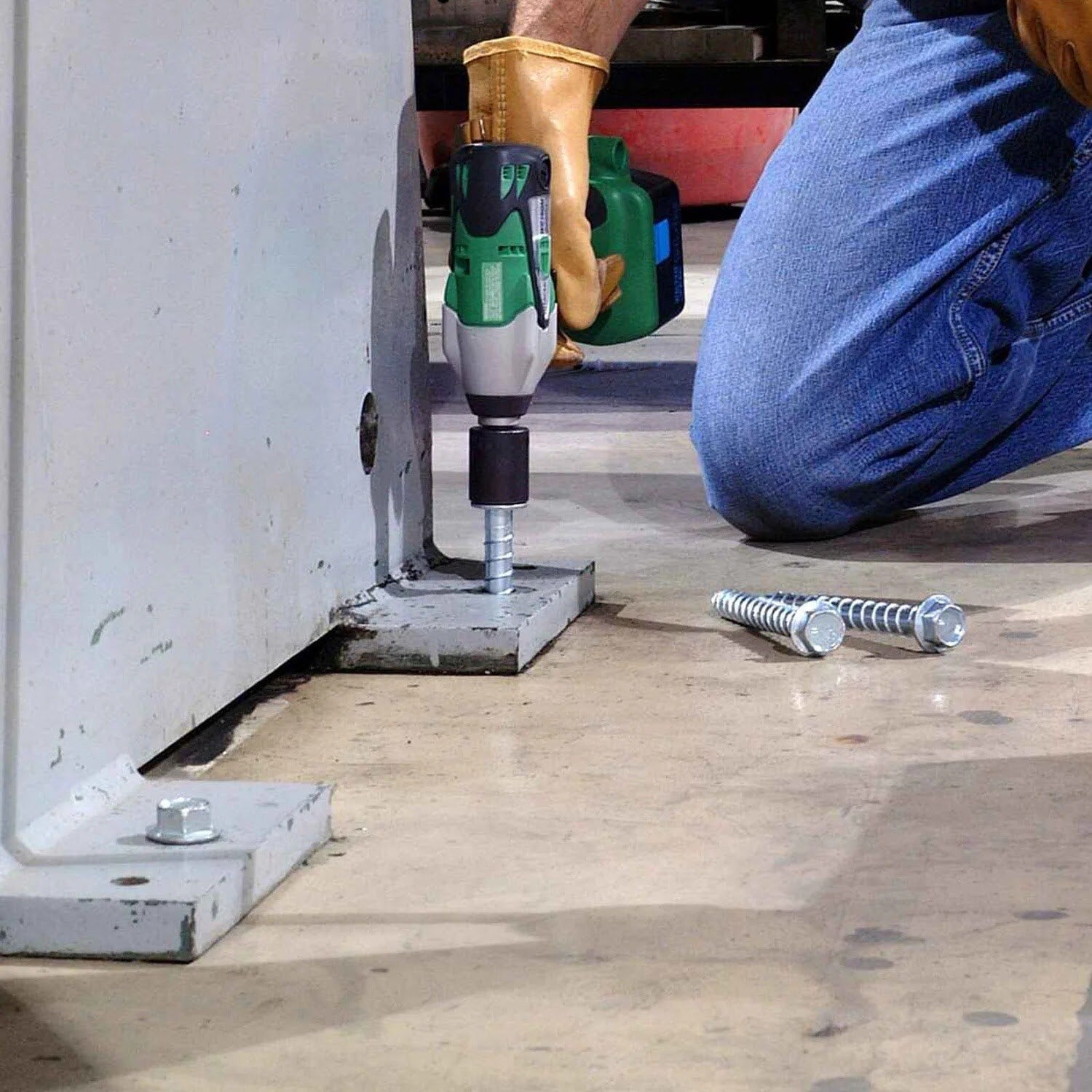

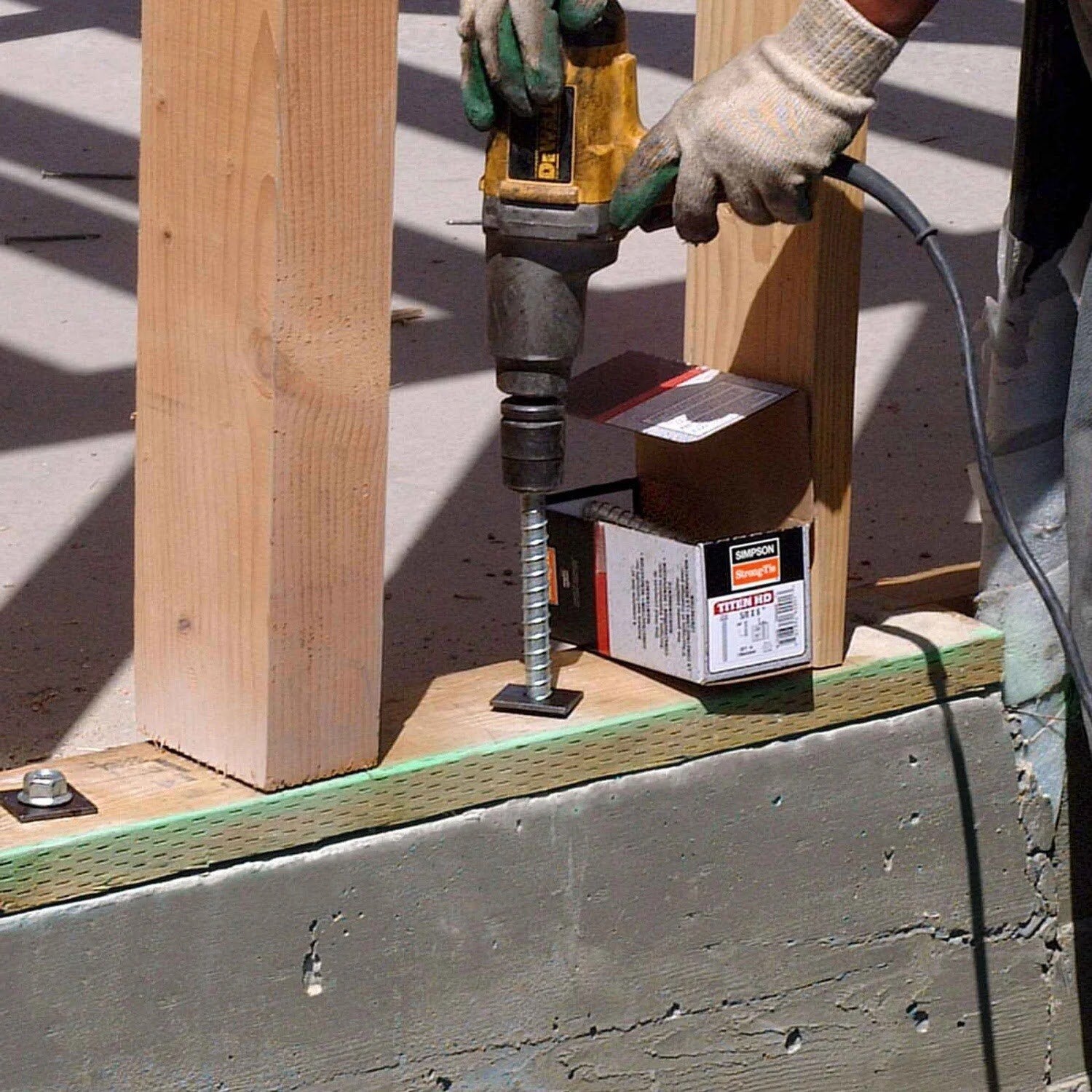

Simpson Strong-Tie THDB62400H Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air to remove debris.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THDB62400H Specifications
| Diameter | 5/8" |
| Length | 4" |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 5/8" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Use the correct drill bit size and follow installation guidelines to ensure optimal performance.
