Simpson Anchors | SKU:
THDB62500H4SS

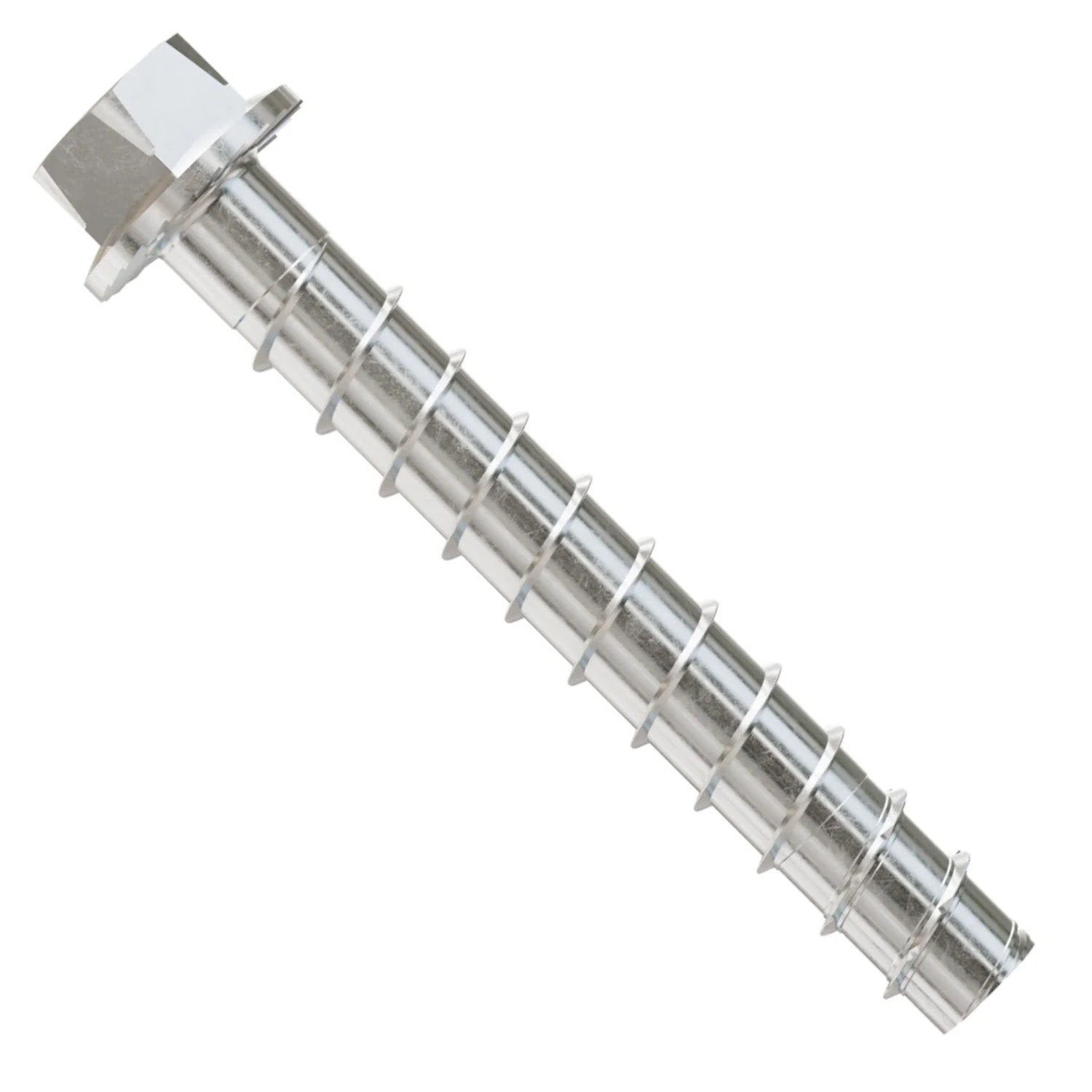

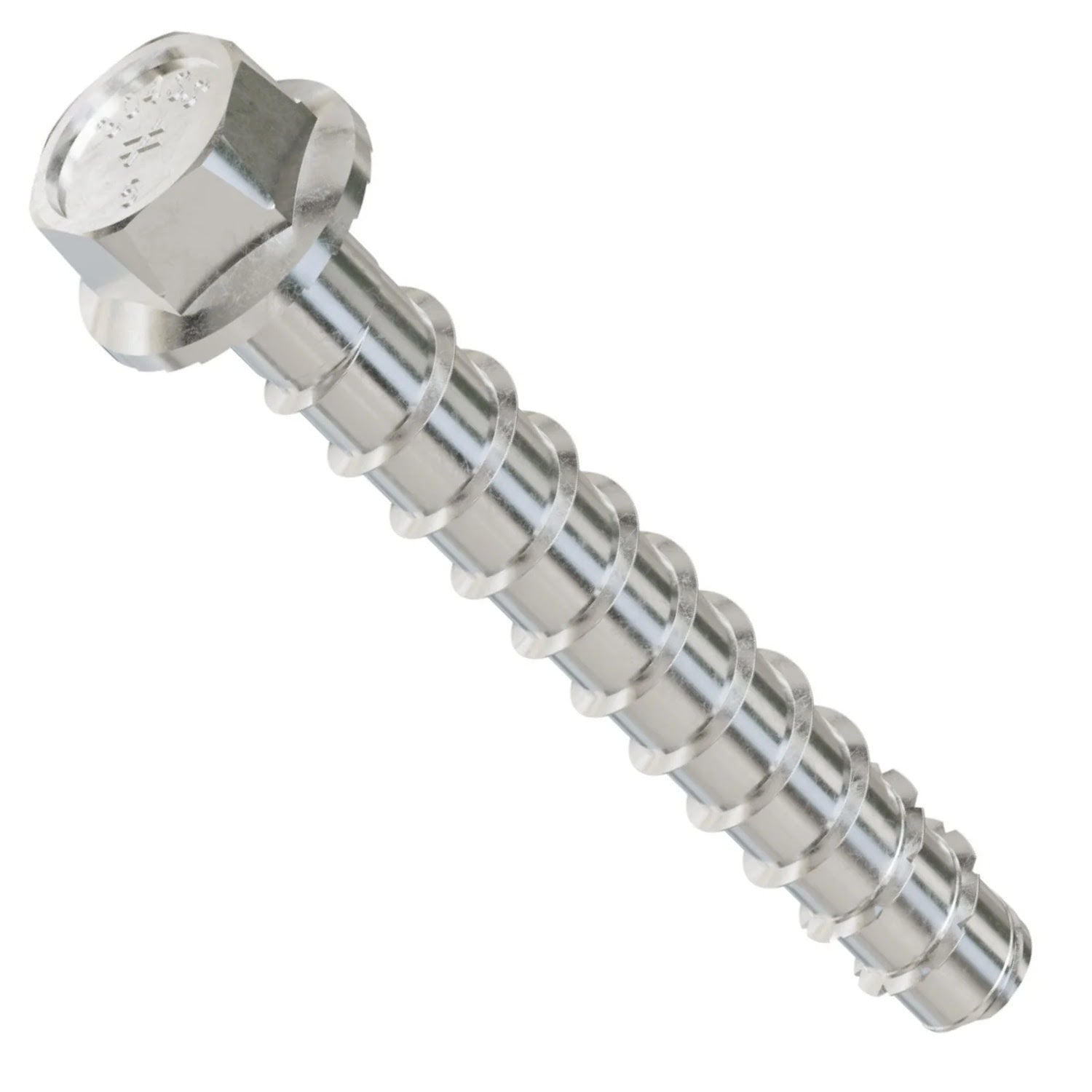

Simpson Strong-Tie THDB62500H4SS Titen HD (5/8" x 5") Heavy Duty SS Screw Anchor - Type 304 (10 Pack)
$101.04
Unit price
/
Unavailable
Description
Description
Simpson THDB62500H4SS Description
The Titen HD Screw Anchor is a high-performance, self-undercutting, non-expansion screw anchor made of 304 stainless steel, ideal for exterior applications.
Simpson THDB62500H4SS Includes
- (10) 5/8" x 5" Titen HD Screw Anchor
Simpson THDB62500H4SS Features
- Self-undercutting design for secure installation
- Non-expansion mechanism prevents damage to base material
- Made of 304 stainless steel for corrosion resistance
- Patented thread design with serrated cutting teeth for easy installation
- Suitable for exterior applications
Simpson THDB62500H4SS Applications
- Exterior construction projects
- Mechanical, electrical, and plumbing installations
- General anchoring in concrete and masonry
Simpson THDB62500H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THDB62500H4SS Specifications
| Diameter | 5/8" |
| Length | 5" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 5/8" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
