Simpson Anchors | SKU:
THDB62600H6SS

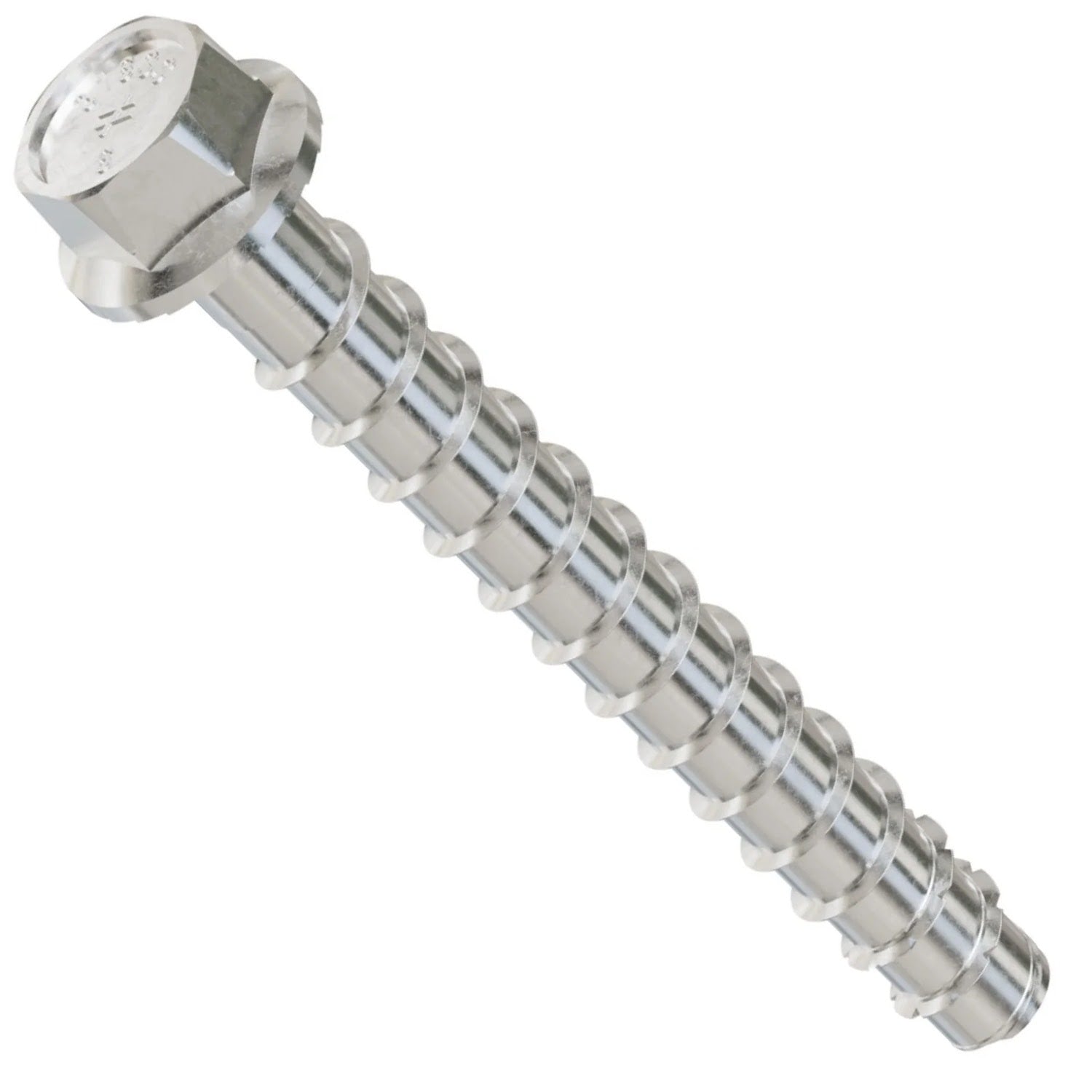

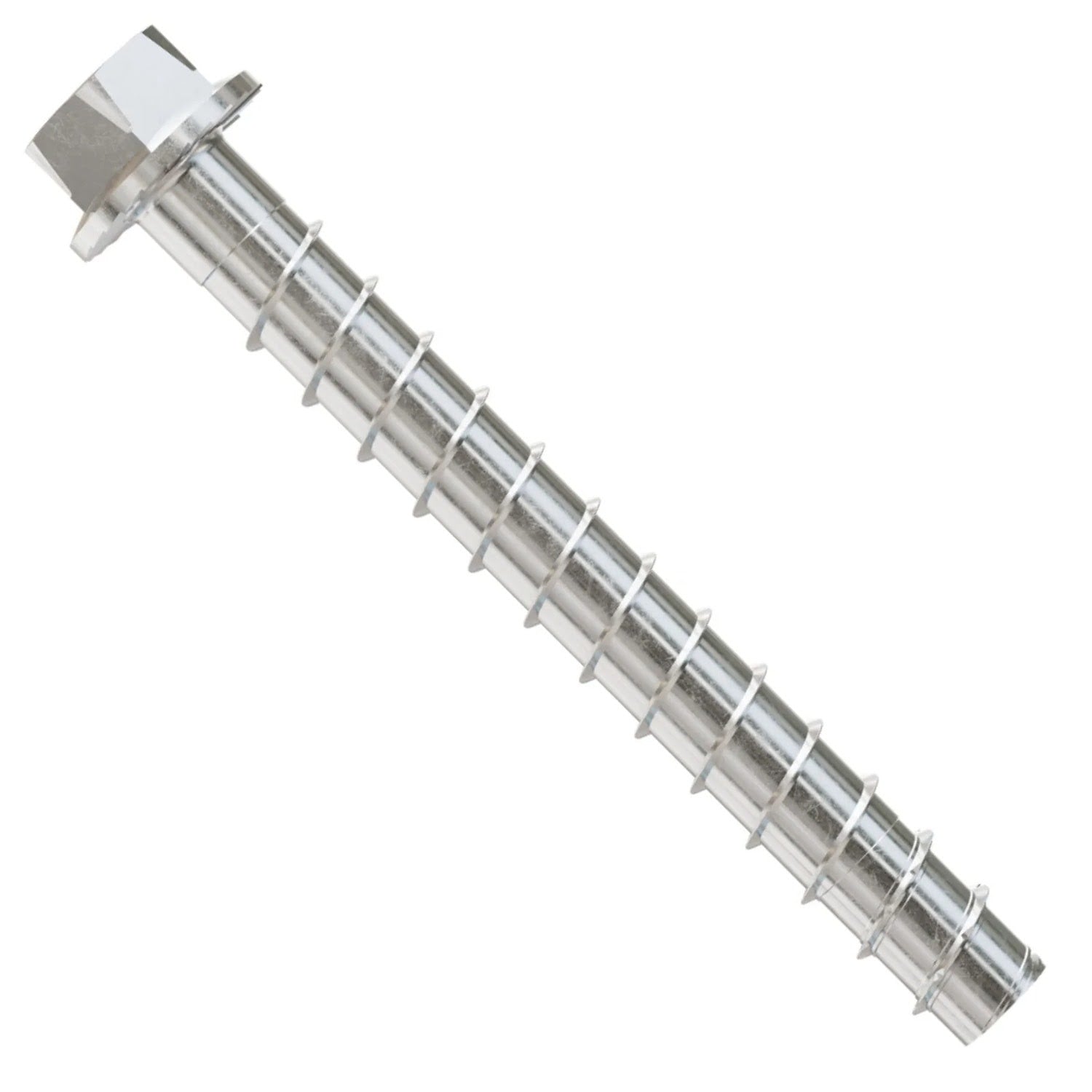

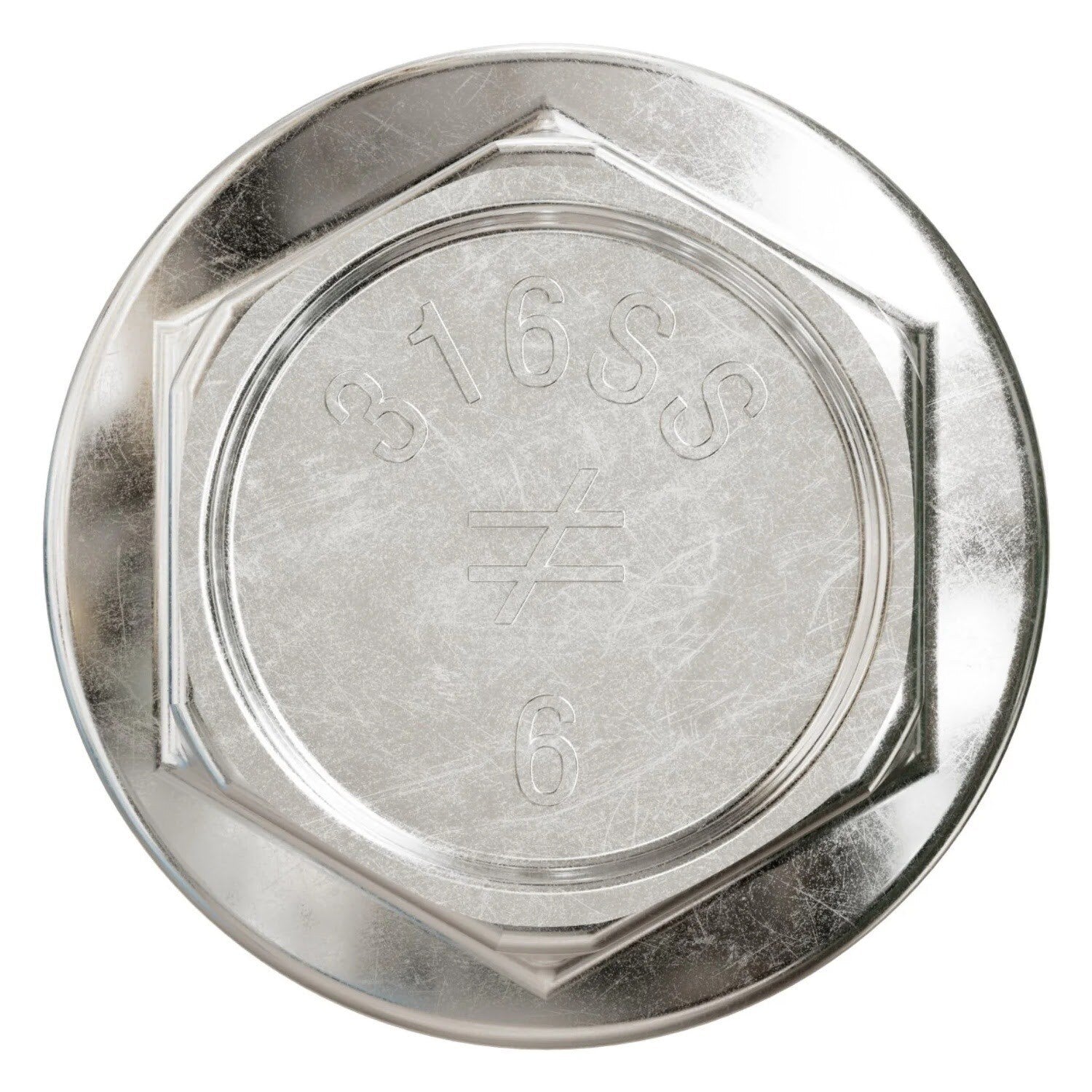

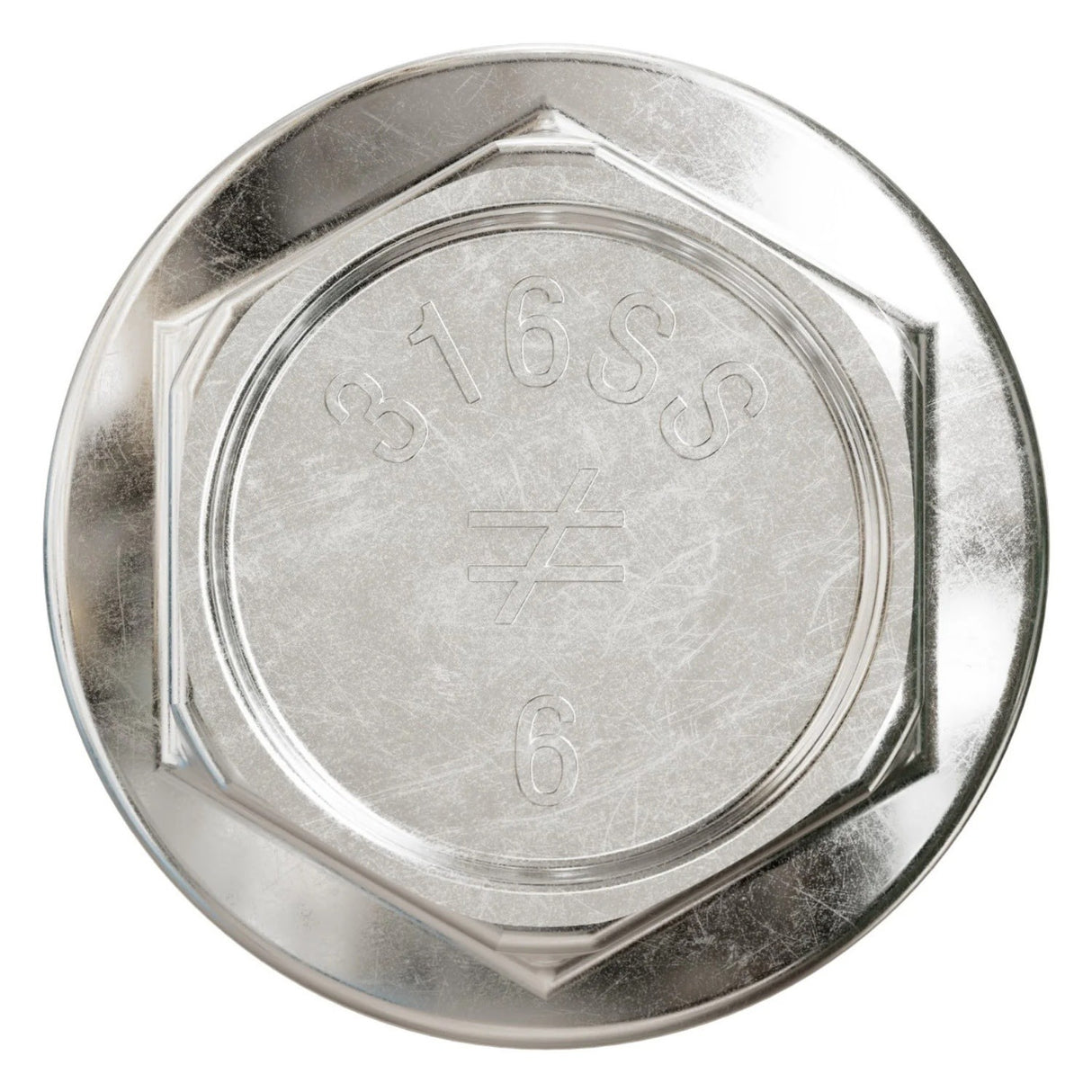

Simpson Strong-Tie THDB62600H6SS Titen HD (5/8" x 6") Heavy Duty SS Screw Anchor - Type 316 (10 Pack)
$166.56
Unit price
/
Unavailable
Description
Description
Simpson THDB62600H6SS Description
The Titen HD Screw Anchor is a self-undercutting, non-expansion screw anchor made of 316 stainless steel, offering excellent corrosion resistance for outdoor applications.
Simpson THDB62600H6SS Includes
- (10) 5/8" x 6" Titen HD Screw Anchor
Simpson THDB62600H6SS Features
- Self-undercutting design for secure installation
- Non-expansion mechanism prevents damage to base material
- 316 stainless steel for superior corrosion resistance
- Patented thread design with serrated cutting teeth for easy installation
- Ideal for outdoor and corrosive environments
Simpson THDB62600H6SS Applications
- Outdoor construction requiring corrosion-resistant anchoring
- Mechanical, electrical, and plumbing installations
- Securing fixtures in concrete and masonry
Simpson THDB62600H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDB62600H6SS Specifications
| Diameter | 5/8" |
| Length | 6" |
| Material | 316 Stainless Steel |
| Drill Bit Size | 5/8" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
