Simpson Anchors | SKU:
THDB62600HF1

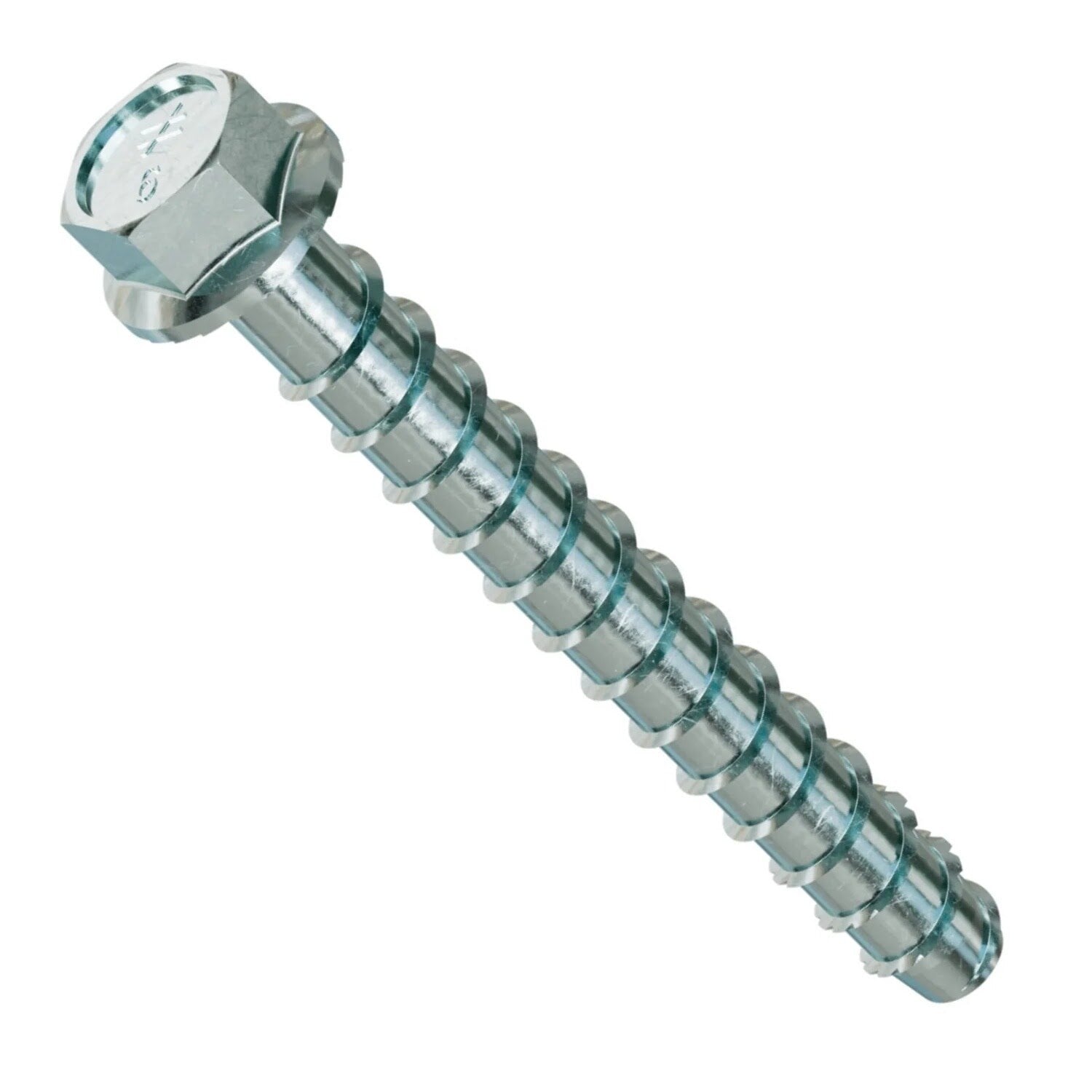

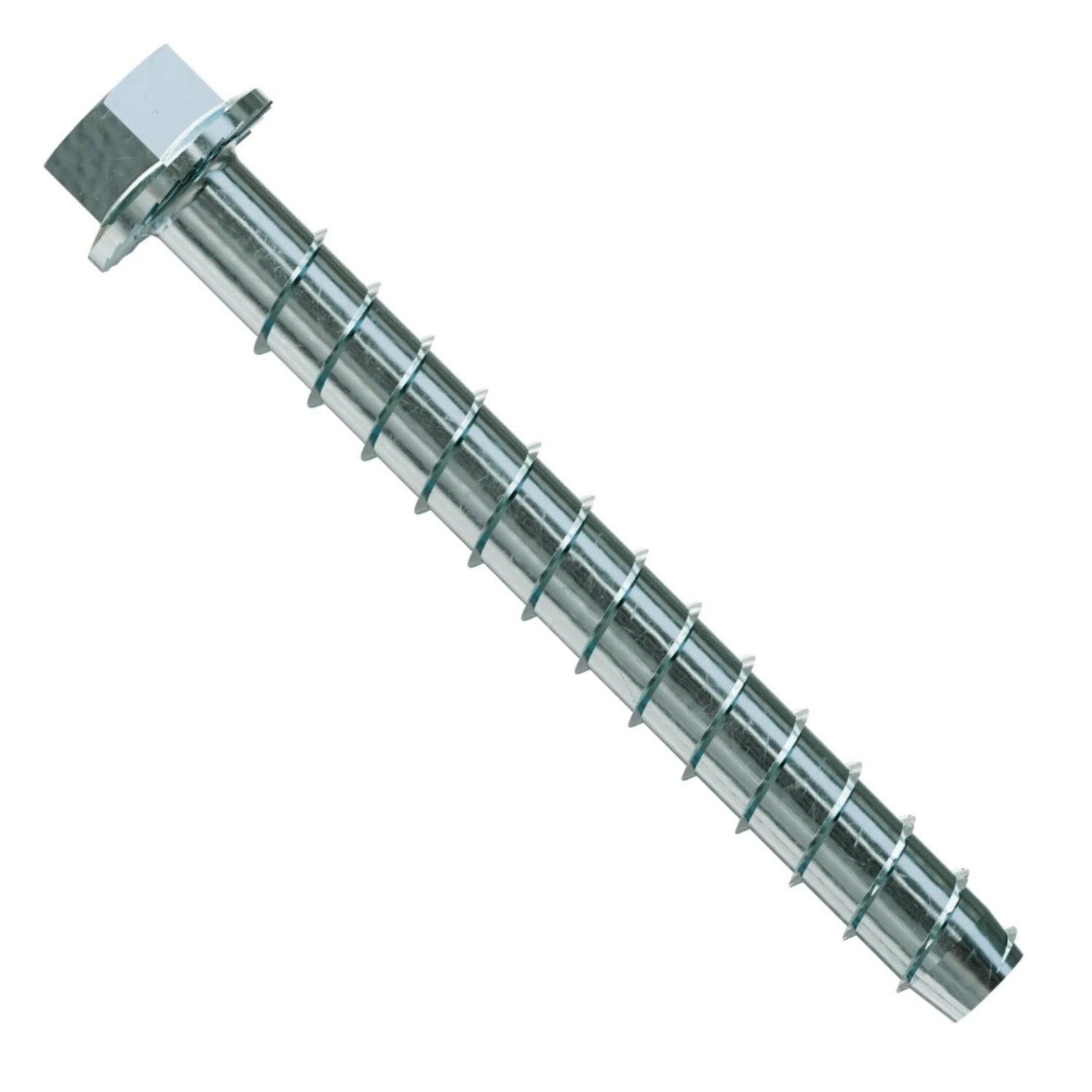

Simpson Strong-Tie THDB62600HF1 Titen HD (5/8" x 6") Heavy-Duty Screw Anchor for Concrete and Masonry
$4.66
Unit price
/
Unavailable
Description
Description
Simpson THDB62600HF1 Description
The Simpson THDB62600HF1 Heavy-Duty Screw Anchor is designed for reliable performance in concrete and masonry applications. Featuring a zinc-plated finish and a hex head design, it ensures durability and ease of installation.
Simpson THDB62600HF1 Includes
- (1) Heavy-Duty Screw Anchor for Concrete and Masonry, Zinc Plated, 5/8 in. x 6 in.
Simpson THDB62600HF1 Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required—designed to install using standard-sized ANSI tolerance drill bits

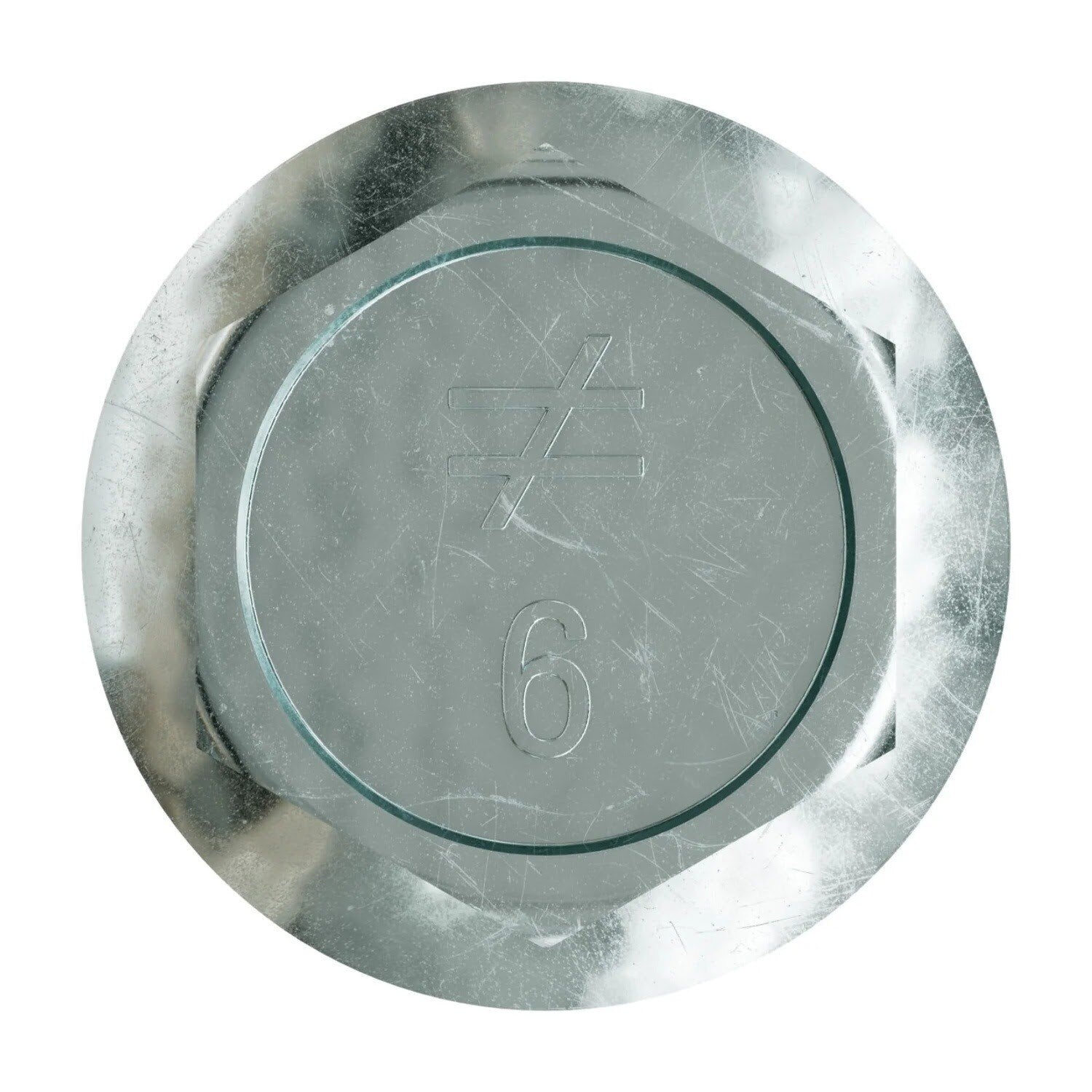

- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable—ideal for temporary anchoring or applications where fixtures may need to be moved
- Use in dry interior environments only
Simpson THDB62600HF1 Applications
- Concrete and masonry anchoring
- Temporary anchoring for formwork and bracing
- Interior dry environments
Simpson THDB62600HF1 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THDB62600HF1 Specifications
| Diameter | 5/8" |
| Length | 6" |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 5/8" |
| Drive Type | 15/16" Hex |
| Fixture Hole Size | 3/4"-13/16" |
| Head Type | Hex Head |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
