Simpson Anchors | SKU:
THDB62600HMG
Simpson Strong-Tie THDB62600HMG Titen HD (5/8" x 6") Mechanically Galvanized Heavy-Duty Screw Anchor (10 Pack)
$79.52
$81.61
Unit price
/
Unavailable
Description
Description
Simpson THDB62600HMG Description
The Titen HD Screw Anchor Mechanically Galvanized is a high-strength anchor designed for quick and easy installation in concrete and masonry. It features a patented thread design for efficient load transfer and serrated cutting teeth for reduced installation torque.
Simpson THDB62600HMG Includes

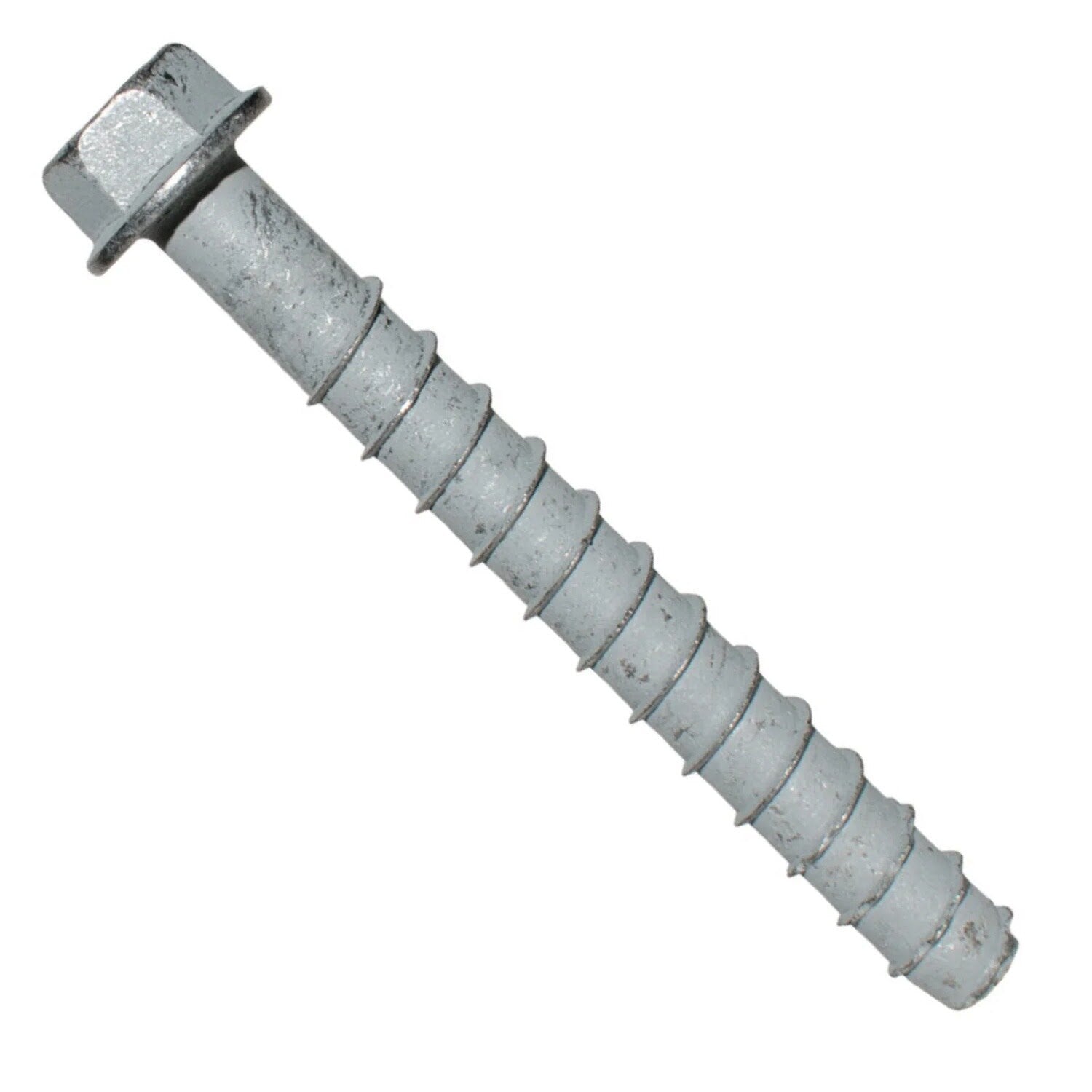

- (10) 5/8 in. x 6 in. Titen HD Screw Anchor Mechanically Galvanized
Simpson THDB62600HMG Features

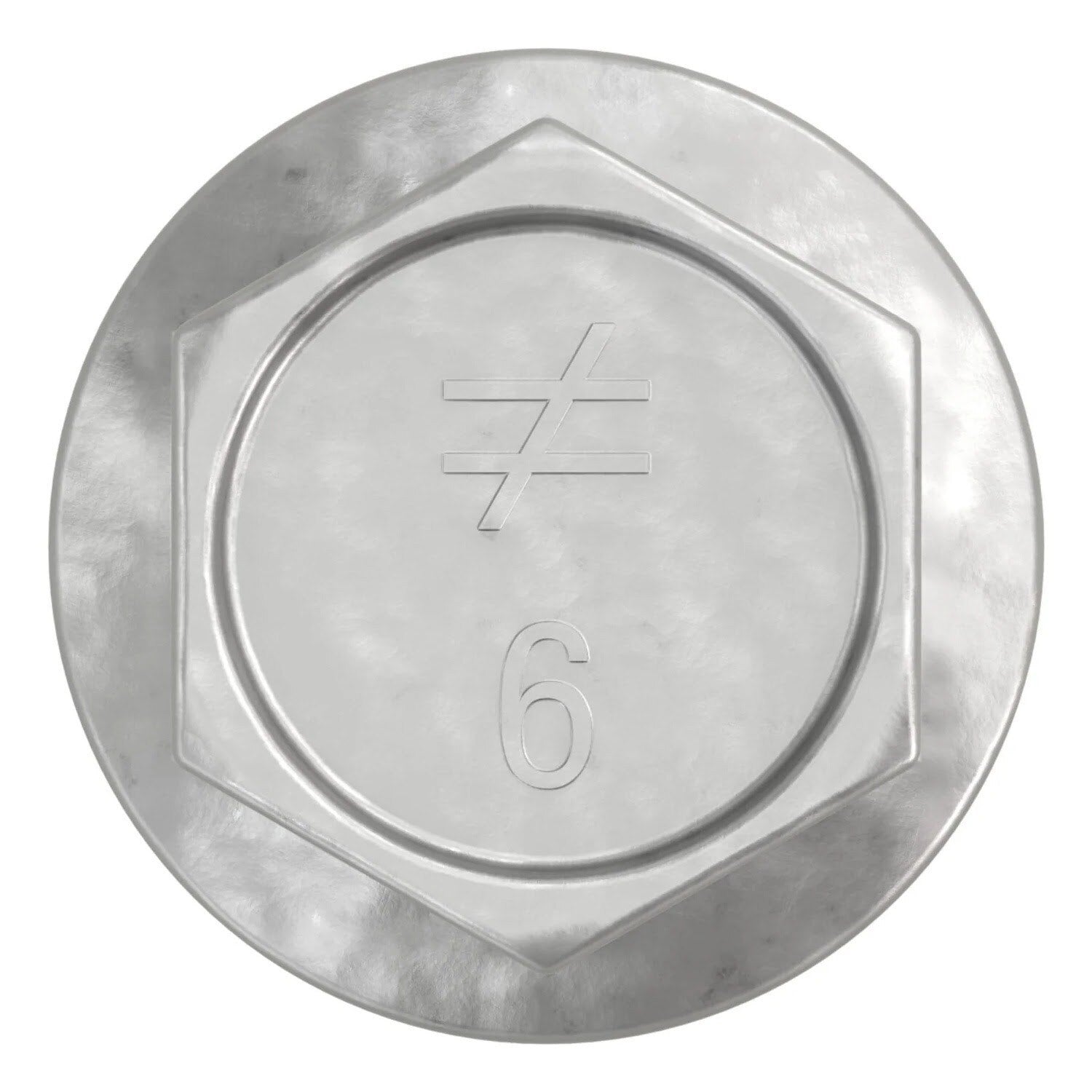

- Head-stamped for easy identification
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THDB62600HMG Applications
- Sill plates: Securely fastens sill plates to concrete or masonry
- Ledgers: Provides reliable anchorage for ledger boards

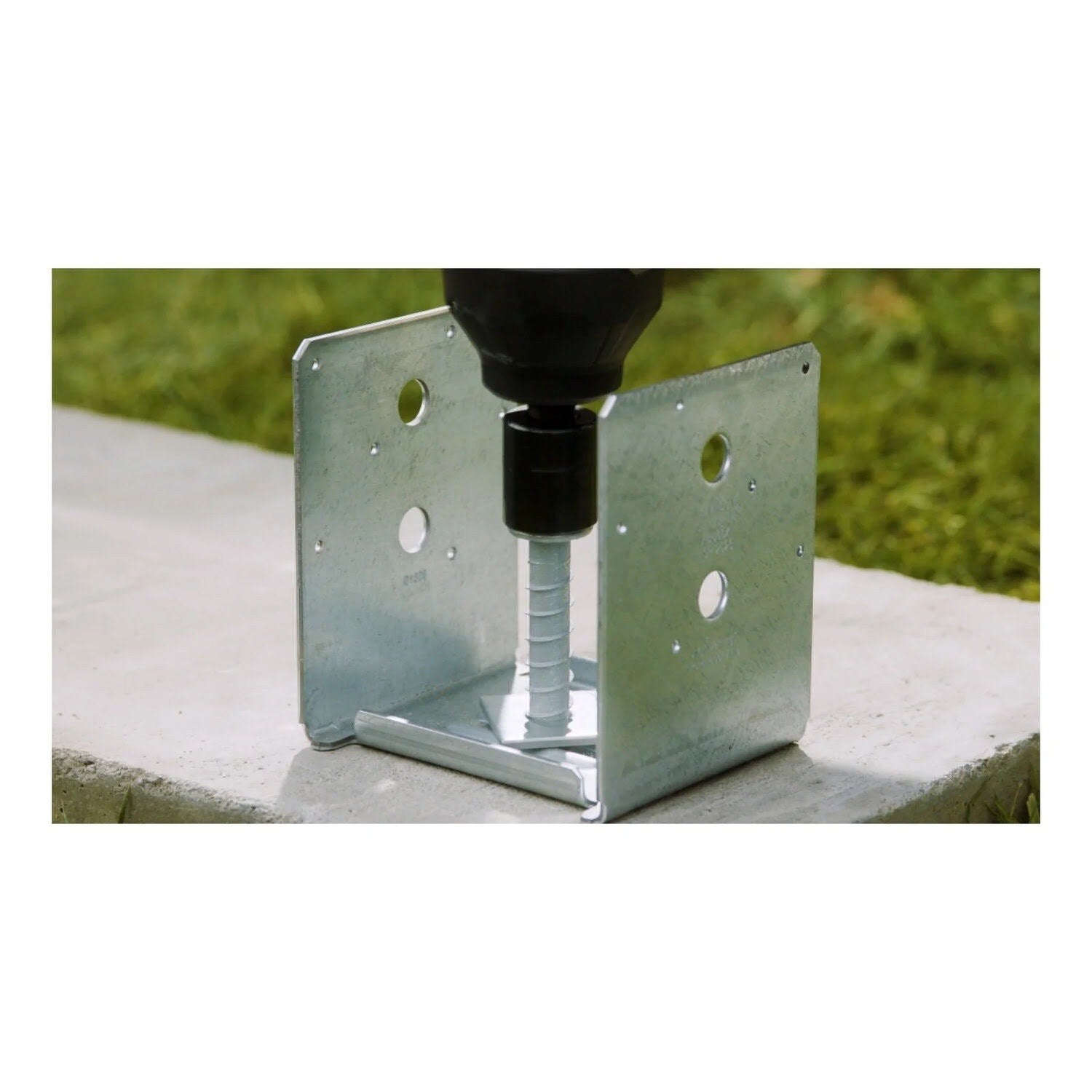

- Post bases: Ensures stable attachment of post bases
- Seating: Suitable for seating applications
- Holdown applications: Ideal for various holdown scenarios
Simpson THDB62600HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor's nominal diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDB62600HMG Specifications
| Diameter | 5/8 in. |
| Length | 6 in. |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 5/8 in. |
| Fixture Hole Size | 3/4 in. - 13/16 in. |
| Thread Length | 5-1/2 in. |
| Wrench Size | 15/16 in. |
| Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
