Simpson Anchors | SKU:
THDB62600HMGF1

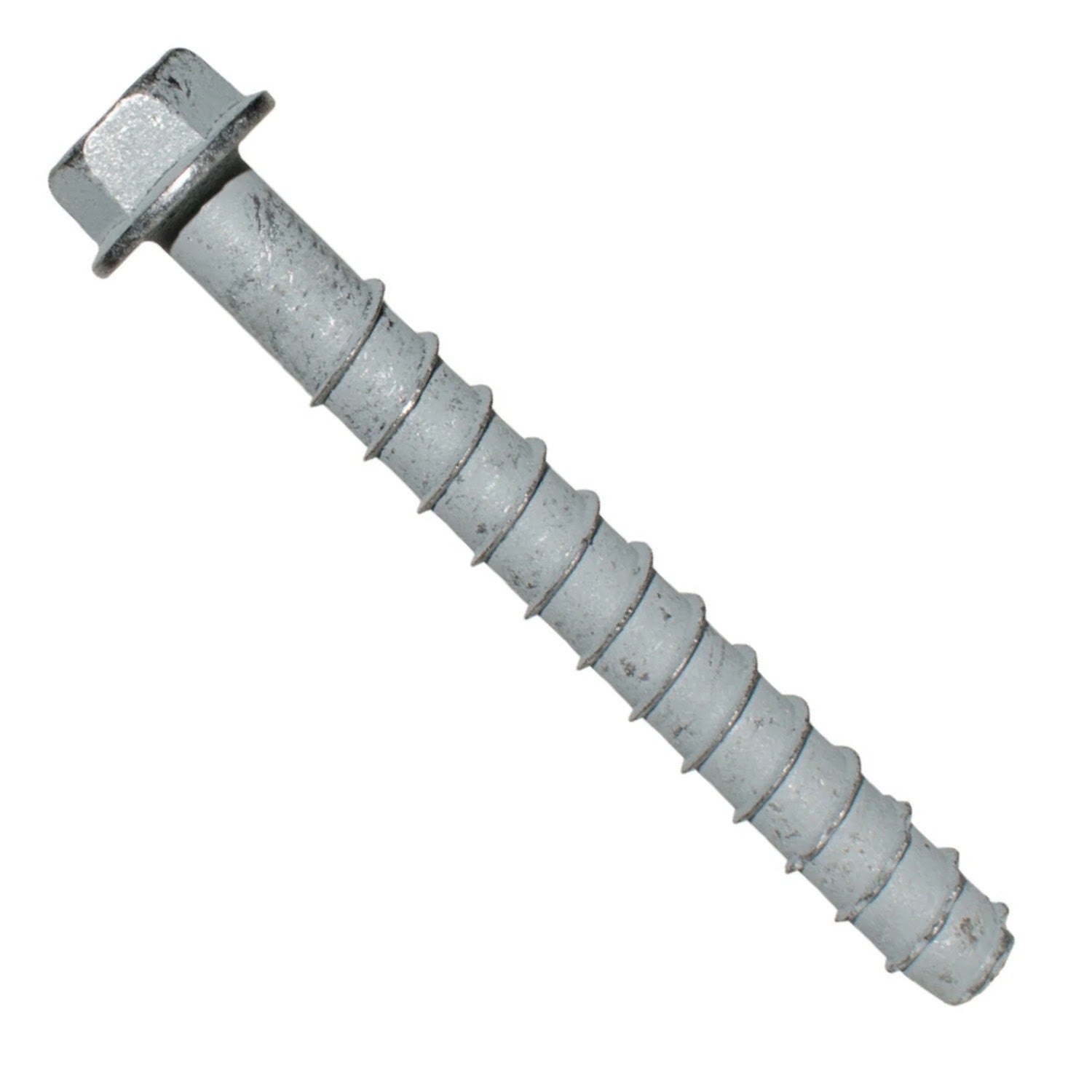

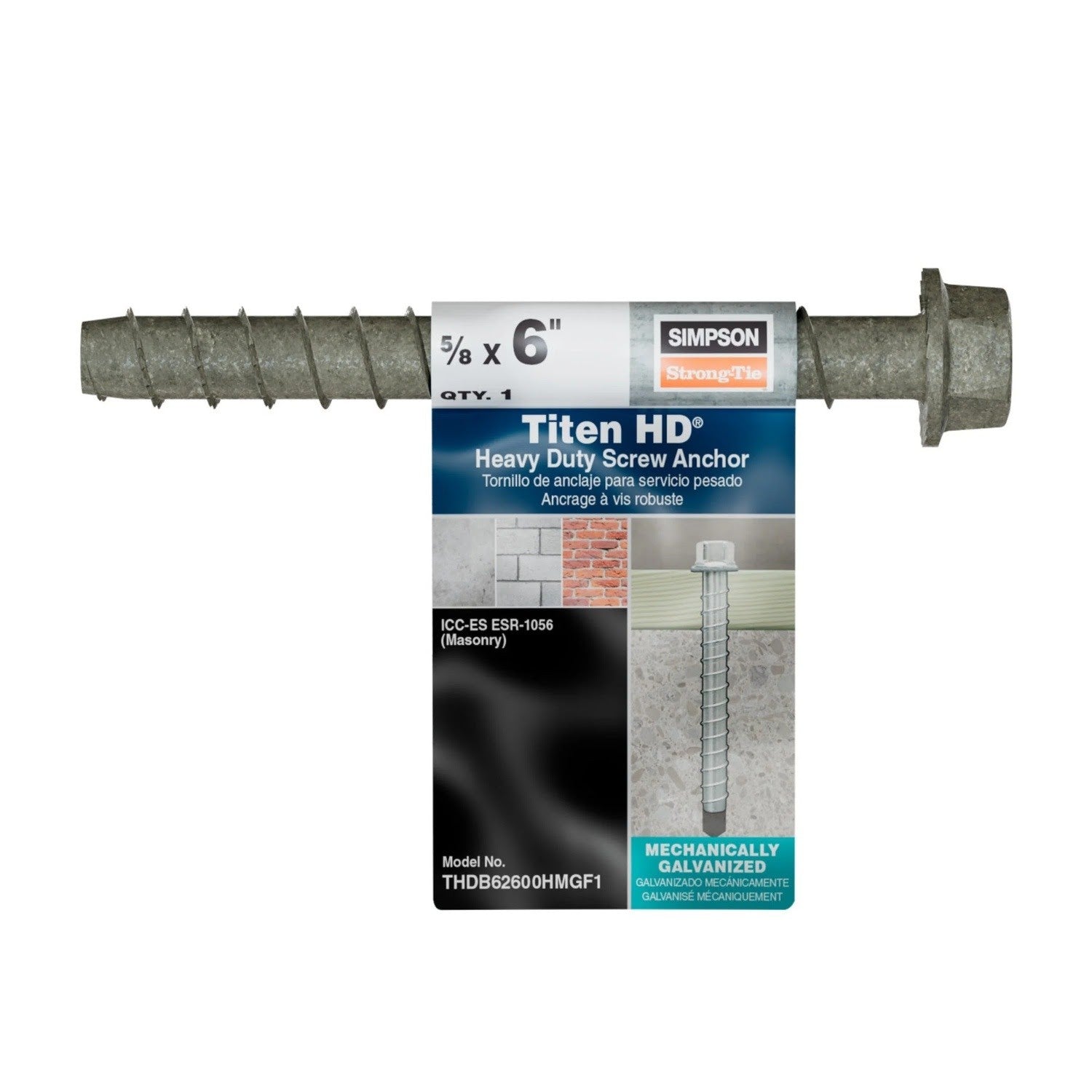

Simpson Strong-Tie THDB62600HMGF1 Titen HD (5/8" x 6") Mechanically Galvanized Heavy-Duty Screw Anchor
$10.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62600HMGF1 Description
The Simpson Strong-Tie Titen HD Mechanically Galvanized Screw Anchor is designed for heavy-duty anchoring in concrete and masonry, offering exceptional holding power and corrosion resistance.
Simpson Strong-Tie THDB62600HMGF1 Includes
- (1) 5/8" x 6" Mechanically Galvanized Heavy-Duty Screw Anchor
Simpson Strong-Tie THDB62600HMGF1 Features

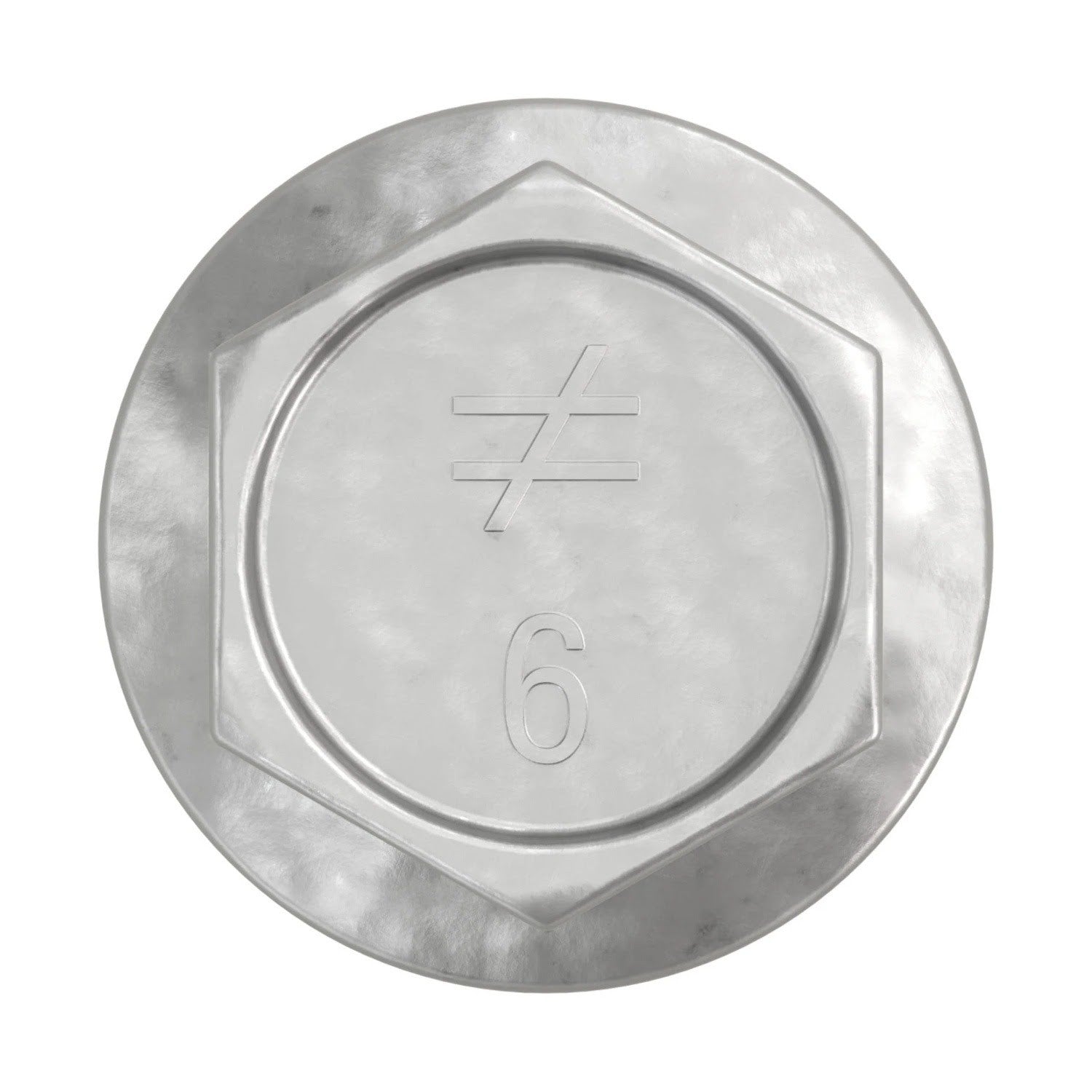

- Head-stamped for easy identification

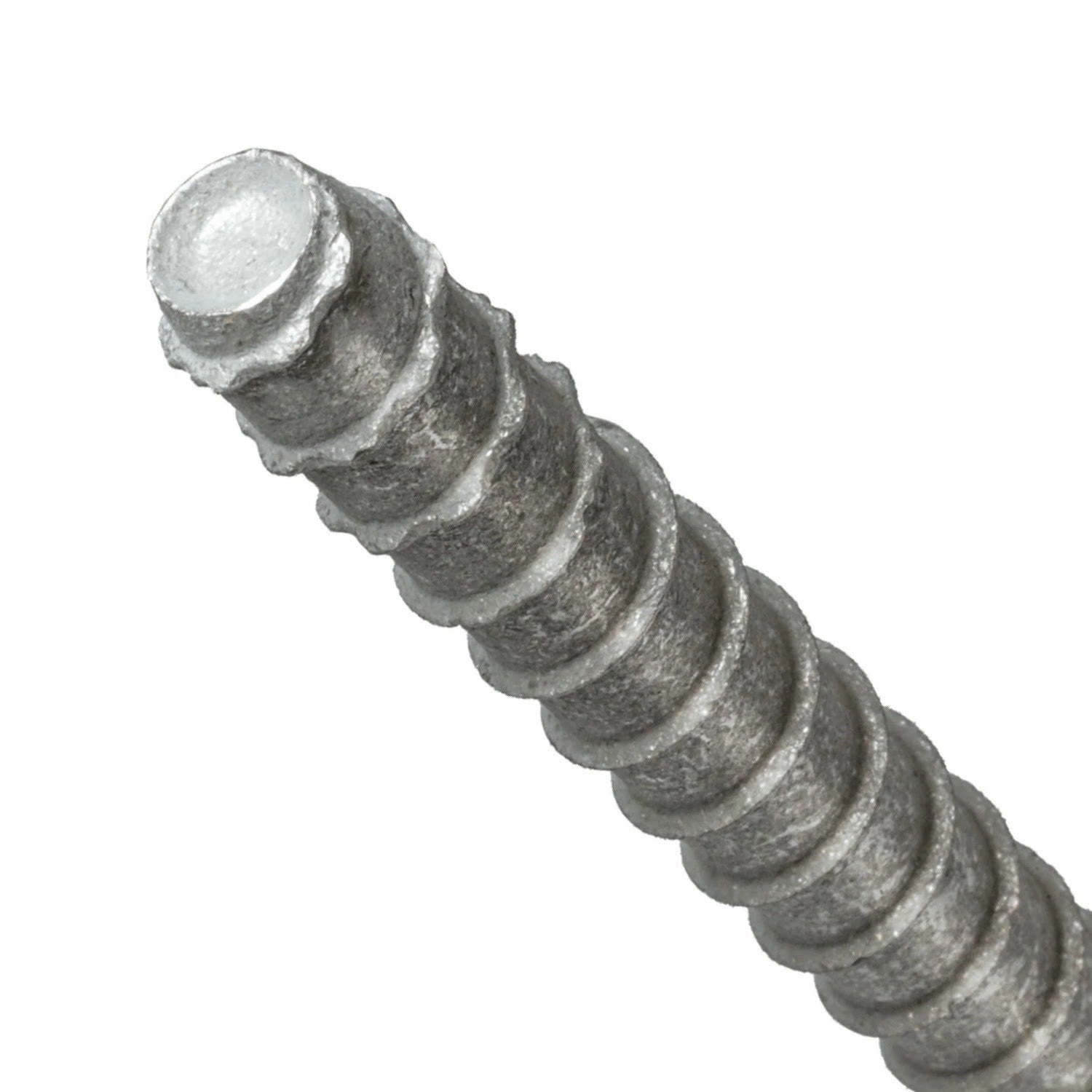

- Serrated teeth on the tip facilitate cutting and reduce installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson Strong-Tie THDB62600HMGF1 Applications
- Anchoring sill plates on foundations
- Ledger board installations for decks or balconies

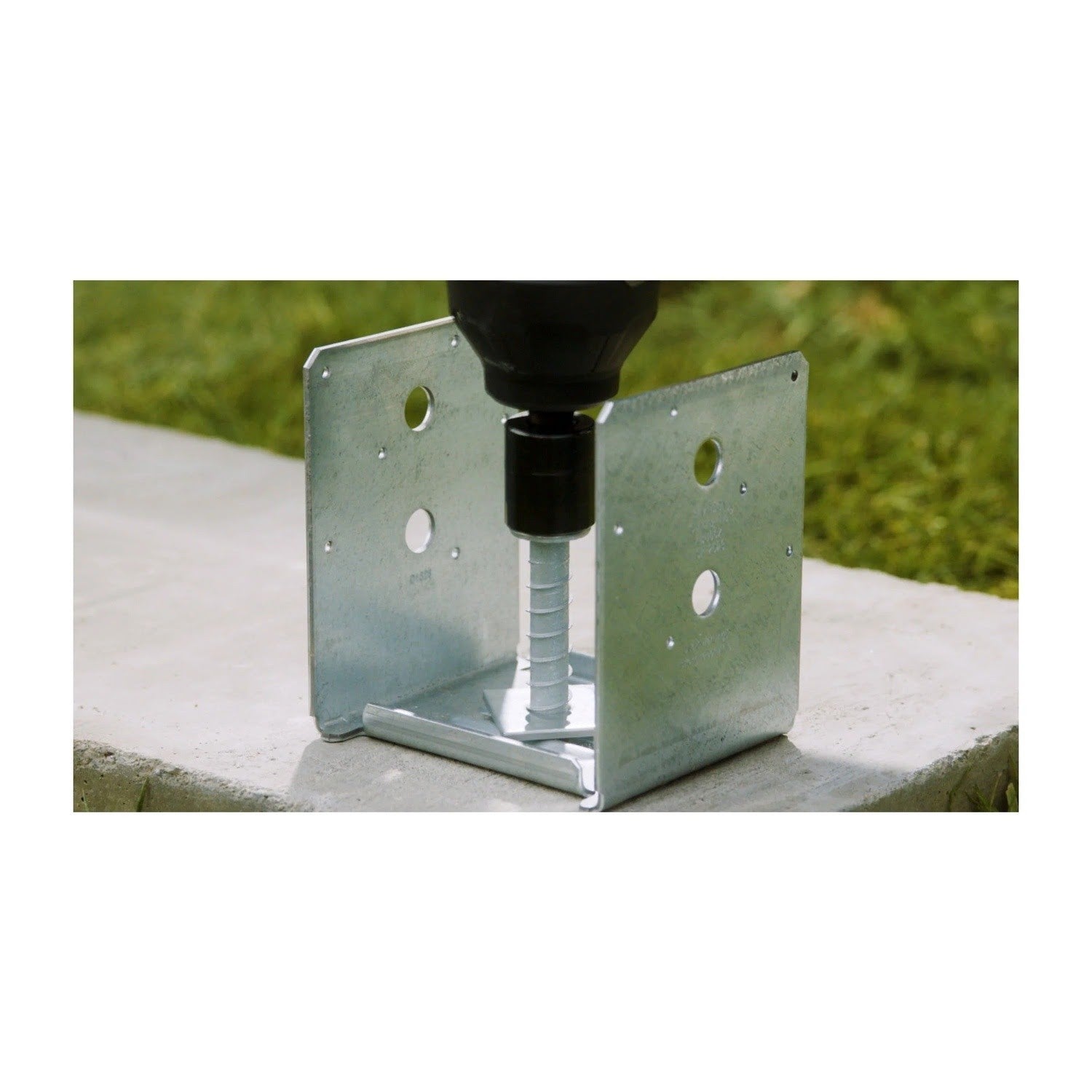

- Anchoring post bases for interior or exterior use
- Securing seating, holdowns, and hardware requiring strong anchoring
- Connecting wood or metal to concrete or block
Simpson Strong-Tie THDB62600HMGF1 Installation Overview
- Drill a hole to the specified diameter and depth for the anchor size.
- Clean out any dust or debris from the hole.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
- Ensure the anchor is flush and securely fitted.
Simpson Strong-Tie THDB62600HMGF1 Specifications
| Diameter | 5/8" |
| Finish | Mechanically Galvanized |
| Length | 6" |
| Material | Carbon Steel |
| Drill bit size | 5/8" |
| Fixture hole size | 3/4" - 13/16" |
| Thread length | 5-1/2" |
| Wrench size | 15/16" |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values.
