Simpson Anchors | SKU:
THDB62600WH

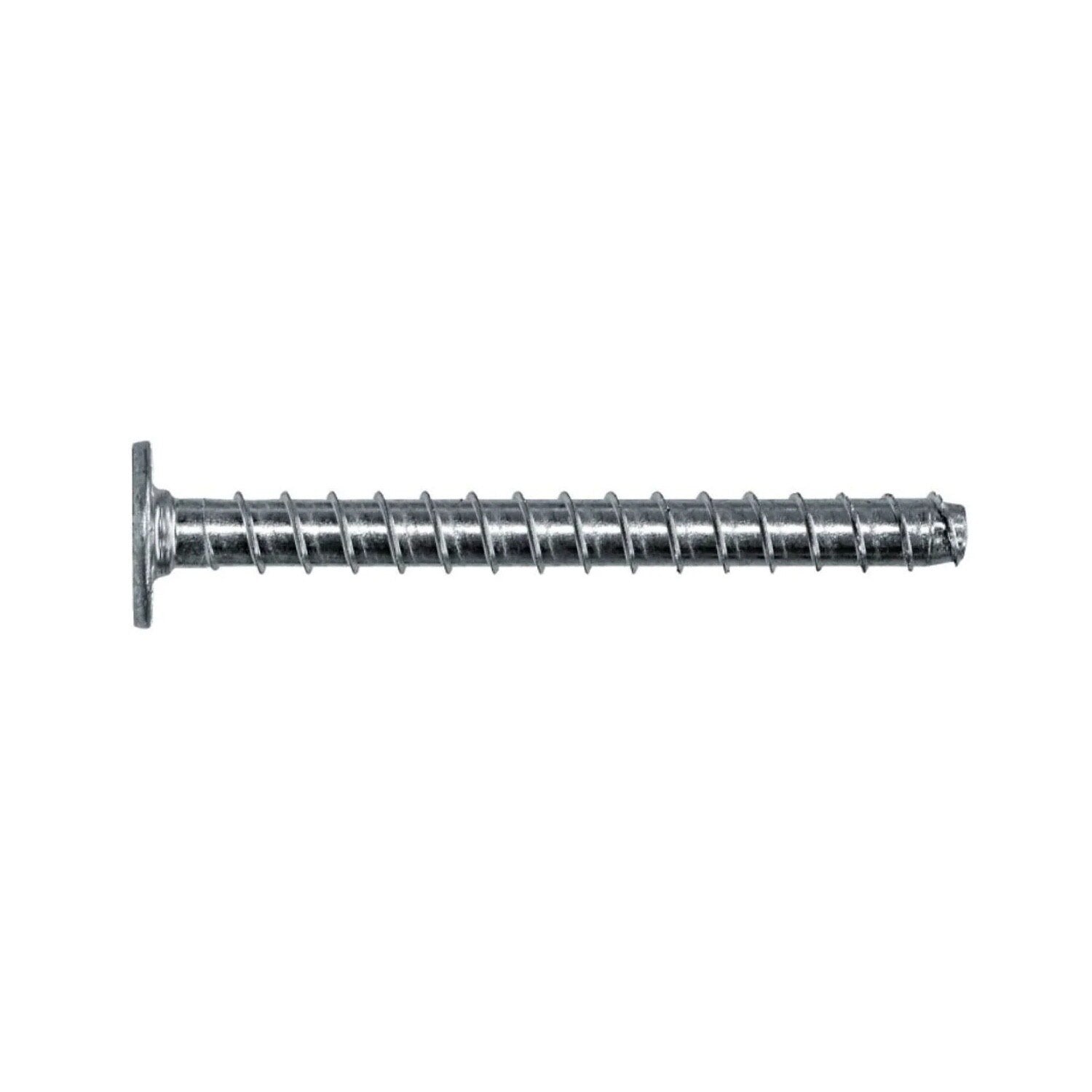

Simpson Strong-Tie THDB62600WH Titen HD (5/8" x 6") Washer-Head Heavy-Duty Screw Anchor - Zinc Plated (10 Pack)
$52.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62600WH Description
The Titen HD Washer-Head Heavy-Duty Screw Anchor is a high-strength anchor designed for cracked and uncracked concrete and masonry applications. It features a washer-head design for low-profile installations and is suitable for static, wind, and seismic loading conditions.
Simpson Strong-Tie THDB62600WH Includes
- (10) Titen HD Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THDB62600WH Features
- Tested in accordance with ACI 355.2 and AC193
- Qualified for static, wind, and seismic loading conditions
- Available in 1/2" and 5/8" diameters
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

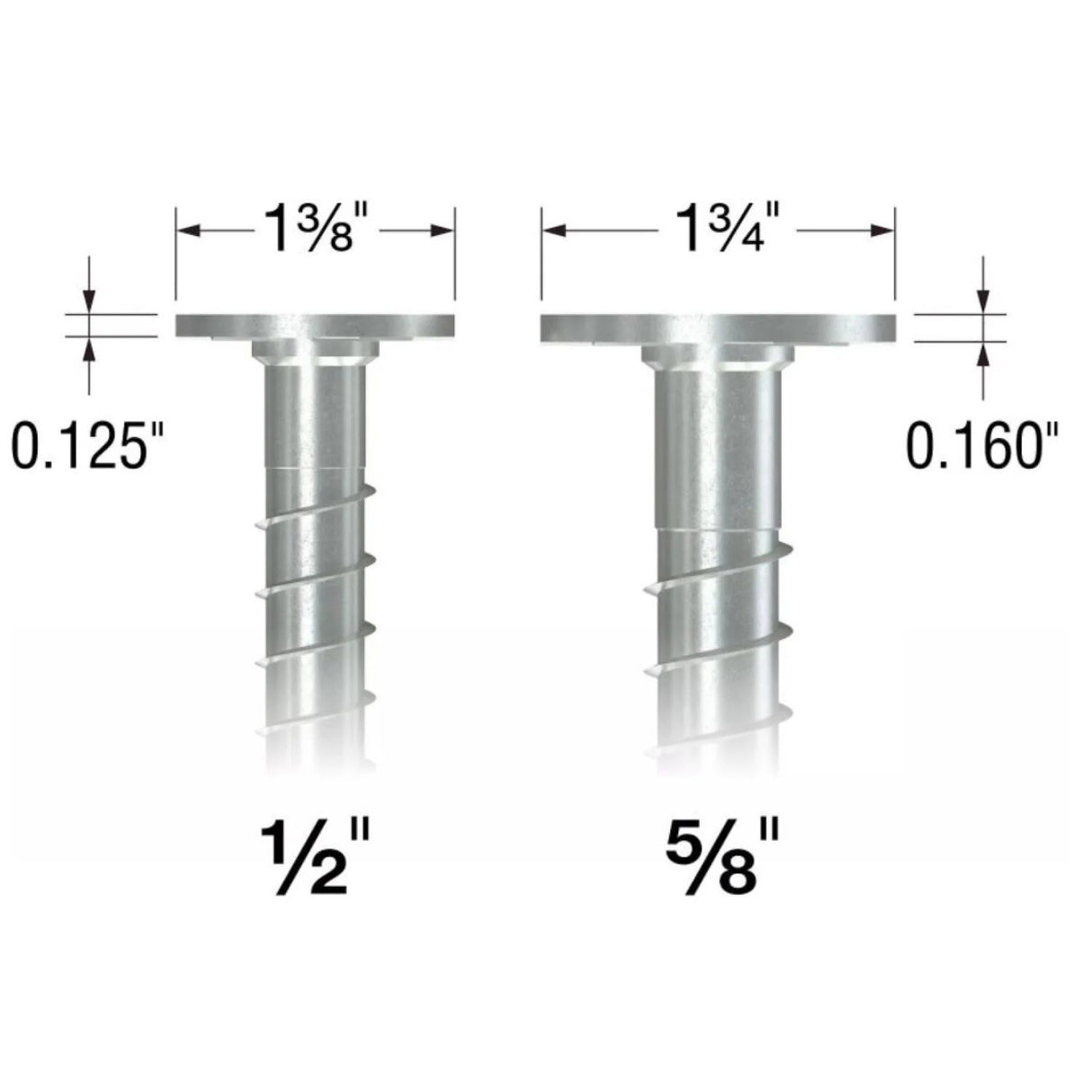

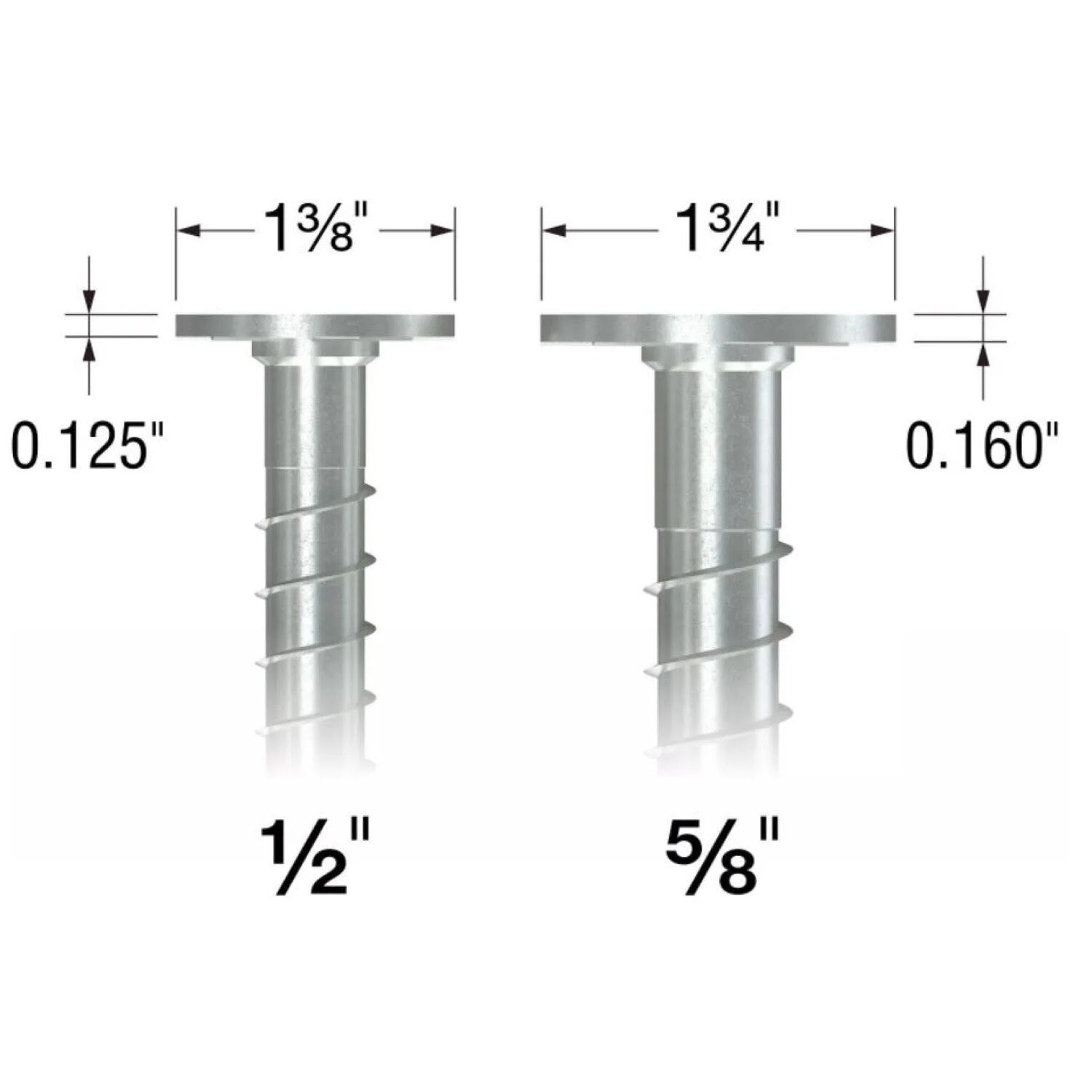

- Washer head allows screw anchor applications incompatible with a hex head
Simpson Strong-Tie THDB62600WH Applications
- Concrete anchoring for cracked and uncracked surfaces
- Masonry anchoring
- Sill plate applications
- Modular wall and floor systems
Simpson Strong-Tie THDB62600WH Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.
Simpson Strong-Tie THDB62600WH Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 5/8 in. |
| Length | 6 in. |
| Drill Bit Size | 5/8 in. |

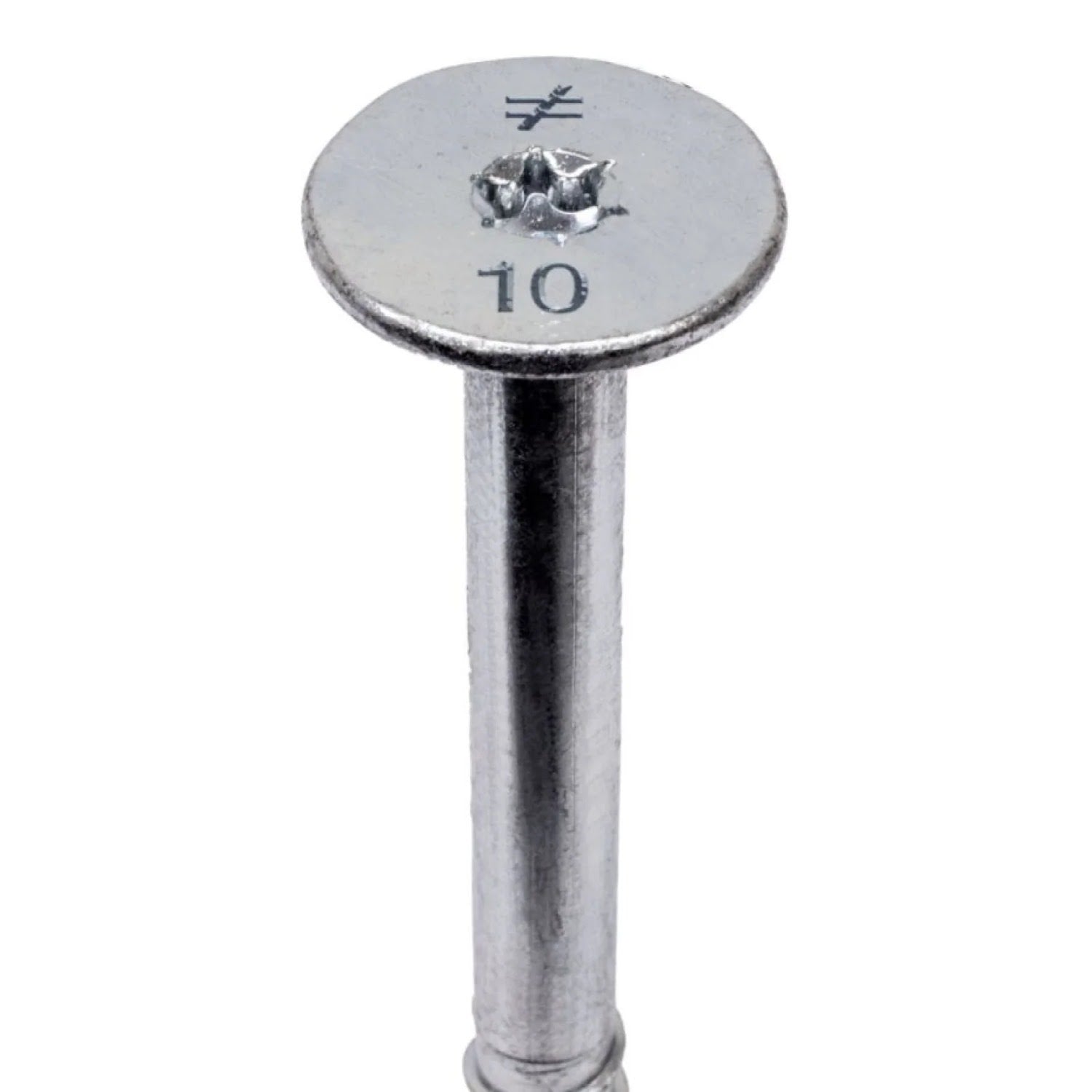

| Drive Type | T60 6-Lobe |
| Fixture Hole Size | 3/4 in. - 13/16 in. |
| Head Type | Washer Head |
| Quantity | 10 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
