Simpson Anchors | SKU:
THDB62600WHMG

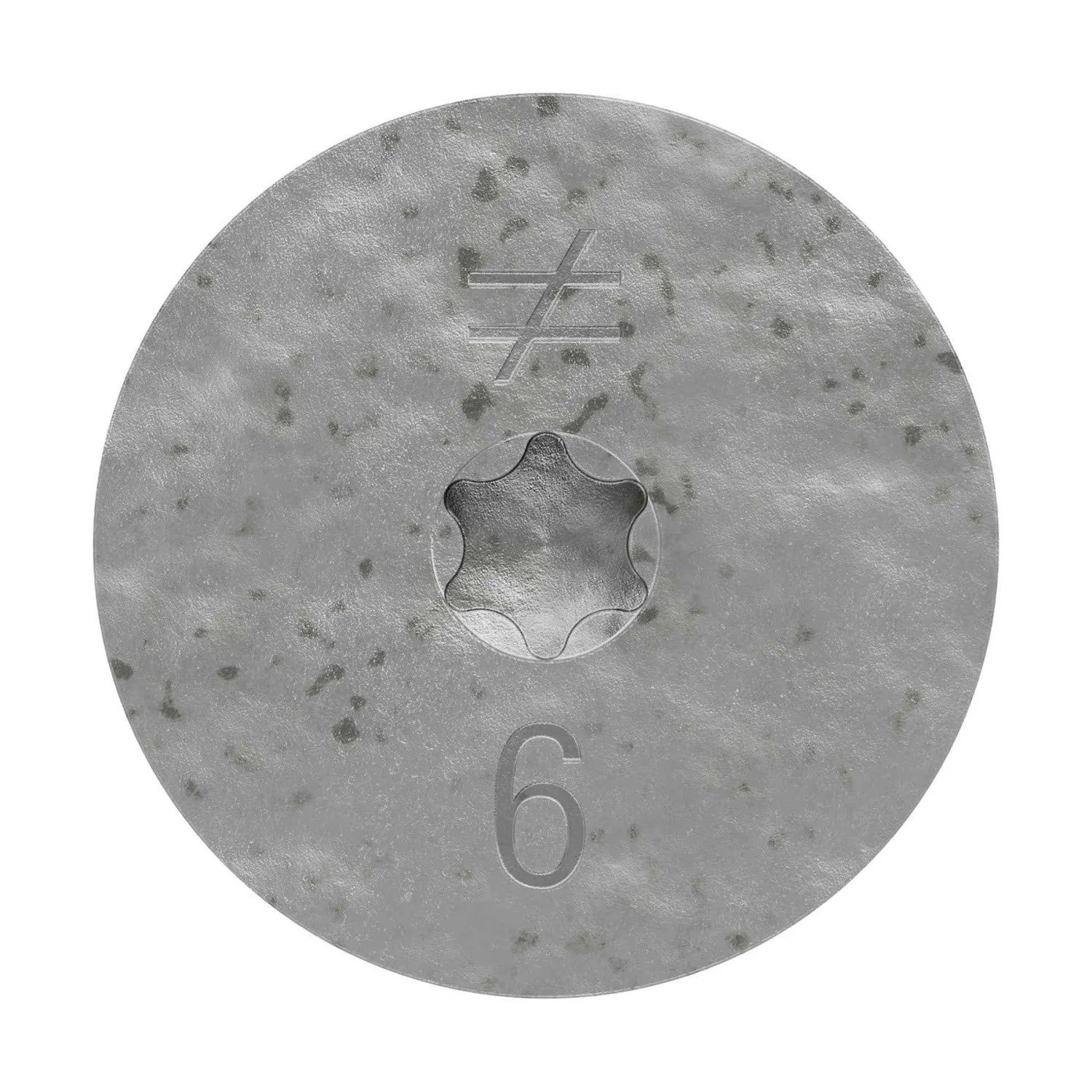

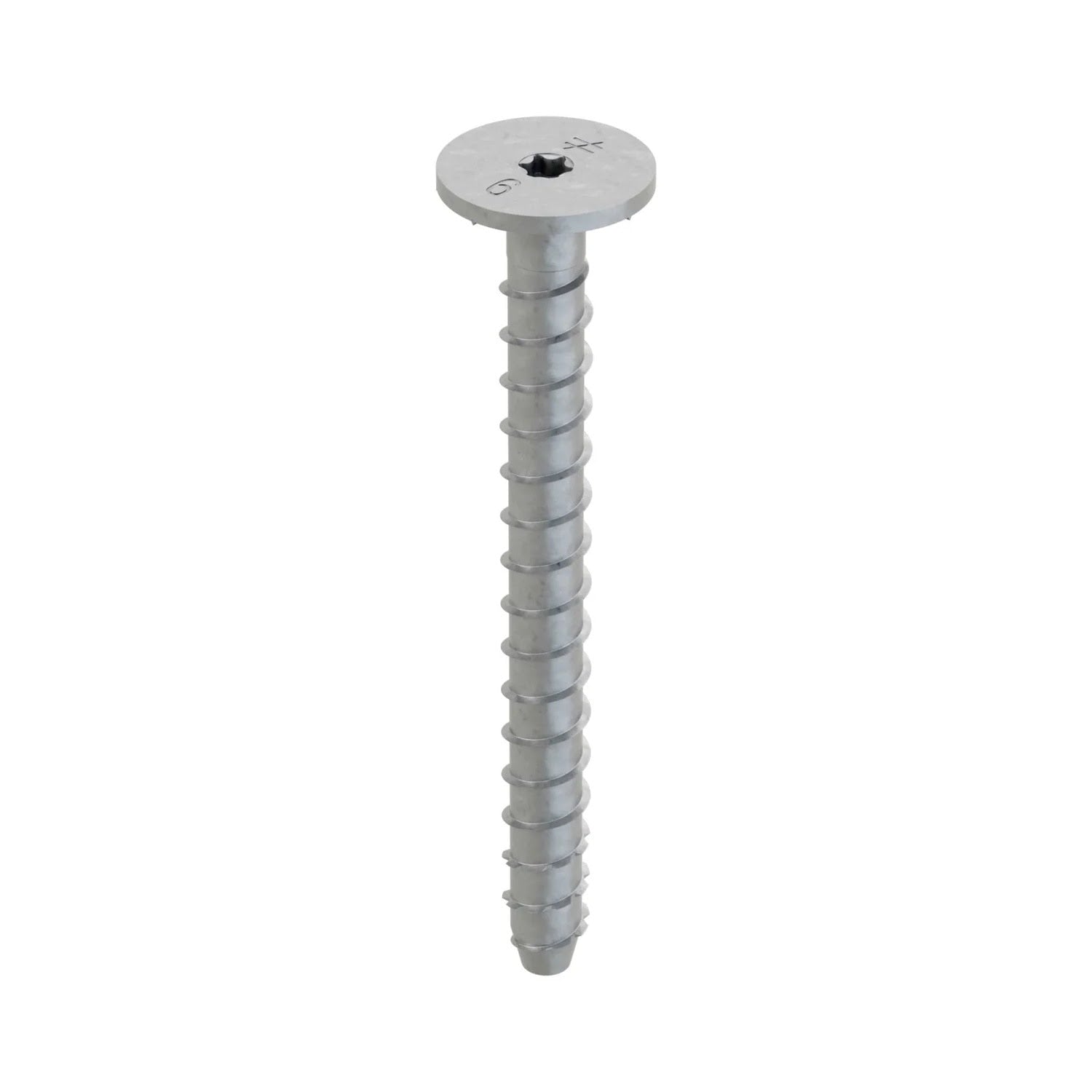

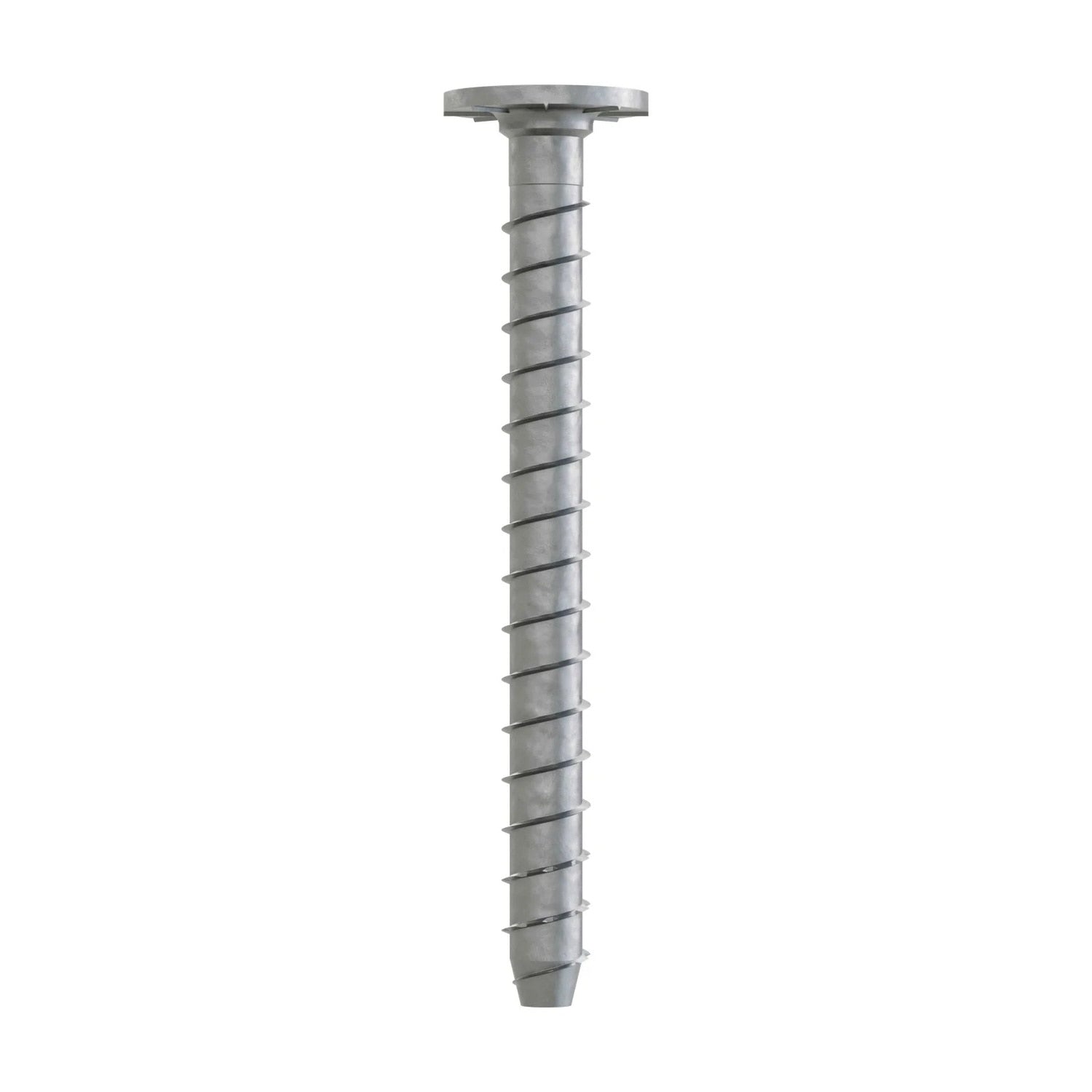

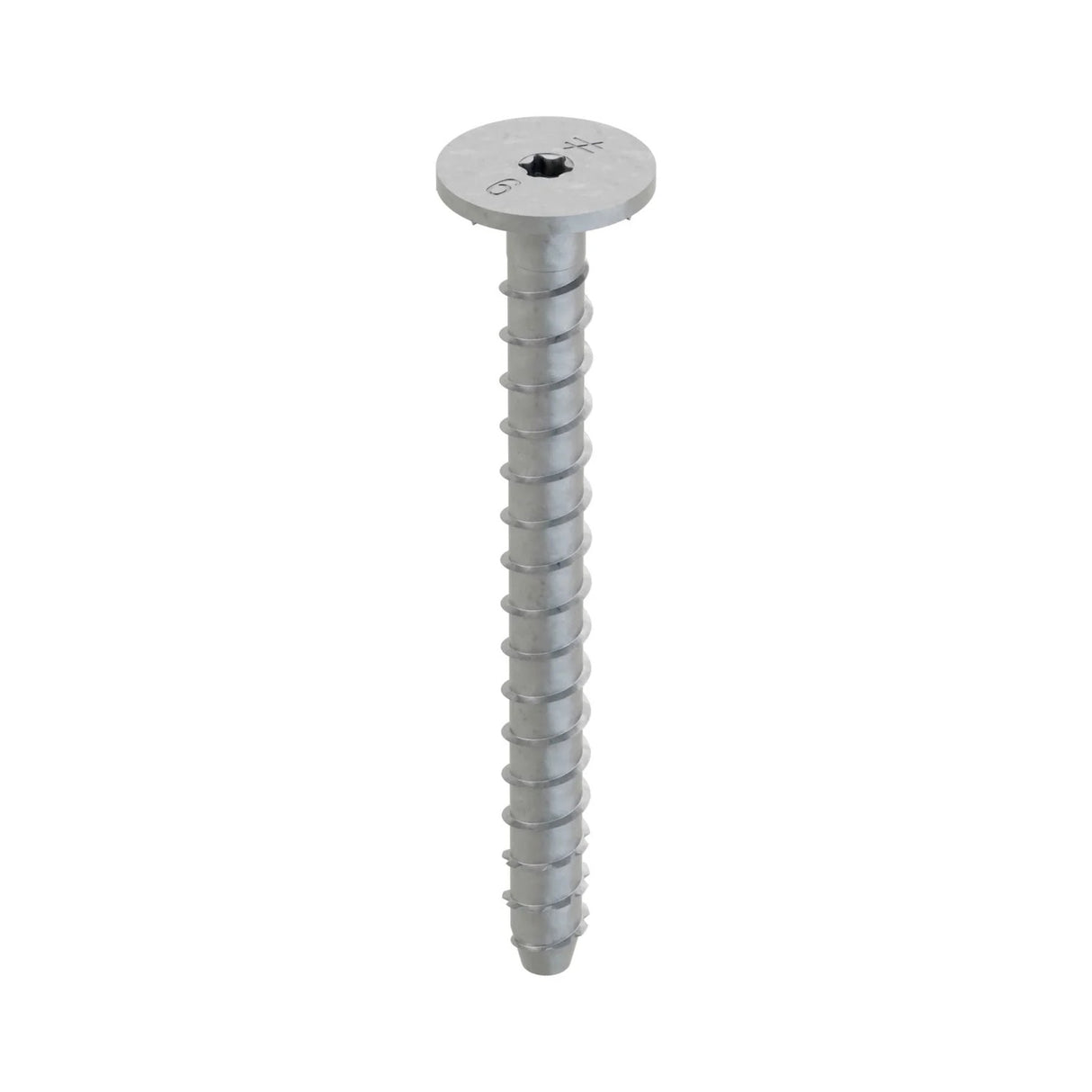

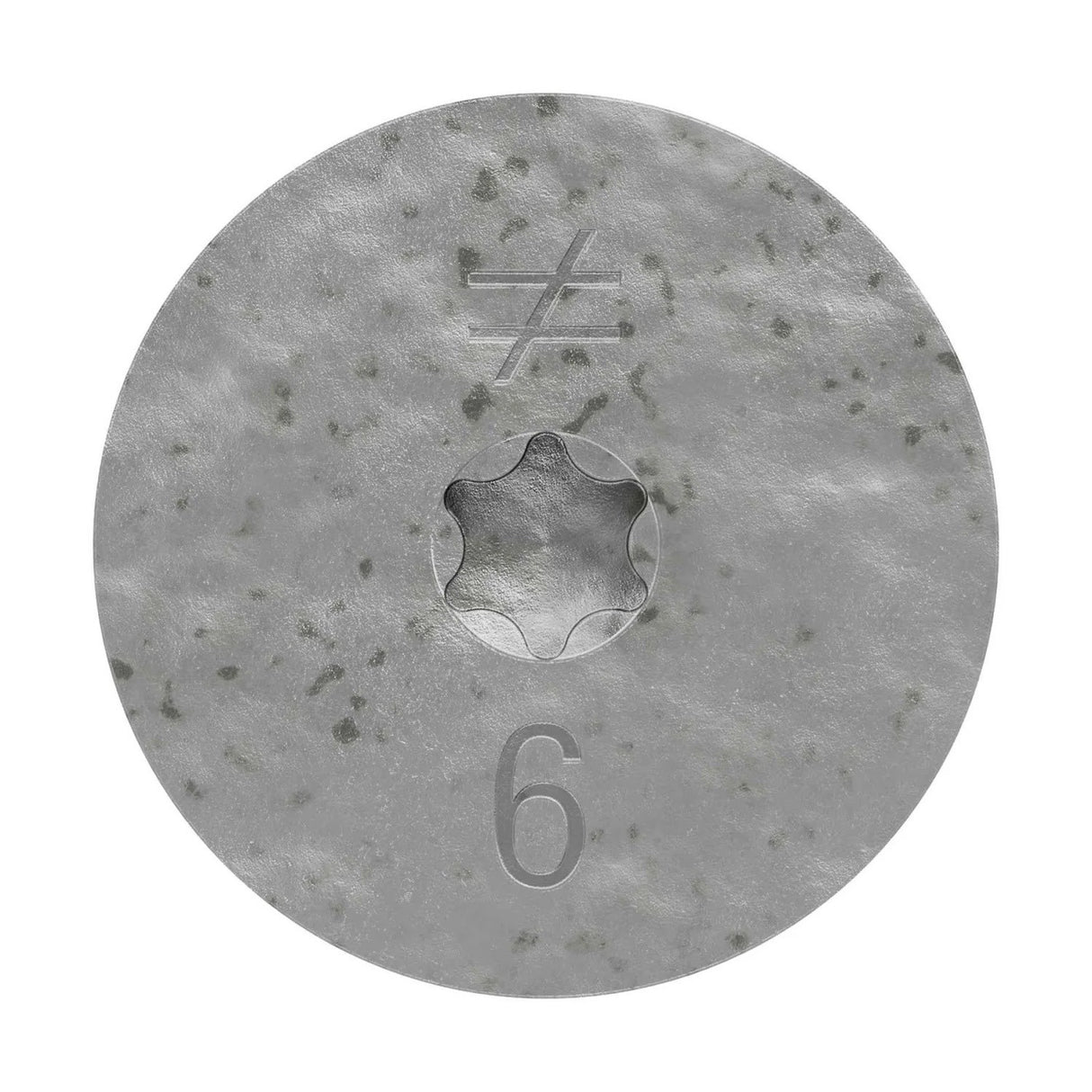

Simpson Strong-Tie THDB62600WHMG Titen HD (5/8" x 6") Mechanically Galvanized Washer-Head HD Screw Anchor (10 Pack)
$94.42
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THDB62600WHMG Description
Titen HD screw anchors are high-strength anchors designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson Strong-Tie THDB62600WHMG Includes
- (10) 5/8 in. x 6 in. Mechanically Galvanized Washer-Head Heavy-Duty Screw Anchor
- (1) 1/2-in. socket adapter
- (2) T-drive bits
Simpson Strong-Tie THDB62600WHMG Features
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete
- Standard fractional sizes — the hole size matches the anchor size
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- Washer head allows screw anchor applications incompatible with a hex head
- Mechanically galvanized Titen HD is code listed for exterior applications
Simpson Strong-Tie THDB62600WHMG Applications

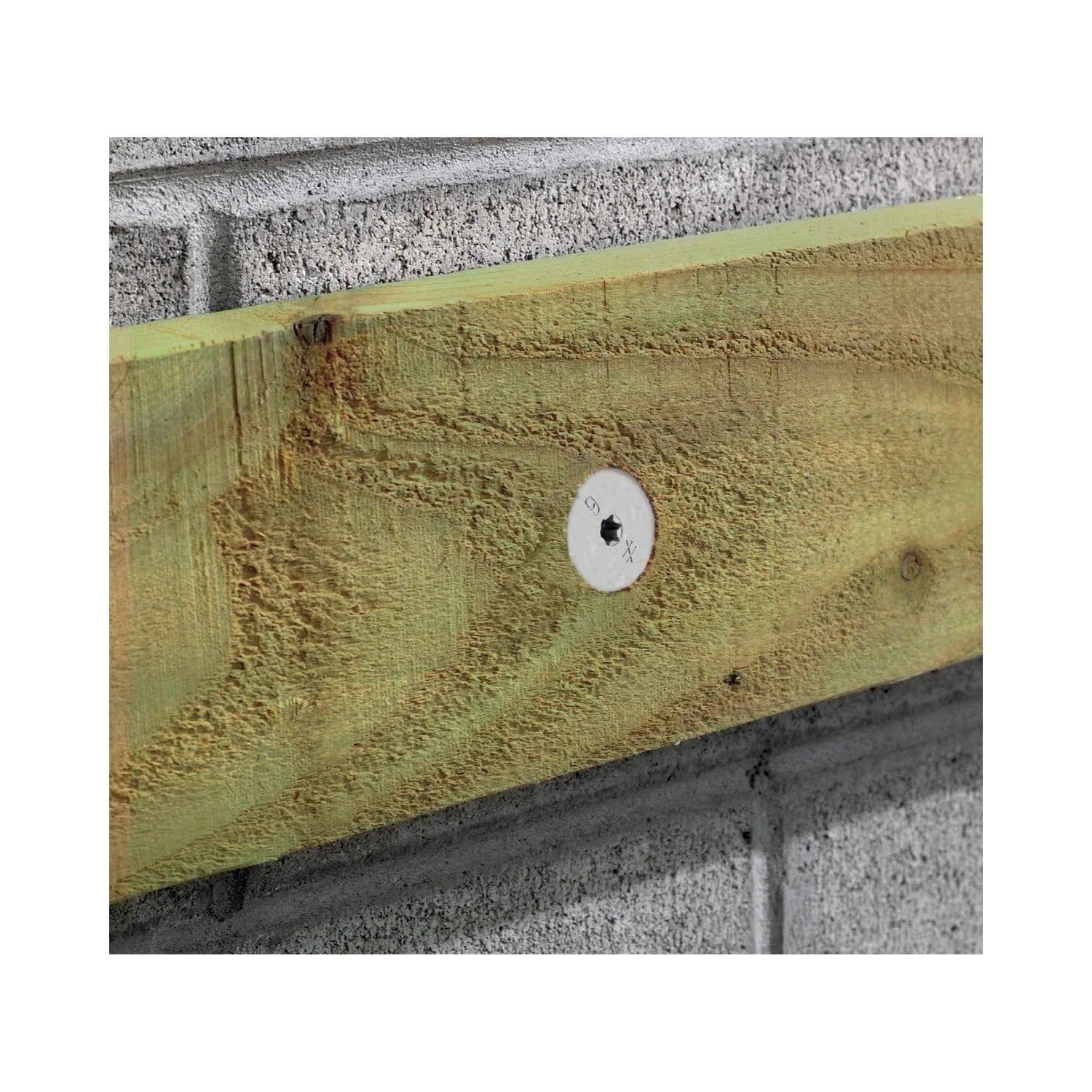

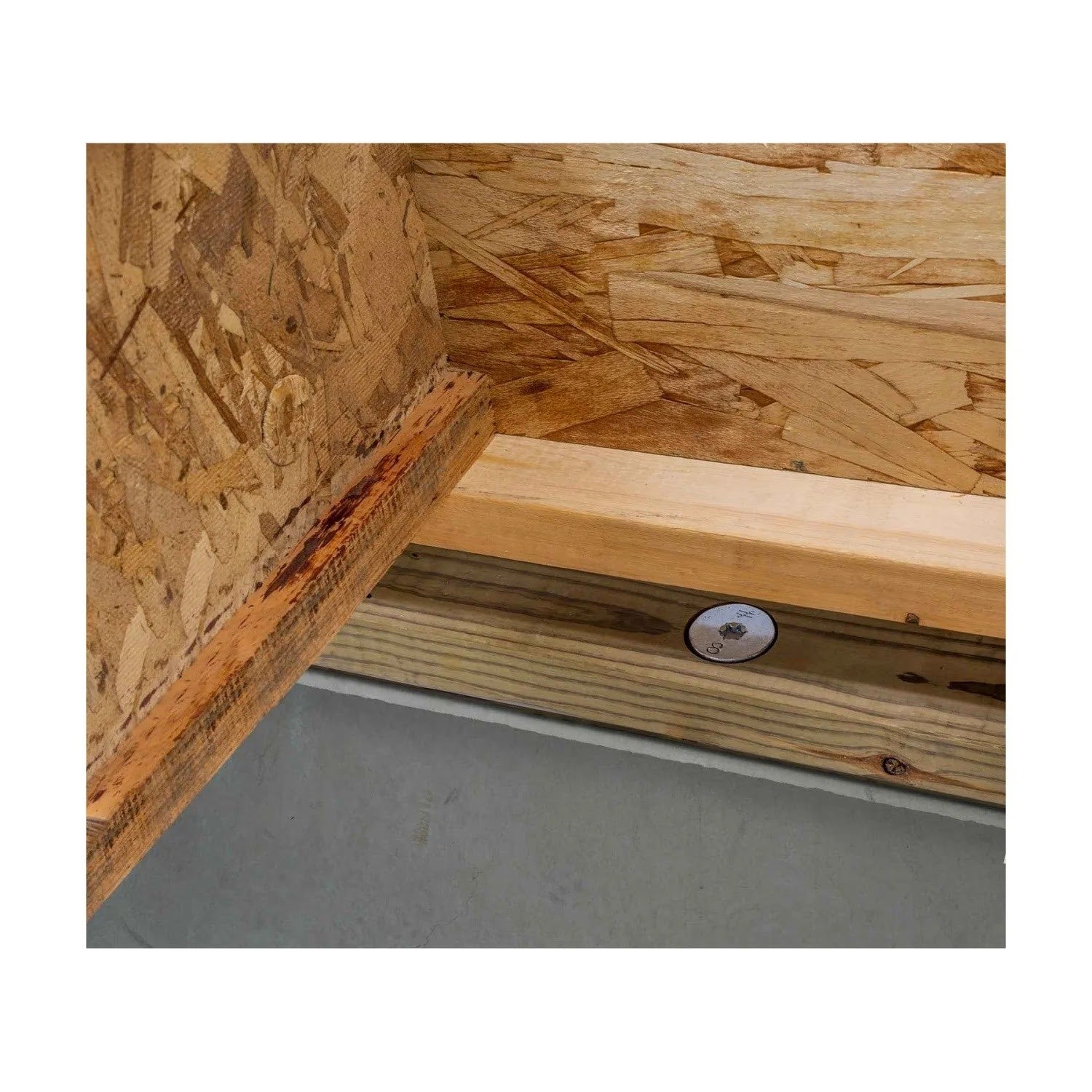

- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring for fixtures that may need to be moved
- Exterior applications requiring mechanically galvanized anchors
Simpson Strong-Tie THDB62600WHMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the washer head contacts the fixture.

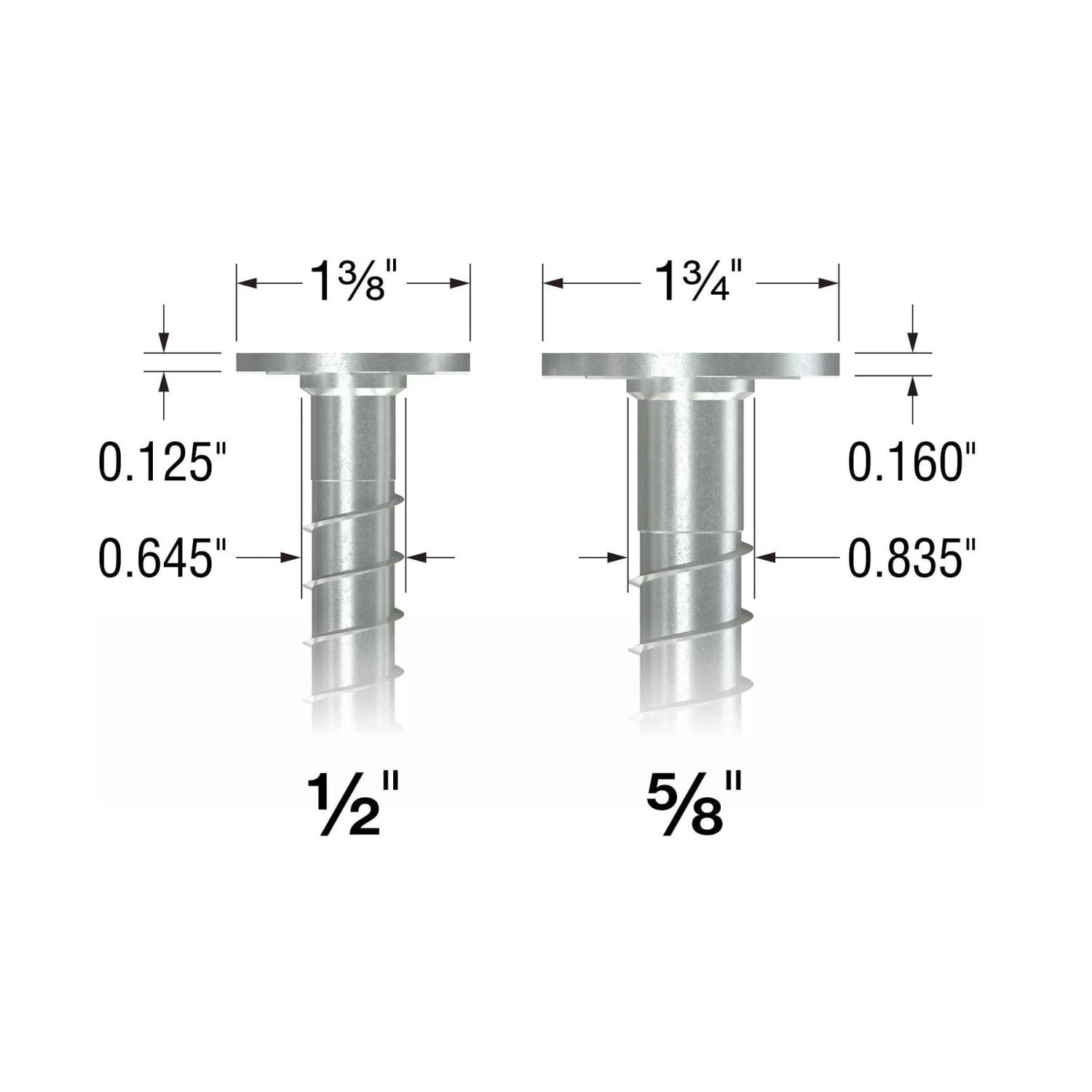

Simpson Strong-Tie THDB62600WHMG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Length | 6 in. |
| Diameter | 5/8 in. |
| Drill Bit Size | 5/8 in. |
| Drive Type | T60 Star Drive |
| Fixture Hole Size | 15/16 in. to 1 in. |
NOTE: For permanent applications, use a Titen HD one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
