Simpson Anchors | SKU:
THDB62612H

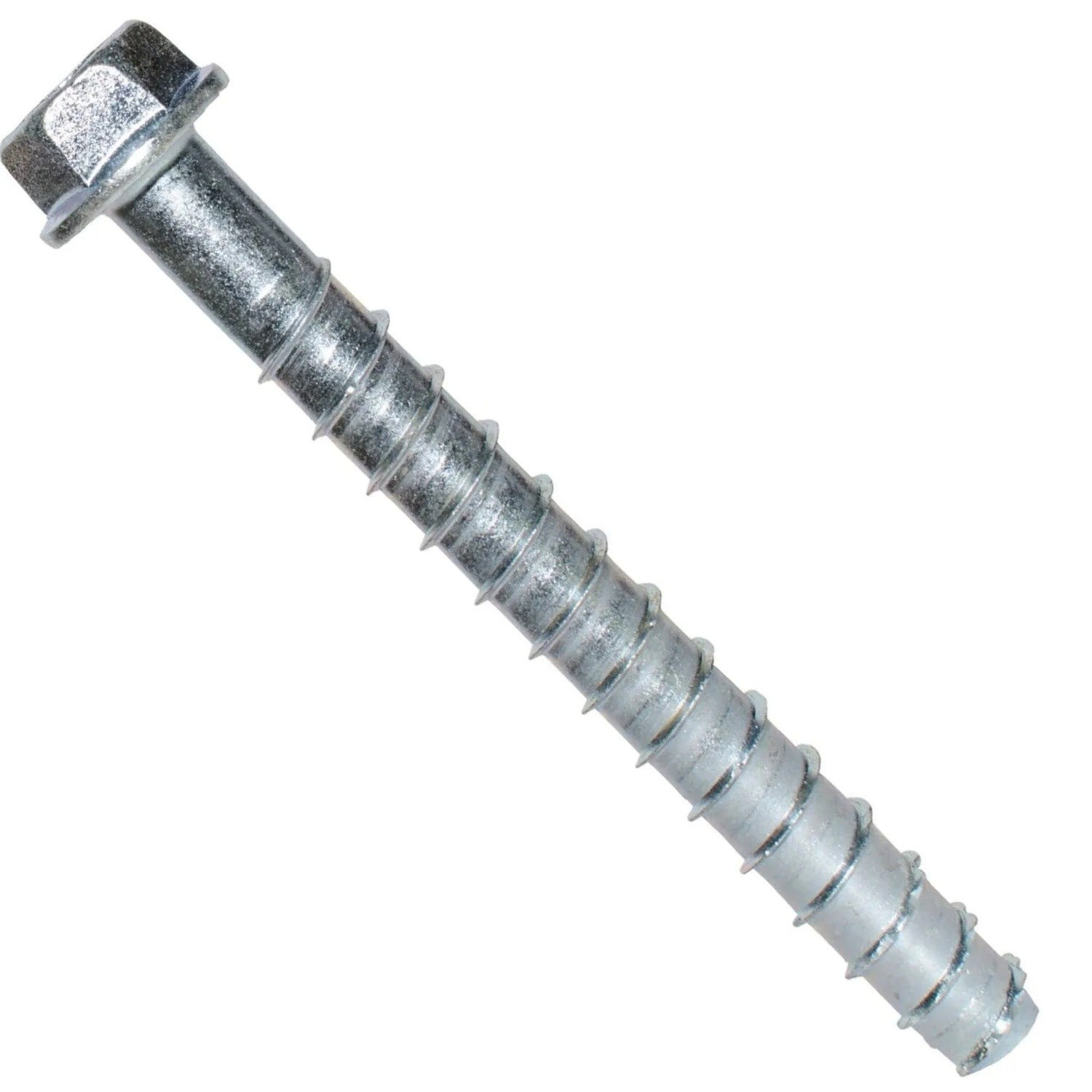

Simpson Strong-Tie THDB62612H Titen HD (5/8" x 6-1/2") Heavy-Duty Screw Anchor - Zinc Plated (10 Pack)
$39.35
$47.15
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson THDB62612H Description
Titen HD Screw Anchors are high-strength anchors designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson THDB62612H Includes
- (10) 5/8" x 6-1/2" Titen HD Screw Anchor
Simpson THDB62612H Features
- High-strength design for reliable performance
- Patented thread design with serrated cutting teeth for easy installation
- Zinc-plated for use in dry, interior, and non-corrosive environments
- Code listed by ICC-ES for cracked and uncracked concrete applications
Simpson THDB62612H Applications
- Concrete anchoring in cracked and uncracked concrete
- Dry, interior environments
- Temporary outdoor applications

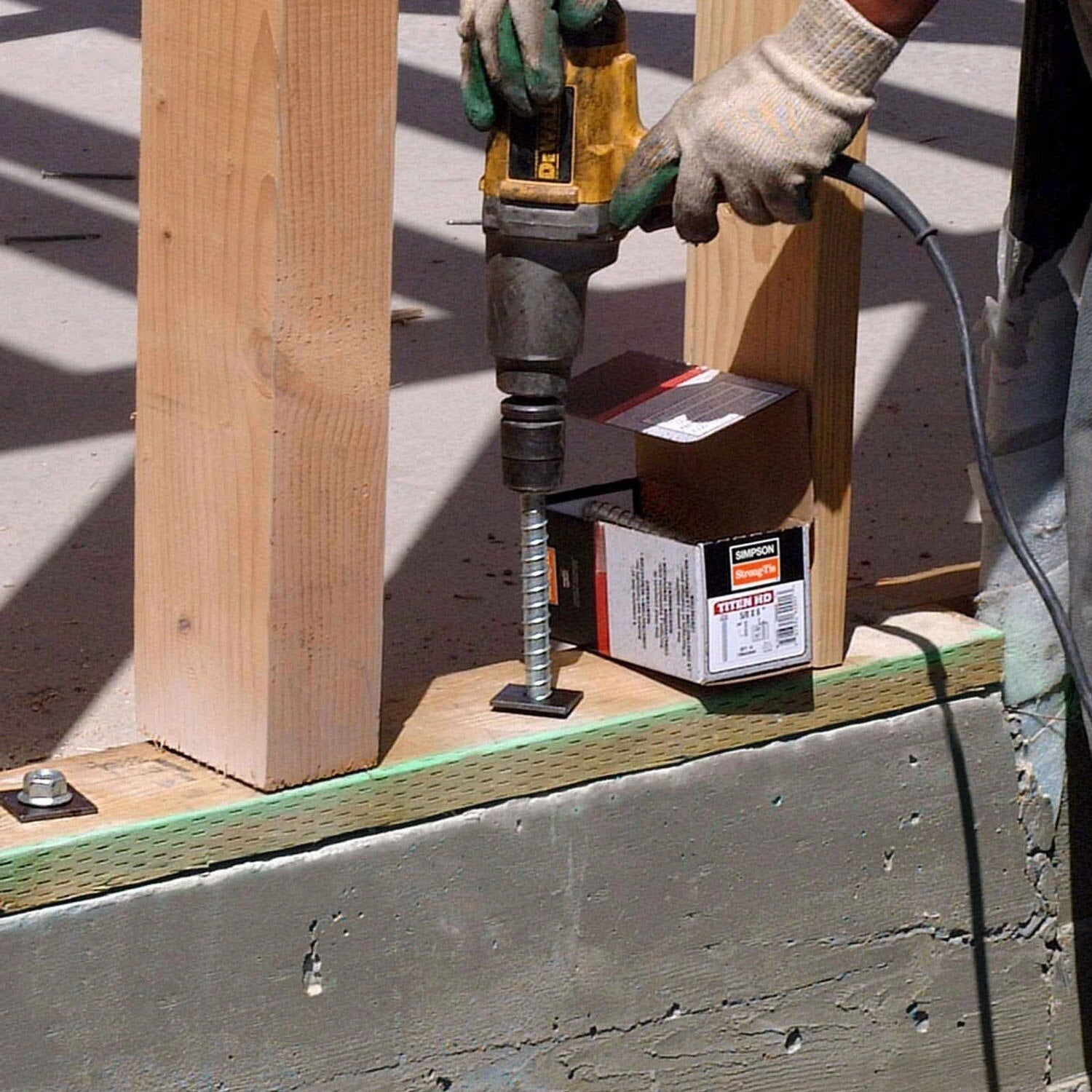

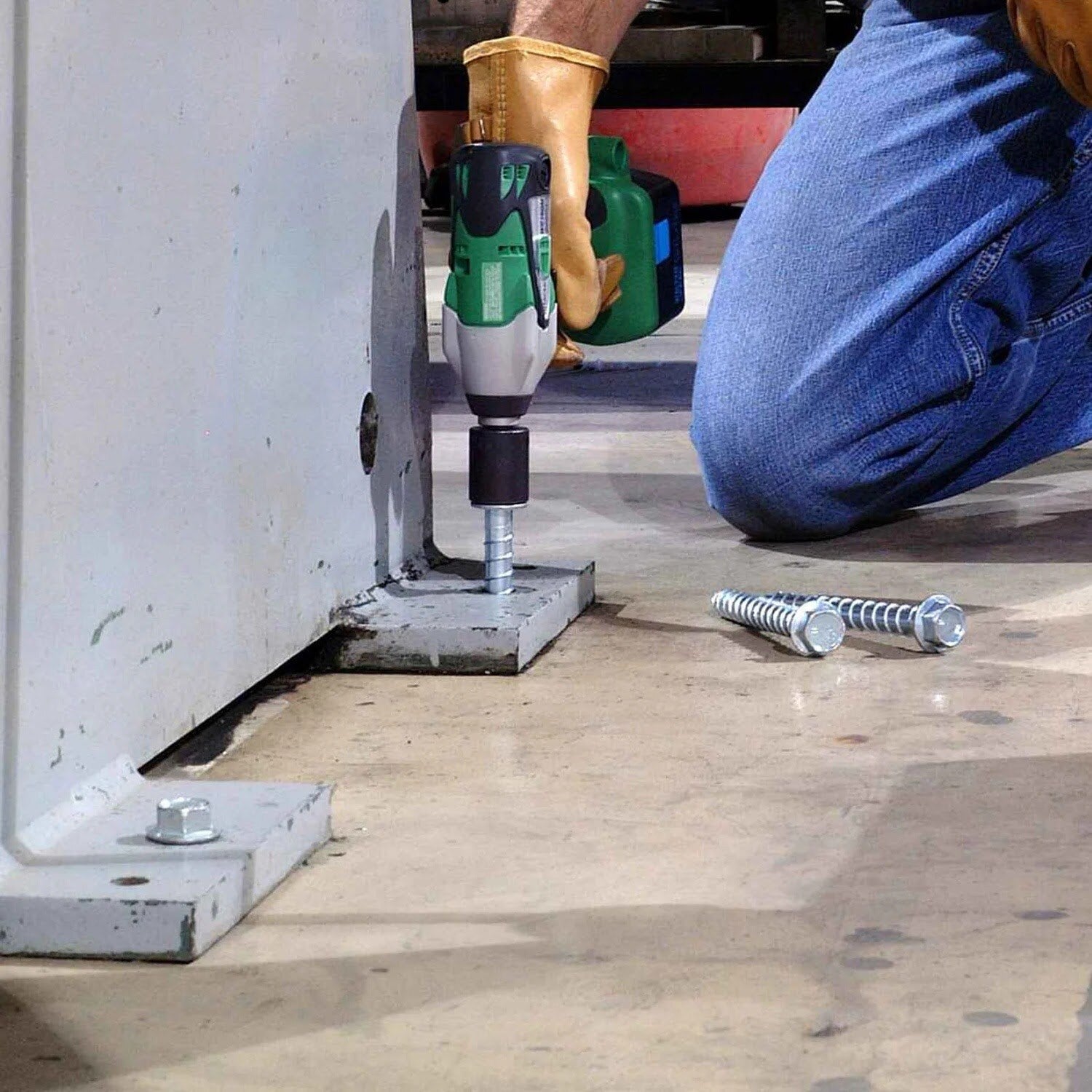

Simpson THDB62612H Installation Overview
- Drill a hole in the base material using a drill bit matching the anchor diameter.
- Clean the hole with compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor bolt until the hex-washer head contacts the fixture.
Simpson THDB62612H Specifications
| Diameter | 5/8" |
| Finish | Zinc |
| Length | 6-1/2" |
| Drill bit size | 5/8" |
| Drive type | 15/16" Hex |
| Fixture hole size | 3/4"-13/16" |
| Head type | Hex Head |
| Material | Carbon Steel |
| Quantity | 10 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
