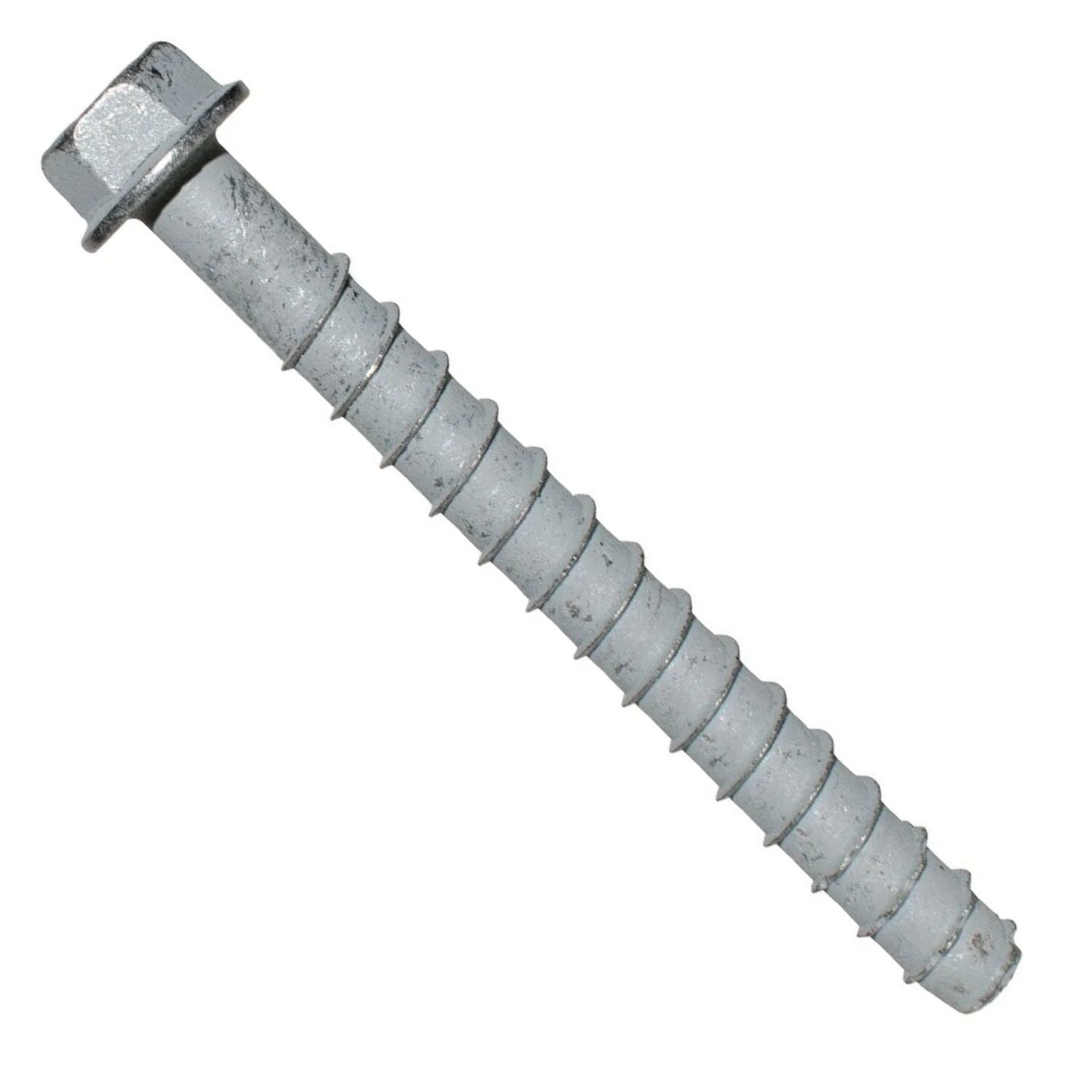

Simpson Strong-Tie THDB62612HMGF1 Titen HD (5/8" x 6-1/2") Mechanically Galvanized Heavy-Duty Screw Anchor

Simpson THDB62612HMGF1 Features

• Head-stamped for easy identification

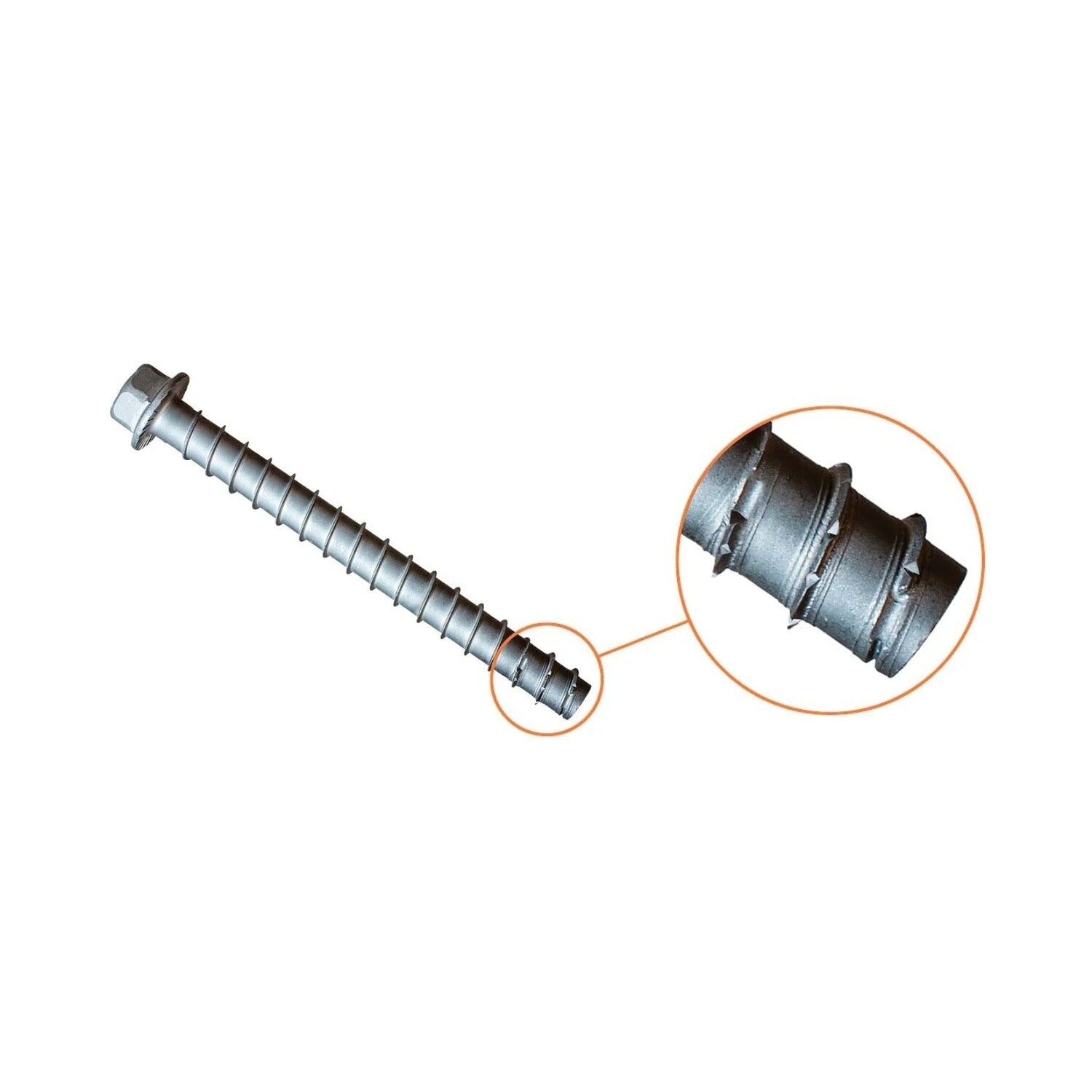

• Serrated teeth on the tip facilitates cutting and reduces installation torque
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes, hole size equals anchor size
• Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
• Hex washer head requires no separate washer, unless required by code
• Fully and easily removable
• Code listed for exterior applications

Simpson THDB62612HMGF1 Applications

• Anchorage Solutions: Ideal for securing fixtures to concrete and masonry surfaces.
• Temporary Applications: Easily removable for temporary anchoring needs.
• Pressure-Treated Wood Applications: Suitable for interior pressure-treated wood sill plates.

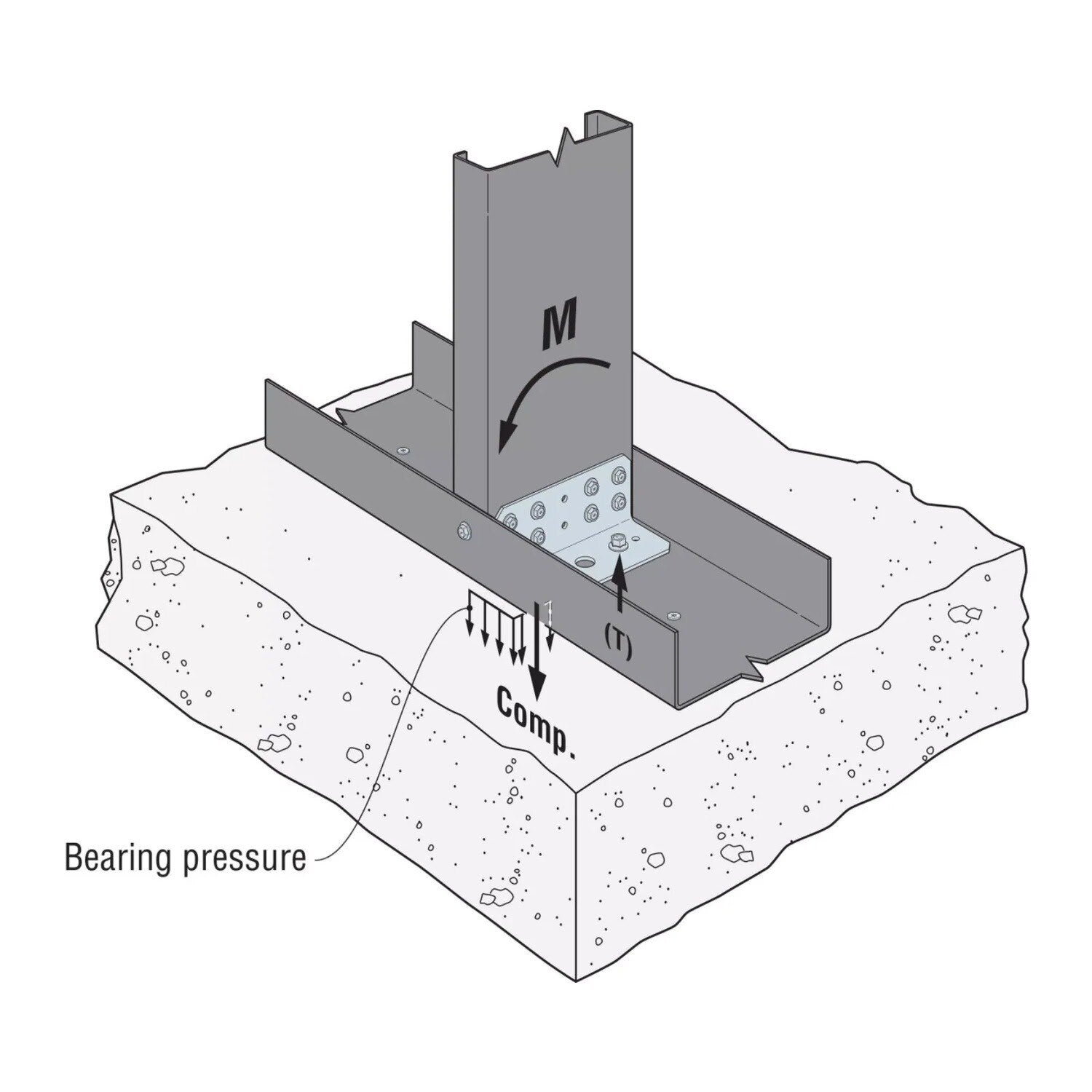

• Structural Applications: Used in sill plates, ledgers, post bases, seating, and holdown applications.

Simpson THDB62612HMGF1 Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Insert the anchor through the fixture and into the hole.
3. Tighten the anchor into the base material until the hex-washer head contacts the fixture.
